[Bug]: the perf is much lower than mysql for batch insert of tpcc data

[aressu1985]

trafficstars

Is there an existing issue for the same bug?

• [X] I have checked the existing issues.

Environment

- Version or commit-id (e.g. v0.1.0 or 8b23a93):0.6.0
- Hardware parameters:
- OS type:
- Others:

Actual Behavior

run load data of 1 warehouse to mo through benchbase tools, but the cost is very different.

mysql is about 80s，but mo is more than 1 hour

Expected Behavior

No response

Steps to Reproduce

No response

Additional information

No response

[daviszhen]

provide some cases

[florashi181]

first, profiling it ~ @jianwan0214

[YANGGMM]

Still working on it.

[YANGGMM]

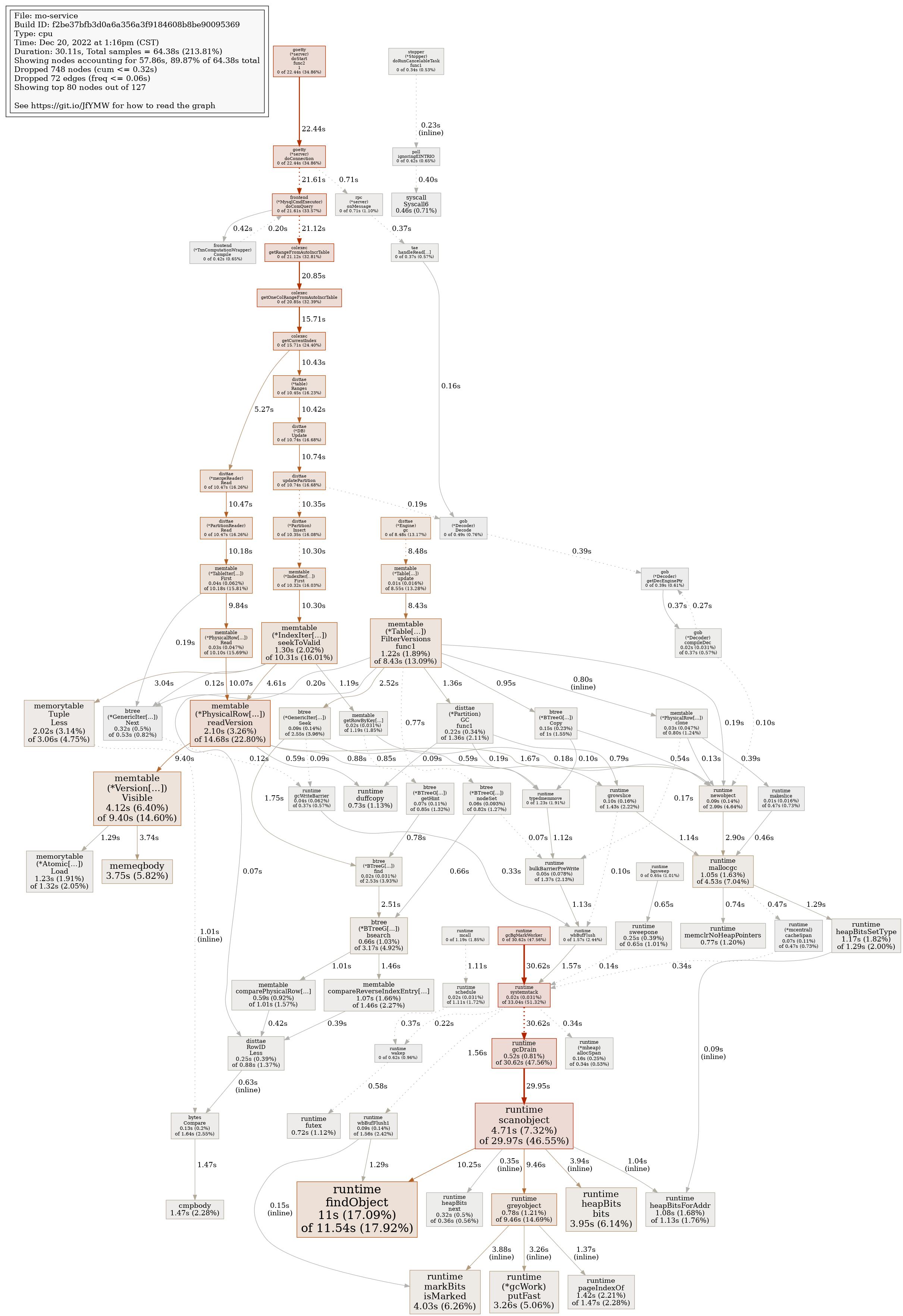

Have finished profiling with the help of @jianwan0214 as

[florashi181]

so what's the action or suggestion next? @YANGGMM @jianwan0214

[fengttt]

Please ping @LeftHandCold to see if this is the logging issue. @xzxiong may have fixed it.

[YANGGMM]

Please ping @LeftHandCold to see if this is the logging issue. @xzxiong may have fixed it.

ok

[xzxiong]

brief:

1. after running load 2 min, gc cost much
2. after running laod 12 min, txnbase cost much

---

dev: dev1 run: ./mo-service -debug-http 127.0.0.1:8123 -allocs-profile ./allocs.profile -launch ./etc/launch-tae-logservice/launch.toml test case:

1. clone https://github.com/aressu1985/mo-tpcc
2. startup mo
3. init schema

mysql> create database tpcc;
mysql>  use tpcc;
mysql> source /path/to/mo-tpcc/sql/tableCreates_pk.sql

5. exec load

$ cd /path/to/mo-tpcc
$ mkdir data
$ sh ./runLoader.sh props.mo warehouse 1

6. gen cpu profile PPROF_TMPDIR="./tmpdir" go tool pprof http://localhost:8123/debug/pprof/profile

• after running load 2 minutes pprof.mo-service.samples.cpu.001.pb.gz

• after running 12 minutes pprof.mo-service.samples.cpu.002.pb.gz

[xzxiong]

load run 26 min

[2022-11-09 22:43:16] init load
mkdir: cannot create directory 'data': File exists
Starting BenchmarkSQL LoadData

props.mo
driver=com.mysql.cj.jdbc.Driver
conn=jdbc:mysql://127.0.0.1:6001/tpcc?characterSetResults=utf8&continueBatchOnError=false&useServerPrepStmts=true&alwaysSendSetIsolation=false&useLocalSessionState=true&zeroDateTimeBehavior=CONVERT_TO_NULL&failoverReadOnly=false&serverTimezone=Asia/Shanghai&enabledTLSProtocols=TLSv1.2&useSSL=false
user=dump
password=***********
warehouses=1
loadWorkers=4
fileLocation (not defined)
csvNullValue (not defined - using default '')

Worker 000: Loading ITEM
Worker 001: Loading Warehouse      1
Worker 000: Loading ITEM done
Worker 001: Loading Warehouse      1 done
[2022-11-09 23:09:28] done load

[YANGGMM]

@LeftHandCold plz have a look.

[LeftHandCold]

I will debug this issue in the next two days

[YANGGMM]

@LeftHandCold How's it going？

[YANGGMM]

still working on it

[jiangxinmeng1]

tae-logservice and CN-DN are in different path. CN-DN doesn't collect deletes in that way.

startup mo with CN-DN

[jiangxinmeng1]

In CN-DN, memtable.(*Version[...]).Visible cost much

[XuPeng-SH]

brief:

1. after running load 2 min, gc cost much
2. after running laod 12 min, txnbase cost much

dev: dev1 run: ./mo-service -debug-http 127.0.0.1:8123 -allocs-profile ./allocs.profile -launch ./etc/launch-tae-logservice/launch.toml test case:

1. clone https://github.com/aressu1985/mo-tpcc
2. startup mo
3. init schema

mysql> create database tpcc;
mysql>  use tpcc;
mysql> source /path/to/mo-tpcc/sql/tableCreates_pk.sql

5. exec load

$ cd /path/to/mo-tpcc
$ mkdir data
$ sh ./runLoader.sh props.mo warehouse 1

6. gen cpu profile PPROF_TMPDIR="./tmpdir" go tool pprof http://localhost:8123/debug/pprof/profile

• after running load 2 minutes pprof.mo-service.samples.cpu.001.pb.gz

• after running 12 minutes pprof.mo-service.samples.cpu.002.pb.gz

We're investigating CN-DN deployment and what you post is a standalone deployment.

[reusee]

I did the following:

start mo-service with:

./mo-service -launch etc/launch-tae-CN-tae-DN/launch.toml -debug-http :9876 2>&1 | tee -i log.txt

load schema with:

create database tpcc;
use tpcc;
source /Users/reus/matrixorigin/mo-tpcc/sql/tableCreates.sql;

load data with:

./runLoader.sh props.mo warehouse 1

during the load, fetch the CPU profile with:

 curl 'localhost:9876/debug/pprof/profile?seconds=120' > prof

open the profile with:

go tool pprof -http :6060 prof

[reusee]

I'll try to replace the old mem table with the new implementation in the CN partition cache.

[reusee]

in progress

[reusee]

in progress

[reusee]

in progress

[reusee]

in progress

[reusee]

in progress

[reusee]

on sick leave.

[reusee]

on sick leave.

[reusee]

in progress

[reusee]

in progress

[nnsgmsone]

insert with auto is too heavy, need to find ways to reduce overhead.

[fengttt]

We believe https://github.com/matrixorigin/matrixone/issues/6956 should resolve this issue.

[jianwan0214]

about this part, my work is done with https://github.com/matrixorigin/matrixone/pull/7532
