[BottomNavigationView] The border or shadow cannot be set after BottomNavigationView sets the top bulge

[BraveMomo]

Description: Full description of issue here

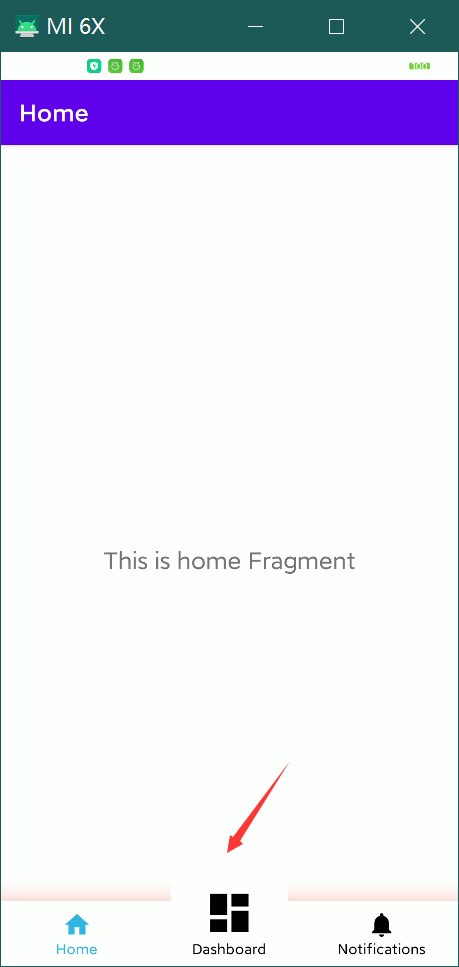

I set the bulge for BottomNavigationView through the setTopEdge method of materialShapeDrawable, because the color of the page is similar to that of BottomNavigationView, so I need to set a border or shadow on top of the control, but I can't set the border or shadow on top of the control normally.

In addition, bottomNavigationView.invalidateOutline () seems to have some effect, but it seems to be only valid on Android12, and the lower version of Android cannot be used.

Expected behavior: Screenshots and/or description of expected behavior

I want the controls to be able to individually shape an edge as well as borders and shadows.

I hope api > = 21 can support similar effects.

Source code: The code snippet which is causing this issue

    val materialShapeDrawable = bottomNavigationView.background as MaterialShapeDrawable
    materialShapeDrawable.shapeAppearanceModel =
    materialShapeDrawable.shapeAppearanceModel
        .toBuilder()
        .setTopEdge(CutoutCircleEdgeTreatment(resources, 70.toFloat(), 10.toFloat()))
        .build()
    val backgroundDrawable =
        MaterialShapeDrawable(materialShapeDrawable.shapeAppearanceModel).apply {
            setTint(Color.WHITE)
            paintStyle = Paint.Style.FILL
            shadowCompatibilityMode = MaterialShapeDrawable.SHADOW_COMPAT_MODE_ALWAYS
            initializeElevationOverlay(this@MainActivity)
            setShadowColor(Color.RED)
            elevation = 100F
        }
    (bottomNavigationView.parent as? ViewGroup)?.clipChildren = false
    bottomNavigationView.background = backgroundDrawable
    bottomNavigationView.invalidateOutline()

class CutoutCircleEdgeTreatment( res: Resources, circleDiameterDp: Float, circleLeftRightOffsetDp: Float ) : EdgeTreatment() {

    private val fabDiameter: Float
    private val offset: Float

    init {
        fabDiameter = TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP,
            circleDiameterDp,
            res.displayMetrics
        )
        offset = TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP,
            circleLeftRightOffsetDp,
            res.displayMetrics
        )
    }

    override fun getEdgePath(
        length: Float,
        center: Float,
        interpolation: Float,
        shapePath: ShapePath
    ) {
        //凸起半径
        val r = length / 10 // == center
        val halfLine = length / 2 - r
        //值越大转角处就越顺滑,但是必须小于等于r，这个大小可以多试试
        val offset = 30f
        //第一部分，直线，画到凹陷开始的地方
        shapePath.lineTo(halfLine - offset, 0f)
        //凸起开始的地方的转角，不处理的话看起来很尖锐
        shapePath.quadToPoint(halfLine, 0f, halfLine + offset, -offset)
        //凸起部分
        shapePath.quadToPoint(center, -r, halfLine + 2 * r - offset, -offset)
        //凸起结束的地方的转角
        shapePath.quadToPoint(halfLine + 2 * r, 0f, halfLine + 2 * r + offset, 0f)

// 最后一部分的直线，画到底 shapePath.lineTo(length, 0f) } }
