Blur on draped lines inconsistent depending on zoom direction

[SnailBones]

From https://github.com/mapbox/mapbox-gl-js/pull/11951#issuecomment-1144637240:

I also noticed an existing "bug" that is more visible now that the reference scale is higher than previously. Draped lines are more blurred around ~1.99 zoom level when approaching from a lower zoom level (e.g. zooming from 0 to 1.99) compared to zooming out (e.g. zooming out from 3 to 1.99).

After a quick investigation I believe this is caused by the function getPixelsToTileUnitsMatrix using transform.zoom for computing the scale which shouldn't be done in draped rendering. While draping the zoom value is either ~1 or ~1.99 depending on direction of the zoom leading to this kind of blurriness. Fixed tile zoom level should be used instead. cc @karimnaaji.

https://user-images.githubusercontent.com/55925868/171596477-5801fd24-059e-4fd7-a490-7c8a49a23205.mp4

@mpulkki-mapbox I'm not able to reproduce this issue, maybe it's specific to one operating system? EDIT: More likely it's just more visible on some screens and I'm having a hard time seeing it.

Trying the approach of fixed tile zoom:

const s = scale * EXTENT / (tile.tileSize * Math.pow(2, tile.tileID.overscaledZ));

Lines become sharper, but we also introduce a sudden jump at each zoom level transition.

https://user-images.githubusercontent.com/14878684/171913001-803916d0-3301-46a4-841c-8bdf745bf25c.mov

cc @karimnaaji

[karimnaaji]

It might be possible that we are not considering a change of line width as a prerequisite to clear off tiles from the terrain render cache. So that while zooming between two zoom levels, we are using a stale zoom here during the entire range [z..z+1[?

[mpulkki-mapbox]

Thanks for looking at the issue @SnailBones! This might be actually caused by the terrain render cache not being cleared as @karimnaaji suggested.

[tjukanovt]

Anything moving related to this issue? As we have been adding more features on lower zoom levels (e.g. roads), the jump is pretty evident between zoom levels, especially between z4 <--> z5 <--> z6

https://user-images.githubusercontent.com/13899537/189281564-60d84b70-54c9-4c34-8a1e-7e6345241ad4.mov

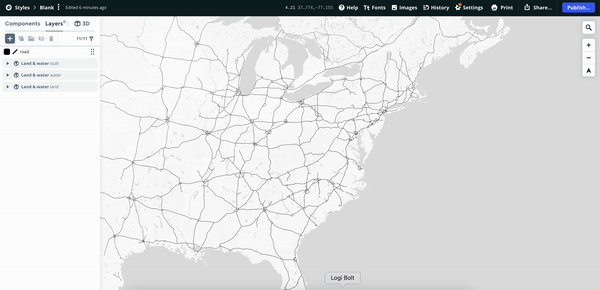

Here's also a link to a style I created which clearly shows the issue. The road lines look very thin on high zooms compared to the globe zoom levels although no zoom expression is used.

[astojilj]

Didn't see similar issues in gl-native for a while. A bit more conservative approach to render caching is done there. it is good to verify this using gl-native build (internal Shell app or SDK) and if backporting would fix this. cc @endanke

[tunayio]

Is there any update on this issue? I'm facing the same issue. Lines get blurry on globe view (left) and 3D terrain. Lines remain sharp with i.e. Mercator projection (right)

https://user-images.githubusercontent.com/111220915/204108081-2b10d62f-5e44-454e-a8bd-9fd1278f785e.mp4

[stepankuzmin]

@karimnaaji I can confirm that clearing the terrain cache makes blurry lines sharp

https://user-images.githubusercontent.com/533564/211612685-10e6ed33-8858-4e12-9983-67fba2f4d3a0.mov

Also, it seems that there is no such issue in gl-native implementation

https://user-images.githubusercontent.com/533564/211616411-f2b0a7e6-7e79-409b-8394-68f52e6a4a68.mov
