New device - Compteur Digital Electric (power meter 1 phase)
I added new device. Please add in a new release.
name: Compteur Digital Electric
primary_entity:
entity: sensor
class: energy
dps:
- id: 17
type: integer
name: sensor
mapping:
- scale: 100
unit: kWh
class: total_increasing
secondary_entities:
- entity: sensor
category: diagnostic
name: Voltage
class: voltage
dps:
- id: 20
name: sensor
type: integer
unit: V
mapping:
- scale: 10
- entity: sensor
category: diagnostic
class: current
name: Current
dps:
- id: 18
name: sensor
type: integer
unit: A
mapping:
- scale: 1000
- entity: sensor
category: diagnostic
class: power
name: Power
dps:
- id: 19
name: sensor
type: integer
unit: W
I have unknow dps:
- entity: sensor
category: diagnostic
name: unknown_21
dps:
- id: 21
name: sensor
type: integer
- entity: sensor
category: diagnostic
name: unknown_22
dps:
- id: 22
name: sensor
type: integer
- entity: sensor
category: diagnostic
name: unknown_23
dps:
- id: 23
name: sensor
type: integer
- entity: sensor
category: diagnostic
name: unknown_24
dps:
- id: 24
name: sensor
type: integer
- entity: sensor
category: diagnostic
name: unknown_25
dps:
- id: 25
name: sensor
type: integer
- entity: sensor
category: diagnostic
name: unknown_26
dps:
- id: 26
name: sensor
type: integer
but it is static and it don't exist in tuya iot portal.
Additional about device - "product_id": "1whdy4a8ypamjloi". I don't add this parameter into my config. You are owner of final product and I think that I should provide maximum information about it for you. Thank you for you time and work!
I would put the unknown dps as extra attributes on the primary entity. It isn't really useful to break them out into individual sensors until you know what they mean. The product id is not currently used, but if known it may be useful in future for unambiguously identifying the config for a device, so the syntax for adding it into the config is already defined:
product:
- id: 1whdy4a8ypamjloi
with optional name: as well, in case multiple devices are covered by one config (the matching product name is intended to override the global name in this case).
I'm sorry. I found mistakes in my file. Please use V2 zip smartpowermeter1_V2.zip The errors were in scale of 2 sensors. Info from IoT: { "result": { "category": "cz", "functions": [], "status": [ { "code": "add_ele", "dp_id": 17, "type": "Integer", "values": "{"unit":"kwh","min":0,"max":50000,"scale":3,"step":100}" }, { "code": "cur_current", "dp_id": 18, "type": "Integer", "values": "{"unit":"mA","min":0,"max":70000,"scale":0,"step":1}" }, { "code": "cur_power", "dp_id": 19, "type": "Integer", "values": "{"unit":"W","min":0,"max":9999999,"scale":1,"step":1}" }, { "code": "cur_voltage", "dp_id": 20, "type": "Integer", "values": "{"unit":"V","min":0,"max":5000,"scale":1,"step":1}" } ] }, "success": true, "t": XXX, "tid": "XXX" }
I updated integration. But device was not working. I will need to add my files to device folder. I have not time to undestand the problem. Sorry. Could you please provide name of file which you add? I'll try to check.
You can see the change at the link to the commit above. compteur_energy_meter.yaml was the name of the config file.
Hi @make-all @Der-Nax sorry to bring back a closed issue, I installed this device today, the instant readings work well (voltage, current, power) but the KWh energy sensor always reports 0.1. So I don't get the energy dashboard chart. Am I doing something wrong? Here is my full diagnostics
{
"home_assistant": {
"installation_type": "Home Assistant OS",
"version": "2022.12.8",
"dev": false,
"hassio": true,
"virtualenv": false,
"python_version": "3.10.7",
"docker": true,
"arch": "aarch64",
"timezone": "Europe/Rome",
"os_name": "Linux",
"os_version": "5.15.76-v8",
"supervisor": "2022.12.1",
"host_os": "Home Assistant OS 9.4",
"docker_version": "20.10.19",
"chassis": "embedded",
"run_as_root": true
},
"custom_components": {
"garbage_collection": {
"version": "4.10.2",
"requirements": [
"python-dateutil>=2.8.2"
]
},
"tuya_local": {
"version": "2022.12.1",
"requirements": [
"pycryptodome~=3.16.0",
"tinytuya==1.9.1"
]
},
"hacs": {
"version": "1.29.0",
"requirements": [
"aiogithubapi>=22.10.1"
]
}
},
"integration_manifest": {
"domain": "tuya_local",
"iot_class": "local_polling",
"integration_type": "device",
"name": "Tuya Local",
"version": "2022.12.1",
"documentation": "https://github.com/make-all/tuya-local",
"issue_tracker": "https://github.com/make-all/tuya-local/issues",
"dependencies": [],
"codeowners": [
"@make-all"
],
"requirements": [
"pycryptodome~=3.16.0",
"tinytuya==1.9.1"
],
"config_flow": true,
"is_built_in": false
},
"data": {
"name": "Energy Meter",
"type": "compteur_energy_meter",
"device_id": "**REDACTED**",
"local_key": "**REDACTED**",
"host": "**REDACTED**",
"protocol_version": "auto",
"api_version": 3.3,
"status": {},
"cached_state": {
"updated_at": 1672413714.358312,
"17": 100,
"18": 2170,
"19": 3624,
"20": 2246,
"21": 1,
"22": 581,
"23": 14197,
"24": 7733,
"25": 1344,
"26": 0
},
"pending_state": {},
"home_assistant": {
"name": "Energy Meter",
"name_by_user": null,
"disabled": false,
"disabled_by": null,
"entities": [
{
"disabled": false,
"disabled_by": null,
"entity_category": null,
"device_class": null,
"original_device_class": "energy",
"icon": null,
"unit_of_measurement": "kWh",
"state": {
"entity_id": "sensor.energy_meter",
"state": "0.1",
"attributes": {
"state_class": "total_increasing",
"unknown_21": 1,
"unknown_22": 581,
"unknown_23": 14197,
"unknown_24": 7733,
"unknown_25": 1344,
"unknown_26": 0,
"unit_of_measurement": "kWh",
"device_class": "energy",
"friendly_name": "Energy Meter"
},
"last_changed": "2022-12-30T14:00:24.841513+00:00",
"last_updated": "2022-12-30T14:00:24.841513+00:00"
}
},
{
"disabled": false,
"disabled_by": null,
"entity_category": "diagnostic",
"device_class": null,
"original_device_class": "voltage",
"icon": null,
"unit_of_measurement": "V",
"state": {
"entity_id": "sensor.energy_meter_voltage",
"state": "224.6",
"attributes": {
"state_class": "measurement",
"unit_of_measurement": "V",
"device_class": "voltage",
"friendly_name": "Energy Meter Voltage"
},
"last_changed": "2022-12-30T15:05:24.555261+00:00",
"last_updated": "2022-12-30T15:05:24.555261+00:00"
}
},
{
"disabled": false,
"disabled_by": null,
"entity_category": "diagnostic",
"device_class": null,
"original_device_class": "current",
"icon": null,
"unit_of_measurement": "A",
"state": {
"entity_id": "sensor.energy_meter_current",
"state": "2.17",
"attributes": {
"state_class": "measurement",
"unit_of_measurement": "A",
"device_class": "current",
"friendly_name": "Energy Meter Current"
},
"last_changed": "2022-12-30T15:05:24.556916+00:00",
"last_updated": "2022-12-30T15:05:24.556916+00:00"
}
},
{
"disabled": false,
"disabled_by": null,
"entity_category": "diagnostic",
"device_class": null,
"original_device_class": "power",
"icon": null,
"unit_of_measurement": "W",
"state": {
"entity_id": "sensor.energy_meter_power",
"state": "362.4",
"attributes": {
"state_class": "measurement",
"unit_of_measurement": "W",
"device_class": "power",
"friendly_name": "Energy Meter Power"
},
"last_changed": "2022-12-30T15:05:24.558089+00:00",
"last_updated": "2022-12-30T15:05:24.558089+00:00"
}
}
]
}
}
}
This was my experience with Tuya devices that have an energy reading also. Once they have reported to the cloud, they seem to reset, so you only ever see 0 or 1 on that attribute. So in Home Assistant you will need to set up an integration helper to calculate energy usage from the power reading instead of reading the energy directly from the device.

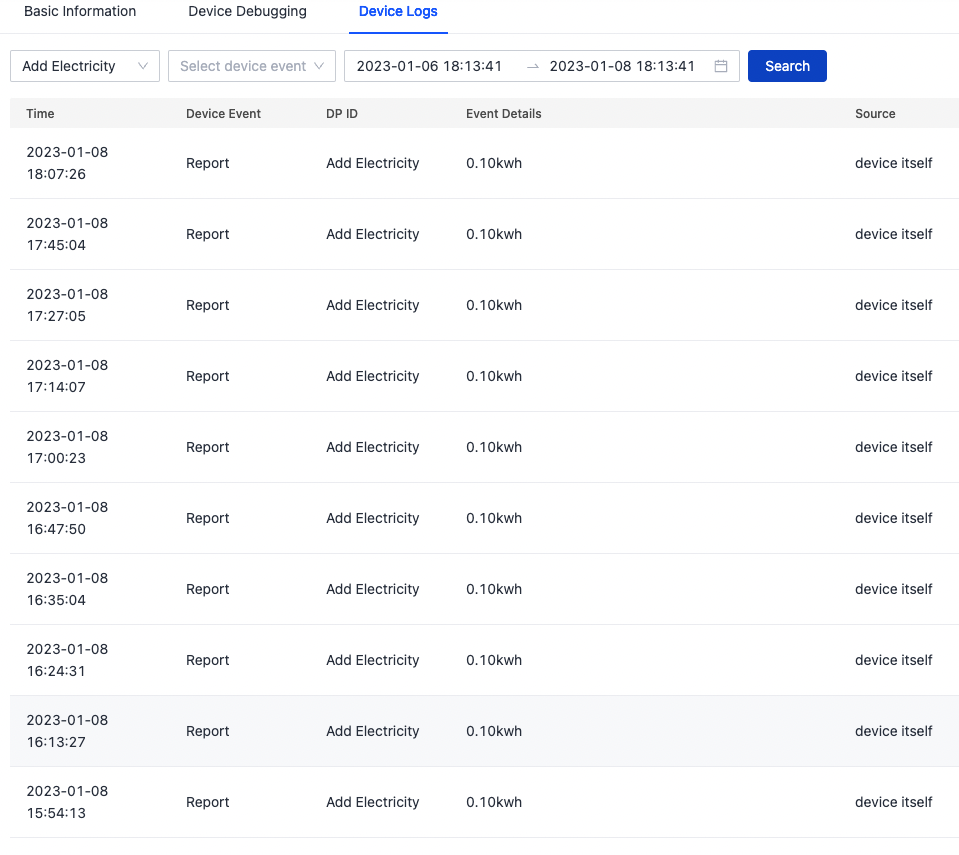

I probably got how it works, fumbling around in the Tuya API explorer I noticed the sensor name is actually "Add electricity" and always returns 0.1. So I think it triggers an event every time the energy consumption increases by 0.1kwh. The correct way to display the energy consumption should be gather all this events and sum them, but I have no idea how to do it in home assistant energy dashboard
