SAGA grib crashes QGIS
Not sure where this tickets belong to: here, Crayfish or QGIS!!
But grib file generated by Crayfish for SAGA flow direction crashes QGIS. Here is the output of mdalinfo:
mdalinfo 0.5.90
Mesh File: flowDir.grb
ERROR: Status 5: Driver: NETCDF: Mesh does not have any valid dataset
Mesh loaded: OK
Driver: GRIB
Vertex count: 37855337
Edge count: 0
Face count: 37842756
Edge count: 0
Projection: GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AXIS["Latitude",NORTH],AXIS["Longitude",EAST],AUTHORITY["EPSG","4326"]]
Datasets loaded: OK
Groups count: 1
(prodType 0, cat 255, subcat 255) [-]

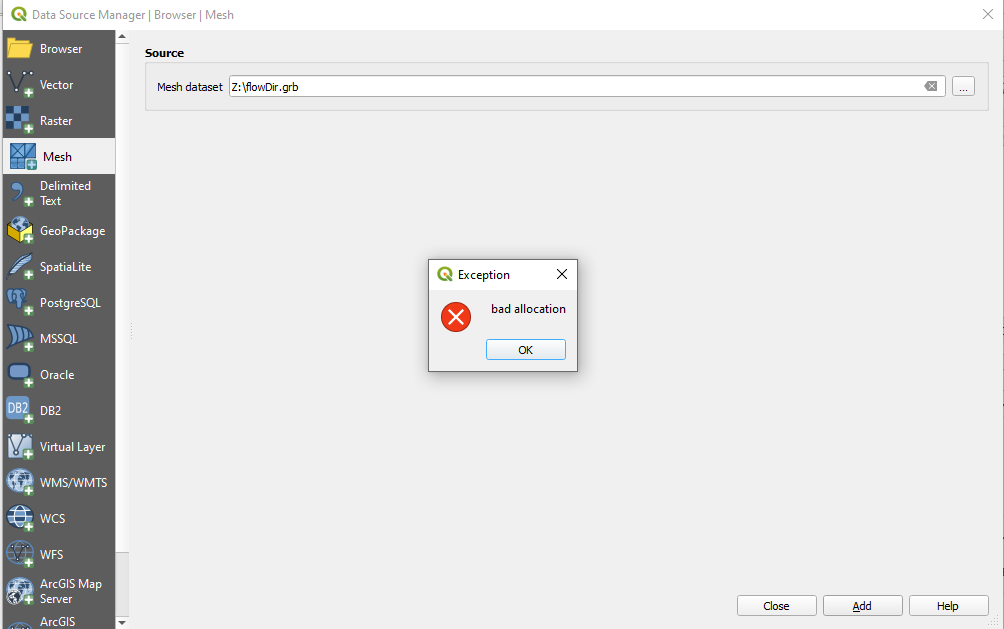

I get this in QGIS 3.10:

Here is a sample output from Crayfish converted SAGA flow direction to GRIB: flowDir.grb.zip

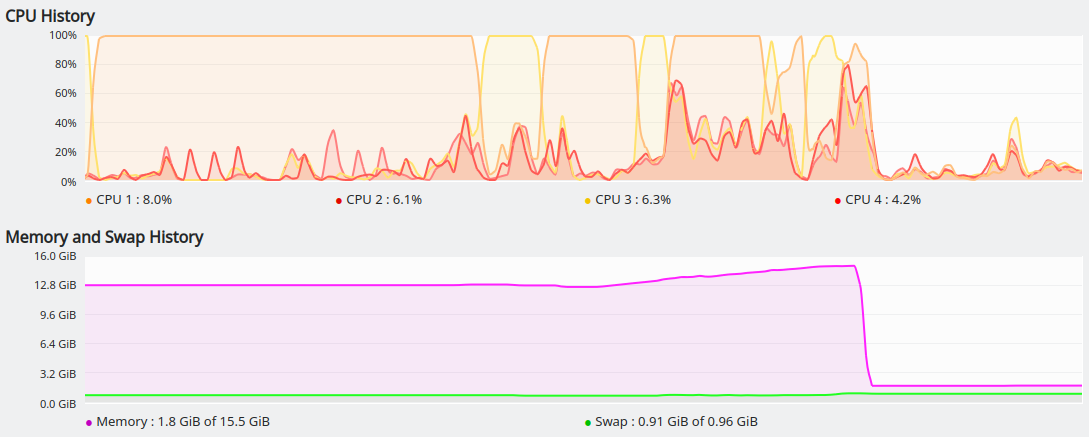

It seems that I ran out of memory just before the crash. The QGIS memory usage was 14 GB for loading the above file (less than 300 mb)!!

@saberraz is this still an issue with 3.16?
