ProfileBinding for Deployment fail to record active workload

Open brness opened this issue 3 years ago • 0 comments

What happened:

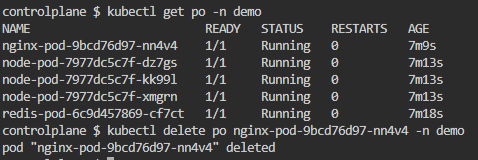

I try to use a profilebinding for the deployment so each of replicas can have a seccomp profile. Here is the step: 1.create seccompprofile in demo namespace image 2.create a nginx deploy in demo namespace image 3.create a profilebinding in demo namespace, which bind the step1 profile with step2 image image 4.delete the nginx pod and the restart one will have the seccompprofile image seccompProfile will record the active workload correctly but profilebinding can not

controlplane $ kubectl describe sp profile1 -n demo
Name:         profile1
Namespace:    demo
Labels:       spo.x-k8s.io/profile-id=SeccompProfile-profile1
Annotations:  <none>
API Version:  security-profiles-operator.x-k8s.io/v1beta1
Kind:         SeccompProfile
Metadata:
  Creation Timestamp:  2022-08-09T11:10:25Z
  Finalizers:
    node01-delete
    in-use-by-active-pods
  Generation:  1
  Managed Fields:
    API Version:  security-profiles-operator.x-k8s.io/v1beta1
    Fields Type:  FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .:
          f:kubectl.kubernetes.io/last-applied-configuration:
      f:spec:
        .:
        f:defaultAction:
    Manager:      kubectl-client-side-apply
    Operation:    Update
    Time:         2022-08-09T11:10:25Z
    API Version:  security-profiles-operator.x-k8s.io/v1beta1
    Fields Type:  FieldsV1
    fieldsV1:
      f:metadata:
        f:finalizers:
          .:
          v:"in-use-by-active-pods":
          v:"node01-delete":
        f:labels:
          .:
          f:spo.x-k8s.io/profile-id:
    Manager:      security-profiles-operator
    Operation:    Update
    Time:         2022-08-09T11:16:43Z
    API Version:  security-profiles-operator.x-k8s.io/v1beta1
    Fields Type:  FieldsV1
    fieldsV1:
      f:status:
        .:
        f:activeWorkloads:
        f:conditions:
        f:localhostProfile:
        f:status:
    Manager:         security-profiles-operator
    Operation:       Update
    Subresource:     status
    Time:            2022-08-09T11:16:43Z
  Resource Version:  6101
  UID:               06e83587-4793-490d-a1f2-c7e32edd0ae8
Spec:
  Default Action:  SCMP_ACT_LOG
Status:
  Active Workloads:
    demo/nginx-pod-9bcd76d97-w8wzd
  Conditions:
    Last Transition Time:  2022-08-09T11:10:25Z
    Reason:                Creating
    Status:                False
    Type:                  Ready
  Localhost Profile:       operator/demo/profile1.json
  Status:                  Pending
Events:
  Type    Reason               Age    From     Message
  ----    ------               ----   ----     -------
  Normal  SavedSeccompProfile  7m53s  profile  Successfully saved profile to disk on node01

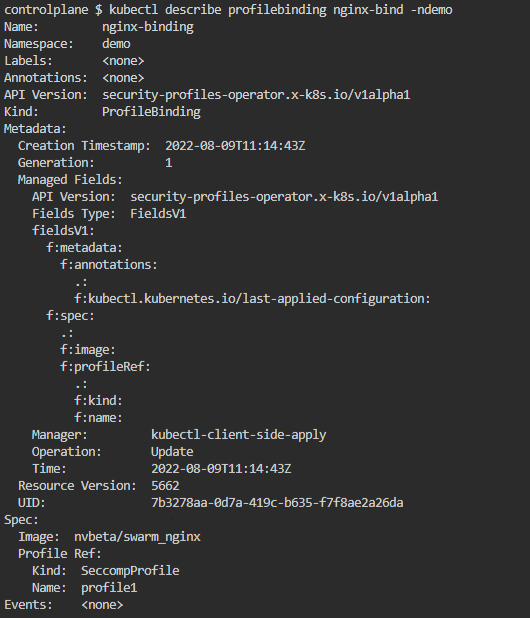

Here is the profilebind config

controlplane $ kubectl describe profilebinding nginx-bind -ndemo
Name:         nginx-binding
Namespace:    demo
Labels:       <none>
Annotations:  <none>
API Version:  security-profiles-operator.x-k8s.io/v1alpha1
Kind:         ProfileBinding
Metadata:
  Creation Timestamp:  2022-08-09T11:14:43Z
  Finalizers:
    active-workload-lock
  Generation:  1
  Managed Fields:
    API Version:  security-profiles-operator.x-k8s.io/v1alpha1
    Fields Type:  FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .:
          f:kubectl.kubernetes.io/last-applied-configuration:
      f:spec:
        .:
        f:image:
        f:profileRef:
          .:
          f:kind:
          f:name:
    Manager:      kubectl-client-side-apply
    Operation:    Update
    Time:         2022-08-09T11:14:43Z
    API Version:  security-profiles-operator.x-k8s.io/v1alpha1
    Fields Type:  FieldsV1
    fieldsV1:
      f:metadata:
        f:finalizers:
          .:
          v:"active-workload-lock":
    Manager:      security-profiles-operator
    Operation:    Update
    Time:         2022-08-09T11:16:43Z
    API Version:  security-profiles-operator.x-k8s.io/v1alpha1
    Fields Type:  FieldsV1
    fieldsV1:
      f:status:
        .:
        f:activeWorkloads:
    Manager:         security-profiles-operator
    Operation:       Update
    Subresource:     status
    Time:            2022-08-09T11:16:43Z
  Resource Version:  6088
  UID:               7b3278aa-0d7a-419c-b635-f7f8ae2a26da
Spec:
  Image:  nvbeta/swarm_nginx
  Profile Ref:
    Kind:  SeccompProfile
    Name:  profile1
Status:
  Active Workloads:
    demo/
Events:  <none>

What you expected to happen:

the profilebind can record the active workload correctly but not just the namespace

How to reproduce it (as minimally and precisely as possible):

Anything else we need to know?:

And I just wonder if profilebind have to record the active workload, Since the SeccompProfile already did it.

Environment:

  • Cloud provider or hardware configuration:
  • OS (e.g: cat /etc/os-release):
  • Kernel (e.g. uname -a):
  • Others: k8s version
controlplane $ kubectl version
WARNING: This version information is deprecated and will be replaced with the output from kubectl version --short.  Use --output=yaml|json to get the full version.
Client Version: version.Info{Major:"1", Minor:"24", GitVersion:"v1.24.0", GitCommit:"4ce5a8954017644c5420bae81d72b09b735c21f0", GitTreeState:"clean", BuildDate:"2022-05-03T13:46:05Z", GoVersion:"go1.18.1", Compiler:"gc", Platform:"linux/amd64"}
Kustomize Version: v4.5.4
Server Version: version.Info{Major:"1", Minor:"24", GitVersion:"v1.24.0", GitCommit:"4ce5a8954017644c5420bae81d72b09b735c21f0", GitTreeState:"clean", BuildDate:"2022-05-03T13:38:19Z", GoVersion:"go1.18.1", Compiler:"gc", Platform:"linux/amd64"}

os

controlplane $ cat /etc/os-release
NAME="Ubuntu"
VERSION="20.04.3 LTS (Focal Fossa)"
ID=ubuntu
ID_LIKE=debian
PRETTY_NAME="Ubuntu 20.04.3 LTS"
VERSION_ID="20.04"
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
VERSION_CODENAME=focal
UBUNTU_CODENAME=focal

kernel:

Linux controlplane 5.4.0-88-generic #99-Ubuntu SMP Thu Sep 23 17:29:00 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux

brness avatar Aug 09 '22 11:08 brness
