Sporadic crashes related to MQTT publishing
Issue
We still see sporadic crashes reloated to MQTT publishing. They mostly, but not always occur when MQTT init failed:
␛[0;31mE (24715) MQTT_CLIENT: Error create mqtt task␛[0m
␛[0;31mE (24715) MQTT IF: Could not start client (ret=-4)!␛[0m
␛[0;31mE (24735) MQTT IF: Init failed, skipping all MQTT publishings in this round!␛[0m
Guru Meditation Error: Core 1 panic'ed (LoadProhibited). Exception was unhandled.
␛[0;31mE (22635) MQTT_CLIENT: Error create mqtt task␛[0m
␛[0;31mE (22645) MQTT IF: Could not start client (ret=-4)!␛[0m
␛[0;31mE (22675) MQTT IF: Init failed, skipping all MQTT publishings in this round!␛[0m
assert failed: spinlock_acquire spinlock.h:123 ((result == SPINLOCK_FREE) == (lock->count == 0))
[ 18] 2022-12-09T22:47:53 <ERR> [MQTT IF] Could not start client (ret=-4)!
[ 18] 2022-12-09T22:47:53 <ERR> [MQTT IF] Init failed, skipping all MQTT publishings in this round!
[ 18] 2022-12-09T22:47:53 <DBG> [MQTT SERVER] Publishing static MQTT topics...
[ 18] 2022-12-09T22:47:53 <DBG> [MQTT SERVER] Publishing system MQTT topics...
<= CRASH, although all publishing got skipped for this round... =>
[ 4] 2022-12-09T21:48:01 <INF> [MAIN] =================================================
[ 4] 2022-12-09T21:48:01 <INF> [MAIN] ==================== Startup ====================
[ 4] 2022-12-09T21:48:01 <INF> [MAIN] =================================================
[ 4] 2022-12-09T21:48:01 <INF> [MAIN] Branch: 'various-corrections', Revision: 5c2ccb2+, Date/Time: 2022-12-08 00:14, Web UI: Development-Branch: rolling (Commit: 2997bf0)
[ 4] 2022-12-09T21:48:01 <INF> [MAIN] Reset reason: Exception/panic
[ 20] 2022-12-09T22:53:12 <WRN> [MQTT IF] Could not start client (ret=-4), retrying...
[ 20] 2022-12-09T22:53:12 <ERR> [MQTT IF] Could not start client (ret=-4)!
[ 20] 2022-12-09T22:53:12 <ERR> [MQTT IF] Init failed, skipping all MQTT publishings in this round!
[ 20] 2022-12-09T22:53:12 <DBG> [MQTT SERVER] Publishing static MQTT topics...
[ 20] 2022-12-09T22:53:13 <DBG> [MQTT SERVER] Publishing system MQTT topics...
<= CRASH, although all publishing got skipped for this round... =>
[ 4] 2022-12-09T21:53:21 <INF> [MAIN] =================================================
[ 4] 2022-12-09T21:53:21 <INF> [MAIN] ==================== Startup ====================
[ 4] 2022-12-09T21:53:21 <INF> [MAIN] =================================================
[ 4] 2022-12-09T21:53:21 <INF> [MAIN] Branch: 'various-corrections', Revision: 5c2ccb2+, Date/Time: 2022-12-08 00:14, Web UI: Development-Branch: rolling (Commit: 2997bf0)
[ 4] 2022-12-09T21:53:21 <INF> [MAIN] Reset reason: Exception/panic
[ 321] 2022-12-09T22:58:36 <INF> [MQTT IF] Connected to broker
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/connection, content: connected (msg_id=6425)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT SERVER] Publishing static MQTT topics...
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/MAC, content: 30:C6:F7:04:A4:58 (msg_id=58149)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/IP, content: 192.168.1.153 (msg_id=20501)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/hostname, content: Testzaehler (msg_id=4415)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/interval, content: 1.0 (msg_id=310)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT SERVER] Publishing system MQTT topics...
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/uptime, content: 312 (msg_id=26396)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/freeMem, content: 3126883 (msg_id=3879)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/wifiRSSI, content: -53 (msg_id=56346)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/CPUtemp, content: 63 (msg_id=9048)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/connection, content: connected (msg_id=2286)
[ 321] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/status, content: Take Image (msg_id=48612)
<= Why do those topics get sent again? =>
[ 322] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/freeMem, content: 3130631 (msg_id=31445)
[ 322] 2022-12-09T22:58:37 <DBG> [MQTT IF] Published topic: testzaehler/wifiRSSI, content: -53 (msg_id=10988)
[ 322] 2022-12-09T22:58:37 <DBG> [MQTT IF] Published topic: testzaehler/CPUtemp, content: 63 (msg_id=65331)
<= CRASH =>
[ 4] 2022-12-09T21:58:44 <INF> [MAIN] =================================================
[ 4] 2022-12-09T21:58:44 <INF> [MAIN] ==================== Startup ====================
[ 4] 2022-12-09T21:58:44 <INF> [MAIN] =================================================
[ 4] 2022-12-09T21:58:44 <INF> [MAIN] Branch: 'various-corrections', Revision: 5c2ccb2+, Date/Time: 2022-12-08 00:14, Web UI: Development-Branch: rolling (Commit: 2997bf0)
[ 4] 2022-12-09T21:58:44 <INF> [MAIN] Reset reason: Exception/panic
Today I was able to force the start client error from time to time when wifi signal quality was really bad and connection went on and off many times. I crafted a version where mqtt connection only gets intiated when wifi connection is available. Additionally I increased net timeout to 20s because of this discussion #1517. This version is running for some time Maybe you guys can give this verison a try.
firmware_net_timeout_increased+interlock WIFI.zip
Additionally question: Is it even necessary to recreate the client on every error or is it possible to just leave it running an wait until connection is estalished again (repeatly checked by system service)?
<= Why do those topics get sent again? => [ 322] 2022-12-09T22:58:36 <DBG> [MQTT IF] Published topic: testzaehler/freeMem, content: 3130631 (msg_id=31445) [ 322] 2022-12-09T22:58:37 <DBG> [MQTT IF] Published topic: testzaehler/wifiRSSI, content: -53 (msg_id=10988) [ 322] 2022-12-09T22:58:37 <DBG> [MQTT IF] Published topic: testzaehler/CPUtemp, content: 63 (msg_id=65331)
Messages get published with QoS1 (devlier at least once) therefore every message has to be acknowleged by broker. If no acknowledge in time, message is going to be resent.
Messages get published with QoS1 (devlier at least once) therefore every message has to be acknowleged by broker. If no acknowledge in time, message is going to be resent
Ah, ok, that makes sense. How ever i have a local broker, I don't think it fails to acknowledge messages, so the issue more likely is on device side :(
Have problems with MQTT as well (latest version from today).
[MQTT IF] Failed to publish topic 'wasserzaehler/status', skipping all MQTT publishings in this round!
Wifi access is ok -91dBm
Restarting the mosquito-server helps for one round

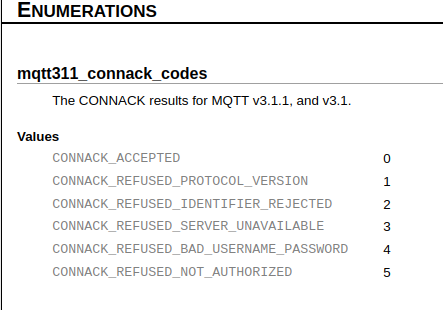

RetCode-4 := Username / Password Problem

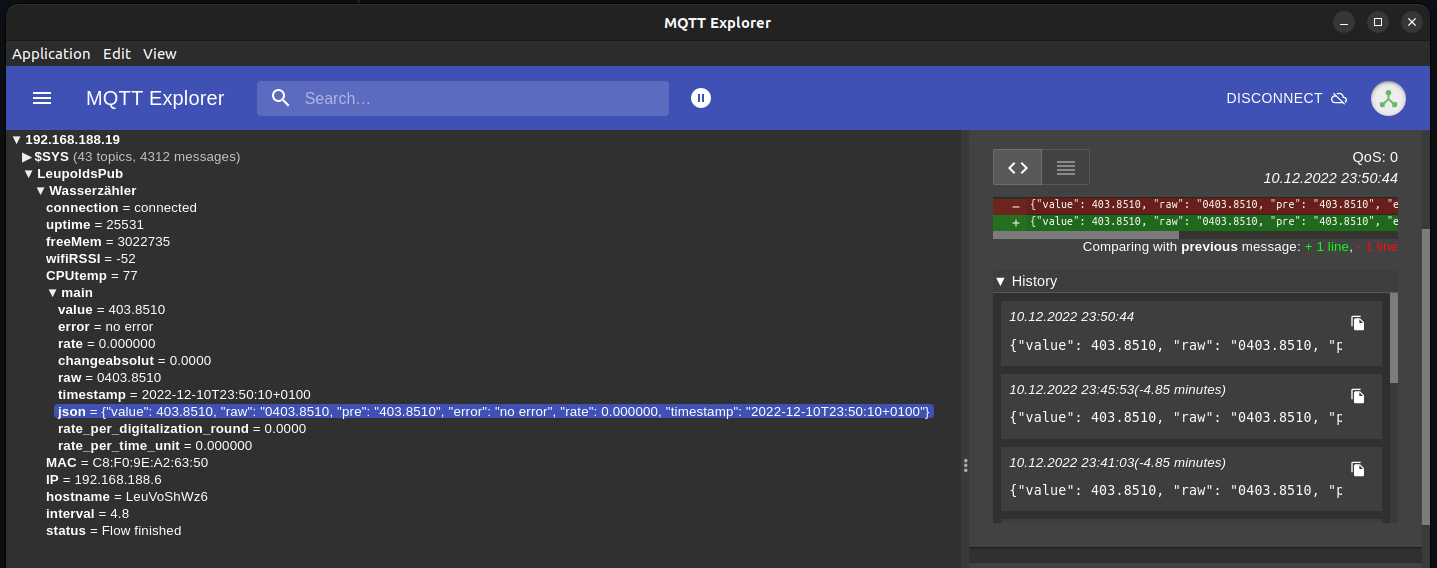

In meiner Installation (aktuell 13.0.5) gibt es auch Probleme, die hier bereits gemeldet wurden. Aber mein MQTT Broker wird, unabhängig von den MQTT Log Meldungen, seit Version 12.0.1 mit Daten versorgt. Das ist im Momenrt auch so ... Siehe MQTT Explorer.
Vielleicht sucht ihr an der falschen Stelle?
@wettermann32: MQTT stability has still to be improved. Working in progress... Hope next version will be more stable.
Wifi access is ok -91dBm
-91dBm is quite bad. You should make sure you have better coverage.
@TopGoalVl: Thanks for your comment, but the return value in @caco3 screenshots is missleading because, if I remember right, he modified the return values to have more verbose error feedback. Original library returns on every error -> -1
Yes, the -4 was a (just locally compiled) modification of the MQTT client. Normelly it just returns -1 on all errors.
Thanks @Slider0007!
It seems to be quite stable now, therefore I close this issue.
