Multiline titles do not display in OpenDocument/ODT files

[andrewheiss]

Using pandoc 2.19.2 on macOS 12.5.1, a multiline title will not display correctly in an .odt file because of nested paragraphs.

---

Ordinarily it is possible to add a linebreak to a title using YAML multiline block scalars, like so:

testing.md:

---
title: |
  This *is* \
  a test
author: Someone
---

Testing.

When using a multiline entry like this, metadata entry for title is treated as a block instead of an inline. This means that when rendering to HTML, the title content is wrapped in <p> tags:

pandoc testing.md -o testing.html --standalone

<h1 class="title"><p>This <em>is</em><br />
a test</p></h1>

When using a single line, like

---
title: This *is* a test
author: Someone
---

Testing.

...the content isn't wrapped in <p>s:

<h1 class="title">This <em>is</em> a test</h1>

With HTML output, it is valid and legal to have a <p> inside a <h1>, so there are no problems.

However, with ODT output, the document title will not show up when using linebreaks in a YAML key.

For instance, running

testing.md

---
title: |
  This *is* \
  a test
author: Someone
---

Testing.

pandoc testing.md -o testing.odt

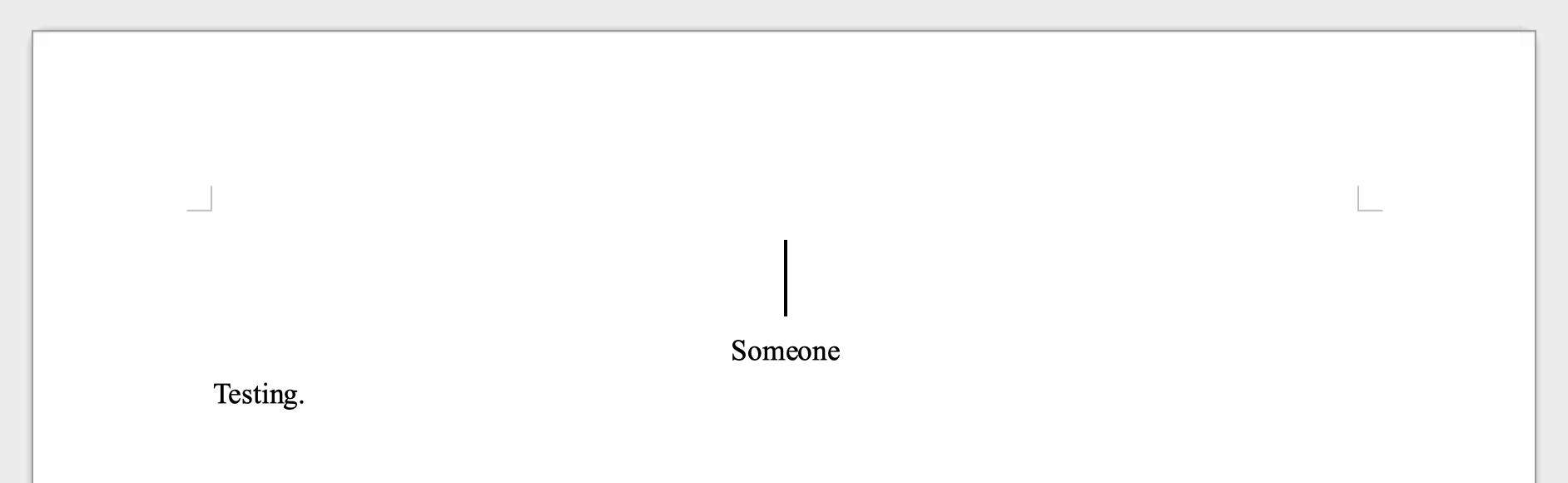

creates a document that looks like this:

There's an empty paragraph where the title should be.

Inspecting the content.xml file inside the zipped .odt file shows that the title really is there, but it's wrapped in a <text:p> tag, as with HTML

<text:p text:style-name="Title">
  <text:p text:style-name="Text_20_body">This <text:span text:style-name="T1">is</text:span><text:line-break/>a test</text:p>
</text:p>

Placing a <text:p> tag inside another <text:p> tag is invalid OOXML syntax, and both LibreOffice and Word are unable to display it.

This is similar to these issues:

• Multiline titles don't display when rendering to EPUB: https://github.com/jgm/pandoc/issues/8091 and https://github.com/jgm/pandoc/issues/8095. One solution there is to use line-block style values, like:

  title: |
      | This *is*
      | a test


  but doing this with ODT still creates the nested <text:p> issue.

• Here (https://github.com/jgm/pandoc/issues/7262), when using JATS output, pandoc wraps some elements like <label> in <p> tags. The solution there is to use a Lua filter to remove the <p>s before rendering the document

  I tried making a similar Lua filter, but it doesn't work correctly likely because I'm trying to mess with the metadata title and using pandoc.RawInline() there is bad/invalid/illegal

  fix-multiline-title.lua

  if FORMAT:match 'odt' then
    function fix_odt(x)
      local result
      result = pandoc.write(pandoc.Pandoc(x), 'odt')
      return result:match('^<text:p text:style-name="Text_20_body">(.*)</text:p>$') or result or ''
    end

    function Meta (m)
      m.title = pandoc.RawInline("odt", fix_odt(m.title[1]))

      return m
    end
  end


---

Ideally, the multiline title should show up like this in content.xml:

<text:p text:style-name="Title">This <text:span text:style-name="T1">is</text:span><text:line-break/>a test</text:p>

…without nested <text:p> tags

[andrewheiss]

Whoa, one super easy fix that requires no additional work is to chomp the final newline in the YAML multiline block with a -

testing.md

---
title: |-
  This *is* \
  a test
author: Someone
---

Testing.

pandoc testing.md -o testing.odt

This produces a document with the correct XML:

<text:p text:style-name="Title">This <text:span text:style-name="T1">is</text:span><text:line-break/>a test</text:p>

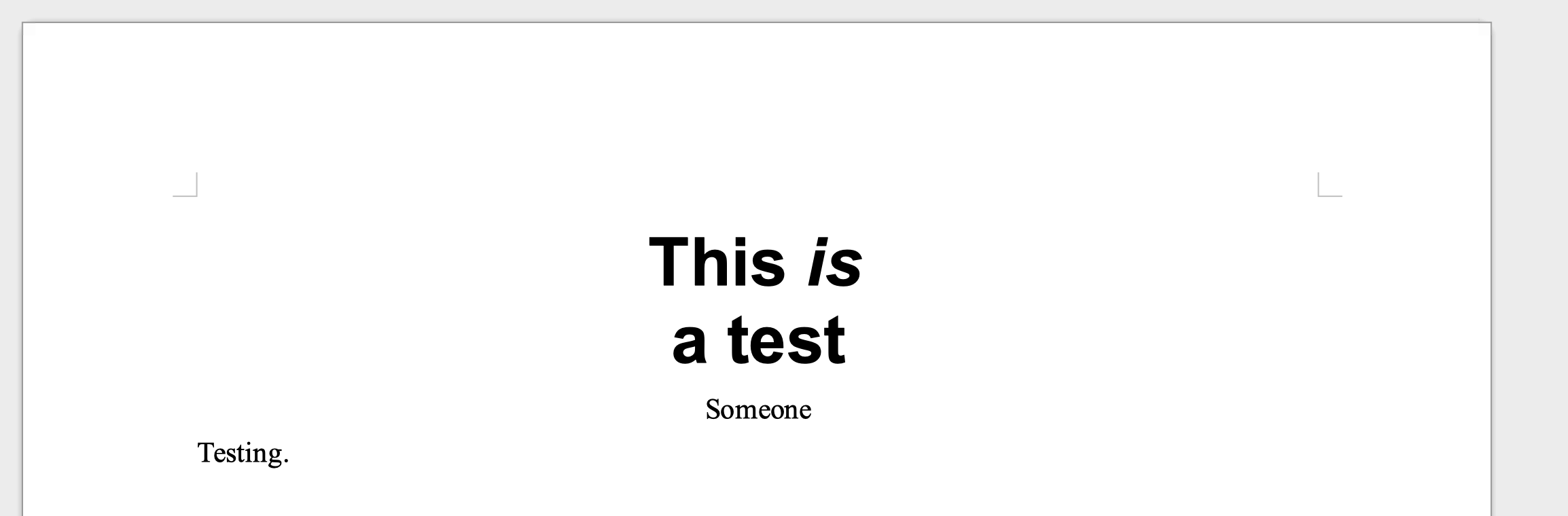

And it displays correctly:

---

The presence/absence of the - chomping indicator leads to some fragility across formats. For instance, both

title: |
  This *is* \
  a test

and

title: |-
  This *is* \
  a test

work in Word and HTML and LaTeX. It's only ODT where it makes a difference.

[jgm]

That's good that there's a workaround. The fix should be pretty easy too; we can just force reading this metadata field as Inline content.

[jgm]

Related issue in docx writer: https://groups.google.com/d/msgid/pandoc-discuss/9161ae41-4195-40b7-9e60-679e2b7c49e4n%40googlegroups.com?utm_medium=email&utm_source=footer
