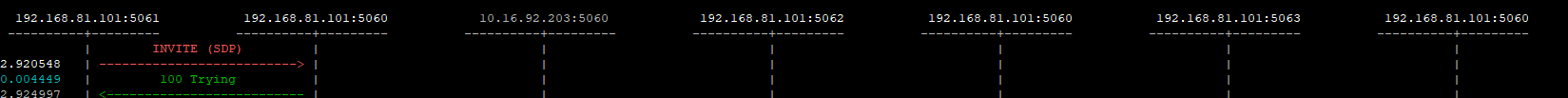

Hi, I have a situation like this one
What I would like to get is that the columns 192.168.81.101:5060 becomes one. It would give me so much space on the screen and improve readability. I tried to switch off the cf.splitcallid option, which should be disabled by default anyway. But It does not work. I tried to use compress by "s", but the readability is worse, because it does not distinguish between ports.
Thank you
Hi @Kaian, yes at the fist glance it looks similar, but it is not. At least as far as I understand it.
My intention is not to link different ip addresses. What I want to group up only the columns with same ip:port. I want only the columns with port 5060 to become one. The other ports (5061,5062, 5063), I want to keep separated.
As an example there are two calls which creates separate ip:5060 column.
2018/05/06 13:53:03.843704 192.168.81.101:5061 -> 192.168.81.101:5060 INVITE sip:[email protected]:5060 SIP/2.0 Via: SIP/2.0/UDP 192.168.81.101:5061;branch=z9hG4bK-82314-1-0 From: originator sip:[email protected]:5061;tag=1 To: confsc sip:[email protected]:5060 Call-ID: [email protected] CSeq: 1 INVITE Contact: sip:[email protected]:5061 Max-Forwards: 70 Subject: Test Resource-Priority: q735.3 Content-Type: application/sdp Content-Length: 210
2018/05/06 13:53:06.272147 192.168.81.101:5062 -> 192.168.81.101:5060 INVITE sip:[email protected]:5060 SIP/2.0 Via: SIP/2.0/UDP 192.168.81.101:5062;branch=z9hG4bK-82484-1-0 From: sipp sip:[email protected]:5062;user=phone;tag=1 To: confsc sip:[email protected]:5060 Call-ID: [email protected] CSeq: 1 INVITE Contact: sip:[email protected]:5062 Max-Forwards: 70 Subject: Test Resource-Priority: q735.3 Content-Type: application/sdp Content-Length: 210
