KQCircuits

KQCircuits copied to clipboard

.. image:: /docs/images/logo-small.png :target: https://github.com/iqm-finland/KQCircuits :alt: KQCircuits :width: 300 :align: center

KQCircuits is a Python library developed by IQM for automating the design of superconducting quantum circuits. It uses the KLayout <https://klayout.de>__ layout design program API.

.. image:: https://github.com/iqm-finland/KQCircuits/actions/workflows/ci.yaml/badge.svg :target: https://github.com/iqm-finland/KQCircuits/actions/workflows/ci.yaml :alt: Continuous Integration

.. image:: https://zenodo.org/badge/DOI/10.5281/zenodo.4944796.svg :target: https://doi.org/10.5281/zenodo.4944796 :alt: DOI

.. image:: https://img.shields.io/badge/License-GPLv3-blue.svg :target: https://github.com/iqm-finland/kqcircuits/blob/master/LICENSE :alt: License

.. image:: https://img.shields.io/github/v/tag/iqm-finland/KQCircuits?label=version&sort=semver :target: https://github.com/iqm-finland/KQCircuits/releases/ :alt: Latest version

.. image:: https://img.shields.io/badge/click-for%20documentation%20%F0%9F%93%92-lightgrey :target: https://iqm-finland.github.io/KQCircuits/index.html :alt: Click for documentation

KQCircuits generates multi-layer 2-dimensional-geometry representing common structures in quantum processing units (QPU). It includes definitions of parametrized geometrical objects or “elements”, framework to easily define your own elements, framework to get geometry from the elements by setting values to parameters and a framework to assemble a full QPU design by combining many of the elements in different geometrical relations. Among other templates, are also structures to combine QPU designs to create optical mask layout and EBL patterns for fabrication of quantum circuits and export a set of files for a mask as needed for QPU fabrication.

.. image:: /docs/images/readme/design_flow.svg :alt: QPU design workflow :width: 700

⠀

.. image:: /docs/images/readme/single_xmons_chip_3.png :alt: Example layout

Getting started

KQCircuits is a KLayout extension. KLayout can be used either using a graphical user interface or as a standalone python module. KQCircuits supports both modes of operation. For the first time users, the graphical user interface (GUI) mode is recommended.

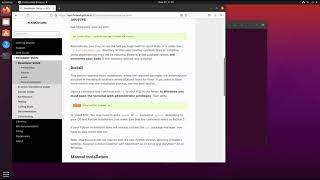

Video tutorials for the GUI installation can be found on YouTube.

.. raw:: html

Windows	Ubuntu	MacOS

Install ^^^^^^^

KQCircuits can be used in either Salt package <https://sami.klayout.org/>__ or developer setup mode. The Salt package is easier to install and try out but has some limitations. As such, advanced users are recommended to use the developer setup below.

Easy Salt package """""""""""""""""

Follow the instructions in the getting started documentation <https://iqm-finland.github.io/KQCircuits/start/installation.html>__.

Developer setup """""""""""""""

Install KLayout <https://www.klayout.de/build.html>__ and run:

.. code-block:: console

python setup_within_klayout.py

then KLayout will contain KQCircuits. In Windows you must run the command with administrator privileges. You may have to write python3 or py instead of python depending on your OS and Python installation, just make sure that the command refers to Python 3. For further details see the developer setup documentation <https://iqm-finland.github.io/KQCircuits/developer/setup.html>__.

For stand-alone mode run

.. code-block:: console

python -m pip install -e "klayout_package/python[docs,tests]"

Then scripts may be run and documentation can be built. For further details see the documentation <https://iqm-finland.github.io/KQCircuits/developer/setup.html>__.

Documentation

Documentation for KQCircuits can be found here <https://iqm-finland.github.io/KQCircuits/>__.

It may also be generated from the sources with make html in the docs directory.

Tutorials ^^^^^^^^^

Follow the User Guide <https://iqm-finland.github.io/KQCircuits/user_guide/index.html>__ for tutorials.

.. image:: /docs/images/gui_workflows/converting_gui_elements_to_code.gif :target: https://iqm-finland.github.io/KQCircuits/user_guide/gui_features.html#converting-elements-placed-in-gui-into-code :alt: Example of GUI elements :width: 600

Simulations

.. image:: /docs/images/readme/xmon_animation.gif :alt: Animation of simulations :width: 350

KQC currently supports exporting to Ansys HFSS/Q3D (also with pyEPR), Sonnet, and Elmer.

Parameter sweeps are easy to implement, for example

.. code-block:: python

simulations = sweep_simulation(layout, sim_class, sim_parameters, { 'cpl_length': [160, 180, 200], 'arm_width': [24, 28, 32, 36], })

exports simulations with the given individual parameters varied roughly as in the animation.

A sweep of all possible combinations between the given parameters is done by changing the function to cross_sweep_simulation. Check klayout_package/python/scripts/simulations <https://github.com/iqm-finland/KQCircuits/tree/main/klayout_package/python/scripts/simulations>__ for example simulation exports.

Support

If you have any questions, problems or ideas related to KQCircuits, please start a discussion in GitHub <https://github.com/iqm-finland/KQCircuits/discussions>__ or create a GitHub issue <https://github.com/iqm-finland/KQCircuits/issues>__.

Contributing

Contributions to KQC are welcome from the community. Contributors are expected to accept IQM Individual Contributor License Agreement by filling a form at IQM website <https://meetiqm.com/developers/clas>. See also section Contributing <https://iqm-finland.github.io/KQCircuits/contributing.html> in the documentation.

Citation

Please see the documentation <https://iqm-finland.github.io/KQCircuits/citing.html>__ for instructions on how to cite KQCircuits in your projects and publications.
