Storagenode dashboard: storage graph timezone issue

Open Erikvv opened this issue 3 years ago • 5 comments

The storage graph for me is always ~10% lower on the first day and ~10% higher on the last day.


I think this is because the month time range (link below) uses local time but everywhere else we use UTC. So my month starts and ends at 2h00 instead of 0h00 because I am in UTC+2.

https://github.com/storj/storj/blob/07beef378d5ceec57bc1de546edad4981264c982/private/date/utils.go#L10

Probably the easiest fix would be to change it so this range uses UTC timezone. Check if this negatively affects any other uses of this code.

I actually think we should try to respect the users timezone in the dashboard but at this point this may be more difficult and doesn't add too much value. It would also lead to different accounting than on the satellite.

Erikvv avatar Sep 15 '22 14:09 Erikvv

I think this is because the month time range (link below) uses local time but everywhere else we use UTC. So my month starts and ends at 2h00 instead of 0h00 because I am in UTC+2.

I'm not sure if that's exactly the issue because all time passed to the function uses UTC timezone: https://github.com/storj/storj/blob/07beef378d5ceec57bc1de546edad4981264c982/storagenode/console/service.go#L375 https://github.com/storj/storj/blob/07beef378d5ceec57bc1de546edad4981264c982/storagenode/console/service.go#L270

Even references on the multinode side: https://github.com/storj/storj/blob/07beef378d5ceec57bc1de546edad4981264c982/storagenode/multinode/bandwidth.go#L67 https://github.com/storj/storj/blob/07beef378d5ceec57bc1de546edad4981264c982/storagenode/multinode/bandwidth.go#L85

profclems avatar Sep 16 '22 08:09 profclems

For the lag at the beginning, I'm expecting that tally might have started sometime within the last day of the previous month to the first day of the current month. I checked Redash and it looks like tally had the least run time at the beginning of the month on some of the satellites:

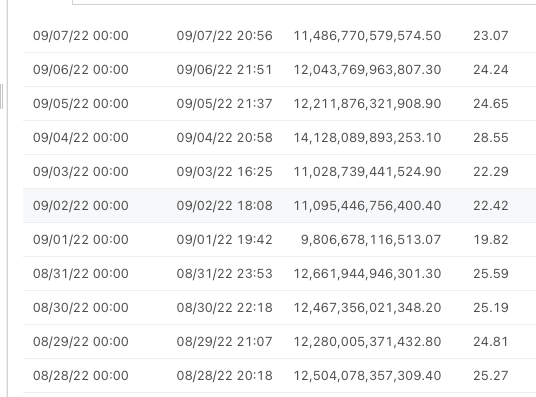

This is for AP1 satellite: image

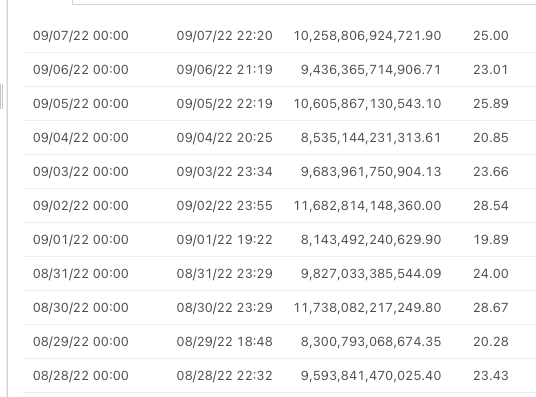

Same for EU1: image

We probably need to wait for another month to see how this behaves. I can't say much about the ~10% bump on the last day.

profclems avatar Sep 16 '22 09:09 profclems

I will ask the SNO community if anyone has a similar issue.

profclems avatar Sep 16 '22 09:09 profclems

This issue has been mentioned on Storj Community Forum (official). There might be relevant details there:

https://forum.storj.io/t/can-any-us-operator-check-their-storage-graph-for-me/19715/1

storjrobot avatar Sep 16 '22 14:09 storjrobot

The ~10% bump on the last day is reasonably expected IMO since we're only estimating the value obtained as at the time the node contacted the satellite i.e. 24*[(at_rest_total in bytes*hour)/(total_hours)]. At the end of the day, the value might be relatively less than estimated.

profclems avatar Sep 19 '22 12:09 profclems


profclems avatar Oct 10 '22 12:10 profclems

We can safely close this issue since it was fixed after we switched to using bytes unit.

cc: @shaupt131

profclems avatar Apr 19 '23 12:04 profclems
