ws2s--bring socket to browser-side js

ws2s(websocket to socket) is a websocket server that handle socket(tcp)s.

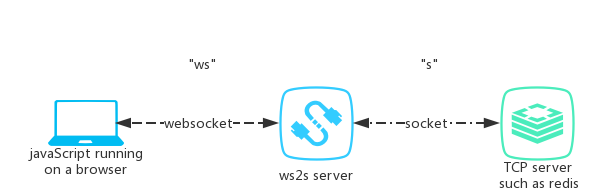

the simplest workflow might be like this:

1. a websocket client(we called "ws") ask ws2s_server to create a socket(we called "s") for it.
2. "ws" ask ws2s_server to use "s" to send data.
3. when "s" received data, ws2s_server will notify "ws" with the received data.

with this workflow, javaScript running on a browser got the ability to use socket.

client case

• a ws2s server at wss://ws2s.feling.net/ is ready for test case.
• an online redis gui client powered by ws2s is provided at https://feling.net/redis/.

use origin javaScript

var ws = new WebSocket("wss://ws2s.feling.net/")
ws.onmessage = (event) => {
    console.log("onmessage: ", event.data)
}
ws.onopen = () => {
    console.log("onopen")
    ws.send(JSON.stringify(
        {
            command: "connect",
            host: "feling.net",
            port: 80
        }
    ))
    ws.send(JSON.stringify(
        {
            command: "send",
            data: "GET / HTTP/1.1\r\nHost: feling.net\r\nConnection: close\r\n\r\n"
        }
    ))
}
ws.onclose = () => {
    console.log("onclose")
}

use ws2s.js

var socket = new WS2S("wss://ws2s.feling.net/").newSocket()

$('#connect-button').bind("click", () => {
    socket.connect("feling.net", 80)
})

$('#send-button').bind("click",  () => {
    socket.send("GET / HTTP/1.1\r\nHost: feling.net\r\nConnection: close\r\n\r\n")
})

socket.onRecv = (data) => {
    console.log('onRecv', data)
}

install

ws2s works with py2、py3 on Linux、OSX. Windows users please try Windows Subsystem for Linux（WSL).

It is recommended to install from github:

pip install git+https://github.com/playay/ws2s --upgrade

you can also install ws2s from pypi:

pip install ws2s-python --upgrade

after installed ws2s:
ws2sd command can be used in shell,
~/.ws2s/ directory will be created when you exec ws2sd

config

config file is store at ~/.ws2s/config.json. modify it then exec ws2sd restart

start on boot

at see this wiki

protocol

request

here are some examples of requests:

{
    "command": "connect",
    "host":"127.0.0.1",
    "port":80
}
{
    "command": "send",
    "data":"GET / HTTP/1.1\r\nHost: 127.0.0.1\r\nConnection: close\r\n\r\n"
}

you can find out that:

1. message(we called request) send to ws2s_sever is a json format string.
2. a command field is required. other fields are dependent on different commands
3. this wiki describes details of each command.

response

message(we called response) received from ws2s_sever, is a json format string too:

{
    "success": true,
    "code": -1,
    "message": "recv data",
    "data": "JDINCk9LDQo="
}

As the example above:
- "message" field is for human.
- "success" field can be ignored.

when "code" field = -1, "data" field is presented.
    that means ws2s_server received data from peer. "data" is a base64 string representing a byte array.

when "code" field = 0.
    usually means ws2s_server successfully completed the most recent command

when "code" field > 0.
    means something is not normal:
    when "code" = 1:
        unknown exception, you can submit an issue to ws2s

    when "code" = 2:
        ConnectionRefusedError raisesd when ws2s_server try to
        connect host:port you specified

    when "code" = 3:
        IllegalSocketState, just reSend an "connect" request like:
        {"command":"connect","host":"127.0.0.1","port":80}

    when "code" = 4:
        usually means you want ws2s_server to connect 127.0.0.1, but ws2s_server refused
        to do that. this feature is configurable in `~/.ws2s/config.json`

    when "code" = 5:
        socket connection closed by socket server you connected to

    when "code" = 6:
        failed to open ssh tunnel

dev

pipenv shell





python setup.py bdist_wheel
python setup.py sdist
twine upload  dist/*
