Datashader can't be used to plot multiple columns from a Dataframe
ALL software version info
version info
$ pip freeze aiocouch==2.2.1 aiohttp==3.8.1 aiosignal==1.2.0 anyio==3.5.0 argon2-cffi==21.3.0 argon2-cffi-bindings==21.2.0 async-timeout==4.0.2 attrs==21.4.0 Babel==2.9.1 backcall==0.2.0 bleach==4.1.0 bokeh==2.4.2 certifi==2021.10.8 cffi==1.15.0 chardet==4.0.0 charset-normalizer==2.0.10 chevron==0.14.0 click==8.0.4 cloudpickle==2.0.0 colorcet==3.0.0 dask==2022.3.0 datashader==0.13.0 datashape==0.5.2 debugpy==1.5.1 decorator==5.1.1 defusedxml==0.7.1 Deprecated==1.2.13 distributed==2022.3.0 docker==5.0.3 entrypoints==0.3 escapism==1.0.1 frozenlist==1.3.0 fsspec==2022.2.0 HeapDict==1.0.1 holoviews==1.14.8 hvplot==0.7.3 ibm-cloud-sdk-core==3.13.2 ibmcloudant==0.0.41 idna==3.3 ipykernel==6.6.1 ipython==7.31.0 ipython-genutils==0.2.0 ipywidgets==7.6.5 iso8601==1.0.2 jedi==0.18.1 Jinja2==3.0.3 json5==0.9.6 jsonschema==4.4.0 jupyter-bokeh==3.0.4 jupyter-client==7.1.0 jupyter-core==4.9.1 jupyter-repo2docker==2021.8.0 jupyter-server==1.13.2 -e git+https://github.com/jupyterhub/jupyter-server-proxy.git@26d7569a7d2e7c806fcafe3b538ecbe061e7c0d8#egg=jupyter_server_proxy jupyterlab==3.2.7 jupyterlab-pygments==0.1.2 jupyterlab-server==2.10.3 jupyterlab-widgets==1.0.2 llvmlite==0.38.0 locket==0.2.1 Markdown==3.3.6 MarkupSafe==2.0.1 matplotlib-inline==0.1.3 mistune==0.8.4 more-itertools==8.12.0 msgpack==1.0.3 multidict==6.0.2 multipledispatch==0.6.0 nbclassic==0.3.5 nbclient==0.5.9 nbconvert==6.4.0 nbformat==5.1.3 nest-asyncio==1.5.4 notebook==6.4.7 numba==0.55.1 numpy==1.21.5 packaging==21.3 pandas==1.3.5 pandocfilters==1.5.0 panel==0.12.6 param==1.12.0 parso==0.8.3 partd==1.2.0 pexpect==4.8.0 pickleshare==0.7.5 Pillow==9.0.0 plotly==5.6.0 prometheus-client==0.12.0 prompt-toolkit==3.0.24 psutil==5.9.0 ptyprocess==0.7.0 pycapnp==1.1.0 pycparser==2.21 pyct==0.4.8 Pygments==2.11.2 PyJWT==2.3.0 pyparsing==3.0.6 pyrsistent==0.18.0 python-dateutil==2.8.2 python-json-logger==2.0.2 -e git+ssh://[email protected]/NyanCAD/Pyttoresque.git@839f012e6b4061e378825aa8e039191a821c97ef#egg=Pyttoresque pytz==2021.3 pyviz-comms==2.1.0 PyYAML==6.0 pyzmq==22.3.0 requests==2.27.1 ruamel.yaml==0.17.20 ruamel.yaml.clib==0.2.6 scipy==1.8.0 semver==2.13.0 Send2Trash==1.8.0 simpervisor==0.4 six==1.16.0 sniffio==1.2.0 sortedcontainers==2.4.0 streamz==0.6.3 tblib==1.7.0 tenacity==8.0.1 terminado==0.12.1 testpath==0.5.0 toml==0.10.2 toolz==0.11.2 tornado==6.1 tqdm==4.63.0 traitlets==5.1.1 typing_extensions==4.0.1 urllib3==1.26.8 wcwidth==0.2.5 webencodings==0.5.1 websocket-client==1.2.3 widgetsnbextension==3.5.2 wrapt==1.14.0 xarray==2022.3.0 yarl==1.7.2 zict==2.1.0
Description of expected behavior and the observed behavior
When trying to stream a dataframe into a buffer, and plotting some columns with Datashader, a keyerror is generated. The same works fine without datashader.
A workaround is to extract a tuple of x/y data, and give the axis the same name for all plots.
Complete, minimal, self-contained example code that reproduces the issue
Setup
import holoviews as hv
import datashader as ds
import pandas as pd
import numpy as np
from holoviews.streams import Buffer, Stream, param
from holoviews.operation.datashader import datashade, shade, dynspread, spread, rasterize
hv.extension('plotly')
active_traces = Stream.define('traces', cols=[])
def _timeplot(data, cols=[]):
# traces = {k: hv.Curve((data.index, data[k]), 'time', 'amplitude') for k in cols}
traces = {k: hv.Curve(data, 'index', k) for k in cols}
return hv.NdOverlay(traces, kdims='k')
def timeplot(streams):
curve_dmap = hv.DynamicMap(_timeplot, streams=streams)
return spread(datashade(curve_dmap, aggregator=ds.count_cat('k'), streams=[hv.streams.PlotSize]))
def nods_plot(streams):
return hv.DynamicMap(_timeplot, streams=streams)
n=100
m=1000
def stream(streamdict):
for i in range(n):
res = {"stuff": pd.DataFrame({'foo': np.random.rand(m), 'bar': np.random.rand(m)+0.8, 'baz': np.random.rand(m)-0.8}, index=np.arange(m)+m*i)}
for k, v in res.items():
#print(list(v.columns), list(streamdict[k].data.columns))
if k in streamdict and list(v.columns) == list(streamdict[k].data.columns):
streamdict[k].send(v)
else:
buf = Buffer(v, length=int(1e9), index=False)
streamdict[k] = buf
yield
cols = active_traces(cols=['foo', 'bar', 'baz'])
d = {}
it = stream(d)
next(it)

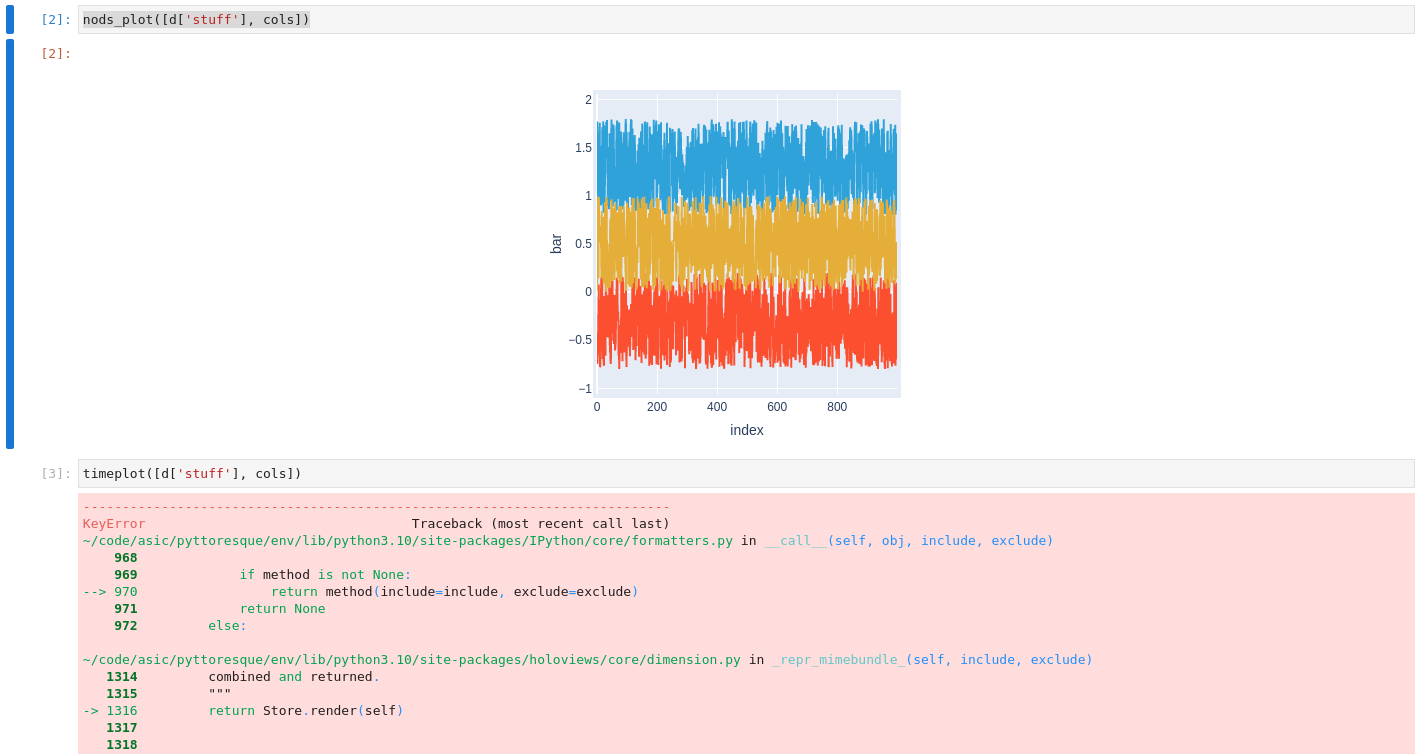

Now render the plot without datashader
nods_plot([d['stuff'], cols])
and try the same with datashader
timeplot([d['stuff'], cols])
Stack traceback and/or browser JavaScript console output
---------------------------------------------------------------------------
KeyError Traceback (most recent call last)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/IPython/core/formatters.py in __call__(self, obj, include, exclude)
968
969 if method is not None:
--> 970 return method(include=include, exclude=exclude)
971 return None
972 else:
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/dimension.py in _repr_mimebundle_(self, include, exclude)
1314 combined and returned.
1315 """
-> 1316 return Store.render(self)
1317
1318
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/options.py in render(cls, obj)
1403 data, metadata = {}, {}
1404 for hook in hooks:
-> 1405 ret = hook(obj)
1406 if ret is None:
1407 continue
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/ipython/display_hooks.py in pprint_display(obj)
280 if not ip.display_formatter.formatters['text/plain'].pprint:
281 return None
--> 282 return display(obj, raw_output=True)
283
284
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/ipython/display_hooks.py in display(obj, raw_output, **kwargs)
256 elif isinstance(obj, (HoloMap, DynamicMap)):
257 with option_state(obj):
--> 258 output = map_display(obj)
259 elif isinstance(obj, Plot):
260 output = render(obj)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/ipython/display_hooks.py in wrapped(element)
144 try:
145 max_frames = OutputSettings.options['max_frames']
--> 146 mimebundle = fn(element, max_frames=max_frames)
147 if mimebundle is None:
148 return {}, {}
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/ipython/display_hooks.py in map_display(vmap, max_frames)
204 return None
205
--> 206 return render(vmap)
207
208
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/ipython/display_hooks.py in render(obj, **kwargs)
66 renderer = renderer.instance(fig='png')
67
---> 68 return renderer.components(obj, **kwargs)
69
70
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/plotting/renderer.py in components(self, obj, fmt, comm, **kwargs)
408 doc = Document()
409 with config.set(embed=embed):
--> 410 model = plot.layout._render_model(doc, comm)
411 if embed:
412 return render_model(model, comm)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/panel/viewable.py in _render_model(self, doc, comm)
453 if comm is None:
454 comm = state._comm_manager.get_server_comm()
--> 455 model = self.get_root(doc, comm)
456
457 if config.embed:
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/panel/viewable.py in get_root(self, doc, comm, preprocess)
510 """
511 doc = init_doc(doc)
--> 512 root = self._get_model(doc, comm=comm)
513 if preprocess:
514 self._preprocess(root)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/panel/layout/base.py in _get_model(self, doc, root, parent, comm)
120 if root is None:
121 root = model
--> 122 objects = self._get_objects(model, [], doc, root, comm)
123 props = dict(self._init_params(), objects=objects)
124 model.update(**self._process_param_change(props))
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/panel/layout/base.py in _get_objects(self, model, old_objects, doc, root, comm)
110 else:
111 try:
--> 112 child = pane._get_model(doc, root, model, comm)
113 except RerenderError:
114 return self._get_objects(model, current_objects[:i], doc, root, comm)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/panel/pane/holoviews.py in _get_model(self, doc, root, parent, comm)
237 plot = self.object
238 else:
--> 239 plot = self._render(doc, comm, root)
240
241 plot.pane = self
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/panel/pane/holoviews.py in _render(self, doc, comm, root)
310 kwargs['comm'] = comm
311
--> 312 return renderer.get_plot(self.object, **kwargs)
313
314 def _cleanup(self, root):
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/plotting/renderer.py in get_plot(self_or_cls, obj, doc, renderer, comm, **kwargs)
218
219 # Initialize DynamicMaps with first data item
--> 220 initialize_dynamic(obj)
221
222 if not renderer:
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/plotting/util.py in initialize_dynamic(obj)
252 continue
253 if not len(dmap):
--> 254 dmap[dmap._initial_key()]
255
256
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/spaces.py in __getitem__(self, key)
1342 # Not a cross product and nothing cached so compute element.
1343 if cache is not None: return cache
-> 1344 val = self._execute_callback(*tuple_key)
1345 if data_slice:
1346 val = self._dataslice(val, data_slice)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/spaces.py in _execute_callback(self, *args)
1109
1110 with dynamicmap_memoization(self.callback, self.streams):
-> 1111 retval = self.callback(*args, **kwargs)
1112 return self._style(retval)
1113
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/spaces.py in __call__(self, *args, **kwargs)
675 kwarg_hash = kwargs.pop('_memoization_hash_', ())
676 (self.args, self.kwargs) = (args, kwargs)
--> 677 if not args and not kwargs and not any(kwarg_hash): return self.callable()
678 inputs = [i for i in self.inputs if isinstance(i, DynamicMap)]
679 streams = []
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/util/__init__.py in dynamic_operation(*key, **kwargs)
1041
1042 def dynamic_operation(*key, **kwargs):
-> 1043 key, obj = resolve(key, kwargs)
1044 return apply(obj, *key, **kwargs)
1045
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/util/__init__.py in resolve(key, kwargs)
1030 elif isinstance(map_obj, DynamicMap) and map_obj._posarg_keys and not key:
1031 key = tuple(kwargs[k] for k in map_obj._posarg_keys)
-> 1032 return key, map_obj[key]
1033
1034 def apply(element, *key, **kwargs):
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/spaces.py in __getitem__(self, key)
1342 # Not a cross product and nothing cached so compute element.
1343 if cache is not None: return cache
-> 1344 val = self._execute_callback(*tuple_key)
1345 if data_slice:
1346 val = self._dataslice(val, data_slice)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/spaces.py in _execute_callback(self, *args)
1109
1110 with dynamicmap_memoization(self.callback, self.streams):
-> 1111 retval = self.callback(*args, **kwargs)
1112 return self._style(retval)
1113
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/spaces.py in __call__(self, *args, **kwargs)
706
707 try:
--> 708 ret = self.callable(*args, **kwargs)
709 except KeyError:
710 # KeyError is caught separately because it is used to signal
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/util/__init__.py in dynamic_operation(*key, **kwargs)
1042 def dynamic_operation(*key, **kwargs):
1043 key, obj = resolve(key, kwargs)
-> 1044 return apply(obj, *key, **kwargs)
1045
1046 operation = self.p.operation
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/util/__init__.py in apply(element, *key, **kwargs)
1034 def apply(element, *key, **kwargs):
1035 kwargs = dict(util.resolve_dependent_kwargs(self.p.kwargs), **kwargs)
-> 1036 processed = self._process(element, key, kwargs)
1037 if (self.p.link_dataset and isinstance(element, Dataset) and
1038 isinstance(processed, Dataset) and processed._dataset is None):
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/util/__init__.py in _process(self, element, key, kwargs)
1016 elif isinstance(self.p.operation, Operation):
1017 kwargs = {k: v for k, v in kwargs.items() if k in self.p.operation.param}
-> 1018 return self.p.operation.process_element(element, key, **kwargs)
1019 else:
1020 return self.p.operation(element, **kwargs)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/operation.py in process_element(self, element, key, **params)
192 self.p = param.ParamOverrides(self, params,
193 allow_extra_keywords=self._allow_extra_keywords)
--> 194 return self._apply(element, key)
195
196
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/operation.py in _apply(self, element, key)
139 if not in_method:
140 element._in_method = True
--> 141 ret = self._process(element, key)
142 if hasattr(element, '_in_method') and not in_method:
143 element._in_method = in_method
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/operation/datashader.py in _process(self, element, key)
1533
1534 def _process(self, element, key=None):
-> 1535 agg = rasterize._process(self, element, key)
1536 shaded = shade._process(self, agg, key)
1537 return shaded
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/operation/datashader.py in _process(self, element, key)
1512 if k in transform.param})
1513 op._precomputed = self._precomputed
-> 1514 element = element.map(op, predicate)
1515 self._precomputed = op._precomputed
1516
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/dimension.py in map(self, map_fn, specs, clone)
705 if new_val is not None:
706 deep_mapped[k] = new_val
--> 707 if applies: deep_mapped = map_fn(deep_mapped)
708 return deep_mapped
709 else:
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/operation.py in __call__(self, element, **kwargs)
212 elif ((self._per_element and isinstance(element, Element)) or
213 (not self._per_element and isinstance(element, ViewableElement))):
--> 214 return self._apply(element)
215 elif 'streams' not in kwargs:
216 kwargs['streams'] = self.p.streams
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/operation.py in _apply(self, element, key)
139 if not in_method:
140 element._in_method = True
--> 141 ret = self._process(element, key)
142 if hasattr(element, '_in_method') and not in_method:
143 element._in_method = in_method
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/operation/datashader.py in _process(self, element, key)
447 dynamic=False, **{p: v for p, v in self.p.items()
448 if p not in ('name', 'dynamic')})
--> 449 return overlay_aggregate(element, **params)
450
451 if element._plot_id in self._precomputed:
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/param/parameterized.py in __new__(class_, *args, **params)
3629 inst = class_.instance()
3630 inst.param._set_name(class_.__name__)
-> 3631 return inst.__call__(*args,**params)
3632
3633 def __call__(self,*args,**kw):
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/operation.py in __call__(self, element, **kwargs)
212 elif ((self._per_element and isinstance(element, Element)) or
213 (not self._per_element and isinstance(element, ViewableElement))):
--> 214 return self._apply(element)
215 elif 'streams' not in kwargs:
216 kwargs['streams'] = self.p.streams
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/operation.py in _apply(self, element, key)
139 if not in_method:
140 element._in_method = True
--> 141 ret = self._process(element, key)
142 if hasattr(element, '_in_method') and not in_method:
143 element._in_method = in_method
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/operation/datashader.py in _process(self, element, key)
537 x, y = dims
538
--> 539 info = self._get_sampling(element, x, y, ndims)
540 (x_range, y_range), (xs, ys), (width, height), (xtype, ytype) = info
541 ((x0, x1), (y0, y1)), _ = self._dt_transform(x_range, y_range, xs, ys, xtype, ytype)
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/operation/datashader.py in _get_sampling(self, element, x, y, ndim, default)
184 elif not np.isfinite(ystart) and not np.isfinite(yend):
185 ystart, yend = 0, 0
--> 186 if y and element.get_dimension_type(y[0]) in datetime_types:
187 ytype = 'datetime'
188
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/dimension.py in get_dimension_type(self, dim)
1031 if dim_obj and dim_obj.type is not None:
1032 return dim_obj.type
-> 1033 dim_vals = [type(v) for v in self.dimension_values(dim)]
1034 if len(set(dim_vals)) == 1:
1035 return dim_vals[0]
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/ndmapping.py in dimension_values(self, dimension, expanded, flat)
392 NumPy array of values along the requested dimension
393 """
--> 394 dimension = self.get_dimension(dimension, strict=True)
395 if dimension in self.kdims:
396 return np.array([k[self.get_dimension_index(dimension)] for k in self.data.keys()])
~/code/asic/pyttoresque/env/lib/python3.10/site-packages/holoviews/core/dimension.py in get_dimension(self, dimension, default, strict)
975 dims = [d for d in all_dims if dimension == d]
976 if strict and not dims:
--> 977 raise KeyError("%r not found." % dimension)
978 elif dims:
979 return dims[0]
KeyError: "Dimension('foo') not found."
:DynamicMap []
Screenshots or screencasts of the bug in action
@jlstevens , I'm not sure how to handle this at the hv level. Datashading an overlay is handled already, but here it seems like we need similar machinery for when the data is a stream?
Upon closer inspection it seems unrelated to streams
import holoviews as hv
import datashader as ds
import pandas as pd
import numpy as np
from holoviews.streams import Buffer, Stream, param
from holoviews.operation.datashader import datashade, shade, dynspread, spread, rasterize
hv.extension('plotly')
n=100
m=1000
i = 0
df = pd.DataFrame({'foo': np.random.rand(m), 'bar': np.random.rand(m)+0.8, 'baz': np.random.rand(m)-0.8}, index=np.arange(m)+m*i)
traces = {k: hv.Curve(df, 'index', k) for k in df.columns}
curves = hv.NdOverlay(traces, kdims='k')
spread(datashade(curves, aggregator=ds.count_cat('k')))
The problem is probably related to incoherent vdims of the curves in the NdOverlay. If you print(curves)
You obtain this:
:NdOverlay [k] :Curve [index] (foo)
If you print(curves['bar'] you get the expected :Curve [index] (bar) though.
To build from your example, you can rather define traces as traces = {k: hv.Curve(df, 'index', k).redim(**{k:'value'}) for k in df.columns} so print(curves) now gives :NdOverlay [k] :Curve [index] (value). And you can now datashade curves.
Another way to think about it is to use an xarray.Dataset data structure that seems more appropriate in that case. It may look complicated if you are not familiar with xarray but this mental model really worth it. Besides, you can then stick to hvplot and activate datashade with an option.
import xarray as xr
import hvplot.xarray
df_multi_index = pd.DataFrame(df.stack(),columns=['value'])
df_multi_index.index.names = ['index','k']
ds = xr.Dataset.from_dataframe(df_multi_index)
curves = ds.hvplot('index','value').overlay()
So is this "working as expected" then? Because without datashader it does plot both traces, though admittedly, picking a column name as the axis label.
The redim solution seems nicer than my tuple hack regardless. Not sure about the xarray solution because I do need streaming in my app.
I would not say it completely works as expected since your experience was suboptimal and confusing.
In your code, you try to set both the vdims of the Curve element and the "values" of the kdim of the NdOverlay as being the names of the columns of the dataframe. This could be inconsistent if for example the columns of your dataframe represent data with different units ; but if it is temperature1, temperature2 and temperature3 then the right vdim would be temperature and the kdim would be 'probe' with values 1,2 and 3.
One strength of Holoviews is to infer the most it can with just the relevant annotation of your data. Maybe it should issue a warning when vdims are clashing like in your example. Maybe it could even infer that what you want is a new common vdim, by betting that you know what you are doing with this NdOverlay that reallocates and empties the dimensionality of your data.
One thing I tried is pasing the vdim as a tuple. ("foo", "magnitude") This allows you to specify the key and the label separately but apparently still uses the key as the domain rather than the label.
