Feat(eos_cli_config_gen): Add support for disabling ipv4 unicast as the default mode for BGP

Enhancement summary

Add support for ip4v_unicast_default key under bgp.

bgp:
  ip4v_unicast_default: < true | false | default -> true >

to control rendering:

router bgp 1
   no bgp default ipv4-unicast
!
end

Which component of AVD is impacted

eos_cli_config_gen

Use case example

please detail your use case

Describe the solution you would like

Render the cli from a distinct key in the model.

Describe alternatives you have considered

This is currently supported with the the addition of a cli line under the bgp_defaults key.

Additional context

No response

Contributing Guide

• [X] I agree to follow this project's Code of Conduct

This issue is stale because it has been open 90 days with no activity. Remove stale label or comment or this will be closed in 15 days

This issue is stale because it has been open 90 days with no activity. Remove stale label or comment or this will be closed in 15 days

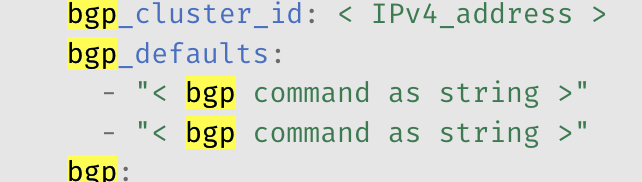

This can be achieved with bgp_defaults

Add the command directly under this hood. Meanwhile I will add the feature.

Thanks!

Yes! I do that today to render the config, and it works great! The reason a key is valuable is that I don't have to walk the list to understand the intent of the configuration when trying to validate the configs.

Note that implementing this would need to add some modification in some of the BGP overlay logic where we explicitly disable some peer-groups in ipv4 address family which will be useless with this turned on.

This issue is stale because it has been open 90 days with no activity. The issue will be reviewed by a maintainer and may be closed

Closing this request because this is achieved through bgp_defaults key.

Will be addressed by https://github.com/aristanetworks/ansible-avd/pull/2799
