Hi, Thanks for your great work! After reading your paper, I've noticed that you can generate the colored face with the original texture, instead of the one shown in diffuseMap_0.png. How to get it? Thanks!

The image u attached is the final rendering which is obtained by combining the face reflectance (diffuse/specular/roughness) with the estimated light. This is what we called the rendering equation. If you want to obtain 'colored face' you have to use the estimated face attributes (diffuse/specular/roughness and and obj) of NextFace with a rendering engine (such opengl, blender)

U can also uses NextFace to generate the final reconstruction, please check replay.py file. this script produces animated reconstruction

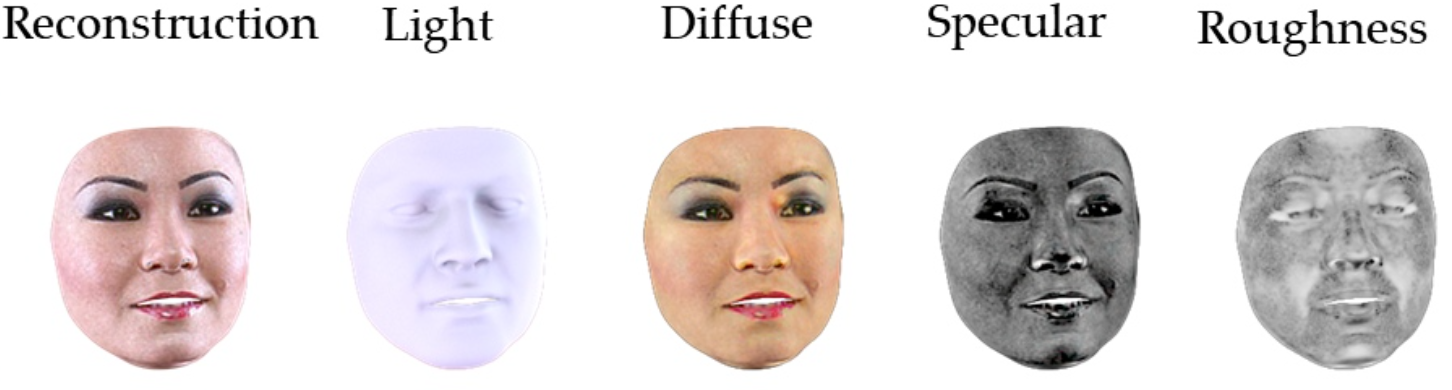

PS: simply speaking, in the image I attached here, the 'reconstruction' image is obtained by combining 'light', 'diffuse', 'specular' and 'roughness' images. I suggest to read some materials on graphics and rendering

Best

Thanks for the heads up. May be change the .mtl file will do the trick: newmtl material0 Ka 0 0 0 Kd 1 1 1 Ks 1 1 1 illum 2 Ns 8 map_Kd diffuseMap_0.png map_kS specularMap_0.png map_Ns roughnessMap_0.png

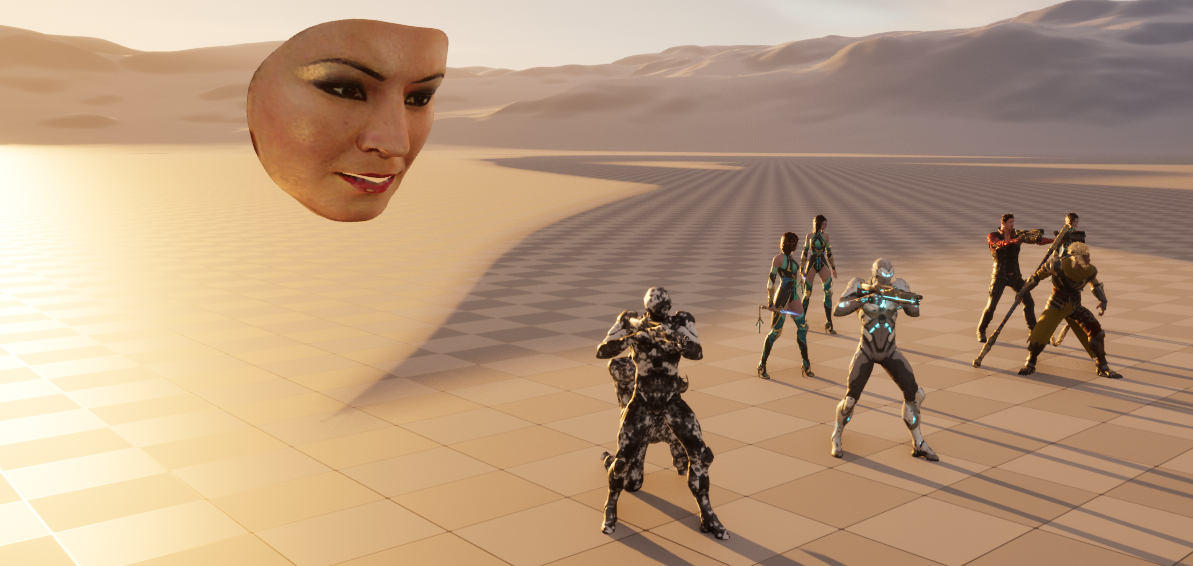

Still wondering where I can get other maps for rendering, especially the lightmap. And here's a screenshot for a material using the three outputs (diffuse, roughness, and specular)

Cheers!

that looks pretty cool! which engine u r using? could you provide an explanation or tutorial how u rendered the face ? that could be useful for other persons here.

I will add the specular and roughness maps to the obj file as u suggested.

for the lightmap, it is an environment map which i did not export yet, i will add it today for you. i hope you will be able to render it with ur engine

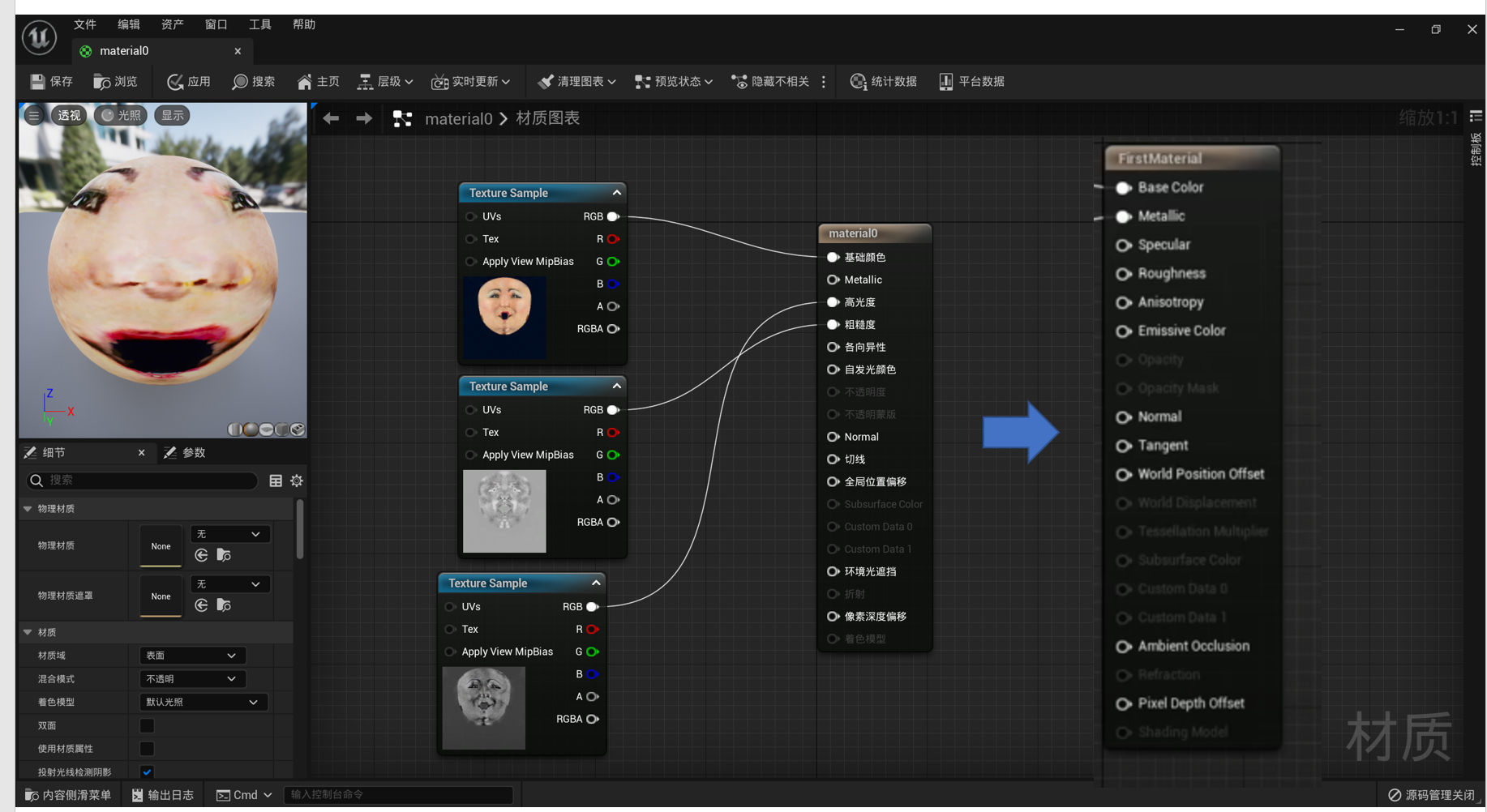

Ha! I was playing with the new UE5 for fun. And just drag the outputs from your code to hook them with the corresponding material as follows (Sorry, I did not download the English version so I pasted part of the panel in English for your reference)

That is cool! I will add the code that export the lightmap when i got back home, so that u can try it with UE! AD

No rush at all! Your code is great for me to learn a lot!

I added export of the estimated light map (as an environment map). plz pull the code. U can choose to export the lightmap as png or exr (check optimConfig.ini)

@xqyd, Hi, do you try to apply the environment map to the mesh in UE4/5?

I flagged this issue so that anyone with UE experience can help in using the environment map. I believe that will be very helpful for many people here

progress made here (with blender) https://github.com/abdallahdib/NextFace/issues/31
