react-charts

react-charts copied to clipboard

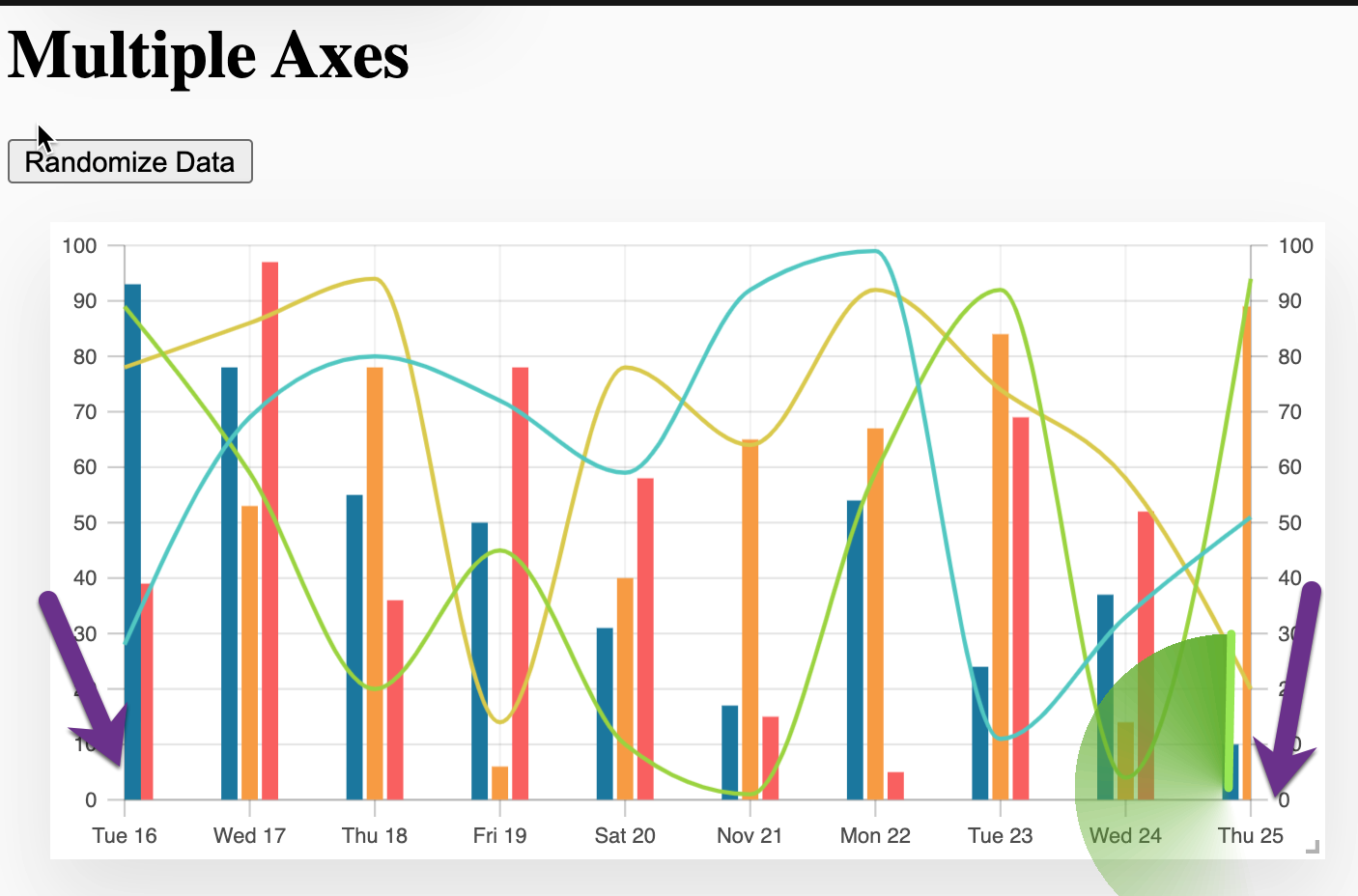

The "Multiple Axes" example is sufficient to describe the issue:

Look at Tue 16 and Thu 25 dates -- only two of the three bars are display.

Can confirm, even shouldNice doesn't help.

I'm running into this as well. I'm on 3.0.0-beta.34

For ordinal data types its throwing error.

const { data, randomizeData } = useDemoConfig({ series: 3, dataType: "ordinal", });

Hi @tannerlinsley, I have just submitted a sponsorship. This is the issue that we are hoping to see resolved.

Well alright! I’ll dig in asap and try to find a good solution.

Tanner Linsley On Dec 15, 2021, 7:13 AM -0700, Paul Grieselhuber @.***>, wrote:

Hi @tannerlinsley, I have just submitted a sponsorship. This is the issue that we are hoping to see resolved. — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub, or unsubscribe. Triage notifications on the go with GitHub Mobile for iOS or Android.

I have a proposed fix here: https://github.com/tannerlinsley/react-charts/compare/beta...feat-padBandRange?expand=1

Let me know what you think

Hey @tannerlinsley it's not obvious how I can test this feature. I tried via npm... do you mind sharing the best way to test this? Thanks!

We are having this issue as well. Installing react-charts from the commit (9c21df7) did not seem to help our issue.

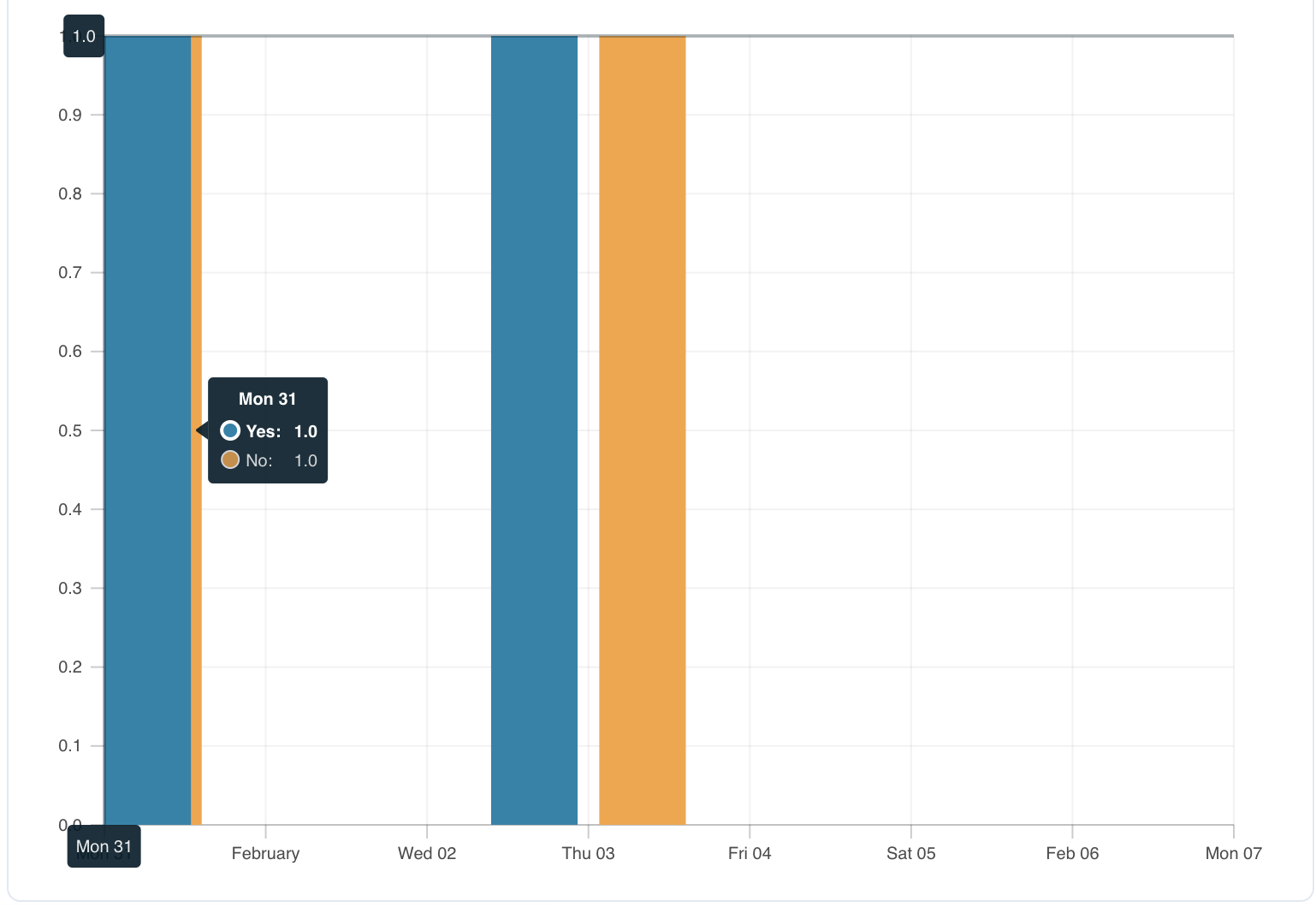

In the above image, you can see that the right-most bar is completely cut off. If another "Yes" value is added, you can see it properly but the "No" bar is still hidden.

In this image, you can see that the two left-most bars are overlapping each other.

This is our primary/secondary axes definitions:

const primaryAxis = useMemo<AxisOptions<Datum>>(
  () => ({
      scaleType: "time",
      getValue: (datum) => datum.primary,
  }),
  []
);

const secondaryAxes = useMemo<AxisOptions<Datum>[]>(
  () => [
    {
      getValue: (datum) => datum.secondary,
      min: 0,
      elementType: "bar",
    },
  ],
  []
);
