maybe this problem appeared earlier but i discovered it when i deleted the cache file somehow the cache is rebuild without recognizing the correct groups

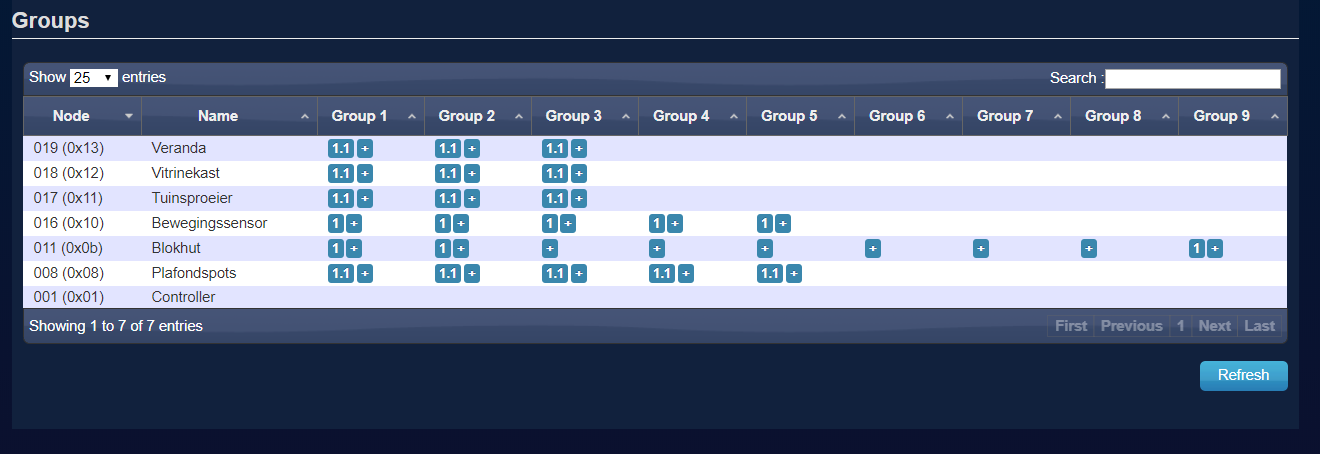

it fails to add 1 or 1.1 to group 1 (device 17,18,19) whatever you do(refresh node, disable/enable zwave) i can not get it to add 1 or 1.1 to group 1 anymore.

devices seem to work but if 1 is not in group 1(this can cause problems) any idea how this is related. what can i do to get the groups back(did refresh node in domoticz and in zwave panel)

after restoring the old cache file everything looks normal

i inspected the cache file and it is missing this entry for all 3 FGWPF devices

> <CommandClass id="96" name="COMMAND_CLASS_MULTI_INSTANCE/CHANNEL">
>                 <Compatibility />
>                 <State />
>             </CommandClass>

domoticz used to crash when you delete the cache file and let it rebuild. this was caused by the way devices got interviewed. i noticed it is not crashing anymore so i suspect we changed the way devices get interviewed(solving the crash but causing this)

units seem to work without association to group 1 but i do not think it is smart to keep this setup. FGWPF is multi instance/channel capable so i do not know what caused this because the device files seem unchanged.

Logs?

it is device 17,18,19

OZW_Log.txt

Another Buggy Implementation:

2020-03-13 08:26:35.635 Info, Node017, UPDATE_STATE_NODE_INFO_RECEIVED from node 17
2020-03-13 08:26:35.635 Info, Node017,   Optional CommandClasses for node 17:
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_ZWAVEPLUS_INFO
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_APPLICATION_STATUS
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_ASSOCIATION
2020-03-13 08:26:35.635 Info, Node017,   CommandClass 0x59 - NOT REQUIRED
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_CONFIGURATION
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_CRC_16_ENCAP
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_DEVICE_RESET_LOCALLY
2020-03-13 08:26:35.635 Info, Node017,   CommandClass 0x7a - NOT REQUIRED
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_MANUFACTURER_SPECIFIC (Existing)
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_METER
2020-03-13 08:26:35.635 Info, Node017,     COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION
2020-03-13 08:26:35.636 Info, Node017,     COMMAND_CLASS_NOTIFICATION
2020-03-13 08:26:35.636 Info, Node017,     COMMAND_CLASS_POWERLEVEL
2020-03-13 08:26:35.636 Info, Node017,     COMMAND_CLASS_SECURITY
2020-03-13 08:26:35.636 Info, Node017,     COMMAND_CLASS_SENSOR_MULTILEVEL
2020-03-13 08:26:35.636 Info, Node017,     COMMAND_CLASS_SWITCH_BINARY (Existing)
2020-03-13 08:26:35.636 Info, Node017,     COMMAND_CLASS_VERSION

Supports MultiChannelAssociation, but not MultiChannel... sigh.

Regardless:

2020-03-13 08:27:14.176 Info, Node017, Received MULTI_CHANNEL_ASSOCIATION_REPORT from node 17, group 1
2020-03-13 08:27:14.176 Info, Node017,   The group contains:
2020-03-13 08:27:14.176 Info, Node017,     Node 1 End Point 1
2020-03-13 08:27:14.176 Info, Node017, Get MultiChannelAssociation for group 2 of node 17

2020-03-13 08:27:14.575 Info, Node017, Received MULTI_CHANNEL_ASSOCIATION_REPORT from node 17, group 2
2020-03-13 08:27:14.575 Info, Node017,   The group contains:
2020-03-13 08:27:14.576 Info, Node017,     Node 1 End Point 1
2020-03-13 08:27:14.576 Info, Node017, Get MultiChannelAssociation for group 3 of node 17

2020-03-13 08:27:14.976 Info, Node017, Received MULTI_CHANNEL_ASSOCIATION_REPORT from node 17, group 3
2020-03-13 08:27:14.976 Info, Node017,   The group contains:
2020-03-13 08:27:14.976 Info, Node017,     Node 1 End Point 1
2020-03-13 08:27:14.976 Info, Node017, Querying associations for node 17 is complete.

Then due to the bug above:

2020-03-13 08:27:14.976 Info, Node017, Adding the controller to group 1 (Lifeline) of node 17
2020-03-13 08:27:14.976 Warning, Node017, MultiChannelAssociation is Present, but MultiChannel CC is not. Trying Plain Association...
2020-03-13 08:27:14.976 Info, Node017, Association::Set - Adding node 1 to group 1 of node 17

But the Node doesn't take it:

2020-03-13 08:27:15.540 Info, Node017, Received Association report from node 17, group 1, containing 0 associations

(that work around is for the Qubino devices that exhibit a similar bug, and it works for them....)

Would be interesting to see some unsolicited reports from this device, if they are indeed encapsulated in a MultiChanneEncap message or not....

Try this: https://github.com/OpenZWave/open-zwave/blob/d8fddb47b3ac12f495101691a42ff38f3b61f296/cpp/src/Group.cpp#L252

Add the following lines after that log message:

					cc->Set(m_groupIdx, _nodeId, 0);
					cc->QueryGroup(m_groupIdx, 0);
					return;

@Fishwaldo , do i need to try this. if so, how?

Yes - I dont own these devices so someone needs to debug.

You need to make the changes and recompile.

ok, have asked Jumbotroll to do this for me and will get back after i have tested.

Jumbotroll was so kind to create a 782 build with the modifications you suggested. it looks like it is working. 1.1 in group 1 again. also deleting 1.1 from group 1 and adding it again works and show 1.1 in group 1 again.

here is the log in case you want to inspect if things really stuck do i need to check anything else in case this might have broken something else?

OZW_Log-afterfix.txt

I need to test that with Quibino Devices, which the original fix broke your fibaro devices. both of which, IMHO are not compliant with the specifications. sigh

device 11 is a qubino zmnhadx it seems to work in my situation but standard association so 1 in group 1(fix in the config file)

any news on this issue. i do not see any changes regarding this. at thr moment i keep a couple copies of my good working cache file

@Fishwaldo

i installed 2020.2.12178 but the issue is still there with the FGWPF modules. eveything seems to work but those modules not being present in group 1 (lifeline) is not good.

for now i still keep on using a very old ozwcache file which does work but there will come a time when this file needs to be refreshed and then i will have a problem.

any news on when we will fix this (or undo the other fix)

since the FGWPF gen5 is a widely used module i am suprized nobody else is complaining about this. maybee everybody is upgrading and never tested a fresch ozw cache file
