[UNDER-DISCUSSION] Metrics in Optimization

[PaulTalbot-INL]

---

Under Discussion Topic

A common workflow emerging among users and advertised by RAVEN developers is model calibration or parameter tuning.

In this workflow, the following conceptual pseudo-Step is considered:

<MultiRun>
  <Input> Placeholder
  <Optimizer>
  <Model> EnsembleModel
  <Output> TargetEvaluation, Results
</MultiRun>

<EnsembleModel>
  <Model> ROM (from RAVEN or otherwise)
  <Model> V and V Standard (experiment, code, etc)
  <Model> Metrics to compare ROM and Standard
</EnsembleModel>

However, there is no current method to use the RAVEN <Metrics> within a model that can be used in an EnsembleModel.

There is a current workaround: using RAVEN-running-RAVEN, with RAVEN as the Model, allowing a single sample of both the ROM and Standard, followed by a single-realization PostProcess step, returning the Metric result. This is unnecessarily burdensome to workflow designers.

Options to consider under discussion:

• Allow PostProcessors (of per-realization type, not full-population type) to be included in EnsembleModel workflows
• Allow the Optimizer (or a parent class) to directly incorporate Metrics to collapse realization data
• Allow Metrics to be imported in ExternalModels for use within the EnsembleModel
• Encourage use of the current workflow

---

For Change Control Board: Issue Review

This review should occur before any development is performed as a response to this issue.

• [x] 1. Is it tagged with the under_discussion type?
• [x] 2. If implemented, it will add a new requirement?
• [x] 3. Is a rationale provided? (Such as explaining why the improvement is needed )

---

For Change Control Board: Issue Closure

This review should occur when the issue is imminently going to be closed.

• [ ] 1. The discussion determined the addition of a new task issue?

[PaulTalbot-INL]

2022-02-02 Design Meeting Notes

We quickly concluded that including the PostProcessor in the EnsembleModel is challenging and does not present sufficient use cases currently to justify the effort involved; aside from which, the EnsembleModel is a relatively complex user tool, so that leads to preference for the Optimizer-Metric option.

Other Benefits

The Optimizer can also be trivially used as a weighted multi-objective optimizer by introducing the inclusion of a Metric for collapsing data into a single target float.

Where to implement

We had some discussion on the correct class on which to place this Metric tool. It is clear that other feedback-enabled Samplers (i.e. all AdaptiveSamplers) can benefit from this Metric integration.

Further, it's possible that ForwardSamplers could use this Metric integration as well; however, the same result can be obtained by running a MultiRun to take all the samples at once, then send them to a PostProcess step to yield the metric results on a per-realization basis. Thus, there is no forced need to include Metric integration in the ForwardSampler; rather this would be a tool of input convenience.

Yet further, there is no feedback mechanic currently for ForwardSamplers to "tag up" with the sampled output results, so there isn't a tool for the ForwardSampler to apply any postprocessing, including Metrics. A new mechanic would have to be added similar to the TargetEvaluation, which seems complex and unnecessary for the nominal benefit.

Supporting Efforts

The initiating requests that led to this discussion are from IES in dynamic model V&V work; however, there is no developer available to support the code base changes necessary at this time.

Notes

Metrics, MetricDistributor, and PostProcessor

Apparently the only current use case for the Metrics is within a PostProcessor, and there is a helper layer called the MetricDistributer that handles complex Metric needs. The responsibilities look something like:

• Metric: (a, b) -> float
• MetricDistributor: handle time-dependence, multiple-recursive metric collapsing
• PostProcessor: currently only user access to Metrics

It's not completely clear which level should be used in the AdaptiveSampler, but probably either the MetricDistributer or the PostProcessor.

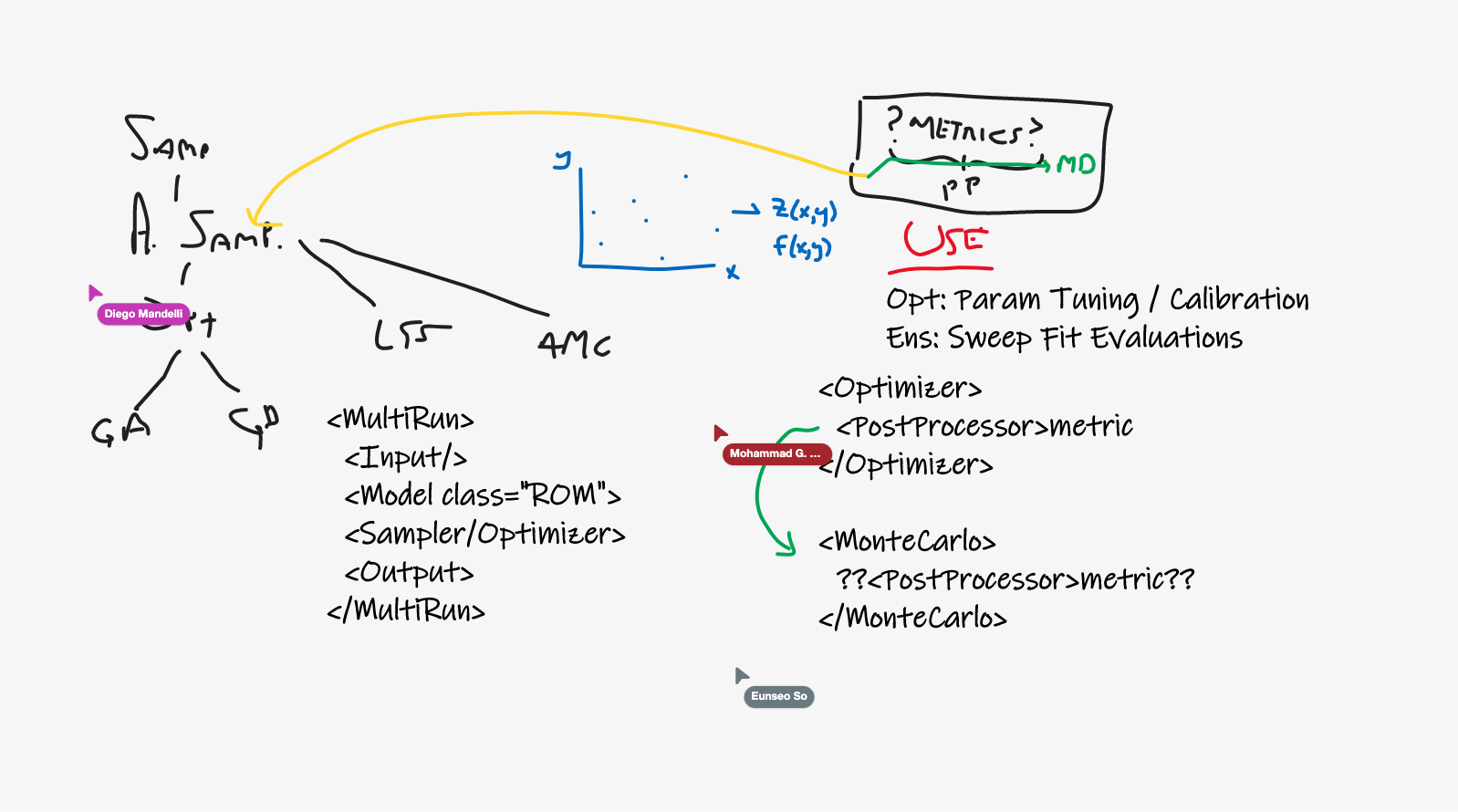

Whiteboard

The whiteboard used during the 2022-02-02 discussion is included here:
