How to drive P25 8x8 RGB Panel with Static-Scan (4R2G1B)

Open anandrajgupta opened this issue 4 years ago • 0 comments

Hi Mr. @hzeller, First of all Thank you very much for this wonderful library.

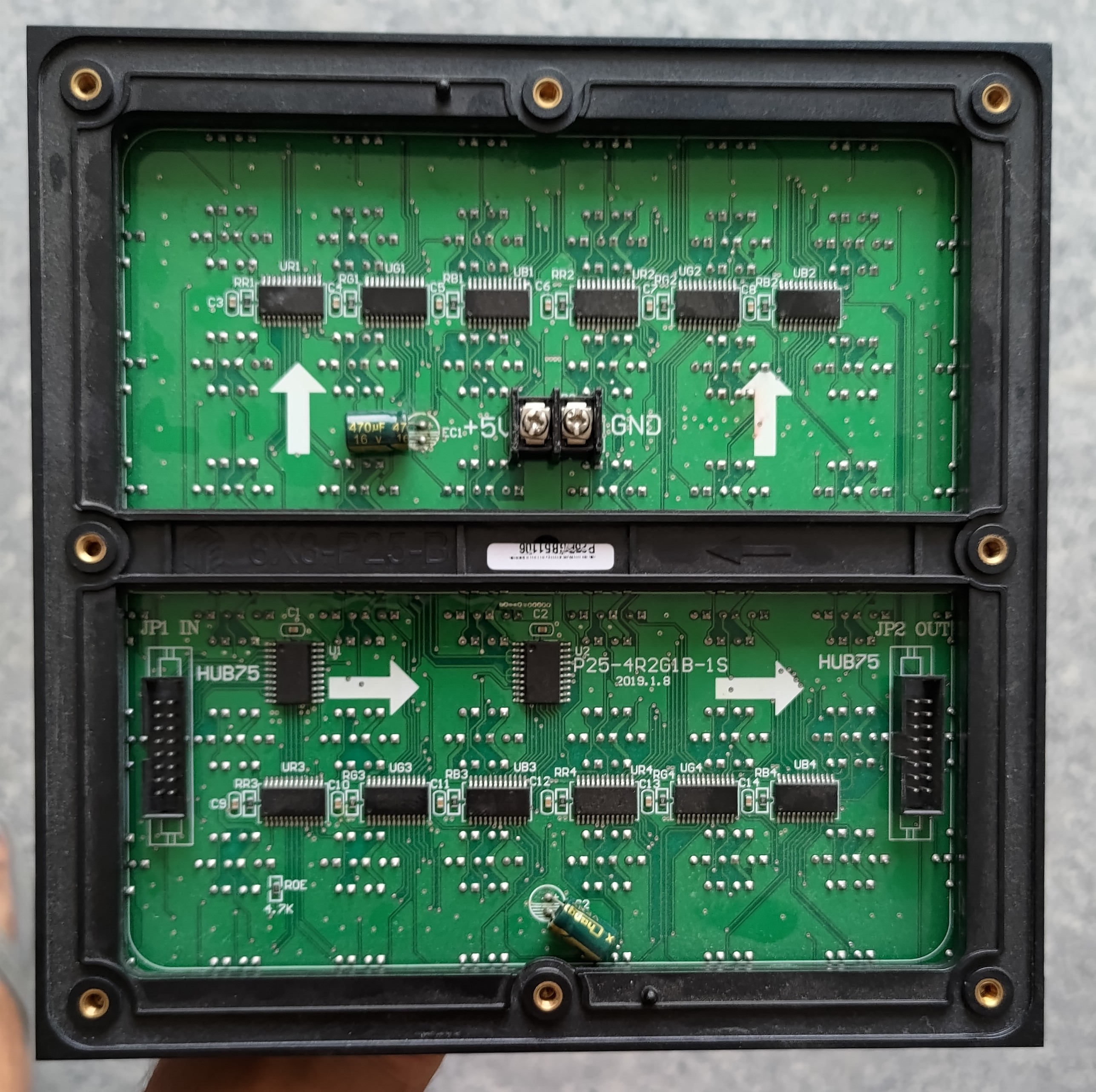

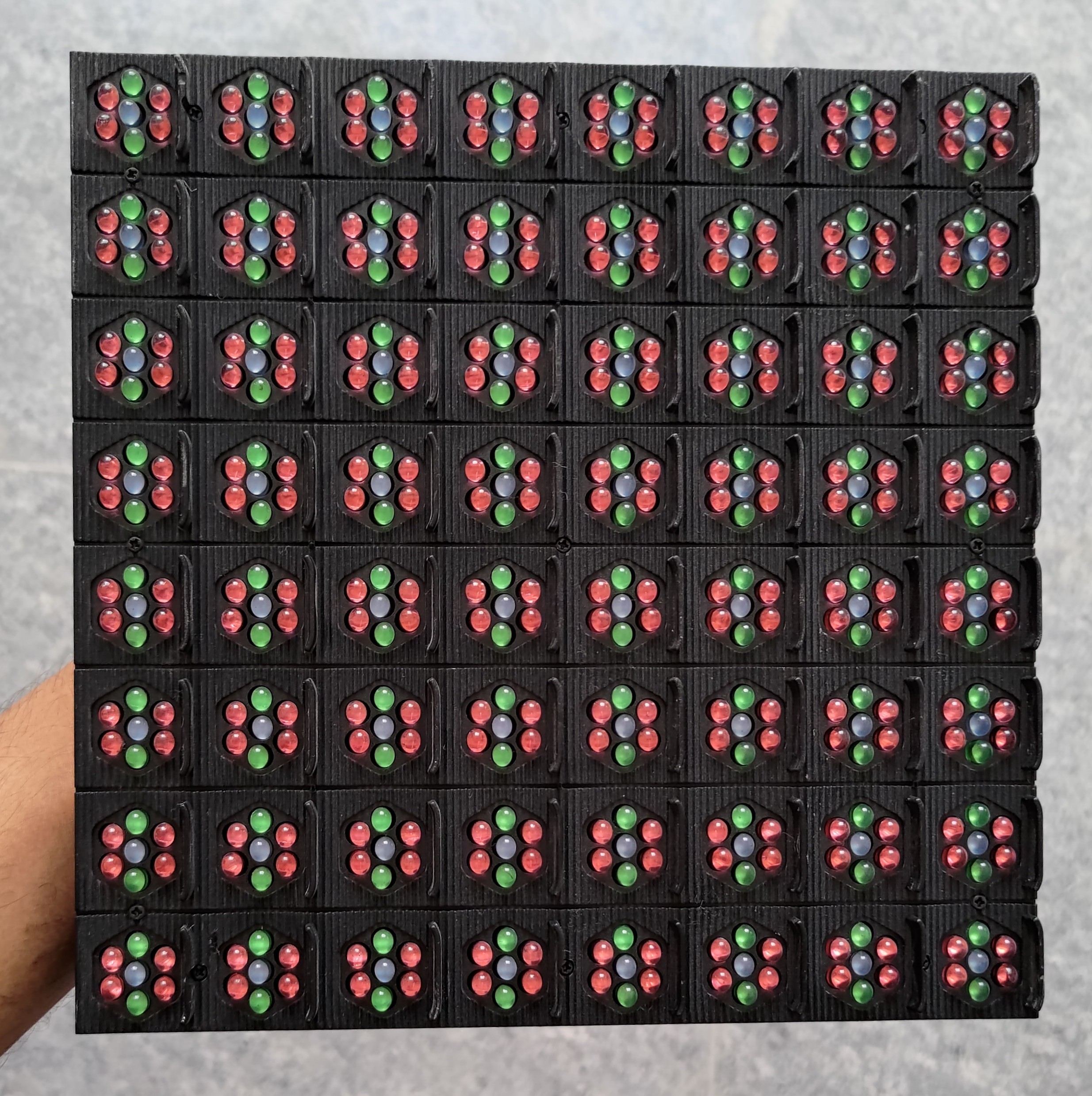

I am having an RGB Panel with: Panel Size: 8x8 Scan Rate: 1 (Static) Pixel Pitch: 25mm Connector: HUB75 Led Groupping: 4R2G1B Attaching Panel Picture below

When i try to run an example with column count 8, it says column has to be greater than or equal to 16! does that mean i can't drive a 8x8 panel using this library?

When i run the example with writing column count 16 (which actually is 8 in my case) then panel somewhat works but shape jumbled up.

Please guide me to drive this panel properly, any help would be highly appreciated, Thanks in advance 😇

P_20210810_173041_1 P_20210810_173101_1

anandrajgupta avatar Aug 10 '21 12:08 anandrajgupta
