htop Missing temperature for some threads

I'm using self compiled 3.1.1 release.

On one computer I missing temperature for threads 5-8

In btop++ I see temperature for all cores

For the same CPU on other computer it's all fine

Oct 23 '21 17:10 somera

Related to https://github.com/htop-dev/htop/issues/806

Oct 23 '21 17:10 fasterit

@somera: Can you please provide the sensors -u output?

Oct 23 '21 17:10 fasterit

not working computer:

$ sudo sensors -u
pch_cannonlake-virtual-0
Adapter: Virtual device
temp1:
  temp1_input: 30.000

acpitz-acpi-0
Adapter: ACPI interface
temp1:
  temp1_input: -263.200
temp2:
  temp2_input: 27.800
  temp2_crit: 119.000

iwlwifi_1-virtual-0
Adapter: Virtual device
temp1:
ERROR: Can't get value of subfeature temp1_input: Can't read

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:
  temp1_input: 32.000
  temp1_max: 100.000
  temp1_crit: 100.000
  temp1_crit_alarm: 0.000
Core 0:
  temp2_input: 29.000
  temp2_max: 100.000
  temp2_crit: 100.000
  temp2_crit_alarm: 0.000
Core 1:
  temp3_input: 31.000
  temp3_max: 100.000
  temp3_crit: 100.000
  temp3_crit_alarm: 0.000
Core 2:
  temp4_input: 31.000
  temp4_max: 100.000
  temp4_crit: 100.000
  temp4_crit_alarm: 0.000
Core 3:
  temp5_input: 30.000
  temp5_max: 100.000
  temp5_crit: 100.000
  temp5_crit_alarm: 0.000

working computer:

$ sudo sensors -u
coretemp-isa-0000
Adapter: ISA adapter
Package id 0:
  temp1_input: 45.000
  temp1_max: 100.000
  temp1_crit: 100.000
  temp1_crit_alarm: 0.000
Core 0:
  temp2_input: 43.000
  temp2_max: 100.000
  temp2_crit: 100.000
  temp2_crit_alarm: 0.000
Core 1:
  temp3_input: 43.000
  temp3_max: 100.000
  temp3_crit: 100.000
  temp3_crit_alarm: 0.000
Core 2:
  temp4_input: 44.000
  temp4_max: 100.000
  temp4_crit: 100.000
  temp4_crit_alarm: 0.000
Core 3:
  temp5_input: 43.000
  temp5_max: 100.000
  temp5_crit: 100.000
  temp5_crit_alarm: 0.000

acpitz-acpi-0
Adapter: ACPI interface
temp1:
  temp1_input: -263.200
temp2:
  temp2_input: 27.800
  temp2_crit: 119.000

iwlwifi_1-virtual-0
Adapter: Virtual device
temp1:
ERROR: Can't get value of subfeature temp1_input: Can't read

pch_cannonlake-virtual-0
Adapter: Virtual device
temp1:
  temp1_input: 43.000

Oct 23 '21 18:10 somera

I have two same NUCs. ;) On the one it's working. On the other not,

Oct 23 '21 18:10 somera

$ lscpu | egrep 'Model name|Socket|Thread|NUMA|CPU\(s\)'
CPU(s):                          8
On-line CPU(s) list:             0-7
Thread(s) per core:              2
Socket(s):                       1
NUMA node(s):                    1
Model name:                      Intel(R) Core(TM) i5-8259U CPU @ 2.30GHz
NUMA node0 CPU(s):               0-7

Oct 23 '21 18:10 somera

The important line in this:

Thread(s) per core: 2

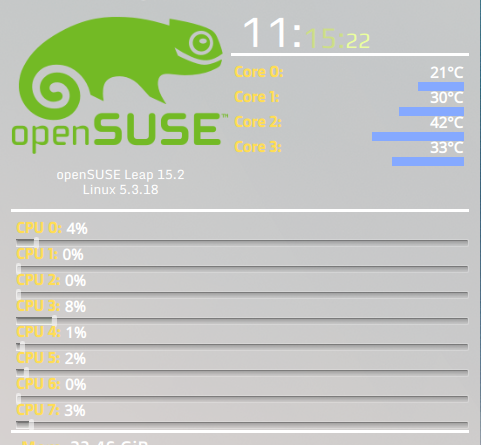

4 physical processors - four temperature sensors. My chip (Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz) has 5 sensors. One per CPU and one GPU. The built-in GPU is disabled and the temperature sensor is not visible for it. The plasmoid on the desktop shows this picture: Plasma-sensors

Most likely, we need to correctly display the readings of real physical sensors in a separate line, and not mix everything. I.e., for each individual CPU (real \virtual), show the loading slider and frequency, and put the temperature sensors in a separate group.

Oct 25 '21 08:10 The-going

And now the same issue with the NUC where is works for threads 5-8 ;)

Oct 29 '21 14:10 somera

@somera: This seems to be depending on the sequence of sensors as detected by libsensors. Can you confirm the sensors -u on that computer is different from the one you pasted in the https://github.com/htop-dev/htop/issues/856#issuecomment-950190585 ?

Oct 29 '21 16:10 fasterit

1st NUC:

$ sensors -u
pch_cannonlake-virtual-0
Adapter: Virtual device
temp1:
  temp1_input: 39.000

acpitz-acpi-0
Adapter: ACPI interface
temp1:
  temp1_input: -263.200
temp2:
  temp2_input: 27.800
  temp2_crit: 119.000

iwlwifi_1-virtual-0
Adapter: Virtual device
temp1:
ERROR: Can't get value of subfeature temp1_input: Can't read

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:
  temp1_input: 39.000
  temp1_max: 100.000
  temp1_crit: 100.000
  temp1_crit_alarm: 0.000
Core 0:
  temp2_input: 38.000
  temp2_max: 100.000
  temp2_crit: 100.000
  temp2_crit_alarm: 0.000
Core 1:
  temp3_input: 39.000
  temp3_max: 100.000
  temp3_crit: 100.000
  temp3_crit_alarm: 0.000
Core 2:
  temp4_input: 39.000
  temp4_max: 100.000
  temp4_crit: 100.000
  temp4_crit_alarm: 0.000
Core 3:
  temp5_input: 38.000
  temp5_max: 100.000
  temp5_crit: 100.000
  temp5_crit_alarm: 0.000

2nd NUC:

$ sensors -u
pch_cannonlake-virtual-0
Adapter: Virtual device
temp1:
  temp1_input: 29.000

acpitz-acpi-0
Adapter: ACPI interface
temp1:
  temp1_input: -263.200
temp2:
  temp2_input: 27.800
  temp2_crit: 119.000

iwlwifi_1-virtual-0
Adapter: Virtual device
temp1:
ERROR: Can't get value of subfeature temp1_input: Can't read

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:
  temp1_input: 31.000
  temp1_max: 100.000
  temp1_crit: 100.000
  temp1_crit_alarm: 0.000
Core 0:
  temp2_input: 28.000
  temp2_max: 100.000
  temp2_crit: 100.000
  temp2_crit_alarm: 0.000
Core 1:
  temp3_input: 29.000
  temp3_max: 100.000
  temp3_crit: 100.000
  temp3_crit_alarm: 0.000
Core 2:
  temp4_input: 28.000
  temp4_max: 100.000
  temp4_crit: 100.000
  temp4_crit_alarm: 0.000
Core 3:
  temp5_input: 28.000
  temp5_max: 100.000
  temp5_crit: 100.000
  temp5_crit_alarm: 0.000

Oct 29 '21 16:10 somera

At this very moment in time.

htop> ./htop --version
htop 3.2.0-dev
htop> sensors --version
sensors version 3.5.0 with libsensors version 3.5.0

htop> sensors -u
coretemp-isa-0000
Adapter: ISA adapter
Package id 0:
  temp1_input: 48.000
  temp1_max: 80.000
  temp1_crit: 98.000
  temp1_crit_alarm: 0.000
Core 0:
  temp2_input: 25.000
  temp2_max: 80.000
  temp2_crit: 98.000
  temp2_crit_alarm: 0.000
Core 1:
  temp3_input: 36.000
  temp3_max: 80.000
  temp3_crit: 98.000
  temp3_crit_alarm: 0.000
Core 2:
  temp4_input: 48.000
  temp4_max: 80.000
  temp4_crit: 98.000
  temp4_crit_alarm: 0.000
Core 3:
  temp5_input: 37.000
  temp5_max: 80.000
  temp5_crit: 98.000
  temp5_crit_alarm: 0.000

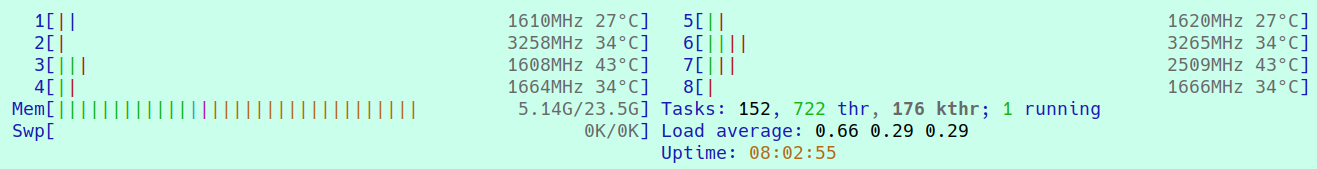

./htop htop-i7

Oct 29 '21 16:10 The-going

At this very moment in time.

Not for me ...

$ sensors --version
sensors version 3.6.0 with libsensors version 3.6.0
$ ./htop --version
htop 3.2.0-dev
$ git log -1 --format="%H"
63fafb4844dd619793ba1d318e2b06518666dd37

Dec 08 '21 18:12 somera

sensors --version sensors version 3.6.0 with libsensors version 3.6.0

Thanks for the information. Your picture shows the truth. I should change 'sensors` to a more up-to-date version.

Dec 09 '21 12:12 The-going

sensors version 3.5.0 with libsensors version 3.5.0

That means, that with

sensors version 3.5.0 with libsensors version 3.5.0

and with

sensors version 3.6.0 with libsensors version 3.6.0

not?

I didn't check this with 3.5.0.

Dec 09 '21 12:12 somera

There are 4 physical cores in this processor. There is a temperature sensor on each physical core. Another sensor shows the temperature of the GPU. There are 5 of them in total. In your picture, numbers 5, 6, 7, 8 are virtual cores. They don't have sensors. Your picture shows the truth, and my green one is a lie.

Dec 09 '21 13:12 The-going

Here with a Ryzen 5 3600 I have temperature missing in htop on all but one core.

sensors -u
k10temp-pci-00c3
Adapter: PCI adapter
Tctl:
  temp1_input: 65.750
Tccd1:
  temp3_input: 65.000

acpitz-acpi-0
Adapter: ACPI interface
temp1:
  temp1_input: 16.800
  temp1_crit: 20.800
temp2:
  temp2_input: 16.800
  temp2_crit: 20.800

nvme-pci-0100
Adapter: PCI adapter
Composite:
  temp1_input: 46.850
  temp1_max: 86.850
  temp1_min: -0.150
  temp1_crit: 89.850
  temp1_alarm: 0.000
Sensor 1:
  temp2_input: 46.850
  temp2_max: 65261.850
  temp2_min: -273.150

https://i.imgur.com/ZNFWApZ.jpg

Jun 04 '22 01:06 Zorrototo
