Some icons in the logboock are not proportionate to other icons

[WRoss7]

Checklist

• [X] I have updated to the latest available Home Assistant version.
• [X] I have cleared the cache of my browser.
• [X] I have tried a different browser to see if it is related to my browser.

Describe the issue you are experiencing

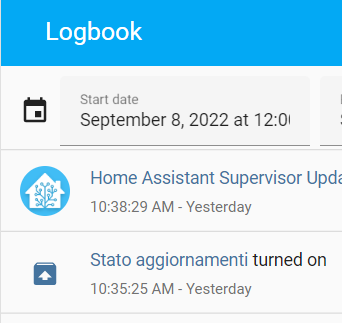

Some icons in the logboock (e.g., Add-Ons icons) are not proportionate to other icons

Describe the behavior you expected

All icons should be the same size

Steps to reproduce the issue

...

What version of Home Assistant Core has the issue?

Home Assistant 2022.9.1

What was the last working version of Home Assistant Core?

Home Assistant 2022.9.1

In which browser are you experiencing the issue with?

Google Chrome 105.0.5195.102

Which operating system are you using to run this browser?

Windows 10

State of relevant entities

No response

Problem-relevant frontend configuration

No response

Javascript errors shown in your browser console/inspector

No response

Additional information

[ildar170975]

Some rows have icons, some have "images" - see here for "Home Assistant Supervisor". Placeholders for icons & images seems to be of same size. The difference you see is related to "icons have transparent background, images occupy the whole area".

[WRoss7]

If I look at the icons, they don't seem to be drawn with so much emptiness around them. My guess is that the images are enlarged, or vice versa. Not the best graphically

[ildar170975]

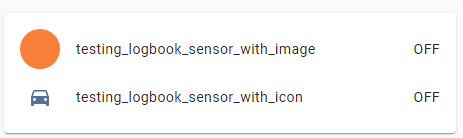

type: entities
entities:
  - entity: sensor.testing_logbook_sensor_with_image
  - entity: sensor.testing_logbook_sensor_with_icon

These icon & image occupy areas of same size.

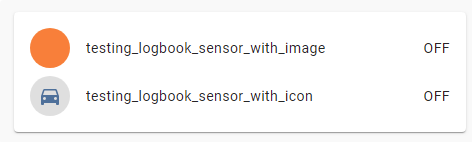

Tap on the icon - you will see it's area:

[WRoss7]

You are right, many icons are tiny compared to the area.

[WRoss7]

If I understand correctly, the problem lies in the fact that the image is round while the icon is square: if you superimpose the square icon on the round image (the ones in the Logbook), will the icon overflow the circumference of the image?

[github-actions[bot]]

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates. Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍 This issue has now been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.
