ZHA: tuya zigbee siren TS0601 _TZE200_t1blo2bj doesn't work anymore

[slecram]

The problem

I have two tuya zigbee sirens (TS0601 _TZE200_t1blo2bj) but they don't play sounds anymore. I use this sirens as a doorbell in an automation trigged by a zigbee switch.

In my automation first I configure the siren with

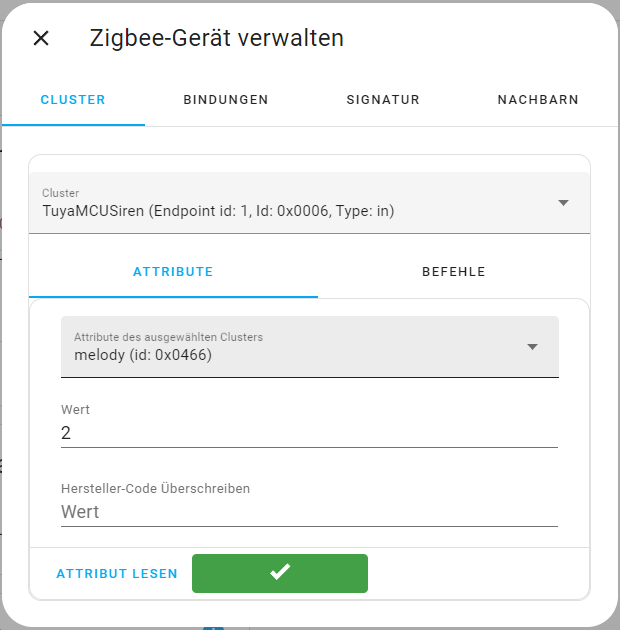

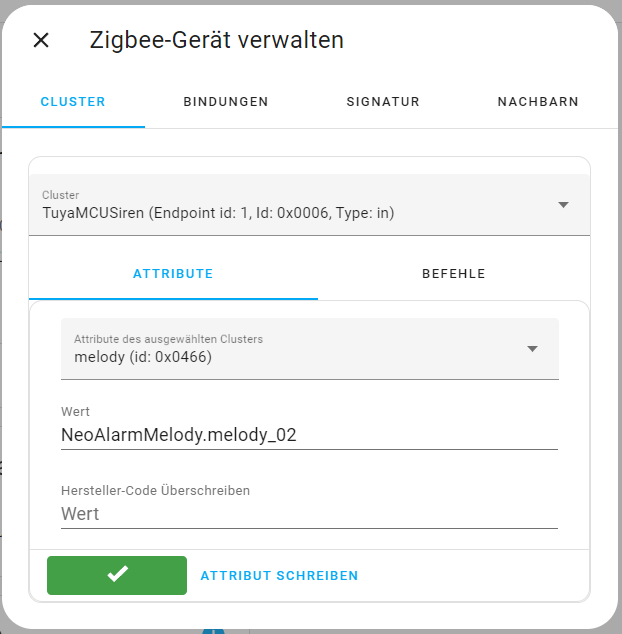

• melody = 2 (attribute 1126 = 0x0466, see yaml code below)

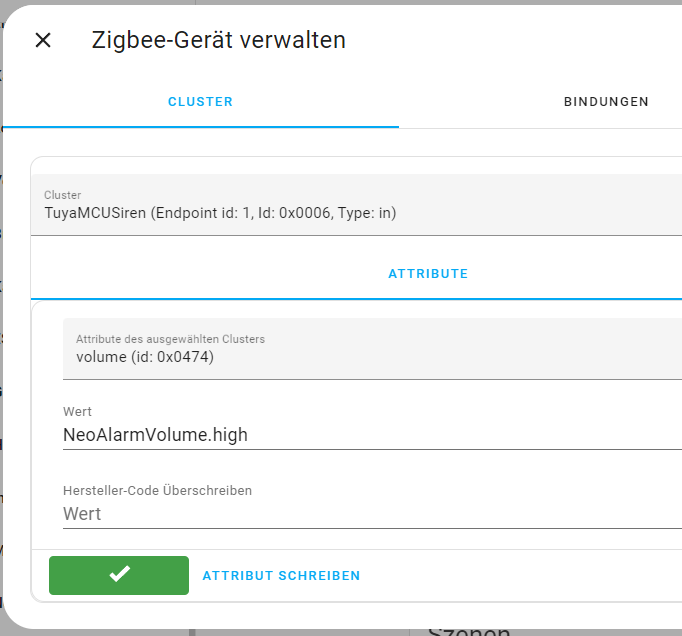

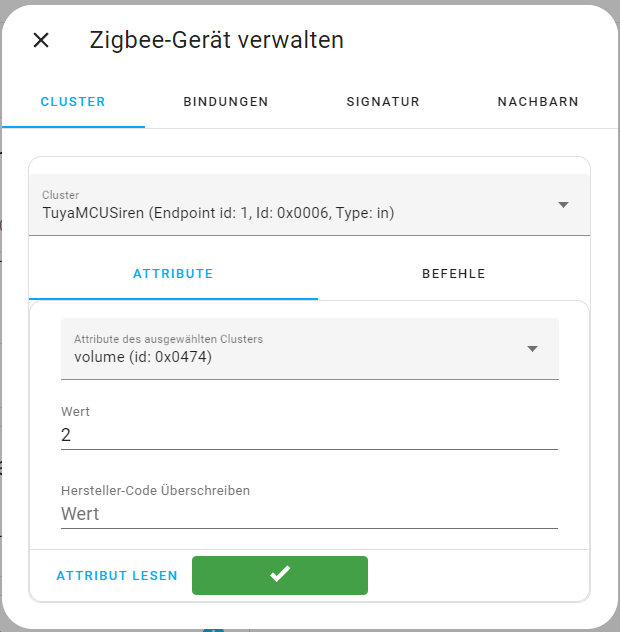

• volume = 2 (attribute 1140 = 0x0474, see yaml code below)

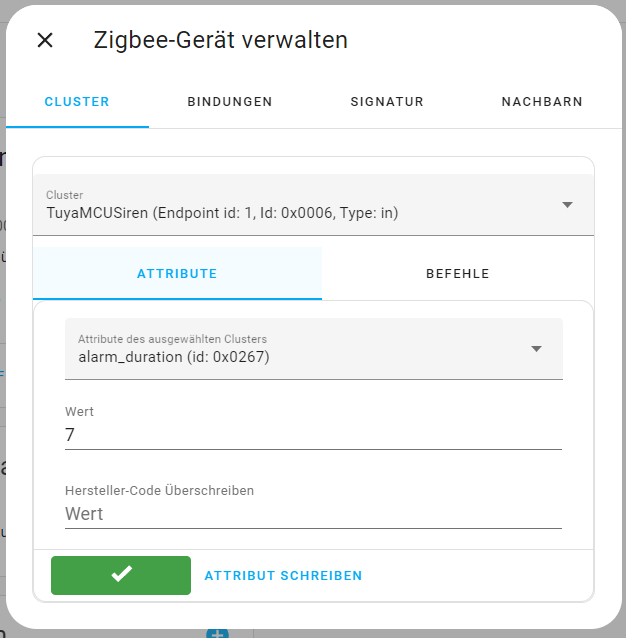

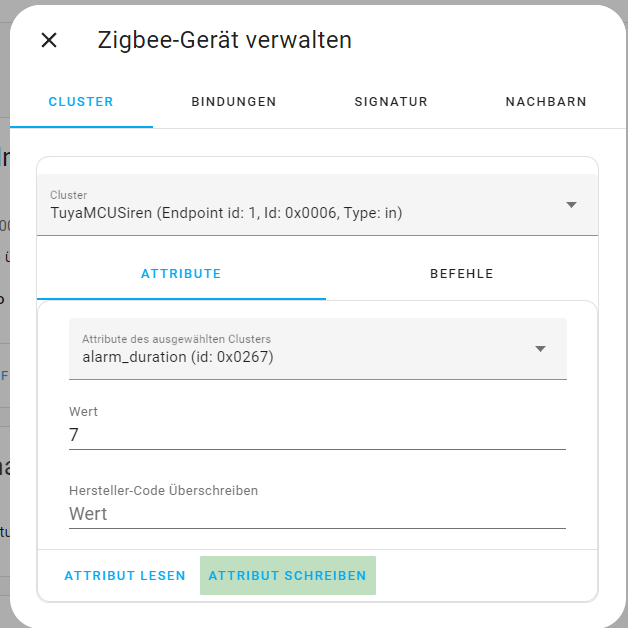

• duration = 7 (attribute 615 = 0x0267, see yaml code below)

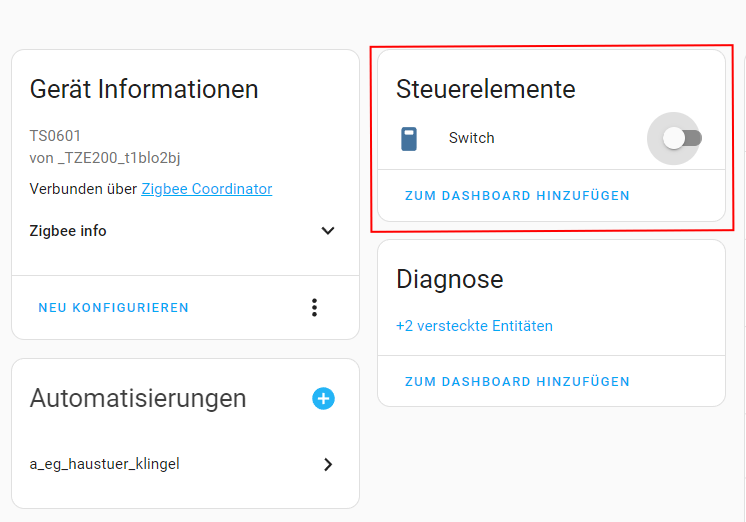

and then I enable the sirens switch entity. This works fine till about 2-3 weeks ago but now it doens't work anymore.

The debug log is in the attachements. I triggered the automation at 2023-03-20 13:50

After that I try the manual way at 2023-03-20 13:56 (with enabled debug-log, see below)

What version of Home Assistant Core has the issue?

2023.3.5

What was the last working version of Home Assistant Core?

No response

What type of installation are you running?

Home Assistant OS

Integration causing the issue

No response

Link to integration documentation on our website

https://www.home-assistant.io/integrations/zha/

Diagnostics information

Error-Debug with triggered automation: home-assistant_zha_2023-03-20T12-50-25.022Z.log

Error-Debug-Log for the manual way home-assistant_zha_2023-03-20T12-57-52.708Z.log

Example YAML snippet

action:
  - service: zha.set_zigbee_cluster_attribute
    data:
      endpoint_id: 1
      cluster_id: 6
      attribute: 1126
      value: "2"
      ieee: a4:c1:38:e3:07:14:cb:bd
      cluster_type: in
  - service: zha.set_zigbee_cluster_attribute
    data:
      endpoint_id: 1
      cluster_id: 6
      attribute: 1140
      ieee: a4:c1:38:e3:07:14:cb:bd
      value: "2"
      cluster_type: in
  - service: zha.set_zigbee_cluster_attribute
    data:
      endpoint_id: 1
      cluster_id: 6
      attribute: 615
      value: "7"
      ieee: a4:c1:38:e3:07:14:cb:bd
      cluster_type: in
  - service: switch.turn_on
    data: {}
    target:
      entity_id: switch.eg_sirene_switch

Anything in the logs that might be useful for us?

No response

Additional information

No response

[home-assistant[bot]]

Hey there @dmulcahey, @adminiuga, @puddly, mind taking a look at this issue as it has been labeled with an integration (zha) you are listed as a code owner for? Thanks!

Code owner commands

Code owners of zha can trigger bot actions by commenting:

• @home-assistant close Closes the issue.
• @home-assistant rename Awesome new title Renames the issue.
• @home-assistant reopen Reopen the issue.
• @home-assistant unassign zha Removes the current integration label and assignees on the issue, add the integration domain after the command.

_{^{(message by CodeOwnersMention)}}

---

zha documentation zha source _{^{(message by IssueLinks)}}

[kennycoder]

Same story here. Trigger does not work anymore. HA Version: 2023.3.6

Interestingly enough, If I send "1" to the on_off (0x0000) via Manage Zigbee Device, it becomes Bool.true and then goes back to Bool.false and the alarm actually works. If I trigger via the switch, the value stays "1" and doesn't convert to Bool.true nor goes back to Bool.false after the duration.

[kennycoder]

Found the issue:

Triggered via switch (as exposed) - uses "1" as attr.value. Doesn't work

2023-03-29 11:52:03.462 DEBUG (MainThread) [zigpy.zcl] [0x8971:1:0xef00] tuya_mcu_command: cluster_data=TuyaClusterData(endpoint_id=1, cluster_name='on_off', cluster_attr='on_off', attr_value=1, expect_reply=True, manufacturer=-1)

Manually triggered - uses <Bool.true: 1> -> works 2023-03-29 11:53:22.376 DEBUG (MainThread) [zigpy.zcl] [0x8971:1:0xef00] tuya_mcu_command: cluster_data=TuyaClusterData(endpoint_id=1, cluster_name='on_off', cluster_attr='on_off', attr_value=<Bool.true: 1>, expect_reply=False, manufacturer=-1)

[slecram]

Workaround works for me. After configure the siren (see above), I enable the "on_off" 0x0000 attribute in my automation

service: zha.set_zigbee_cluster_attribute data: endpoint_id: 1 cluster_id: 6 attribute: 0 value: "1" ieee: a4:c1:38:e3:07:14:cb:bd cluster_type: in

[simowilso]

Can anyone help me with some basic instructions what value to set which clusters to get this alarm to sound please? I am using 2023.3.4 and can't get a squeak out of my device (using ZHA).

[javicalle]

The issue should be fixed in the next HA version.

[javicalle]

Can anyone confirm that the issue is already fixed? Can the issue be closed?

[kgh-s]

Can anyone confirm that the issue is already fixed? Can the issue be closed?

No. I am on 2023.4.1 and anything related to the sirene, from switching it on or off or change the volume or type of sirene sound still only works manually as described above.

[TheJulianJES]

Fix will only land in 2023.4.2

[kgh-s]

Fix will only land in 2023.4.2

Yep. Working with 2023.4.2
