Goodwe Today Energy (import) is not updated

[arturschuetz1979]

The problem

The integration for the goodwe inverter works really good but one parameter is not updated at all. Goodwe Today Energy (import) is not available but very important for me.

What version of Home Assistant Core has the issue?

2022.9.4

What was the last working version of Home Assistant Core?

No response

What type of installation are you running?

Home Assistant Core

Integration causing the issue

goodwe

Link to integration documentation on our website

https://www.home-assistant.io/integrations/goodwe

Diagnostics information

No response

Example YAML snippet

No response

Anything in the logs that might be useful for us?

No response

Additional information

No response

[probot-home-assistant[bot]]

goodwe documentation goodwe source _{^{(message by IssueLinks)}}

[probot-home-assistant[bot]]

Hey there @mletenay, @starkillerog, mind taking a look at this issue as it has been labeled with an integration (goodwe) you are listed as a code owner for? Thanks! _{^{(message by CodeOwnersMention)}}

[mletenay]

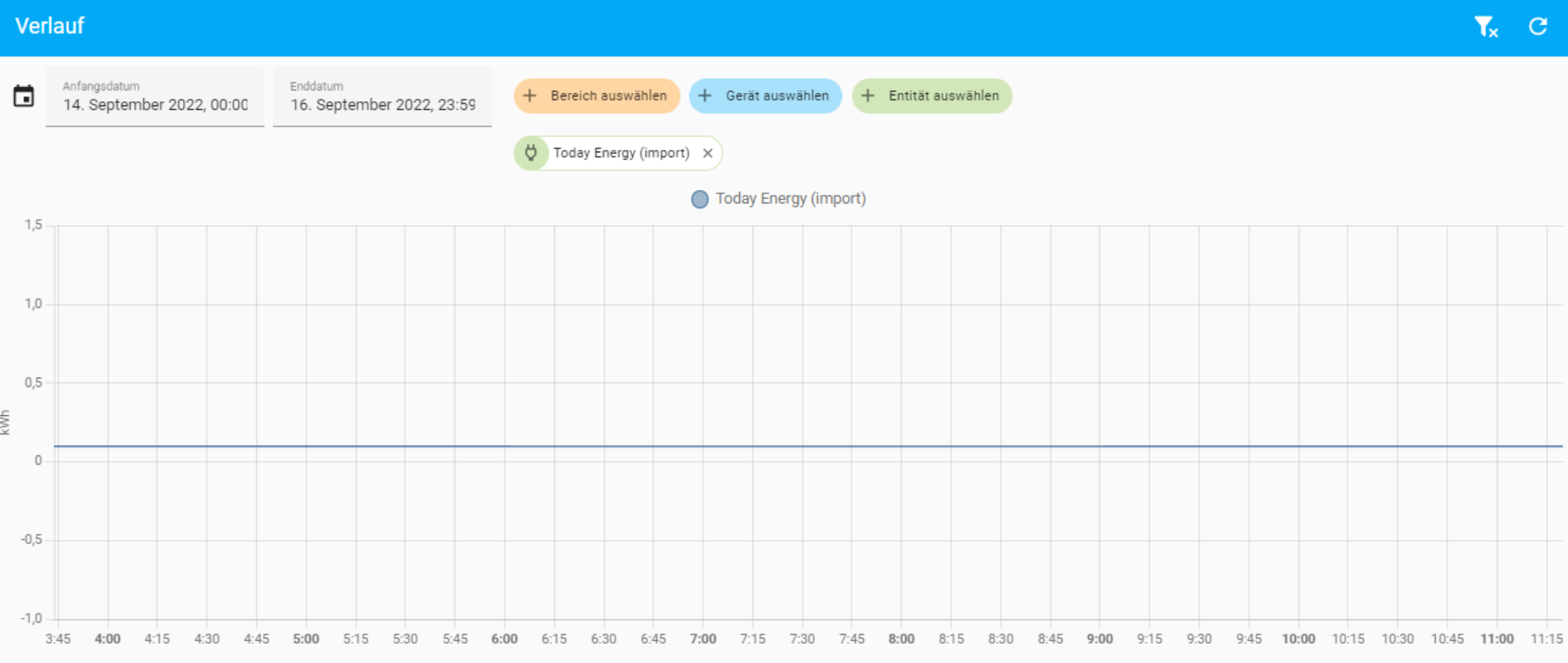

The "Today Energy (import)" as most of other sensors is taken from the inverter as is, i.e. there is no error in HA and most likely your specific inverter model does not provide its value. However, looking at the screenshot closely, it seems it is not 0 but something like 0.1. Which suggests, the meaning of "Today Energy (import)" is not what you think. AFAIK the meaning of this "import" sensor is the amount of energy imported from grid and stored in battery (usually 0 in General Mode, non-zero in Eco modes). I.e. not imported and consumed in front of the inverter, but imported and stored after it.

The energy imported/expoted from the grid is "Active Power" and if you need its daily summary values, you have to use "integration" + "utility_meter" integrations to sum those.

In other words, I do not thing this is a HA bug.

[lyricnz]

@arturschuetz1979 you can confirm this (outside HA) using https://github.com/marcelblijleven/goodwe and running the first sample program from the README (updating your IP address). This will read all the sensors off the inverter, like:

❯ python ./test.py
timestamp: 		 Timestamp = 2022-10-21 16:58:11
vpv1: 		 PV1 Voltage = 394.1 V
ipv1: 		 PV1 Current = 3.4 A
ppv1: 		 PV1 Power = 1340 W
vpv2: 		 PV2 Voltage = 358.6 V
ipv2: 		 PV2 Current = 2.6 A
ppv2: 		 PV2 Power = 932 W
vline1: 		 On-grid L1-L2 Voltage = 386.0 V
vline2: 		 On-grid L2-L3 Voltage = 390.2 V
vline3: 		 On-grid L3-L1 Voltage = 393.5 V
vgrid1: 		 On-grid L1 Voltage = 225.1 V
vgrid2: 		 On-grid L2 Voltage = 221.8 V
vgrid3: 		 On-grid L3 Voltage = 228.3 V
igrid1: 		 On-grid L1 Current = 3.2 A
igrid2: 		 On-grid L2 Current = 3.3 A
igrid3: 		 On-grid L3 Current = 3.2 A
fgrid1: 		 On-grid L1 Frequency = 50.02 Hz
fgrid2: 		 On-grid L2 Frequency = 50.02 Hz
fgrid3: 		 On-grid L3 Frequency = 50.01 Hz
pgrid1: 		 On-grid L1 Power = 720 W
pgrid2: 		 On-grid L2 Power = 732 W
pgrid3: 		 On-grid L3 Power = 731 W
ppv: 		 PV Power = 2127 W
work_mode: 		 Work Mode code = 1
work_mode_label: 		 Work Mode = Normal
error_codes: 		 Error Codes = 0
warning_code: 		 Warning code = 0
temperature: 		 Inverter Temperature = 34.6 C
e_day: 		 Today's PV Generation = 7.3 kWh
e_total: 		 Total PV Generation = 4292.3 kWh
h_total: 		 Hours Total = 1136 h
safety_country: 		 Safety Country code = 32
safety_country_label: 		 Safety Country = 50Hz Grid Default
funbit: 		 FunBit = 0
vbus: 		 Bus Voltage = 595.6 V
vnbus: 		 NBus Voltage = 298.3 V

HA+goodwe uses the same library.

[issue-triage-workflows[bot]]

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates. Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍 This issue has now been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.
