higlass Gene glyph colors on Firefox

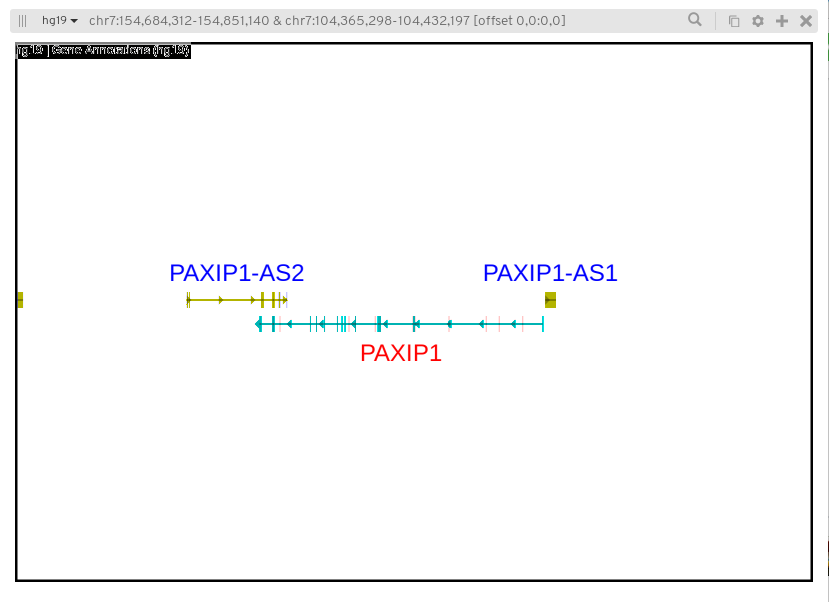

Gene annotation glyphs (but not the gene label text) have weird colors on firefox:

The track label on the vertical track also appears black:

Steps to reproduce

open a gene annotation track in firefox

Observed behavior

red glyphs are rendered cyan
blue glyphs are rendered yellow
transluscent white backgrounds rendered black

Seems like firefox is somehow applying a CMYK colorspace instead of RGBA.

Further evidence: setting minusStrandColor to rgba(0, 255, 0, 1) makes the gene glyphs turn magenta, but the gene labels correctly turn green.

It doesn't seem to affect other tracks...

Dec 15 '19 19:12 nvictus

This seems to be a very strange bug. I don't have this issue on FF v71.0 with macOS v10.14.6

This is how the default viewconf looks like for me in FF

Screen Shot 2019-12-15 at 3 15 22 PM

Dec 15 '19 20:12 flekschas

I created a simple test case: https://jsfiddle.net/13h78dkq/ Strangely, it works for me and Nezar.

Dec 15 '19 21:12 flekschas

Also interesting, after scaling up Nezar's screenshot one can see a couple of pixels with the correct color:

Screen Shot 2019-12-15 at 4 58 04 PM

Dec 16 '19 01:12 flekschas

Simplest example: http://higlass.io/l/?d=YwFgTeDHRrWWO6_Syq-n0w

Dec 16 '19 01:12 nvictus

Is this specific to a version of Firefox?

Dec 16 '19 01:12 alexpreynolds

definitely affects

Also the thumbnails generated by pyppeteer seem to have this issue, and they are generated by a headless chromium!

Dec 16 '19 02:12 nvictus

If it affects multiple apps under Linux, perhaps it would be due to some shared graphics library (libpng etc.) that Firefox and Chromium rely upon when rendering?

Dec 16 '19 02:12 alexpreynolds

Indeed, I can't reproduce this now on Windows or Mac (though I could swear I had seen it on one of them before). So it could be linux-specific, though the colors render correctly for me on chromium on ubuntu.

Dec 16 '19 02:12 nvictus

Tracked it down on Firefox to a GL feature disabled by default on X11 systems: https://wiki.mozilla.org/Blocklisting/Blocked_Graphics_Drivers#On_X11

GL layers acceleration is not yet enabled by default (see bug 594876). You can enable it by setting layers.acceleration.force-enabled=true in about:config.

Enabling layers.acceleration.force-enabled fixed the color issue. There must be some similar GL acceleration option disabled in the headless chromium that pyppeteer uses.

Dec 17 '19 02:12 nvictus

I think there isn't anything we can fix on our side so shall we close this? We could add a note to the troubleshooting section (if we had one)?

Jan 10 '20 14:01 flekschas

FYI, the actual feature that in question is GPU-accelerated layer compositing. Solution: Enter about:config in Firefox's URL bar and set layers.acceleration.force-enabled to true.

However, when I tried it, it seemed to make HiGlass more unstable on Linux. There's probably a reason it is disabled. It probably depends on GPU drivers: https://www.reddit.com/r/firefox/comments/8hmnn7/firefox_gpu_acceleration_on_linux/

Jan 10 '20 15:01 nvictus
