GML missing srsName for geometries with deep nesting where srsName cannot be added at the top level

[Kate-Lyndegaard]

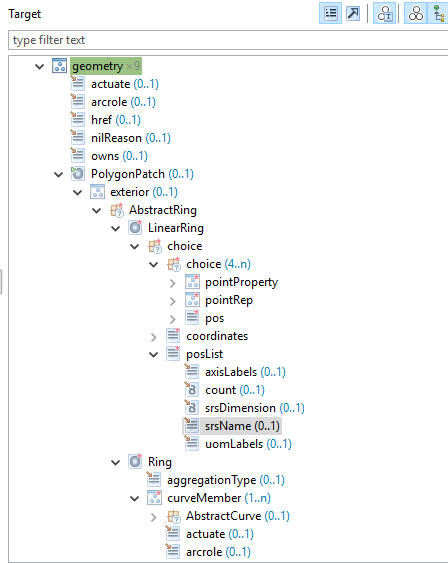

I came across this working on the Statistical Grid SLD, which requires the use of the geometry type PolygonPatch. It is not possible to add srsName to the top level of PolygonPatch directly because it is located several levels deeper in the geometry. I cannot publish the valid, exported GML in haleconnect because it is missing the srsName.

It would be helpful if hale studio could locate at least one instance of srsName in the geometry, so that the geometry will always have a srsName, if available.

[florianesser]

@Kate-Lyndegaard Are you sure that the srsName attribute is allowed in the PolygonPatch element? From a superficial check it looks like that PolygonPatch does not inherit from AbstractGeometryType and, therefore, doesn't have the SRSReferenceGroup attribute group. This would need to be checked more thoroughly, though.

[stempler]

@florianesser Yes, that's true. Thus it would be good to have the srsName and srsDimension at level of the posList or any other level that supports that kind of information.

[Kate-Lyndegaard]

@florianesser @stempler When I add <gml:posList srsName="http://www.opengis.net/def/crs/EPSG/0/4258" srsDimension="2"> to posList in my PolygonPatch, it passes data analysis on haleconnect and the srs is recognized.

[florianesser]

Thanks for the clarification, @stempler and @Kate-Lyndegaard!

[JohannaOtt]

This issue also leads to the exported GML file failing the INSPIRE Validator: https://github.com/inspire-eu-validation/community/issues/196

[github-actions[bot]]

This issue has been automatically marked as stale because it has not had activity in the last 60 days. It will be closed in two weeks if no further activity occurs. Thank you for your contributions.
