Flight Computer V3

[usedgenes]

Submission Checklist:

• [x] I am a current high school, middle school, or home schooled student.

  • [x] I am 18 or under
  • [x] I have filled out the verification form

• [x] I have joined the #electronics channel on Slack

• [x] I made this board from scratch, even if I followed a tutorial

• [x] I have followed the directions in README.md

  • [x] Created a folder under onboard/projects
  • [x] Filled out TEMPLATE.md as README.md inside your project folder
  • [x] Uploaded gerber.zip and schematic.pdf inside your project folder
  • [x] Created a folder called src and uploaded design files

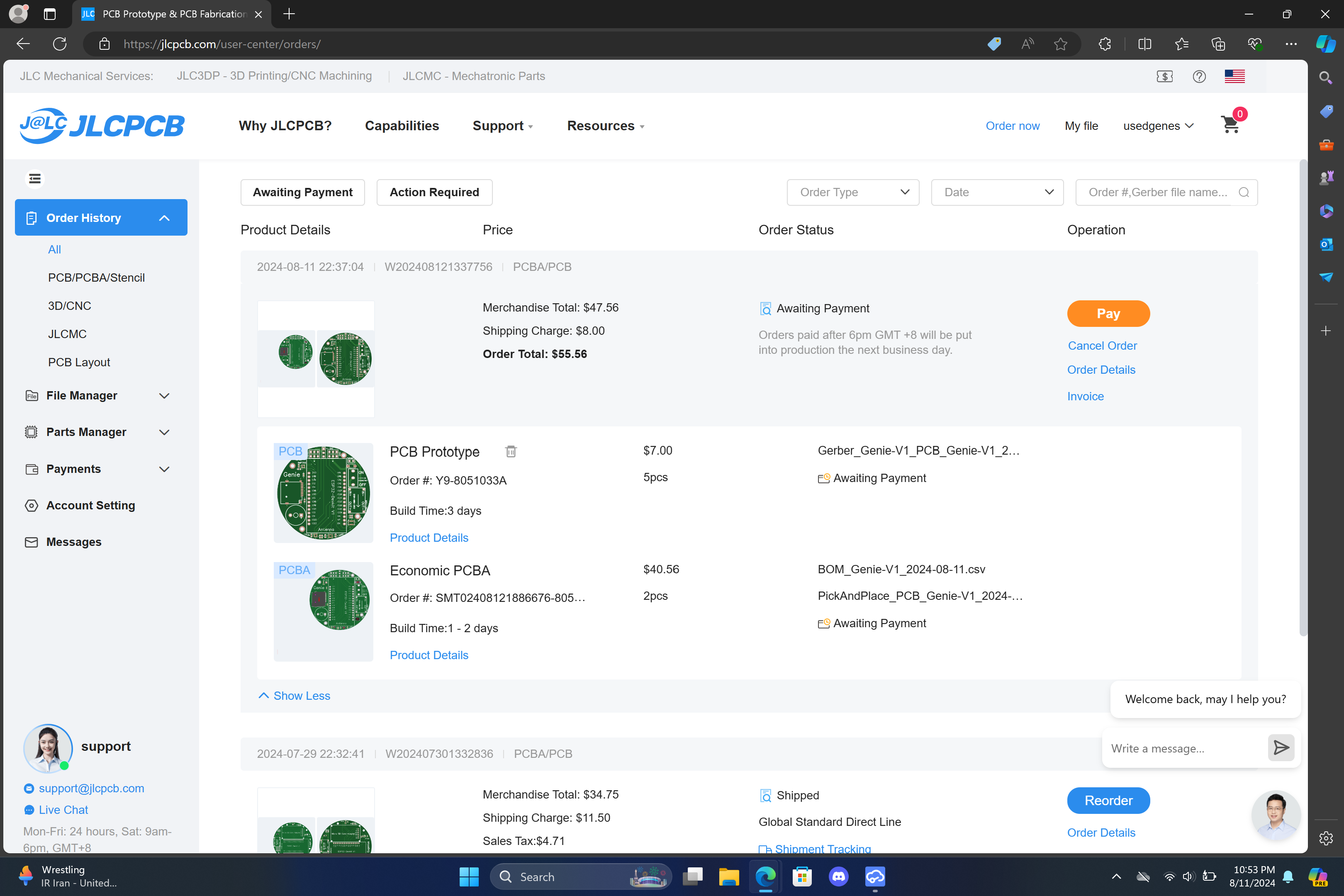

  • [x] Uploaded screenshot of PCB order called cart.png with all costs included
  • [x] I am ordering the smallest batch size (ie. JLCPCB's smallest order is for 5 boards)
  • [x] If outside the US I've checked that I can afford the customs charges in my country (which isn't covered by the grant)

• [ ] (Optional) This project is from a tutorial[^1].

• [ ] (Optional) I'm in a FIRST (FRC, FTC, FLL, etc.) team. The number is: ____

[^1]: Projects from a tutorial are 100% fine! We just want to ask so we can count how people are using tutorials.

[prophetorpheus]

Hi, I'm Orpheus Leap! Here to help you review your PR.

projects/Flight Computer V3:

Required files

✅	README.md	A description of your project
✅	cart.png
✅	gerber.zip
✅	schematic.pdf	Manually check schematic.pdf
✅	Source files - EasyEDA	Found both PCB and SCH files

You can view a render of your board over on gerber.zip/2d!

Happy OnBoarding! _{This bot is a simpler helper for common submission types. If there's an error with this, please point it out and someone from the OnBoard team will look at it manually.}

[usedgenes]

Ok I've fixed the file. Also, I don't have enough money from the grant right now to buy it, but that should change in the future since I'm doing Onboard Live, and I just wanted to get this approved ahead of time if possible.

[blazecoding2009]

Ok I've fixed the file. Also, I don't have enough money from the grant right now to buy it, but that should change in the future since I'm doing Onboard Live, and I just wanted to get this approved ahead of time if possible.

Still isn't the right page, read the instructions again please!

[blazecoding2009]

also how will you be connecting your RX? I can't see any pins for that

[usedgenes]

also how will you be connecting your RX? I can't see any pins for that

As in the uart pins? I'm just going to program the esp32 through micro usb without anything else

[blazecoding2009]

also how will you be connecting your RX? I can't see any pins for that

As in the uart pins? I'm just going to program the esp32 through micro usb without anything else

I'm talking about the reciever for say, an external controller or gps or something which uses those

[usedgenes]

also how will you be connecting your RX? I can't see any pins for that

As in the uart pins? I'm just going to program the esp32 through micro usb without anything else

I'm talking about the reciever for say, an external controller or gps or something which uses those

Oh, I'm not going to use GPS yet, still gotta get proficient with the IMUs first before that lol. And the ESP32's bluetooth and wifi provides decent enough wireless communication for me

[blazecoding2009]

also how will you be connecting your RX? I can't see any pins for that

As in the uart pins? I'm just going to program the esp32 through micro usb without anything else

I'm talking about the reciever for say, an external controller or gps or something which uses those

Oh, I'm not going to use GPS yet, still gotta get proficient with the IMUs first before that lol. And the ESP32's bluetooth and wifi provides decent enough wireless communication for me

Alright no worries, I'll merge this with our main branch now.
