Different HackRF One-s give inconsited behaviour

Open VasilyRakche opened this issue 3 years ago • 2 comments

What would you like to know?

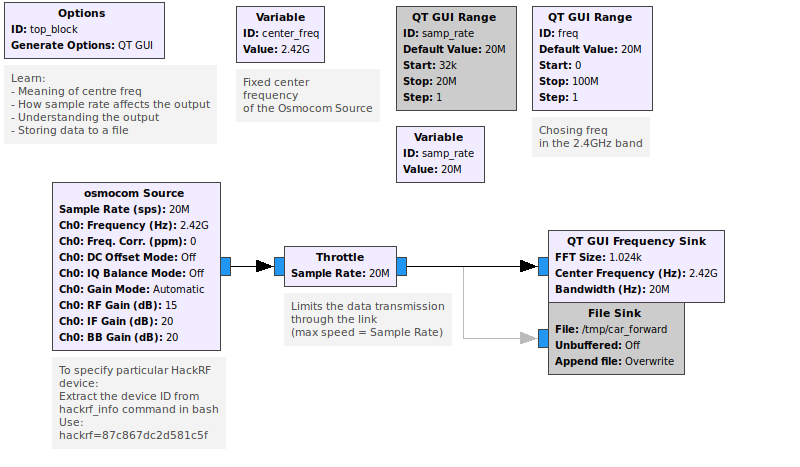

Hi, I have two HackRF One-s, but the behaviour is different between the two. Running the t1_checking_signals.zip, can be seen on the picture: image

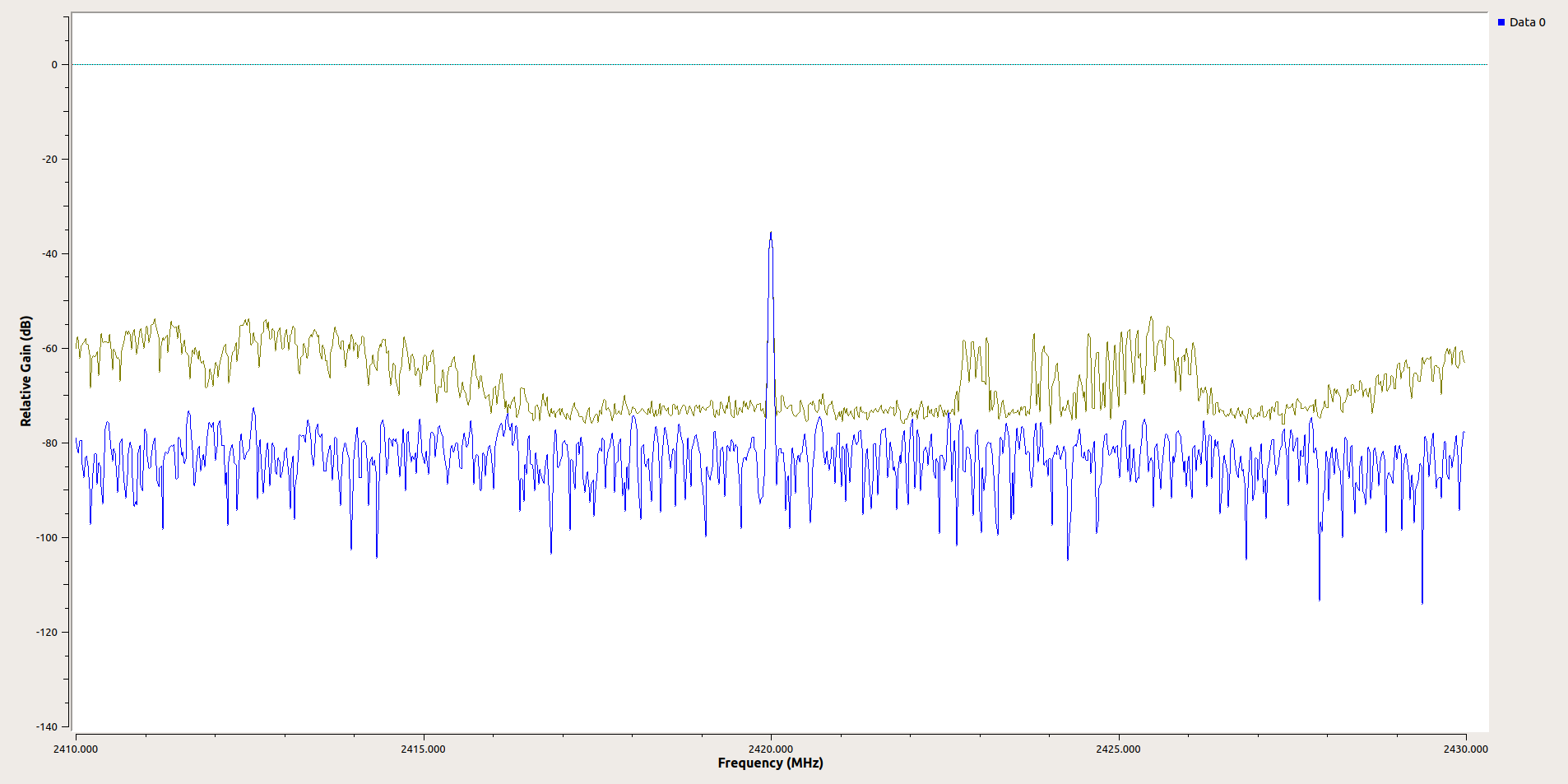

With one HackRF I get the following:
hackRF_working_ok

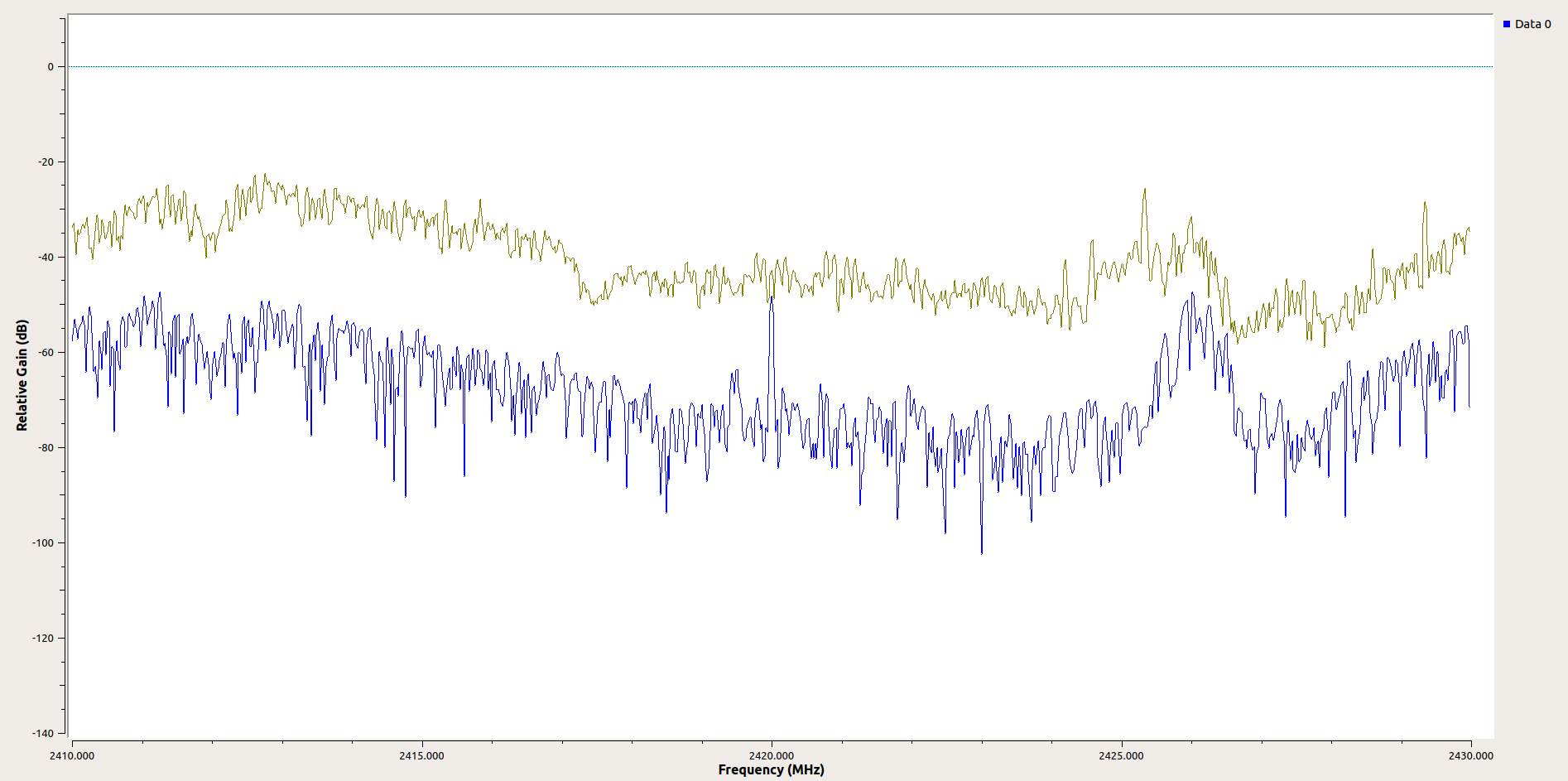

And with the second one I get the following:
hackRF_working_strange

What is strange is the DC offset is different, I also noticed that the noise floor is a bit higher. What do you think?

VasilyRakche avatar Sep 05 '22 08:09 VasilyRakche

Where did you get each HackRF from? Can you please post pictures of both?

straithe avatar Sep 05 '22 12:09 straithe

Hey, thanks for the fast response. Both of them were ordered in the same place : https://www.elektor.de/great-scott-gadgets-hackrf-one-software-defined-radio-1-mhz-to-6-ghz

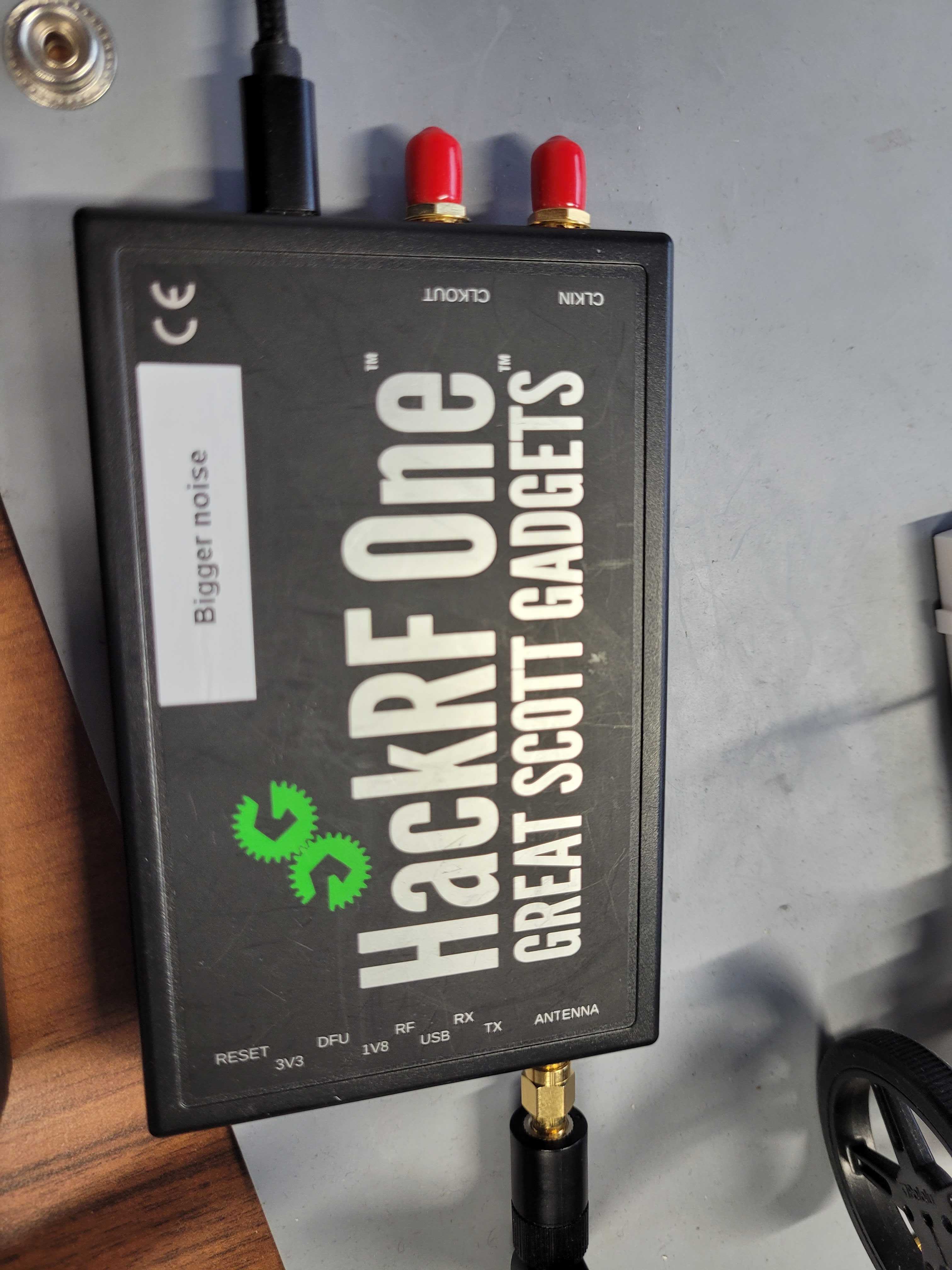

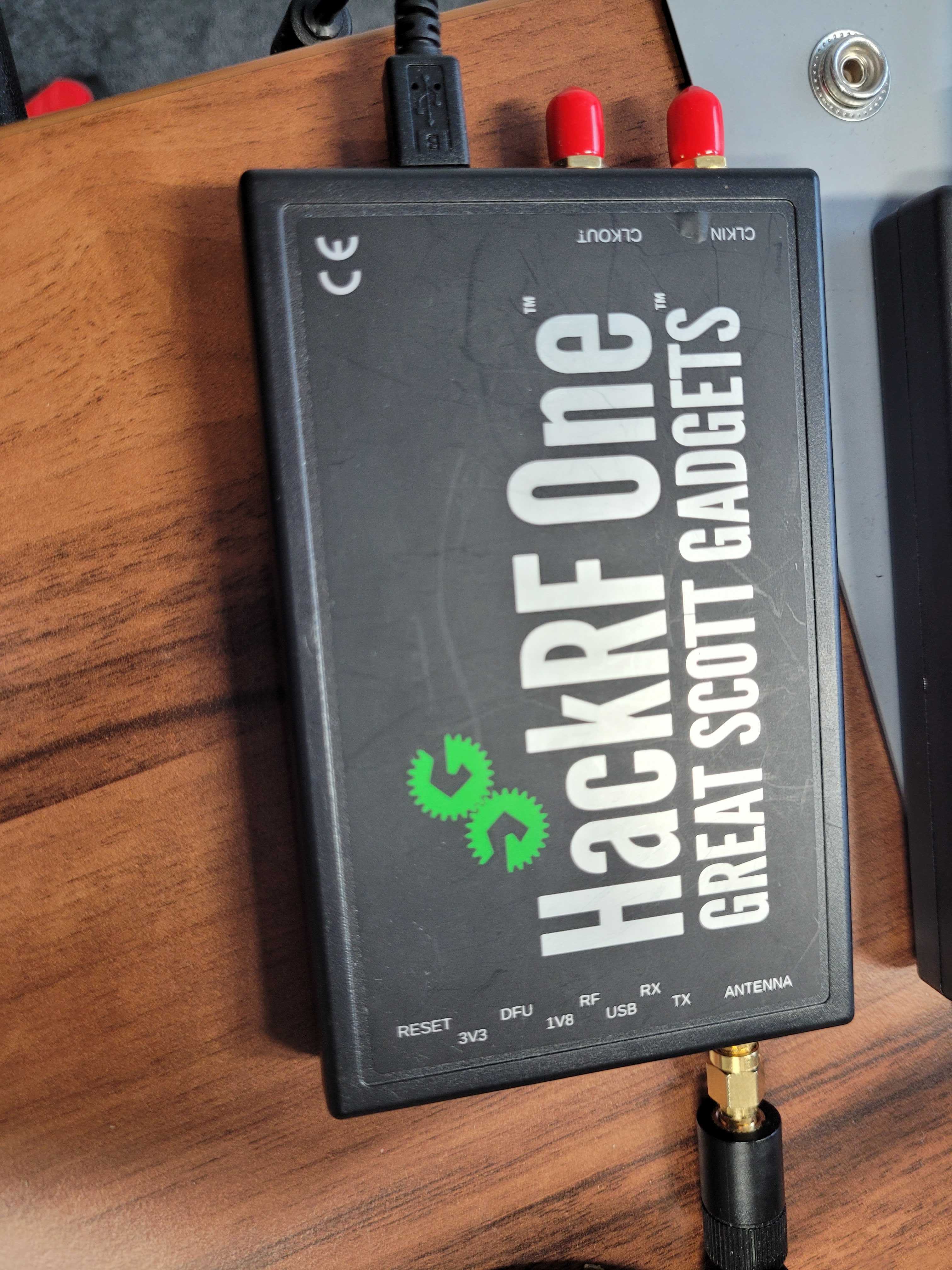

Here are the pictures (I marked the one with the bigger noise): 20220908_103214 20220908_103222

VasilyRakche avatar Sep 08 '22 08:09 VasilyRakche

To help me diagnose this can you please repeat the test with the RF gain set to 0? Ideally the test would be done with a cabled RF signal generator.

straithe avatar Dec 06 '22 23:12 straithe

I'm closing this as there hasn't been a response in over 30 days. Please re-open this issue or open a new one if you still need assistance.

straithe avatar Apr 02 '23 06:04 straithe
