Add support for VK_EXT_descriptor_indexing
Environment information:
- AGI version: 2021-2.0.0:aad09f92ea8e608b11001aae1f93af3cc1101096
- Host OS: Windows 10 If tracing on Android:
- Device model: Pixel 4
- Android Version: 11 (RQ3A.210905.001)
Bug description I'm getting an error on profile replay indicating it can't handle queries to descriptor indexing (or subgroup size control).
Reproduction steps
Build Android version of piet-gpu. Quick-start on that: install Rust tools, cd piet-gpu, cargo apk run --example android

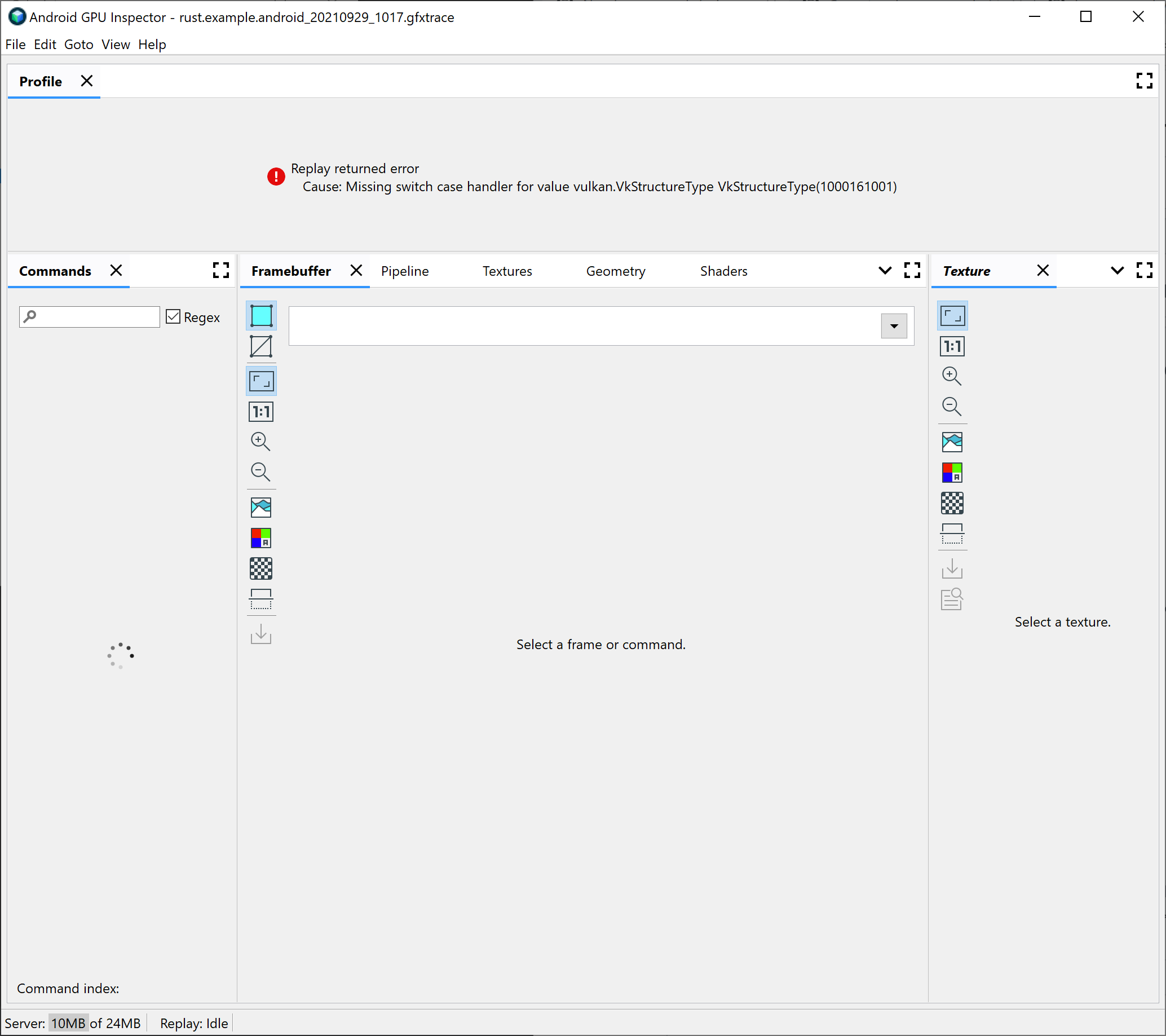

Try to capture a trace (Ctrl-T). Trace capture appears successful, but profile view shows "Replay returned error / Cause: Missing switch case handler for value vulkan.VkStructureType VkStructureType(1000161001)." The documentation for that shows that the numeric code is VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_DESCRIPTOR_INDEXING_FEATURES. I am indeed querying for that. I can work around this, disabling that query (and 1000161000 and 1000225000), but it's annoying and it should be valid to do these queries.
Stacktrace Please paste a stacktrace here if it's available.
Screenshots If applicable, add screenshots to help explain your problem.
Additional debugging information
- Please attach the generated gapis.log and gapic.log files you will find in the temp folder (e.g. /tmp/ on linux).
- If using Android: Please attach a full logcat dump (
adb logcat -d > logcat-full.txt) that contains logs since AGI was started.
I can put logs if requested, but I think this should be pretty clear.
AGI does not yet support VK_EXT_descriptor_indexing. It is core in 1.2, so we will be adding support in the near future.
Make sure you have the Hide Unknown Extensions checkbox checked, so that AGI hides extensions supported by the device, but not by AGI from the application during tracing. This option will be cleaned up in the next release.
Hi, we've added support for this extension with PR #1154 a while ago. You can use the latest dev release (https://github.com/google/agi-dev-releases/releases/tag/v3.2.0-dev-20220913) to check if it works for your use case, and report any issues to be fixed before the next public release. Thanks
Closing this one as the feature is available in developer releases and soon will be available with the public release as well. Please reopen or post a new issue if you encounter any issues. Thanks
