babel-preset-gatsby: Code-splitting issue when custom babel preset is used

[tujoworker]

Preliminary Checks

• [X] This issue is not a duplicate. Before opening a new issue, please search existing issues: https://github.com/gatsbyjs/gatsby/issues
• [X] This issue is not a question, feature request, RFC, or anything other than a bug report directly related to Gatsby. Please post those things in GitHub Discussions: https://github.com/gatsbyjs/gatsby/discussions

Description

When using babel-preset-gatsby within a custom Babel Preset (needs to be a function) then Gatsby/Webpack has an issue with code-splitting.

The issue seems to be that the stage, along with all given Babel options, are not passed correctly to the Babel Loader.

So, when I add this line (stage: "build-javascript") to the options, code-splitting works:

    presets: [
      [
        "babel-preset-gatsby",
        {
          stage: "build-javascript", // This fixes the code splitting issue
        },
      ],
    ],

We miss the stage when we use babel-preset-gatsby with a Babel Preset.

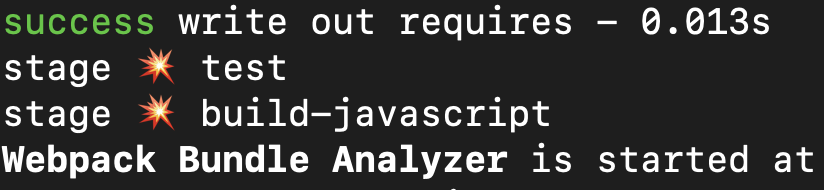

This can be confirmed when adding console.log('stage 💥', stage) right after the stage on line 35 – I get this:

---

The reproduction has a babel config: .babelrc:

{
  "presets": ["./custom-babel-preset.js"]
}

Which loads a babel preset:

module.exports = function customPreset(api, options) {
  return {
    presets: [
      [
        "babel-preset-gatsby",
        {
          // stage: "build-javascript", // This fixes the code splitting issue
        },
      ],
    ],
  }
}

Reproduction Link

https://github.com/tujoworker/babel-preset-gatsby-bug

Steps to Reproduce

1. clone the repo and run yarn (install).
2. run yarn clean && yarn build.

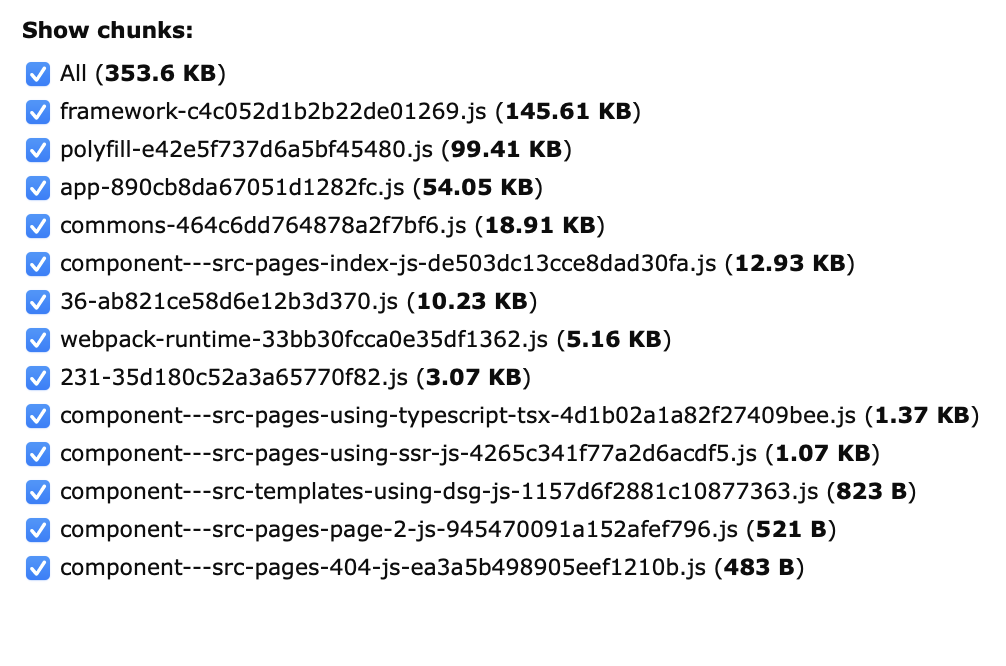

3. Watch the output from the included bundle-analyser that opens.4.
4. No component--src-... files are generated and the app bundle is much larger.
5. Un-comment: stage: "build-javascript" inside ./custom-babel-preset.js and run the first step again. Now it looks ok.

Expected Result

Normal code-splitting as without a custom Babel preset.

Actual Result

Code-splitting is not properly working. No component--src-... files are generated and the app bundle is much larger.

Environment

System:
    OS: macOS 12.4
    CPU: (16) x64 Intel(R) Core(TM) i9-9880H CPU @ 2.30GHz
    Shell: 3.2.57 - /bin/bash
  Binaries:
    Node: 16.14.2 -
/var/folders/13/vh3krlw95j73h2c3thzjt87h0000gn/T/yarn--1653395556006-0.9630249828797681/node
    Yarn: 1.22.17 -
/var/folders/13/vh3krlw95j73h2c3thzjt87h0000gn/T/yarn--1653395556006-0.9630249828797681/yarn
    npm: 8.6.0 - ~/.volta/tools/image/npm/8.6.0/bin/npm
  Browsers:
    Chrome: 101.0.4951.64
    Edge: 101.0.1210.47
    Firefox: 98.0.2
    Safari: 15.5
  npmPackages:
    gatsby: ^4.14.1 => 4.14.1
    gatsby-plugin-gatsby-cloud: ^4.14.0 => 4.14.0
    gatsby-plugin-image: ^2.14.1 => 2.14.1
    gatsby-plugin-manifest: ^4.14.0 => 4.14.0
    gatsby-plugin-offline: ^5.14.1 => 5.14.1
    gatsby-plugin-react-helmet: ^5.14.0 => 5.14.0
    gatsby-plugin-sharp: ^4.14.1 => 4.14.1
    gatsby-plugin-webpack-bundle-analyser-v2: 1.1.27 => 1.1.27
    gatsby-source-filesystem: ^4.14.0 => 4.14.0
    gatsby-transformer-sharp: ^4.14.0 => 4.14.0

Config Flags

None

[Mike-Dax]

I'm having the same symptoms, except my .babelrc file looks like this (it's not a function):

{
  "presets": [
    [
      "babel-preset-gatsby",
      {
        // "stage": "build-javascript", // without this line, everything is placed in app-hash.js
        "targets": {
          "browsers": [">0.25%", "not dead"]
        }
      }
    ]
  ],
  "plugins": [
    "@babel/plugin-proposal-optional-chaining",
    [
      "babel-plugin-transform-imports",
      {
        "@fortawesome/free-solid-svg-icons": {
          "transform": "@fortawesome/free-solid-svg-icons/${member}",
          "skipDefaultConversion": true
        },
        "nucleo-icons": {
          "transform": "nucleo-icons/icons/${member}.svg",
          "skipDefaultConversion": false
        }
      }
    ]
  ]
}

It seems adding that stage property fixes the issue.

Here are my system details if that's at all relevant.

  System:
    OS: macOS 12.4
    CPU: (12) x64 Intel(R) Core(TM) i7-8700B CPU @ 3.20GHz
    Shell: 3.2.57 - /bin/bash
  Binaries:
    Node: 16.15.1 - /private/var/folders/dm/pj8g0t455gg16xy2614p_2q40000gn/T/xfs-46d64038/node
    Yarn: 3.0.0 - /private/var/folders/dm/pj8g0t455gg16xy2614p_2q40000gn/T/xfs-46d64038/yarn
    npm: 8.11.0 - ~/.nvm/versions/node/v16.15.1/bin/npm
  Languages:
    Python: 3.9.13 - /usr/local/bin/python
  Browsers:
    Chrome: 102.0.5005.115
    Firefox: 101.0.1
    Safari: 15.5

[LekoArts]

So when trying the reproduction logging with

  console.log(
    require(`util`).inspect(
      { presets, gatsbyPresetResolved, index },
      { depth: null }
    )
  )

at

https://github.com/gatsbyjs/gatsby/blob/028b1de84385603256822ce38809de2ad77e46e2/packages/gatsby/src/utils/babel-loader-helpers.js#L177-L180

I always get

{
  presets: [
    ConfigItem {
      value: [Function: customPreset],
      options: undefined,
      dirname: '/Users/lejoe/code/playground/babel-preset-gatsby-bug',
      name: undefined,
      file: {
        request: './custom-babel-preset.js',
        resolved: '/Users/lejoe/code/playground/babel-preset-gatsby-bug/custom-babel-preset.js'
      }
    }
  ],
  gatsbyPresetResolved: '/Users/lejoe/code/playground/babel-preset-gatsby-bug/node_modules/babel-preset-gatsby/index.js',
  index: -1
}

So we can't get into the block below where we always add the stage to the preset.

Trying it with just a pure .babelrc without a custom preset like

{
  "presets": ["babel-preset-gatsby"]
}

or

{
  "presets": [
    [
      "babel-preset-gatsby",
      {
        "targets": {
          "browsers": [">0.25%", "not dead"]
        }
      }
    ]
  ]
}

it works. So the problem here is nested presets.

[pieh]

Opened PR with changes that would follow nested presets in https://github.com/gatsbyjs/gatsby/pull/36249
