[bug] Misleading/wrong CPU temperature value
Make sure there's no open issue for the same bug before submit.
Describe the Bug

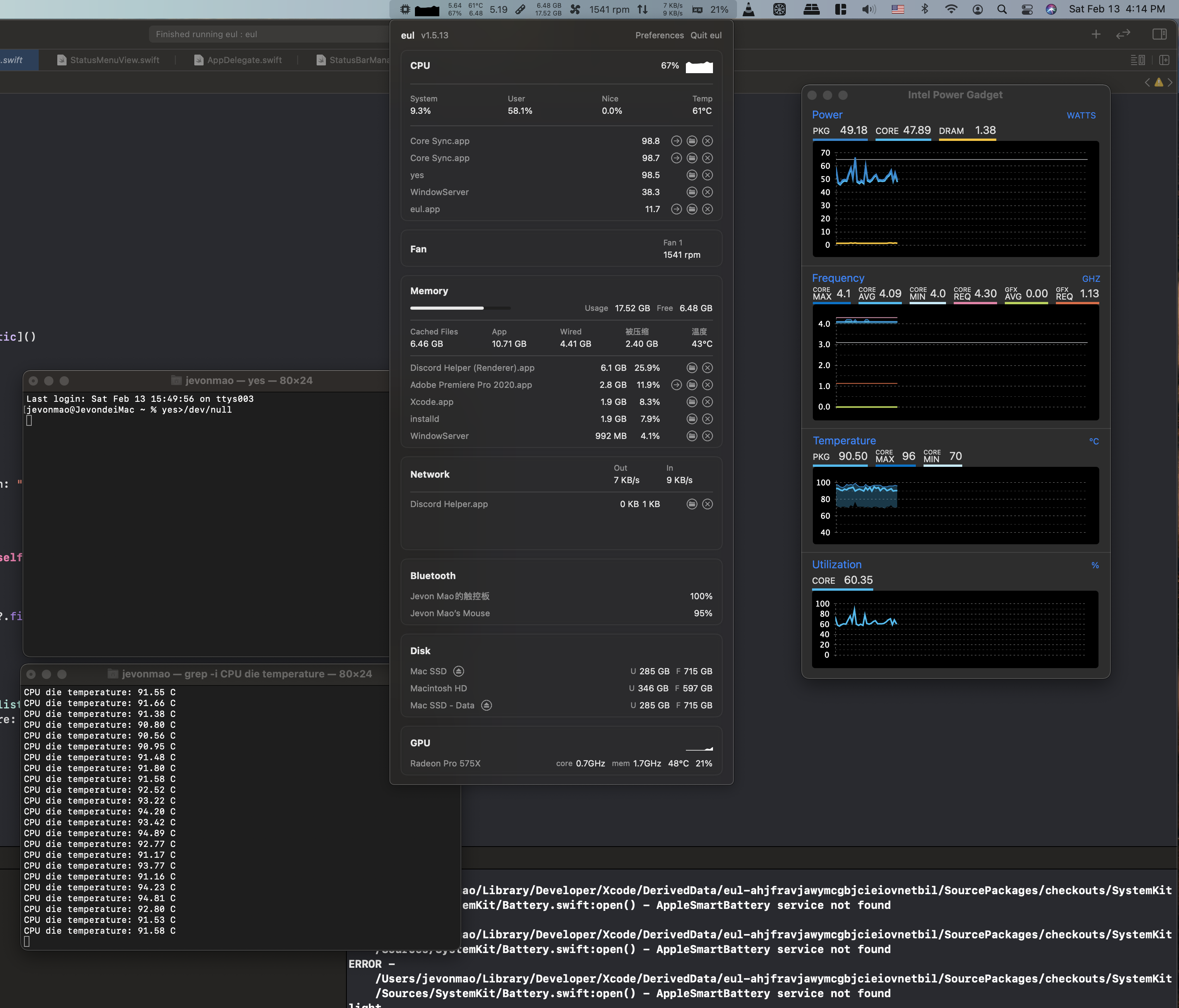

The CPU temperature displayed in Eul is not necessarily wrong, but it's misleading. As shown in the picture, I am running a stress test on CPU, and while both Intel Power Gadget and terminal command shows CPU temp to be above 90 degrees (Celsius), the Eul temperature is in the 60 degrees.
Expected Behavior
I am aware that Eul falls back on proximity temperature if the die temperature is buggy and shows negatives. But the proximity temperature displays little to none difference when the computer is idle compared to when its being stressed at 100%.
An alternative could be executing terminal command sudo powermetrics --samplers smc |grep -i "CPU die temperature" to get the correct CPU temperature.
Screenshots
Context
- eul version: 1.5.13
- macOS version: 11.1
- Device model: iMac 2019
Debug Output
# PASTE OUTPUT HERE #
⚙️ loaded data from user defaults preference {
"textDisplay" : "compact",
"language" : "en",
"showRAMTopActivities" : true,
"upgradeMethod" : "autoUpdate",
"showCPUTopActivities" : true,
"smcRefreshRate" : 1,
"showNetworkTopActivities" : true,
"checkStatusItemVisibility" : true,
"showIcon" : true,
"temperatureUnit" : "celius",
"cpuMenuDisplay" : "usagePercentage",
"fontDesign" : "default",
"networkRefreshRate" : 1
}
⚙️ loaded data from user defaults EulComponent {
"activeComponents" : [
"CPU",
"Memory",
"Fan",
"Network",
"GPU"
],
"showComponents" : true,
"availableComponents" : [
"Disk"
]
}
⚙️ loaded data from user defaults EulMenuComponent {
"activeComponents" : [
"CPU",
"Fan",
"Memory",
"Network",
"Bluetooth",
"Disk",
"GPU"
],
"availableComponents" : [
],
"showComponents" : true
}
shell with ["system_profiler SPDisplaysDataType -xml"]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
📊 statistics ["finishVideoWaitTime": 0, "dataBytesPerSample": 0, "orphanedReusableVidMemoryCount": 0, "gartCacheBytes": 33554432, "textureVolunteerUnloadBytes": 0, "Device Unit 3 Utilization %": 0, "bufferSwapCount": 0, "clientSharedAllocatedBytes": 32768, "gartMapOutBytesPerSample": 0, "Device Unit 2 Utilization %": 0, "surfaceTextureCreationCount": 0, "iosurfaceTextureCreationBytes": 0, "freeSurfaceSwapBufferWaitTime": 0, "gartMapInBytesPerSample": 0, "surfaceCount": 0, "textureCount": 52, "orphanedNonReusableSysMemoryCount": 0, "gartUsedBytes": 33492992, "Device Unit 0 Utilization %": 0, "stdTexturePageInBytes": 0, "oolTextureCreationCount": 0, "textureReadOutBytes": 0, "swapComplete2DWaitTime": 0, "bufferFlipCount": 0, "vramEvictionWaitTime": 0, "finishCLWaitTime": 0, "agprefTextureCreationBytes": 0, "stdTextureCreationBytes": 0, "gartFreeBytes": 7482699776, "oolTextureCreationBytes": 0, "freeSurfaceBackingWaitTime": 0, "gartSizeBytes": 7516192768, "contextGLCount": 0, "freeDataBufferWaitTime": 0, "contextVideoCount": 6, "orphanedReusableVidMemoryBytes": 0, "hardwareSubmitWaitTime": 0, "swapBytesPerSample": 0, "surfaceBufferPageInBytes": 0, "surfaceCopyInWaitTime": 0, "ioSurfacePageOutBytes": 0, "freeToAllocGPUAddressWaitTime": 0, "swapCompleteVideoWaitTime": 0, "dataBufferCount": 0, "orphanedReusableSysMemoryBytes": 0, "recoveryCount": 0, "texturePageOutBytes": 0, "orphanedReusableSysMemoryCount": 0, "iosurfaceTextureCreationCount": 0, "Device Utilization % at cur p-state": 0, "surfaceBufferPageOutBytes": 0, "stdTextureCreationCount": 0, "surfaceBufferTextureCreationCount": 0, "inUseVidMemoryBytes": 0, "swapCompleteGLWaitTime": 0, "surfaceWriteLockIdleWaitTime": 0, "oolTexturePageInBytes": 0, "agpTextureCreationBytes": 0, "contextCLCount": 0, "surfaceBufferReadOutBytes": 0, "context2DCount": 0, "clientGLWaitTime": 0, "inUseSysMemoryBytes": 33492992, "agpTextureCreationCount": 0, "orphanedNonReusableVidMemoryCount": 0, "Device Utilization %": 0, "orphanedNonReusableVidMemoryBytes": 0, "ioSurfaceReadOutBytes": 0, "orphanedReusableVidMemoryHitRate": 0, "finishAll2DWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "ioSurfacePageInBytes": 0, "Device Unit 1 Utilization %": 0, "volatileSurfaceCount": 0, "surfaceReadLockIdleWaitTime": 0, "finish2DWaitTime": 0, "agprefTextureCreationCount": 0, "hardwareWaitTime": 0, "orphanedReusableSysMemoryHitRate": 0, "finishGLWaitTime": 0, "surfaceCopyOutWaitTime": 0, "surfaceSetShapeIdleWaitTime": 0]
📊 statistics ["agpTextureCreationCount": 0, "oolTexturePageInBytes": 98304, "gartCacheBytes": 33554432, "textureVolunteerUnloadBytes": 0, "surfaceBufferPageOutBytes": 0, "swapCompleteVideoWaitTime": 0, "textureReadOutBytes": 0, "HWChannel VCELLQ | Commands Completed": 0, "surfaceCopyOutWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "context2DCount": 6, "HWChannel Compute0 | Commands Completed": 0, "gartSizeBytes": 8589934592, "oolTextureCreationCount": 1, "HWChannel sDMA0 | Commands Submitted": 4, "texturePageOutBytes": 0, "HWChannel KIQ | Commands Completed": 0, "HWChannel SAMU GPCOM | Commands Completed": 0, "dataBytesPerSample": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "Memory Clock(MHz)": 300, "orphanedReusableSysMemoryCount": 0, "HWChannel UVDDec | Commands Submitted": 0, "surfaceWriteLockIdleWaitTime": 0, "finishVideoWaitTime": 0, "agprefTextureCreationCount": 0, "finish2DWaitTime": 0, "surfaceTextureCreationCount": 0, "finishCLWaitTime": 0, "volatileSurfaceCount": 0, "HWChannel Compute2 | Commands Submitted": 0, "Fan Speed(%)": 0, "HWChannel sDMA1 | Commands Submitted": 10, "gartMapOutBytesPerSample": 0, "ioSurfacePageOutBytes": 0, "surfaceBufferTextureCreationCount": 0, "orphanedReusableVidMemoryHitRate": 92, "HWChannel sDMA0 | Commands Completed": 4, "ioSurfacePageInBytes": 0, "HWChannel VCELLQ | Commands Submitted": 0, "stdTextureCreationCount": 0, "contextVideoCount": 0, "HWChannel KIQ | Commands Submitted": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "Total Power(W)": 39, "agpTextureCreationBytes": 0, "orphanedReusableSysMemoryHitRate": 0, "HWChannel VCE | Commands Completed": 0, "surfaceReadLockIdleWaitTime": 0, "HWChannel sDMA1 | Commands Completed": 10, "orphanedReusableVidMemoryCount": 499, "HWChannel Compute1 | Commands Completed": 0, "oolTextureCreationBytes": 98304, "freeSurfaceSwapBufferWaitTime": 0, "GPU Activity(%)": 0, "HWChannel GFX | Commands Completed": 2, "swapBytesPerSample": 0, "dataBufferCount": 0, "stdTextureCreationBytes": 0, "iosurfaceTextureCreationCount": 0, "recoveryCount": 0, "HWChannel UVDDec | Commands Completed": 0, "orphanedReusableSysMemoryBytes": 0, "HWChannel Compute1 | Commands Submitted": 0, "contextGLCount": 11, "finishGLWaitTime": 0, "gartMapInBytesPerSample": 0, "vramFreeBytes": 165969856, "contextCLCount": 3, "hardwareWaitTime": 0, "orphanedNonReusableVidMemoryBytes": 0, "inUseSysMemoryBytes": 305446912, "Core Clock(MHz)": 428, "surfaceCount": 37, "agprefTextureCreationBytes": 0, "surfaceCopyInWaitTime": 0, "textureCount": 11663, "HWChannel UVDEncLLQ | Commands Submitted": 0, "surfaceSetShapeIdleWaitTime": 0, "surfaceBufferPageInBytes": 0, "Device Utilization %": 0, "ioSurfaceReadOutBytes": 0, "HWChannel Compute0 | Commands Submitted": 0, "HWChannel VCE | Commands Submitted": 0, "Fan Speed(RPM)": 0, "HWChannel GFX | Commands Submitted": 2, "HWChannel UVDEnc | Commands Completed": 0, "bufferFlipCount": 0, "freeDataBufferWaitTime": 0, "hardwareSubmitWaitTime": 0, "surfaceBufferReadOutBytes": 0, "clientSharedAllocatedBytes": 6467584, "HWChannel Compute2 | Commands Completed": 0, "orphanedNonReusableVidMemoryCount": 0, "iosurfaceTextureCreationBytes": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "freeToAllocGPUAddressWaitTime": 0, "bufferSwapCount": 0, "inUseVidMemoryBytes": 3044319232, "HWChannel UVDEnc | Commands Submitted": 0, "swapCompleteGLWaitTime": 0, "clientGLWaitTime": 0, "vramEvictionWaitTime": 0, "orphanedReusableVidMemoryBytes": 1064038400, "gartUsedBytes": 305446912, "swapComplete2DWaitTime": 0, "gartFreeBytes": 8284487680, "stdTexturePageInBytes": 851968, "orphanedNonReusableSysMemoryCount": 0, "HWChannel SAMU RBI | Commands Completed": 0, "freeSurfaceBackingWaitTime": 0, "Temperature(C)": 46, "finishAll2DWaitTime": 0]
shell with ["netstat -bI en1"]
⚙️ loaded data from user defaults componentConfig {
"converted" : true,
"configs" : [
{
"showIcon" : true,
"component" : "Memory",
"diskSelection" : "",
"showGraph" : false
},
{
"showIcon" : true,
"component" : "Fan",
"diskSelection" : "",
"showGraph" : false
},
{
"showIcon" : true,
"component" : "Disk",
"diskSelection" : "Macintosh HD",
"showGraph" : false
},
{
"showIcon" : true,
"component" : "CPU",
"diskSelection" : "",
"showGraph" : true
},
{
"showIcon" : true,
"component" : "Network",
"diskSelection" : "",
"showGraph" : false
}
]
}
⚙️ loaded data from user defaults CpuTextComponent {
"availableComponents" : [
],
"showComponents" : true,
"activeComponents" : [
"loadAverage5Min",
"usagePercentage",
"temperature",
"loadAverage1Min",
"loadAverage15Min"
]
}
⚙️ loaded data from user defaults GpuTextComponent {
"availableComponents" : [
"temperature"
],
"showComponents" : true,
"activeComponents" : [
"usagePercentage"
]
}
📊 statistics ["freeSurfaceBackingWaitTime": 0, "oolTexturePageInBytes": 0, "iosurfaceTextureCreationCount": 0, "finish2DWaitTime": 0, "surfaceBufferTextureCreationCount": 0, "finishCLWaitTime": 0, "orphanedNonReusableVidMemoryCount": 0, "stdTextureCreationBytes": 0, "textureCount": 52, "surfaceWriteLockIdleWaitTime": 0, "surfaceCount": 0, "surfaceBufferReadOutBytes": 0, "surfaceReadLockIdleWaitTime": 0, "contextCLCount": 0, "contextVideoCount": 6, "Device Unit 3 Utilization %": 0, "orphanedReusableVidMemoryBytes": 0, "clientGLWaitTime": 0, "stdTexturePageInBytes": 0, "gartUsedBytes": 33492992, "orphanedNonReusableVidMemoryBytes": 0, "gartMapInBytesPerSample": 0, "orphanedReusableVidMemoryHitRate": 0, "stdTextureCreationCount": 0, "surfaceBufferPageInBytes": 0, "bufferSwapCount": 0, "oolTextureCreationCount": 0, "ioSurfacePageInBytes": 0, "hardwareSubmitWaitTime": 0, "agpTextureCreationCount": 0, "Device Utilization %": 0, "inUseSysMemoryBytes": 33492992, "textureReadOutBytes": 0, "agprefTextureCreationBytes": 0, "iosurfaceTextureCreationBytes": 0, "surfaceTextureCreationCount": 0, "agpTextureCreationBytes": 0, "freeToAllocGPUAddressWaitTime": 0, "swapBytesPerSample": 0, "ioSurfaceReadOutBytes": 0, "ioSurfacePageOutBytes": 0, "Device Unit 0 Utilization %": 0, "Device Utilization % at cur p-state": 0, "recoveryCount": 0, "swapCompleteGLWaitTime": 0, "gartMapOutBytesPerSample": 0, "gartSizeBytes": 7516192768, "oolTextureCreationBytes": 0, "dataBufferCount": 0, "swapCompleteVideoWaitTime": 0, "bufferFlipCount": 0, "finishAll2DWaitTime": 0, "agprefTextureCreationCount": 0, "orphanedNonReusableSysMemoryBytes": 0, "gartCacheBytes": 33554432, "contextGLCount": 0, "texturePageOutBytes": 0, "vramEvictionWaitTime": 0, "finishGLWaitTime": 0, "orphanedReusableVidMemoryCount": 0, "Device Unit 1 Utilization %": 0, "surfaceSetShapeIdleWaitTime": 0, "surfaceBufferPageOutBytes": 0, "textureVolunteerUnloadBytes": 0, "orphanedNonReusableSysMemoryCount": 0, "surfaceCopyInWaitTime": 0, "finishVideoWaitTime": 0, "orphanedReusableSysMemoryBytes": 0, "swapComplete2DWaitTime": 0, "hardwareWaitTime": 0, "inUseVidMemoryBytes": 0, "volatileSurfaceCount": 0, "surfaceCopyOutWaitTime": 0, "clientSharedAllocatedBytes": 32768, "orphanedReusableSysMemoryCount": 0, "freeDataBufferWaitTime": 0, "orphanedReusableSysMemoryHitRate": 0, "context2DCount": 0, "freeSurfaceSwapBufferWaitTime": 0, "Device Unit 2 Utilization %": 0, "gartFreeBytes": 7482699776, "dataBytesPerSample": 0]
📊 statistics ["finishCLWaitTime": 0, "HWChannel UVDEncLLQ | Commands Submitted": 0, "finishVideoWaitTime": 0, "HWChannel sDMA1 | Commands Submitted": 9, "orphanedReusableSysMemoryBytes": 0, "orphanedReusableSysMemoryHitRate": 0, "agpTextureCreationBytes": 0, "HWChannel Compute0 | Commands Submitted": 0, "oolTextureCreationBytes": 65536, "hardwareSubmitWaitTime": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "HWChannel Compute0 | Commands Completed": 0, "HWChannel GFX | Commands Completed": 6, "agpTextureCreationCount": 0, "ioSurfacePageInBytes": 0, "HWChannel UVDDec | Commands Submitted": 0, "Temperature(C)": 47, "HWChannel SAMU RBI | Commands Completed": 0, "surfaceCopyInWaitTime": 0, "inUseVidMemoryBytes": 3044057088, "Core Clock(MHz)": 497, "contextGLCount": 11, "agprefTextureCreationCount": 0, "gartCacheBytes": 33554432, "HWChannel sDMA1 | Commands Completed": 9, "HWChannel SAMU GPCOM | Commands Submitted": 0, "surfaceSetShapeIdleWaitTime": 0, "dataBufferCount": 0, "context2DCount": 6, "orphanedReusableSysMemoryCount": 0, "HWChannel Compute1 | Commands Submitted": 0, "gartMapOutBytesPerSample": 0, "bufferFlipCount": 0, "surfaceBufferTextureCreationCount": 0, "stdTextureCreationCount": 0, "gartUsedBytes": 305401856, "surfaceWriteLockIdleWaitTime": 0, "orphanedReusableVidMemoryHitRate": 92, "HWChannel Compute1 | Commands Completed": 0, "HWChannel sDMA0 | Commands Submitted": 19, "surfaceBufferReadOutBytes": 0, "inUseSysMemoryBytes": 305401856, "swapCompleteVideoWaitTime": 0, "HWChannel UVDEnc | Commands Completed": 0, "Device Utilization %": 4, "agprefTextureCreationBytes": 0, "HWChannel VCE | Commands Completed": 0, "contextVideoCount": 0, "Total Power(W)": 47, "freeSurfaceSwapBufferWaitTime": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "HWChannel VCELLQ | Commands Completed": 0, "surfaceReadLockIdleWaitTime": 0, "HWChannel Compute2 | Commands Completed": 0, "surfaceCopyOutWaitTime": 0, "orphanedReusableVidMemoryCount": 502, "gartSizeBytes": 8589934592, "surfaceTextureCreationCount": 0, "finishAll2DWaitTime": 0, "orphanedReusableVidMemoryBytes": 1064300544, "HWChannel SAMU GPCOM | Commands Completed": 0, "HWChannel UVDEnc | Commands Submitted": 0, "freeToAllocGPUAddressWaitTime": 0, "ioSurfaceReadOutBytes": 0, "vramEvictionWaitTime": 0, "finish2DWaitTime": 0, "oolTexturePageInBytes": 80805888, "HWChannel VCE | Commands Submitted": 0, "bufferSwapCount": 0, "textureVolunteerUnloadBytes": 0, "orphanedNonReusableVidMemoryBytes": 0, "gartMapInBytesPerSample": 0, "contextCLCount": 3, "swapBytesPerSample": 0, "finishGLWaitTime": 0, "swapCompleteGLWaitTime": 0, "HWChannel GFX | Commands Submitted": 7, "freeDataBufferWaitTime": 0, "dataBytesPerSample": 0, "oolTextureCreationCount": 1, "Fan Speed(RPM)": 0, "HWChannel KIQ | Commands Completed": 0, "surfaceBufferPageInBytes": 0, "swapComplete2DWaitTime": 0, "gartFreeBytes": 8284532736, "HWChannel sDMA0 | Commands Completed": 19, "iosurfaceTextureCreationBytes": 0, "HWChannel KIQ | Commands Submitted": 0, "iosurfaceTextureCreationCount": 0, "GPU Activity(%)": 1, "hardwareWaitTime": 0, "HWChannel VCELLQ | Commands Submitted": 0, "vramFreeBytes": 165969856, "HWChannel UVDDec | Commands Completed": 0, "surfaceCount": 37, "textureCount": 11660, "clientGLWaitTime": 0, "freeSurfaceBackingWaitTime": 0, "HWChannel Compute2 | Commands Submitted": 0, "Fan Speed(%)": 0, "surfaceBufferPageOutBytes": 0, "textureReadOutBytes": 0, "orphanedNonReusableVidMemoryCount": 0, "Memory Clock(MHz)": 300, "volatileSurfaceCount": 0, "clientSharedAllocatedBytes": 6467584, "stdTexturePageInBytes": 3276800, "orphanedNonReusableSysMemoryCount": 0, "ioSurfacePageOutBytes": 0, "recoveryCount": 0, "stdTextureCreationBytes": 0, "orphanedNonReusableSysMemoryBytes": 0, "texturePageOutBytes": 0]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
shell with ["netstat -bI en1"]
🔵🦷 state update 5
📊 statistics ["orphanedNonReusableVidMemoryBytes": 0, "orphanedReusableVidMemoryHitRate": 0, "agpTextureCreationBytes": 0, "agpTextureCreationCount": 0, "orphanedNonReusableSysMemoryCount": 0, "finish2DWaitTime": 0, "stdTextureCreationCount": 0, "surfaceCopyOutWaitTime": 0, "hardwareSubmitWaitTime": 0, "Device Unit 2 Utilization %": 0, "surfaceCopyInWaitTime": 0, "clientSharedAllocatedBytes": 32768, "texturePageOutBytes": 0, "freeSurfaceSwapBufferWaitTime": 0, "gartUsedBytes": 33492992, "textureReadOutBytes": 0, "gartSizeBytes": 7516192768, "ioSurfaceReadOutBytes": 0, "gartFreeBytes": 7482699776, "orphanedNonReusableVidMemoryCount": 0, "swapCompleteGLWaitTime": 0, "Device Utilization % at cur p-state": 0, "bufferSwapCount": 0, "recoveryCount": 0, "swapComplete2DWaitTime": 0, "oolTextureCreationBytes": 0, "freeSurfaceBackingWaitTime": 0, "ioSurfacePageOutBytes": 0, "orphanedReusableVidMemoryCount": 0, "orphanedNonReusableSysMemoryBytes": 0, "Device Utilization %": 0, "surfaceTextureCreationCount": 0, "clientGLWaitTime": 0, "iosurfaceTextureCreationBytes": 0, "agprefTextureCreationCount": 0, "surfaceWriteLockIdleWaitTime": 0, "freeToAllocGPUAddressWaitTime": 0, "surfaceBufferPageOutBytes": 0, "Device Unit 0 Utilization %": 0, "iosurfaceTextureCreationCount": 0, "stdTexturePageInBytes": 0, "inUseVidMemoryBytes": 0, "gartCacheBytes": 33554432, "surfaceBufferPageInBytes": 0, "vramEvictionWaitTime": 0, "contextCLCount": 0, "gartMapInBytesPerSample": 0, "swapBytesPerSample": 0, "finishVideoWaitTime": 0, "finishAll2DWaitTime": 0, "ioSurfacePageInBytes": 0, "dataBytesPerSample": 0, "Device Unit 3 Utilization %": 0, "freeDataBufferWaitTime": 0, "swapCompleteVideoWaitTime": 0, "contextVideoCount": 6, "textureCount": 52, "agprefTextureCreationBytes": 0, "oolTextureCreationCount": 0, "volatileSurfaceCount": 0, "gartMapOutBytesPerSample": 0, "surfaceCount": 0, "finishCLWaitTime": 0, "orphanedReusableSysMemoryCount": 0, "surfaceBufferTextureCreationCount": 0, "surfaceSetShapeIdleWaitTime": 0, "contextGLCount": 0, "orphanedReusableSysMemoryBytes": 0, "inUseSysMemoryBytes": 33492992, "orphanedReusableVidMemoryBytes": 0, "bufferFlipCount": 0, "context2DCount": 0, "textureVolunteerUnloadBytes": 0, "surfaceReadLockIdleWaitTime": 0, "oolTexturePageInBytes": 0, "dataBufferCount": 0, "surfaceBufferReadOutBytes": 0, "orphanedReusableSysMemoryHitRate": 0, "Device Unit 1 Utilization %": 0, "finishGLWaitTime": 0, "stdTextureCreationBytes": 0, "hardwareWaitTime": 0]
📊 statistics ["dataBytesPerSample": 0, "freeDataBufferWaitTime": 0, "vramFreeBytes": 165969856, "recoveryCount": 0, "context2DCount": 6, "stdTexturePageInBytes": 3211264, "orphanedReusableSysMemoryCount": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "Fan Speed(%)": 0, "oolTextureCreationCount": 5, "iosurfaceTextureCreationCount": 0, "orphanedReusableSysMemoryHitRate": 0, "finishGLWaitTime": 0, "Core Clock(MHz)": 301, "gartSizeBytes": 8589934592, "HWChannel UVDEncLLQ | Commands Submitted": 0, "agpTextureCreationBytes": 0, "oolTextureCreationBytes": 163840, "textureReadOutBytes": 0, "Memory Clock(MHz)": 300, "finishAll2DWaitTime": 0, "HWChannel VCE | Commands Completed": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "HWChannel UVDDec | Commands Submitted": 0, "freeSurfaceBackingWaitTime": 0, "HWChannel KIQ | Commands Submitted": 0, "vramEvictionWaitTime": 0, "ioSurfacePageInBytes": 0, "gartMapOutBytesPerSample": 0, "swapBytesPerSample": 0, "HWChannel Compute2 | Commands Completed": 0, "agprefTextureCreationBytes": 0, "clientSharedAllocatedBytes": 6467584, "surfaceTextureCreationCount": 0, "stdTextureCreationCount": 4, "HWChannel KIQ | Commands Completed": 0, "surfaceReadLockIdleWaitTime": 0, "orphanedNonReusableVidMemoryCount": 0, "inUseSysMemoryBytes": 266698752, "finishCLWaitTime": 0, "HWChannel GFX | Commands Completed": 14, "hardwareSubmitWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "orphanedReusableVidMemoryCount": 488, "dataBufferCount": 0, "surfaceBufferPageInBytes": 0, "ioSurfaceReadOutBytes": 0, "surfaceBufferTextureCreationCount": 0, "iosurfaceTextureCreationBytes": 0, "oolTexturePageInBytes": 163840, "volatileSurfaceCount": 0, "HWChannel VCELLQ | Commands Submitted": 0, "HWChannel UVDDec | Commands Completed": 0, "swapComplete2DWaitTime": 0, "finish2DWaitTime": 0, "Device Utilization %": 0, "freeSurfaceSwapBufferWaitTime": 0, "surfaceBufferPageOutBytes": 0, "swapCompleteGLWaitTime": 0, "surfaceCopyInWaitTime": 0, "HWChannel sDMA0 | Commands Submitted": 16, "orphanedReusableSysMemoryBytes": 0, "HWChannel sDMA0 | Commands Completed": 16, "finishVideoWaitTime": 0, "GPU Activity(%)": 0, "gartMapInBytesPerSample": 0, "HWChannel SAMU GPCOM | Commands Completed": 0, "gartUsedBytes": 266698752, "orphanedReusableVidMemoryHitRate": 92, "texturePageOutBytes": 0, "HWChannel Compute0 | Commands Completed": 0, "surfaceCopyOutWaitTime": 0, "bufferFlipCount": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "contextGLCount": 11, "surfaceWriteLockIdleWaitTime": 0, "contextCLCount": 3, "HWChannel Compute2 | Commands Submitted": 0, "HWChannel sDMA1 | Commands Submitted": 6, "hardwareWaitTime": 0, "HWChannel VCE | Commands Submitted": 0, "HWChannel Compute1 | Commands Completed": 0, "gartCacheBytes": 33554432, "surfaceCount": 37, "HWChannel UVDEnc | Commands Completed": 0, "clientGLWaitTime": 0, "textureVolunteerUnloadBytes": 0, "Temperature(C)": 45, "gartFreeBytes": 8323235840, "swapCompleteVideoWaitTime": 0, "textureCount": 11674, "HWChannel Compute0 | Commands Submitted": 0, "HWChannel Compute1 | Commands Submitted": 0, "freeToAllocGPUAddressWaitTime": 0, "Fan Speed(RPM)": 0, "agpTextureCreationCount": 0, "surfaceBufferReadOutBytes": 0, "HWChannel VCELLQ | Commands Completed": 0, "surfaceSetShapeIdleWaitTime": 0, "Total Power(W)": 26, "HWChannel sDMA1 | Commands Completed": 6, "orphanedNonReusableVidMemoryBytes": 0, "contextVideoCount": 0, "ioSurfacePageOutBytes": 0, "bufferSwapCount": 0, "orphanedReusableVidMemoryBytes": 1101991936, "inUseVidMemoryBytes": 3006365696, "HWChannel GFX | Commands Submitted": 14, "agprefTextureCreationCount": 0, "stdTextureCreationBytes": 3424256, "HWChannel UVDEnc | Commands Submitted": 0, "orphanedNonReusableSysMemoryCount": 0, "HWChannel SAMU RBI | Commands Completed": 0]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
shell with ["netstat -bI en1"]
📊 statistics ["iosurfaceTextureCreationBytes": 0, "clientSharedAllocatedBytes": 32768, "orphanedReusableSysMemoryBytes": 0, "finishGLWaitTime": 0, "orphanedReusableVidMemoryBytes": 0, "gartCacheBytes": 33554432, "finishAll2DWaitTime": 0, "inUseSysMemoryBytes": 33492992, "surfaceBufferPageInBytes": 0, "orphanedReusableVidMemoryHitRate": 0, "Device Unit 2 Utilization %": 0, "volatileSurfaceCount": 0, "finishCLWaitTime": 0, "freeDataBufferWaitTime": 0, "surfaceWriteLockIdleWaitTime": 0, "oolTextureCreationBytes": 0, "hardwareSubmitWaitTime": 0, "surfaceSetShapeIdleWaitTime": 0, "finish2DWaitTime": 0, "Device Utilization %": 0, "orphanedReusableVidMemoryCount": 0, "orphanedNonReusableVidMemoryCount": 0, "swapCompleteVideoWaitTime": 0, "gartFreeBytes": 7482699776, "ioSurfaceReadOutBytes": 0, "vramEvictionWaitTime": 0, "contextGLCount": 0, "finishVideoWaitTime": 0, "bufferFlipCount": 0, "orphanedReusableSysMemoryCount": 0, "surfaceCopyInWaitTime": 0, "swapComplete2DWaitTime": 0, "clientGLWaitTime": 0, "freeSurfaceSwapBufferWaitTime": 0, "surfaceCount": 0, "orphanedNonReusableSysMemoryBytes": 0, "ioSurfacePageInBytes": 0, "dataBufferCount": 0, "textureCount": 52, "oolTextureCreationCount": 0, "surfaceBufferReadOutBytes": 0, "Device Unit 3 Utilization %": 0, "Device Unit 1 Utilization %": 0, "texturePageOutBytes": 0, "oolTexturePageInBytes": 0, "inUseVidMemoryBytes": 0, "recoveryCount": 0, "gartSizeBytes": 7516192768, "swapCompleteGLWaitTime": 0, "surfaceBufferTextureCreationCount": 0, "context2DCount": 0, "swapBytesPerSample": 0, "agprefTextureCreationBytes": 0, "stdTexturePageInBytes": 0, "gartUsedBytes": 33492992, "orphanedReusableSysMemoryHitRate": 0, "freeSurfaceBackingWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "orphanedNonReusableSysMemoryCount": 0, "stdTextureCreationBytes": 0, "agpTextureCreationCount": 0, "surfaceCopyOutWaitTime": 0, "Device Utilization % at cur p-state": 0, "textureVolunteerUnloadBytes": 0, "dataBytesPerSample": 0, "bufferSwapCount": 0, "contextCLCount": 0, "orphanedNonReusableVidMemoryBytes": 0, "stdTextureCreationCount": 0, "Device Unit 0 Utilization %": 0, "contextVideoCount": 6, "freeToAllocGPUAddressWaitTime": 0, "surfaceTextureCreationCount": 0, "ioSurfacePageOutBytes": 0, "agprefTextureCreationCount": 0, "agpTextureCreationBytes": 0, "gartMapOutBytesPerSample": 0, "surfaceBufferPageOutBytes": 0, "hardwareWaitTime": 0, "gartMapInBytesPerSample": 0, "iosurfaceTextureCreationCount": 0, "textureReadOutBytes": 0]
📊 statistics ["orphanedReusableSysMemoryBytes": 0, "HWChannel sDMA1 | Commands Submitted": 16, "HWChannel SAMU GPCOM | Commands Completed": 0, "HWChannel KIQ | Commands Submitted": 0, "gartUsedBytes": 267747328, "agpTextureCreationBytes": 0, "oolTextureCreationCount": 3, "inUseSysMemoryBytes": 267747328, "HWChannel Compute0 | Commands Completed": 0, "orphanedReusableSysMemoryHitRate": 0, "volatileSurfaceCount": 0, "recoveryCount": 0, "orphanedNonReusableSysMemoryCount": 0, "Temperature(C)": 45, "HWChannel SAMU RBI | Commands Submitted": 0, "Device Utilization %": 0, "textureVolunteerUnloadBytes": 0, "orphanedNonReusableVidMemoryCount": 0, "textureReadOutBytes": 0, "surfaceBufferPageInBytes": 0, "HWChannel Compute2 | Commands Completed": 0, "freeToAllocGPUAddressWaitTime": 0, "swapComplete2DWaitTime": 0, "hardwareWaitTime": 0, "surfaceCount": 37, "vramEvictionWaitTime": 0, "HWChannel GFX | Commands Completed": 10, "surfaceBufferPageOutBytes": 0, "oolTexturePageInBytes": 98304, "clientSharedAllocatedBytes": 6467584, "freeSurfaceBackingWaitTime": 0, "context2DCount": 6, "finish2DWaitTime": 0, "HWChannel UVDEncLLQ | Commands Submitted": 0, "stdTexturePageInBytes": 2359296, "finishGLWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "HWChannel VCE | Commands Submitted": 0, "HWChannel Compute2 | Commands Submitted": 0, "orphanedReusableVidMemoryHitRate": 92, "Fan Speed(%)": 0, "HWChannel UVDDec | Commands Submitted": 0, "freeDataBufferWaitTime": 0, "surfaceTextureCreationCount": 0, "ioSurfaceReadOutBytes": 0, "texturePageOutBytes": 0, "HWChannel SAMU RBI | Commands Completed": 0, "iosurfaceTextureCreationCount": 0, "HWChannel Compute1 | Commands Submitted": 0, "Fan Speed(RPM)": 0, "bufferFlipCount": 0, "contextVideoCount": 0, "finishAll2DWaitTime": 0, "ioSurfacePageInBytes": 0, "swapBytesPerSample": 0, "gartMapOutBytesPerSample": 0, "surfaceCopyOutWaitTime": 0, "orphanedNonReusableVidMemoryBytes": 0, "agprefTextureCreationCount": 0, "finishVideoWaitTime": 0, "HWChannel GFX | Commands Submitted": 10, "HWChannel sDMA0 | Commands Submitted": 12, "HWChannel Compute0 | Commands Submitted": 0, "orphanedReusableVidMemoryCount": 482, "dataBytesPerSample": 0, "HWChannel sDMA0 | Commands Completed": 12, "inUseVidMemoryBytes": 3007856640, "gartMapInBytesPerSample": 0, "agprefTextureCreationBytes": 0, "textureCount": 11680, "vramFreeBytes": 165969856, "finishCLWaitTime": 0, "clientGLWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "orphanedReusableVidMemoryBytes": 1100500992, "contextCLCount": 3, "ioSurfacePageOutBytes": 0, "orphanedReusableSysMemoryCount": 0, "surfaceWriteLockIdleWaitTime": 0, "dataBufferCount": 0, "HWChannel UVDDec | Commands Completed": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "stdTextureCreationCount": 3, "contextGLCount": 11, "agpTextureCreationCount": 0, "surfaceBufferTextureCreationCount": 0, "HWChannel Compute1 | Commands Completed": 0, "HWChannel UVDEnc | Commands Submitted": 0, "swapCompleteGLWaitTime": 0, "surfaceCopyInWaitTime": 0, "HWChannel VCELLQ | Commands Submitted": 0, "HWChannel UVDEnc | Commands Completed": 0, "Total Power(W)": 26, "gartCacheBytes": 33554432, "stdTextureCreationBytes": 2371584, "freeSurfaceSwapBufferWaitTime": 0, "Memory Clock(MHz)": 300, "HWChannel KIQ | Commands Completed": 0, "gartSizeBytes": 8589934592, "oolTextureCreationBytes": 98304, "hardwareSubmitWaitTime": 0, "swapCompleteVideoWaitTime": 0, "HWChannel VCE | Commands Completed": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "bufferSwapCount": 0, "HWChannel sDMA1 | Commands Completed": 16, "surfaceSetShapeIdleWaitTime": 0, "Core Clock(MHz)": 305, "GPU Activity(%)": 0, "HWChannel VCELLQ | Commands Completed": 0, "gartFreeBytes": 8322187264, "iosurfaceTextureCreationBytes": 0, "surfaceBufferReadOutBytes": 0]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
shell with ["netstat -bI en1"]
📊 statistics ["Device Unit 1 Utilization %": 0, "volatileSurfaceCount": 0, "dataBytesPerSample": 0, "freeDataBufferWaitTime": 0, "swapComplete2DWaitTime": 0, "Device Utilization %": 0, "finish2DWaitTime": 0, "recoveryCount": 0, "context2DCount": 0, "stdTexturePageInBytes": 0, "freeSurfaceSwapBufferWaitTime": 0, "surfaceBufferPageOutBytes": 0, "swapCompleteGLWaitTime": 0, "surfaceCopyInWaitTime": 0, "orphanedReusableSysMemoryCount": 0, "oolTextureCreationCount": 0, "Device Unit 0 Utilization %": 0, "iosurfaceTextureCreationCount": 0, "orphanedReusableSysMemoryHitRate": 0, "orphanedReusableSysMemoryBytes": 0, "finishGLWaitTime": 0, "gartSizeBytes": 7516192768, "agpTextureCreationBytes": 0, "finishVideoWaitTime": 0, "gartMapInBytesPerSample": 0, "oolTextureCreationBytes": 0, "gartUsedBytes": 33492992, "orphanedReusableVidMemoryHitRate": 0, "textureReadOutBytes": 0, "texturePageOutBytes": 0, "surfaceCopyOutWaitTime": 0, "bufferFlipCount": 0, "contextGLCount": 0, "finishAll2DWaitTime": 0, "surfaceWriteLockIdleWaitTime": 0, "contextCLCount": 0, "gartCacheBytes": 33554432, "hardwareWaitTime": 0, "surfaceCount": 0, "freeSurfaceBackingWaitTime": 0, "vramEvictionWaitTime": 0, "clientGLWaitTime": 0, "Device Unit 2 Utilization %": 0, "ioSurfacePageInBytes": 0, "textureVolunteerUnloadBytes": 0, "gartMapOutBytesPerSample": 0, "swapBytesPerSample": 0, "gartFreeBytes": 7482699776, "swapCompleteVideoWaitTime": 0, "Device Utilization % at cur p-state": 0, "textureCount": 52, "agprefTextureCreationBytes": 0, "clientSharedAllocatedBytes": 32768, "stdTextureCreationCount": 0, "surfaceTextureCreationCount": 0, "surfaceReadLockIdleWaitTime": 0, "freeToAllocGPUAddressWaitTime": 0, "orphanedNonReusableVidMemoryCount": 0, "finishCLWaitTime": 0, "Device Unit 3 Utilization %": 0, "agpTextureCreationCount": 0, "inUseSysMemoryBytes": 33492992, "surfaceBufferReadOutBytes": 0, "hardwareSubmitWaitTime": 0, "surfaceSetShapeIdleWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "orphanedNonReusableVidMemoryBytes": 0, "contextVideoCount": 6, "ioSurfacePageOutBytes": 0, "bufferSwapCount": 0, "inUseVidMemoryBytes": 0, "orphanedReusableVidMemoryBytes": 0, "orphanedReusableVidMemoryCount": 0, "agprefTextureCreationCount": 0, "stdTextureCreationBytes": 0, "surfaceBufferTextureCreationCount": 0, "dataBufferCount": 0, "surfaceBufferPageInBytes": 0, "ioSurfaceReadOutBytes": 0, "orphanedNonReusableSysMemoryCount": 0, "iosurfaceTextureCreationBytes": 0, "oolTexturePageInBytes": 0]
📊 statistics ["oolTextureCreationBytes": 0, "Temperature(C)": 46, "surfaceBufferTextureCreationCount": 0, "recoveryCount": 0, "surfaceCopyInWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "iosurfaceTextureCreationCount": 0, "HWChannel GFX | Commands Submitted": 0, "ioSurfacePageInBytes": 0, "vramEvictionWaitTime": 0, "surfaceTextureCreationCount": 0, "orphanedReusableVidMemoryHitRate": 92, "textureCount": 11685, "HWChannel VCELLQ | Commands Submitted": 0, "Memory Clock(MHz)": 300, "bufferSwapCount": 0, "HWChannel UVDEncLLQ | Commands Submitted": 0, "orphanedNonReusableVidMemoryCount": 0, "orphanedReusableSysMemoryHitRate": 0, "contextGLCount": 11, "surfaceSetShapeIdleWaitTime": 0, "agpTextureCreationCount": 0, "contextVideoCount": 0, "stdTextureCreationCount": 0, "surfaceCount": 37, "HWChannel Compute0 | Commands Completed": 0, "HWChannel SAMU RBI | Commands Completed": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "HWChannel Compute1 | Commands Completed": 0, "swapCompleteGLWaitTime": 0, "clientSharedAllocatedBytes": 6467584, "iosurfaceTextureCreationBytes": 0, "gartUsedBytes": 139902976, "oolTexturePageInBytes": 0, "freeSurfaceSwapBufferWaitTime": 0, "orphanedNonReusableVidMemoryBytes": 0, "orphanedReusableVidMemoryCount": 478, "hardwareWaitTime": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "orphanedReusableSysMemoryCount": 0, "HWChannel UVDEnc | Commands Submitted": 0, "surfaceBufferPageOutBytes": 0, "gartMapOutBytesPerSample": 0, "dataBytesPerSample": 0, "stdTexturePageInBytes": 0, "swapComplete2DWaitTime": 0, "Fan Speed(RPM)": 0, "freeDataBufferWaitTime": 0, "HWChannel Compute0 | Commands Submitted": 0, "oolTextureCreationCount": 0, "surfaceBufferReadOutBytes": 0, "inUseVidMemoryBytes": 3007889408, "ioSurfaceReadOutBytes": 0, "orphanedReusableSysMemoryBytes": 0, "vramFreeBytes": 165969856, "textureReadOutBytes": 0, "dataBufferCount": 0, "HWChannel GFX | Commands Completed": 0, "inUseSysMemoryBytes": 139902976, "HWChannel Compute1 | Commands Submitted": 0, "HWChannel SAMU GPCOM | Commands Completed": 0, "surfaceBufferPageInBytes": 0, "HWChannel sDMA1 | Commands Completed": 0, "HWChannel Compute2 | Commands Submitted": 0, "agpTextureCreationBytes": 0, "swapBytesPerSample": 0, "HWChannel KIQ | Commands Submitted": 0, "orphanedNonReusableSysMemoryBytes": 0, "stdTextureCreationBytes": 0, "Fan Speed(%)": 0, "HWChannel KIQ | Commands Completed": 0, "context2DCount": 6, "surfaceCopyOutWaitTime": 0, "swapCompleteVideoWaitTime": 0, "contextCLCount": 3, "ioSurfacePageOutBytes": 0, "HWChannel sDMA0 | Commands Submitted": 0, "gartFreeBytes": 8450031616, "bufferFlipCount": 0, "finish2DWaitTime": 0, "HWChannel VCE | Commands Submitted": 0, "gartMapInBytesPerSample": 0, "HWChannel VCE | Commands Completed": 0, "HWChannel Compute2 | Commands Completed": 0, "finishVideoWaitTime": 0, "freeToAllocGPUAddressWaitTime": 0, "agprefTextureCreationCount": 0, "HWChannel sDMA0 | Commands Completed": 0, "textureVolunteerUnloadBytes": 0, "gartCacheBytes": 33554432, "HWChannel VCELLQ | Commands Completed": 0, "gartSizeBytes": 8589934592, "agprefTextureCreationBytes": 0, "finishAll2DWaitTime": 0, "HWChannel sDMA1 | Commands Submitted": 0, "finishGLWaitTime": 0, "Total Power(W)": 27, "GPU Activity(%)": 0, "finishCLWaitTime": 0, "clientGLWaitTime": 0, "HWChannel UVDDec | Commands Submitted": 0, "hardwareSubmitWaitTime": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "orphanedReusableVidMemoryBytes": 1100468224, "volatileSurfaceCount": 0, "surfaceWriteLockIdleWaitTime": 0, "freeSurfaceBackingWaitTime": 0, "orphanedNonReusableSysMemoryCount": 0, "Device Utilization %": 0, "Core Clock(MHz)": 335, "HWChannel UVDEnc | Commands Completed": 0, "HWChannel UVDDec | Commands Completed": 0, "texturePageOutBytes": 0]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
shell with ["netstat -bI en1"]
📊 statistics ["bufferFlipCount": 0, "contextVideoCount": 6, "finishAll2DWaitTime": 0, "ioSurfacePageInBytes": 0, "swapBytesPerSample": 0, "orphanedReusableSysMemoryBytes": 0, "gartMapOutBytesPerSample": 0, "surfaceCopyOutWaitTime": 0, "orphanedNonReusableVidMemoryBytes": 0, "gartUsedBytes": 33492992, "agprefTextureCreationCount": 0, "finishVideoWaitTime": 0, "agpTextureCreationBytes": 0, "oolTextureCreationCount": 0, "Device Unit 1 Utilization %": 0, "inUseSysMemoryBytes": 33492992, "orphanedReusableSysMemoryHitRate": 0, "volatileSurfaceCount": 0, "recoveryCount": 0, "orphanedNonReusableSysMemoryCount": 0, "inUseVidMemoryBytes": 0, "dataBytesPerSample": 0, "orphanedReusableVidMemoryCount": 0, "Device Utilization %": 0, "gartMapInBytesPerSample": 0, "textureVolunteerUnloadBytes": 0, "textureCount": 52, "orphanedNonReusableVidMemoryCount": 0, "agprefTextureCreationBytes": 0, "finishCLWaitTime": 0, "clientGLWaitTime": 0, "textureReadOutBytes": 0, "surfaceBufferPageInBytes": 0, "freeToAllocGPUAddressWaitTime": 0, "swapComplete2DWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "orphanedReusableVidMemoryBytes": 0, "hardwareWaitTime": 0, "contextCLCount": 0, "ioSurfacePageOutBytes": 0, "stdTextureCreationCount": 0, "agpTextureCreationCount": 0, "surfaceCount": 0, "Device Unit 2 Utilization %": 0, "contextGLCount": 0, "surfaceWriteLockIdleWaitTime": 0, "Device Unit 0 Utilization %": 0, "surfaceBufferTextureCreationCount": 0, "surfaceBufferPageOutBytes": 0, "vramEvictionWaitTime": 0, "orphanedReusableSysMemoryCount": 0, "oolTexturePageInBytes": 0, "dataBufferCount": 0, "swapCompleteGLWaitTime": 0, "surfaceCopyInWaitTime": 0, "clientSharedAllocatedBytes": 32768, "gartCacheBytes": 33554432, "freeSurfaceBackingWaitTime": 0, "stdTextureCreationBytes": 0, "context2DCount": 0, "finish2DWaitTime": 0, "freeSurfaceSwapBufferWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "finishGLWaitTime": 0, "stdTexturePageInBytes": 0, "gartSizeBytes": 7516192768, "oolTextureCreationBytes": 0, "hardwareSubmitWaitTime": 0, "swapCompleteVideoWaitTime": 0, "surfaceTextureCreationCount": 0, "freeDataBufferWaitTime": 0, "Device Utilization % at cur p-state": 0, "bufferSwapCount": 0, "orphanedReusableVidMemoryHitRate": 0, "surfaceSetShapeIdleWaitTime": 0, "Device Unit 3 Utilization %": 0, "ioSurfaceReadOutBytes": 0, "texturePageOutBytes": 0, "gartFreeBytes": 7482699776, "iosurfaceTextureCreationBytes": 0, "surfaceBufferReadOutBytes": 0, "iosurfaceTextureCreationCount": 0]
📊 statistics ["stdTextureCreationBytes": 1318912, "stdTexturePageInBytes": 1179648, "iosurfaceTextureCreationCount": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "HWChannel Compute0 | Commands Completed": 0, "orphanedReusableSysMemoryCount": 0, "HWChannel KIQ | Commands Completed": 0, "surfaceBufferPageInBytes": 0, "textureCount": 11679, "HWChannel VCE | Commands Submitted": 0, "surfaceCopyInWaitTime": 0, "surfaceSetShapeIdleWaitTime": 0, "textureVolunteerUnloadBytes": 0, "clientGLWaitTime": 0, "contextCLCount": 3, "orphanedNonReusableVidMemoryCount": 0, "contextGLCount": 11, "surfaceBufferReadOutBytes": 0, "HWChannel VCELLQ | Commands Completed": 0, "swapCompleteVideoWaitTime": 0, "HWChannel Compute1 | Commands Submitted": 0, "agprefTextureCreationCount": 0, "oolTextureCreationCount": 3, "dataBufferCount": 0, "vramEvictionWaitTime": 0, "orphanedReusableSysMemoryHitRate": 0, "gartSizeBytes": 8589934592, "Total Power(W)": 26, "agpTextureCreationBytes": 0, "orphanedReusableVidMemoryCount": 483, "surfaceBufferTextureCreationCount": 0, "oolTextureCreationBytes": 98304, "texturePageOutBytes": 0, "HWChannel Compute2 | Commands Completed": 0, "HWChannel KIQ | Commands Submitted": 0, "finish2DWaitTime": 0, "swapComplete2DWaitTime": 0, "vramFreeBytes": 165969856, "HWChannel Compute0 | Commands Submitted": 0, "HWChannel VCELLQ | Commands Submitted": 0, "finishAll2DWaitTime": 0, "clientSharedAllocatedBytes": 6467584, "orphanedNonReusableSysMemoryBytes": 0, "HWChannel UVDEncLLQ | Commands Submitted": 0, "agprefTextureCreationBytes": 0, "orphanedReusableSysMemoryBytes": 0, "HWChannel SAMU GPCOM | Commands Completed": 0, "hardwareSubmitWaitTime": 0, "surfaceTextureCreationCount": 0, "Fan Speed(%)": 0, "surfaceCopyOutWaitTime": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "surfaceBufferPageOutBytes": 0, "HWChannel UVDEnc | Commands Completed": 0, "oolTexturePageInBytes": 98304, "surfaceReadLockIdleWaitTime": 0, "HWChannel Compute1 | Commands Completed": 0, "ioSurfaceReadOutBytes": 0, "HWChannel sDMA0 | Commands Submitted": 6, "finishVideoWaitTime": 0, "bufferFlipCount": 0, "HWChannel SAMU RBI | Commands Completed": 0, "gartCacheBytes": 33554432, "Device Utilization %": 0, "gartFreeBytes": 8456155136, "HWChannel GFX | Commands Submitted": 7, "HWChannel UVDDec | Commands Completed": 0, "gartMapInBytesPerSample": 0, "GPU Activity(%)": 0, "HWChannel sDMA1 | Commands Completed": 5, "gartMapOutBytesPerSample": 0, "textureReadOutBytes": 0, "HWChannel UVDDec | Commands Submitted": 0, "Memory Clock(MHz)": 300, "recoveryCount": 0, "agpTextureCreationCount": 0, "freeSurfaceBackingWaitTime": 0, "stdTextureCreationCount": 2, "HWChannel GFX | Commands Completed": 7, "surfaceCount": 37, "volatileSurfaceCount": 0, "HWChannel sDMA1 | Commands Submitted": 5, "ioSurfacePageInBytes": 0, "finishGLWaitTime": 0, "swapCompleteGLWaitTime": 0, "freeDataBufferWaitTime": 0, "bufferSwapCount": 0, "inUseSysMemoryBytes": 133779456, "orphanedNonReusableVidMemoryBytes": 0, "ioSurfacePageOutBytes": 0, "orphanedReusableVidMemoryBytes": 1100398592, "freeToAllocGPUAddressWaitTime": 0, "Temperature(C)": 45, "HWChannel sDMA0 | Commands Completed": 6, "HWChannel UVDEnc | Commands Submitted": 0, "Core Clock(MHz)": 338, "hardwareWaitTime": 0, "surfaceWriteLockIdleWaitTime": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "Fan Speed(RPM)": 0, "finishCLWaitTime": 0, "HWChannel Compute2 | Commands Submitted": 0, "inUseVidMemoryBytes": 3007959040, "HWChannel VCE | Commands Completed": 0, "iosurfaceTextureCreationBytes": 0, "context2DCount": 6, "gartUsedBytes": 133779456, "orphanedReusableVidMemoryHitRate": 92, "swapBytesPerSample": 0, "dataBytesPerSample": 0, "freeSurfaceSwapBufferWaitTime": 0, "contextVideoCount": 0, "orphanedNonReusableSysMemoryCount": 0]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
shell with ["netstat -bI en1"]
📊 statistics ["gartMapOutBytesPerSample": 0, "Device Unit 3 Utilization %": 0, "oolTextureCreationBytes": 0, "swapComplete2DWaitTime": 0, "stdTexturePageInBytes": 0, "dataBytesPerSample": 0, "recoveryCount": 0, "surfaceBufferTextureCreationCount": 0, "surfaceCopyInWaitTime": 0, "freeDataBufferWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "Device Unit 1 Utilization %": 0, "oolTextureCreationCount": 0, "surfaceBufferReadOutBytes": 0, "inUseVidMemoryBytes": 0, "iosurfaceTextureCreationCount": 0, "ioSurfacePageInBytes": 0, "ioSurfaceReadOutBytes": 0, "orphanedReusableSysMemoryBytes": 0, "textureReadOutBytes": 0, "vramEvictionWaitTime": 0, "textureCount": 52, "surfaceTextureCreationCount": 0, "dataBufferCount": 0, "orphanedReusableVidMemoryHitRate": 0, "inUseSysMemoryBytes": 33492992, "bufferSwapCount": 0, "swapBytesPerSample": 0, "surfaceBufferPageInBytes": 0, "orphanedNonReusableVidMemoryCount": 0, "agpTextureCreationBytes": 0, "orphanedReusableSysMemoryHitRate": 0, "stdTextureCreationBytes": 0, "orphanedNonReusableSysMemoryBytes": 0, "contextGLCount": 0, "agpTextureCreationCount": 0, "surfaceSetShapeIdleWaitTime": 0, "contextVideoCount": 6, "stdTextureCreationCount": 0, "context2DCount": 0, "contextCLCount": 0, "surfaceCopyOutWaitTime": 0, "ioSurfacePageOutBytes": 0, "Device Unit 0 Utilization %": 0, "bufferFlipCount": 0, "gartFreeBytes": 7482699776, "finish2DWaitTime": 0, "surfaceCount": 0, "swapCompleteVideoWaitTime": 0, "swapCompleteGLWaitTime": 0, "Device Utilization % at cur p-state": 0, "gartMapInBytesPerSample": 0, "Device Unit 2 Utilization %": 0, "clientSharedAllocatedBytes": 32768, "freeToAllocGPUAddressWaitTime": 0, "finishVideoWaitTime": 0, "iosurfaceTextureCreationBytes": 0, "agprefTextureCreationCount": 0, "textureVolunteerUnloadBytes": 0, "oolTexturePageInBytes": 0, "gartUsedBytes": 33492992, "gartCacheBytes": 33554432, "freeSurfaceSwapBufferWaitTime": 0, "agprefTextureCreationBytes": 0, "gartSizeBytes": 7516192768, "orphanedNonReusableVidMemoryBytes": 0, "finishAll2DWaitTime": 0, "finishGLWaitTime": 0, "orphanedReusableVidMemoryCount": 0, "hardwareWaitTime": 0, "finishCLWaitTime": 0, "clientGLWaitTime": 0, "hardwareSubmitWaitTime": 0, "orphanedNonReusableSysMemoryCount": 0, "orphanedReusableVidMemoryBytes": 0, "volatileSurfaceCount": 0, "surfaceWriteLockIdleWaitTime": 0, "Device Utilization %": 0, "freeSurfaceBackingWaitTime": 0, "orphanedReusableSysMemoryCount": 0, "texturePageOutBytes": 0, "surfaceBufferPageOutBytes": 0]
📊 statistics ["stdTextureCreationBytes": 0, "recoveryCount": 0, "HWChannel UVDEncLLQ | Commands Submitted": 0, "contextVideoCount": 0, "ioSurfacePageOutBytes": 0, "texturePageOutBytes": 0, "Temperature(C)": 45, "gartFreeBytes": 8457691136, "textureReadOutBytes": 0, "Total Power(W)": 26, "freeSurfaceBackingWaitTime": 0, "Fan Speed(%)": 0, "orphanedReusableSysMemoryCount": 0, "orphanedNonReusableVidMemoryCount": 0, "HWChannel Compute1 | Commands Completed": 0, "textureVolunteerUnloadBytes": 0, "surfaceBufferTextureCreationCount": 0, "swapCompleteVideoWaitTime": 0, "finishGLWaitTime": 0, "surfaceCopyInWaitTime": 0, "vramFreeBytes": 163807168, "HWChannel GFX | Commands Completed": 7, "contextGLCount": 11, "hardwareWaitTime": 0, "volatileSurfaceCount": 0, "dataBytesPerSample": 0, "surfaceCount": 37, "gartMapInBytesPerSample": 0, "HWChannel Compute2 | Commands Completed": 0, "finish2DWaitTime": 0, "dataBufferCount": 0, "orphanedReusableVidMemoryHitRate": 92, "HWChannel sDMA1 | Commands Submitted": 9, "HWChannel UVDDec | Commands Completed": 0, "oolTexturePageInBytes": 327680, "inUseVidMemoryBytes": 3006935040, "gartMapOutBytesPerSample": 0, "finishCLWaitTime": 0, "contextCLCount": 3, "surfaceWriteLockIdleWaitTime": 0, "freeToAllocGPUAddressWaitTime": 0, "HWChannel UVDDec | Commands Submitted": 0, "swapCompleteGLWaitTime": 0, "clientSharedAllocatedBytes": 6467584, "finishAll2DWaitTime": 0, "bufferSwapCount": 0, "HWChannel UVDEnc | Commands Completed": 0, "HWChannel GFX | Commands Submitted": 7, "agprefTextureCreationBytes": 0, "gartCacheBytes": 33554432, "surfaceTextureCreationCount": 0, "gartUsedBytes": 132243456, "HWChannel Compute0 | Commands Completed": 0, "HWChannel sDMA0 | Commands Completed": 9, "freeSurfaceSwapBufferWaitTime": 0, "orphanedReusableSysMemoryHitRate": 0, "HWChannel sDMA1 | Commands Completed": 9, "Memory Clock(MHz)": 300, "surfaceBufferPageInBytes": 0, "HWChannel VCE | Commands Completed": 0, "orphanedNonReusableVidMemoryBytes": 0, "hardwareSubmitWaitTime": 0, "swapBytesPerSample": 0, "iosurfaceTextureCreationBytes": 0, "surfaceBufferReadOutBytes": 0, "agpTextureCreationCount": 0, "HWChannel VCELLQ | Commands Submitted": 0, "inUseSysMemoryBytes": 132243456, "vramEvictionWaitTime": 0, "freeDataBufferWaitTime": 0, "orphanedReusableVidMemoryCount": 483, "stdTextureCreationCount": 0, "oolTextureCreationCount": 4, "surfaceBufferPageOutBytes": 0, "HWChannel VCE | Commands Submitted": 0, "Device Utilization %": 0, "agpTextureCreationBytes": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "HWChannel sDMA0 | Commands Submitted": 9, "HWChannel KIQ | Commands Completed": 0, "HWChannel SAMU GPCOM | Commands Completed": 0, "HWChannel Compute1 | Commands Submitted": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "ioSurfacePageInBytes": 0, "agprefTextureCreationCount": 0, "surfaceCopyOutWaitTime": 0, "orphanedNonReusableSysMemoryBytes": 0, "iosurfaceTextureCreationCount": 0, "stdTexturePageInBytes": 1769472, "HWChannel Compute0 | Commands Submitted": 0, "orphanedReusableSysMemoryBytes": 0, "textureCount": 11680, "HWChannel VCELLQ | Commands Completed": 0, "orphanedNonReusableSysMemoryCount": 0, "surfaceSetShapeIdleWaitTime": 0, "bufferFlipCount": 0, "context2DCount": 6, "GPU Activity(%)": 0, "oolTextureCreationBytes": 327680, "Core Clock(MHz)": 305, "ioSurfaceReadOutBytes": 0, "orphanedReusableVidMemoryBytes": 1103527936, "clientGLWaitTime": 0, "HWChannel KIQ | Commands Submitted": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "HWChannel Compute2 | Commands Submitted": 0, "finishVideoWaitTime": 0, "Fan Speed(RPM)": 0, "gartSizeBytes": 8589934592, "HWChannel UVDEnc | Commands Submitted": 0, "surfaceReadLockIdleWaitTime": 0, "HWChannel SAMU RBI | Commands Completed": 0, "swapComplete2DWaitTime": 0]
shell with ["route get 0.0.0.0 | grep interface | awk \'{print $2}\'"]
shell with ["netstat -bI en1"]
📊 statistics ["dataBytesPerSample": 0, "contextVideoCount": 6, "finish2DWaitTime": 0, "clientSharedAllocatedBytes": 32768, "orphanedNonReusableSysMemoryCount": 0, "finishAll2DWaitTime": 0, "swapBytesPerSample": 0, "swapCompleteVideoWaitTime": 0, "finishVideoWaitTime": 0, "surfaceCopyOutWaitTime": 0, "dataBufferCount": 0, "stdTextureCreationCount": 0, "finishGLWaitTime": 0, "Device Utilization % at cur p-state": 0, "gartUsedBytes": 33492992, "gartFreeBytes": 7482699776, "agprefTextureCreationBytes": 0, "Device Utilization %": 0, "orphanedNonReusableSysMemoryBytes": 0, "ioSurfaceReadOutBytes": 0, "oolTextureCreationBytes": 0, "agpTextureCreationCount": 0, "surfaceCount": 0, "orphanedReusableVidMemoryHitRate": 0, "volatileSurfaceCount": 0, "vramEvictionWaitTime": 0, "gartCacheBytes": 33554432, "freeDataBufferWaitTime": 0, "textureReadOutBytes": 0, "bufferSwapCount": 0, "contextGLCount": 0, "gartMapOutBytesPerSample": 0, "surfaceBufferTextureCreationCount": 0, "orphanedReusableSysMemoryCount": 0, "texturePageOutBytes": 0, "inUseSysMemoryBytes": 33492992, "surfaceCopyInWaitTime": 0, "Device Unit 2 Utilization %": 0, "swapComplete2DWaitTime": 0, "freeToAllocGPUAddressWaitTime": 0, "textureCount": 52, "freeSurfaceBackingWaitTime": 0, "hardwareSubmitWaitTime": 0, "oolTextureCreationCount": 0, "agpTextureCreationBytes": 0, "context2DCount": 0, "contextCLCount": 0, "surfaceBufferPageInBytes": 0, "bufferFlipCount": 0, "swapCompleteGLWaitTime": 0, "ioSurfacePageInBytes": 0, "gartMapInBytesPerSample": 0, "gartSizeBytes": 7516192768, "ioSurfacePageOutBytes": 0, "finishCLWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "orphanedReusableSysMemoryHitRate": 0, "freeSurfaceSwapBufferWaitTime": 0, "orphanedNonReusableVidMemoryCount": 0, "hardwareWaitTime": 0, "surfaceWriteLockIdleWaitTime": 0, "Device Unit 1 Utilization %": 0, "stdTextureCreationBytes": 0, "Device Unit 3 Utilization %": 0, "stdTexturePageInBytes": 0, "iosurfaceTextureCreationCount": 0, "orphanedReusableSysMemoryBytes": 0, "surfaceSetShapeIdleWaitTime": 0, "surfaceTextureCreationCount": 0, "inUseVidMemoryBytes": 0, "orphanedReusableVidMemoryBytes": 0, "surfaceBufferPageOutBytes": 0, "orphanedNonReusableVidMemoryBytes": 0, "iosurfaceTextureCreationBytes": 0, "surfaceBufferReadOutBytes": 0, "orphanedReusableVidMemoryCount": 0, "textureVolunteerUnloadBytes": 0, "Device Unit 0 Utilization %": 0, "recoveryCount": 0, "agprefTextureCreationCount": 0, "oolTexturePageInBytes": 0, "clientGLWaitTime": 0]
📊 statistics ["Memory Clock(MHz)": 300, "HWChannel VCELLQ | Commands Completed": 0, "HWChannel GFX | Commands Completed": 32, "HWChannel Compute1 | Commands Submitted": 0, "orphanedReusableSysMemoryCount": 0, "swapCompleteVideoWaitTime": 0, "HWChannel UVDEncLLQ | Commands Completed": 0, "finishVideoWaitTime": 0, "finishCLWaitTime": 0, "textureVolunteerUnloadBytes": 0, "bufferFlipCount": 0, "oolTextureCreationBytes": 40894464, "oolTexturePageInBytes": 81264640, "HWChannel sDMA0 | Commands Completed": 48, "textureCount": 11681, "inUseVidMemoryBytes": 3047305216, "surfaceBufferReadOutBytes": 0, "finishAll2DWaitTime": 0, "surfaceCopyOutWaitTime": 0, "surfaceCount": 37, "freeToAllocGPUAddressWaitTime": 0, "orphanedReusableSysMemoryHitRate": 0, "swapComplete2DWaitTime": 0, "HWChannel GFX | Commands Submitted": 32, "HWChannel SAMU RBI | Commands Completed": 0, "stdTexturePageInBytes": 9109504, "vramFreeBytes": 163807168, "HWChannel UVDEncLLQ | Commands Submitted": 0, "orphanedNonReusableVidMemoryCount": 0, "gartUsedBytes": 169623552, "gartFreeBytes": 8420311040, "bufferSwapCount": 0, "inUseSysMemoryBytes": 169623552, "contextGLCount": 11, "orphanedReusableVidMemoryCount": 482, "agpTextureCreationBytes": 0, "context2DCount": 6, "Device Utilization %": 1, "orphanedReusableVidMemoryHitRate": 92, "surfaceSetShapeIdleWaitTime": 0, "textureReadOutBytes": 0, "HWChannel UVDDec | Commands Submitted": 0, "GPU Activity(%)": 0, "recoveryCount": 0, "HWChannel Compute0 | Commands Submitted": 0, "surfaceBufferPageOutBytes": 0, "gartCacheBytes": 33554432, "volatileSurfaceCount": 0, "surfaceBufferTextureCreationCount": 0, "HWChannel SAMU RBI | Commands Submitted": 0, "dataBytesPerSample": 0, "HWChannel Compute2 | Commands Completed": 0, "Core Clock(MHz)": 316, "gartMapOutBytesPerSample": 0, "iosurfaceTextureCreationBytes": 0, "orphanedReusableSysMemoryBytes": 0, "dataBufferCount": 0, "HWChannel VCE | Commands Completed": 0, "ioSurfaceReadOutBytes": 0, "gartMapInBytesPerSample": 0, "HWChannel sDMA0 | Commands Submitted": 48, "swapCompleteGLWaitTime": 0, "stdTextureCreationCount": 7, "hardwareSubmitWaitTime": 0, "surfaceTextureCreationCount": 0, "clientSharedAllocatedBytes": 6467584, "oolTextureCreationCount": 11, "vramEvictionWaitTime": 0, "Fan Speed(RPM)": 0, "orphanedNonReusableSysMemoryBytes": 0, "HWChannel SAMU GPCOM | Commands Submitted": 0, "HWChannel Compute0 | Commands Completed": 0, "finishGLWaitTime": 0, "HWChannel sDMA1 | Commands Submitted": 36, "HWChannel UVDDec | Commands Completed": 0, "HWChannel UVDEnc | Commands Completed": 0, "texturePageOutBytes": 0, "Temperature(C)": 46, "ioSurfacePageInBytes": 0, "HWChannel VCELLQ | Commands Submitted": 0, "orphanedNonReusableSysMemoryCount": 0, "HWChannel sDMA1 | Commands Completed": 36, "HWChannel KIQ | Commands Completed": 0, "Total Power(W)": 27, "freeSurfaceBackingWaitTime": 0, "hardwareWaitTime": 0, "HWChannel UVDEnc | Commands Submitted": 0, "HWChannel KIQ | Commands Submitted": 0, "stdTextureCreationBytes": 5795840, "agpTextureCreationCount": 0, "freeSurfaceSwapBufferWaitTime": 0, "swapBytesPerSample": 0, "HWChannel SAMU GPCOM | Commands Completed": 0, "HWChannel Compute2 | Commands Submitted": 0, "HWChannel VCE | Commands Submitted": 0, "surfaceWriteLockIdleWaitTime": 0, "contextVideoCount": 0, "finish2DWaitTime": 0, "surfaceReadLockIdleWaitTime": 0, "orphanedNonReusableVidMemoryBytes": 0, "ioSurfacePageOutBytes": 0, "clientGLWaitTime": 0, "freeDataBufferWaitTime": 0, "orphanedReusableVidMemoryBytes": 1063157760, "iosurfaceTextureCreationCount": 0, "surfaceBufferPageInBytes": 0, "Fan Speed(%)": 0, "contextCLCount": 3, "gartSizeBytes": 8589934592, "HWChannel Compute1 | Commands Completed": 0, "surfaceCopyInWaitTime": 0, "agprefTextureCreationCount": 0, "agprefTextureCreationBytes": 0]
Is Related to a Crash? No
