Add new component for dished vacuum vessel heads

Open shimwell opened this issue 4 years ago • 3 comments

I would be handy to have a few curved shapes for vacuum vessel heads.

The straight section can be added afterwards.

Then vacuum vessels could be made from a mixture of heads

Mar 27 '22 23:03 shimwell

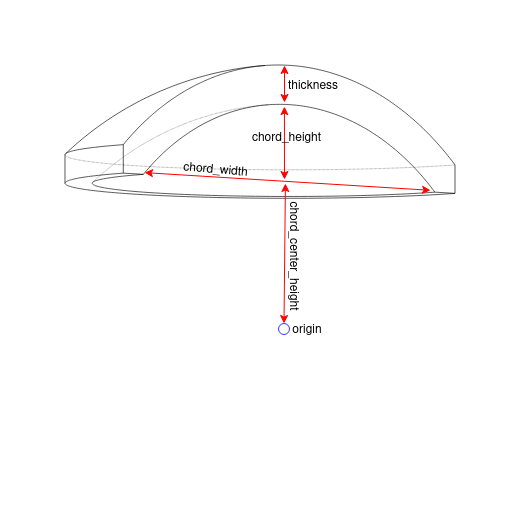

perhaps something like this, that can be flipped to a mirror image version for the low section ConstantThicknessDome_parametric_shape

Mar 27 '22 23:03 shimwell

This is being work on in this branch https://github.com/fusion-energy/paramak/tree/adding_dished_vv

Mar 28 '22 14:03 shimwell

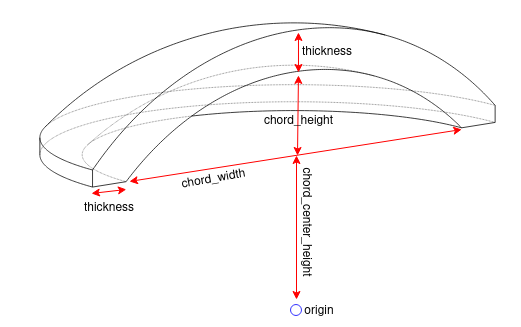

DishedVacuumVessel_paramak ConstantThicknessDome_paramak

Mar 28 '22 23:03 shimwell
