jsPDF: take 2
Following my not so good latest issue on the topic, where I did not get the latest version (0.6.x) using yarn for an undertermined reason (one being: maybe I'm dumb) I decided to give the github version a go.
So using the generated .fs file, I tried to make jsPDF work but my first try was a miss. So after searching, I found how to make it work but I do need your confirmation to be sure I am not doing bad things here.
So the generated bindings give me:
// ts2fable 0.0.0
module rec Fable.Import.JsPDF
open System
open Fable.Core
open Fable.Import.JS
open Fable.Import.Browser
let [<Import("*","jspdf")>] jspdf: Jspdf.jsPDFStatic = jsNative //not working
module Jspdf =
let [<Import("*","jspdf")>] jsPDF: jsPDFStatic = jsNative
type [<AllowNullLiteral>] IExports =
abstract jsPDF: jsPDFStatic
type [<AllowNullLiteral>] jsPDF =
abstract CapJoinStyles: obj option with get, set
abstract version: string with get, set
abstract ``internal``: obj with get, set
abstract addPage: ?sizes: ResizeArray<float> -> jsPDF
abstract setPage: n: float -> jsPDF
abstract insertPage: beforePage: float -> jsPDF
abstract movePage: targetPage: float * beforePage: float -> jsPDF
abstract deletePage: n: float -> jsPDF
abstract setDisplayMode: ?zoom: string * ?layout: string * ?pmode: string -> jsPDF
abstract text: text: obj option * x: obj option * y: obj option * ?flags: obj option * ?angle: obj option * ?align: obj option -> jsPDF
abstract lstext: text: string * x: float * y: float * spacing: float -> jsPDF
abstract line: x1: float * y1: float * x2: float * y2: float -> obj option
abstract clip: unit -> unit
abstract lines: lines: obj option * x: obj option * y: obj option * ?scale: obj option * ?style: string * ?closed: bool -> jsPDF
abstract rect: x: float * y: float * w: float * h: float * ?style: string -> jsPDF
abstract triangle: x1: float * y1: float * x2: float * y2: float * x3: float * y3: float * style: string -> jsPDF
abstract roundedRect: x: float * y: float * w: float * h: float * rx: float * ry: float * style: string -> jsPDF
abstract ellipse: x: float * y: float * rx: float * ry: float * ?style: string -> jsPDF
abstract circle: x: float * y: float * r: float * style: string -> jsPDF
abstract setProperties: properties: obj option -> jsPDF
abstract setFontSize: size: float -> jsPDF
abstract setFont: ?fontName: string * ?fontStyle: string -> jsPDF
abstract setFontStyle: style: string -> jsPDF
abstract setFontType: style: string -> jsPDF
abstract getFontList: unit -> obj option
abstract addFont: postScriptName: string * fontName: string * fontStyle: string -> string
abstract setLineWidth: width: float -> jsPDF
abstract setDrawColor: ch1: U2<float, string> * ?ch2: float * ?ch3: float * ?ch4: float -> jsPDF
abstract setFillColor: ch1: U2<float, string> * ?ch2: float * ?ch3: float * ?ch4: float -> jsPDF
abstract setTextColor: ?r: float * ?g: float * ?b: float -> jsPDF
abstract setLineCap: style: U2<string, float> -> jsPDF
abstract setLineJoin: style: U2<string, float> -> jsPDF
abstract output: ?``type``: string * ?options: obj option -> obj option
abstract save: filename: string -> jsPDF
/// jsPDF plugins below:
///
/// - AddHTML
/// - AddImage
/// - Annotations
/// - AutoPrint
/// - Canvas
/// - Cell
/// - Context2D
/// - FromHTML
/// - JavaScript
/// - PNG
/// - split_text_to_size
/// - SVG
/// - total_pages
abstract addHTML: element: obj option * x: float * y: float * options: obj option * callback: Function -> jsPDF
abstract addHTML: element: obj option * callback: Function -> jsPDF
abstract color_spaces: obj option with get, set
abstract decode: obj option with get, set
abstract image_compression: obj option with get, set
abstract sHashCode: str: string -> obj option
abstract isString: ``object``: obj option -> bool
abstract extractInfoFromBase64DataURI: dataURI: string -> ResizeArray<obj option>
abstract supportsArrayBuffer: unit -> bool
abstract isArrayBuffer: ``object``: obj option -> bool
abstract isArrayBufferView: ``object``: obj option -> bool
abstract binaryStringToUint8Array: binary_string: string -> Uint8Array
abstract arrayBufferToBinaryString: buffer: obj option -> string
abstract arrayBufferToBase64: arrayBuffer: ArrayBuffer -> string
abstract createImageInfo: data: obj option * wd: obj option * ht: obj option * cs: obj option * bpc: obj option * imageIndex: float * alias: obj option * ?f: obj option * ?dp: obj option * ?trns: obj option * ?pal: obj option * ?smask: obj option -> obj option
abstract addImage: ?imageData: obj option * ?format: obj option * ?x: float * ?y: float * ?w: float * ?h: float * ?alias: obj option * ?compression: obj option * ?rotation: obj option -> jsPDF
abstract processJPEG: data: obj option * index: float * alias: obj option * ?compression: obj option * ?dataAsBinaryString: string -> obj option
abstract processJPG: unit -> obj option
abstract annotationPlugin: obj option with get, set
abstract createAnnotation: options: obj option -> unit
abstract link: x: float * y: float * w: float * h: float * options: obj option -> unit
abstract textWithLink: text: string * x: float * y: float * options: obj option -> float
abstract getTextWidth: text: string -> float
abstract getLineHeight: unit -> float
abstract autoPrint: unit -> jsPDF
abstract canvas: obj with get, set
abstract setHeaderFunction: func: Function -> unit
abstract getTextDimensions: txt: string -> obj option
abstract cellAddPage: unit -> unit
abstract cellInitialize: unit -> unit
abstract cell: x: float * y: float * w: float * h: float * txt: string * ln: float * align: string -> jsPDF
abstract arrayMax: array: ResizeArray<obj option> * ?comparisonFn: Function -> float
abstract table: x: float * y: float * data: obj option * headers: ResizeArray<string> * config: obj option -> jsPDF
abstract calculateLineHeight: headerNames: ResizeArray<string> * columnWidths: ResizeArray<float> * model: ResizeArray<obj option> -> float
abstract setTableHeaderRow: config: ResizeArray<obj option> -> unit
abstract printHeaderRow: lineNumber: float * ?new_page: bool -> unit
abstract context2d: obj with get, set
abstract fromHTML: HTML: U2<string, HTMLElement> * x: float * y: float * ?settings: obj option * ?callback: Function * ?margins: obj option -> jsPDF
abstract addJS: txt: string -> jsPDF
abstract processPNG: imageData: obj option * imageIndex: float * alias: string * compression: obj option * dataAsBinaryString: string -> obj option
abstract getCharWidthsArray: text: string * ?options: obj option -> ResizeArray<obj option>
abstract getStringUnitWidth: text: string * ?options: obj option -> float
abstract splitTextToSize: text: string * maxlen: float * ?options: obj option -> obj option
abstract addSVG: svgtext: string * x: float * y: float * ?w: float * ?h: float -> jsPDF
abstract putTotalPages: pageExpression: string -> jsPDF
type [<AllowNullLiteral>] jsPDFStatic =
[<Emit "new $0($1...)">] abstract Create: ?orientation: obj option * ?unit: string * ?format: string * ?compressPdf: float -> jsPDF
1st issue:
Here the correction is simple. I change
let [<Import("*","jspdf")>] jsPDF: JsPDF.IExports = jsNative
to
let [<Import("*","jspdf")>] IExports = jsNative
1st try:
open Fable.Import.JsPDF
let doc = jspdf.jsPDF.Create()
doc.text(!!(Some "Hello world!"), !!(Some 10.), !!(Some 10.)) |> ignore
doc.save("a4.pdf") |> ignore
but I get a webpack error:
Solution:

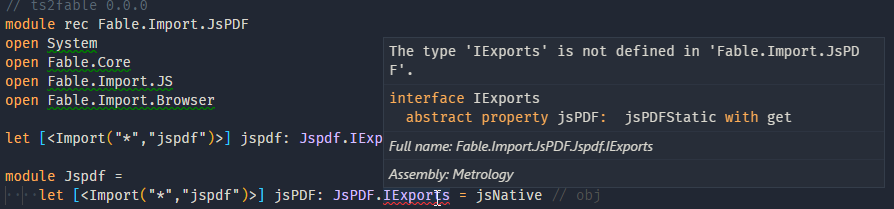

After several tries I find that the use of the IExports Interface seems to give a wrong level of indirection. So I change
let [<Import("*","jspdf")>] jspdf: Jspdf.IExports = jsNative
module Jspdf =
let [<Import("*","jspdf")>] jsPDF: JsPDF.IExports = jsNative
type [<AllowNullLiteral>] IExports =
abstract jsPDF: jsPDFStatic
to
let [<Import("*","jspdf")>] jspdf: Jspdf.jsPDFStatic = jsNative
module Jspdf =
let [<Import("*","jspdf")>] jsPDF: jsPDFStatic = jsNative
type [<AllowNullLiteral>] IExports =
abstract jsPDF: jsPDFStatic
which gives me a direct access to jsPDFStatic.
Then I change my calling code from
let doc = jspdf.jsPDF.Create()
to
let doc = jspdf.Create()
And it works.
Questions
Do I make things right? Is there another way to avoid to make theses changes? Do you need more details?
Thanks for your help!
