The line between the source list and folder view sometimes disappears

[ryonakano]

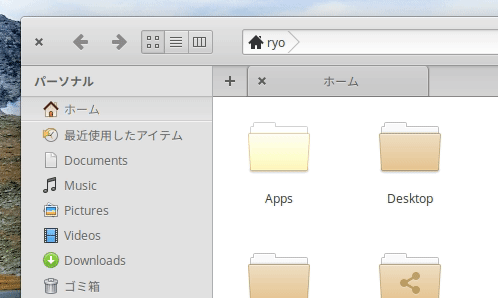

It may be due to my system environment, but the line between the source list and folder view sometimes disappears. I'm on an Core i7-2630QM with NVIDIA GeForce GT 540M. I installed NVIDIA binary driver version 340.106 for GPU from AppCenter.

---

Want to back this issue? Post a bounty on it! We accept bounties via Bountysource.

[tkashkin]

It also appears in other apps with Gtk.Paned widget, so it's a theme bug.

[cassidyjames]

@tkashkin or possibly a GTK bug; I don't see why the stylesheet would differ in NVIDIA versus Intel graphics other than due to a bug in GTK.

[cassidyjames]

(I do also see this when using NVIDIA graphics)

[tkashkin]

Interesting, I don't see this with Intel graphics too. But I also don't see anything similar with other GTK themes on NVIDIA.

[jeremypw]

I do not think this can be fixed in the Files code so I am marking as Out of Scope

[bernardodsanderson]

I was able to replicate this by installing the nvidia-driver-390 from the appcenter. Before that I had no issues. Running NVIDIA GeForce GTX 950, Juno 5.0.

[danila-io]

I was able to replicate this by installing the nvidia-driver-390 from the appcenter. Before that I had no issues. Running NVIDIA GeForce GTX 950, Juno 5.0.

What drivers did you use prior to installing 390 from the AppCenter?

[bernardodsanderson]

It was just a clean install, so whatever it comes with. Unfortunately I didn't check prior. I also tried updating to nvidia-415 latest driver and I'm still seeing this issue.

[bernardodsanderson]

Another update. I tested the app "Ping!" which uses Gtk.Paned. It gives the same issues as "Files" on Elementary OS, however, when I tried it on PopOS with Nvidia drivers I did not get the same issue.

[danila-io]

@bernardodsanderson I heard that System76 distribute Nvidia drivers differently. So it's either that or it's something specific to elementary OS due to its theme.

[bernardodsanderson]

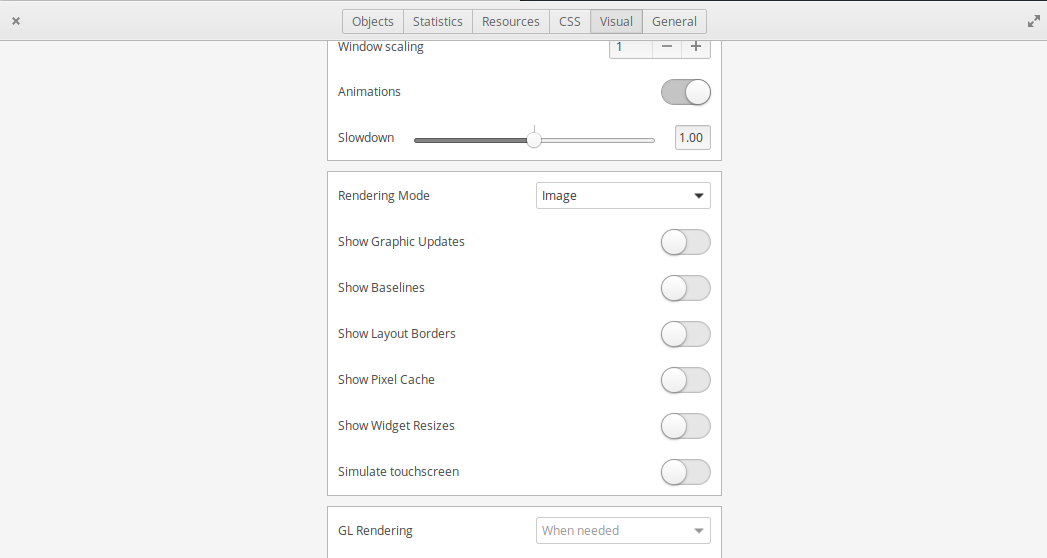

Thanks, @danila-io. I did some more digging. The issue seems to come from using a linear-gradient for a background-image to paned.horizontal > separator (in the gtk-widgets.css file). When I used a solid color for a background I did not get this issue. I also noticed when debugging that when using the "Rendering Mode" to "Image" also fixed this issue.

A separate point to make is that I noticed that this only appears when there's no scroll-sidebar in the main pane. When there's a lot of files and you have to scroll to see them all, there's no problem.

paned.horizontal > separator {
    background-image:
        linear-gradient(
            to right,
            @menu_separator 1px,
            @menu_separator_shadow 1px,
            @menu_separator_shadow 2px,
            transparent 2px
        );
    margin-right: -7px;
    min-width: 8px;
}

[danila-io]

@bernardodsanderson What tool did you use to change rendering mode? Sorry, I'm a bit new to this stuff.

[bernardodsanderson]

@danila-io no problem, I'm pretty new too! I used GTK_DEBUG=interactive io.elementary.files to get the debug dialog.

[Manueljlin]

For some reason, this issue doesn't happen in hidpi mode

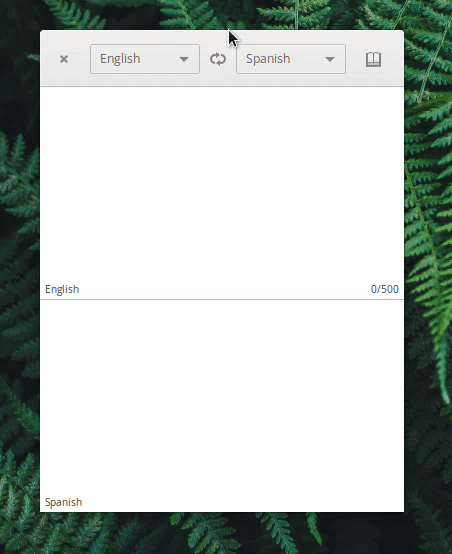

Also happens on vertical dividers (on other apps) so it's probably a gtk thing:

It's fixed by setting

paned.horizontal > separator { background-image: linear-gradient( to right, @menu_separator 1px, @menu_separator_shadow 1px, @menu_separator_shadow 2px, transparent 2px ); margin-right: 0px; min-width: 8px; }

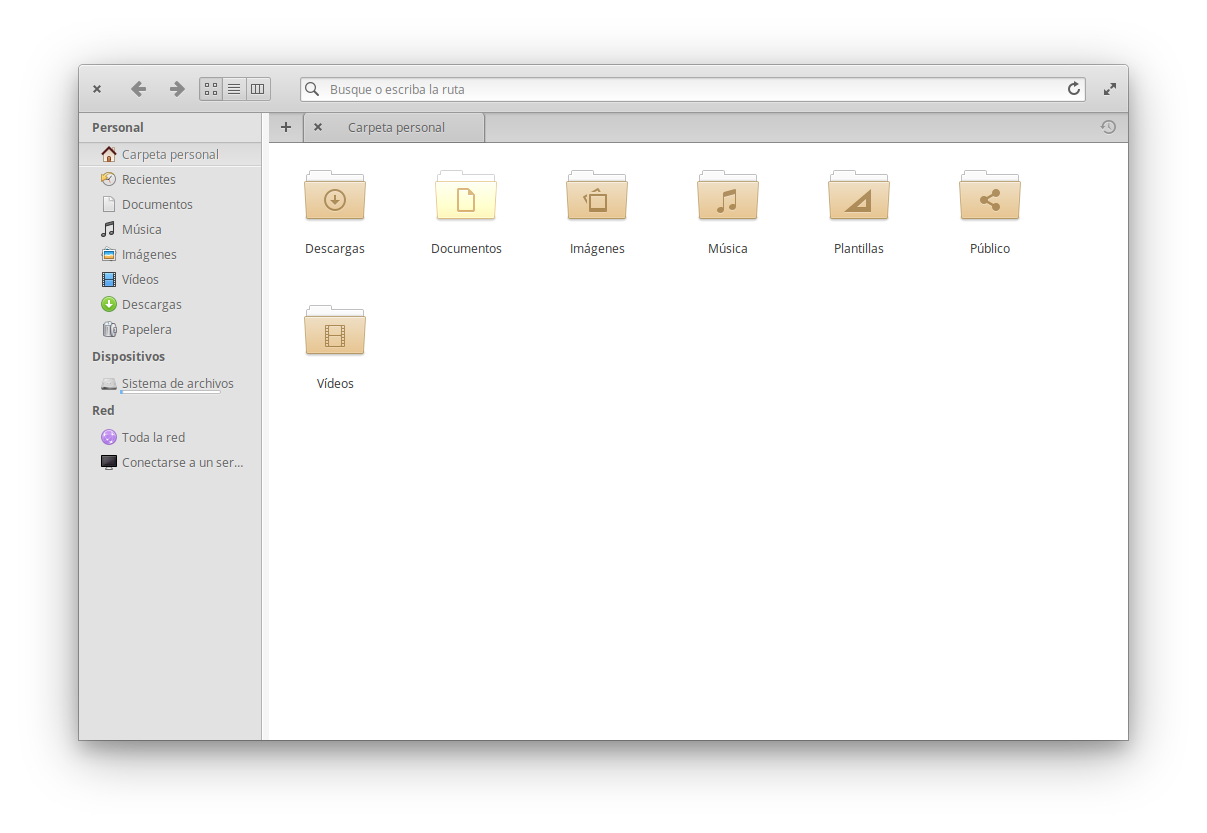

to gtk-widgets.css, but that leaves apps looking like this

(Also, Mail doesn't have this issue)

[Manueljlin]

I fixed it with this on gtk-widgets.css:

paned.vertical > separator {
    background-image:
        linear-gradient(
            @menu_separator -2px,
            @menu_separator_shadow 1px,
            @menu_separator_shadow 2px,
            transparent 2px
        );
    margin-bottom: 0px;
    min-height: 1px;
}

paned.horizontal > separator {
    background-image:
        linear-gradient(
            to right,
            @menu_separator 1px,
            @menu_separator_shadow 1px,
            @menu_separator_shadow 2px,
            transparent 2px
        );
    margin-right: 0px;
    min-width: 1px;
}

The problem is that it's a bit harder to resize.

[msmaldi]

I have same Problem, I use Nvidia, new themes have bug too. Change rendering mode to image resolve, is possible change for all applications permant?

a little change in CSS resolved this problem in my setup

paned.vertical > separator {
    background-image:
        linear-gradient(
            to bottom,
            @menu_separator 1px,
            @menu_separator_shadow 1px,
            @menu_separator_shadow 2px,
            transparent 2px
        );
    margin-bottom: -6px;
    min-height: 7px;
}

paned.horizontal > separator {
    background-image:
        linear-gradient(
            to right,
            @menu_separator 1px,
            @menu_separator_shadow 1px,
            @menu_separator_shadow 2px,
            transparent 2px
        );
    margin-right: -6px;
    min-width: 7px;
}

Resizes is normal working.
