instability Wifi PrinCube

Open tsapap opened this issue 5 years ago • 11 comments

I don't understand why the Wifi of my PrinCube keeps saying Wrong Password with both iPhone and Android. I proceeded to upgrade the firmware version PrinCube-fw-4.26_4.11.tar but the same problem occurs. It only works with the PC but there is no way to connect the wifi to the phone.

I'm waiting for your answer

tsapap avatar Apr 01 '20 10:04 tsapap

Sorry, as I said in last release notice, it should be a hardware problem, please contact the after-sales service first, provide the order number and a short video of the connection failure, they will give you a new device. If it is not resolved, I will follow up.

dukelec avatar Apr 01 '20 15:04 dukelec

please give me a contact to replace the defective product

tsapap avatar Apr 07 '20 16:04 tsapap

May I ask where you purchased it?

dukelec avatar Apr 08 '20 06:04 dukelec

Hey, will the hardware mod with the capacitors fix the wifi problem?

Greenslider avatar Dec 23 '20 22:12 Greenslider

@Greenslider Only the oldest machine needs the capacitor replacement: https://github.com/dukelec/mb/releases/tag/4.26_4.11 Can you take a picture of the PCB? It is best to also provide the machine CPU ID (for example, via USB connection). I will confirm whether it needs to be replaced.

dukelec avatar Dec 24 '20 07:12 dukelec

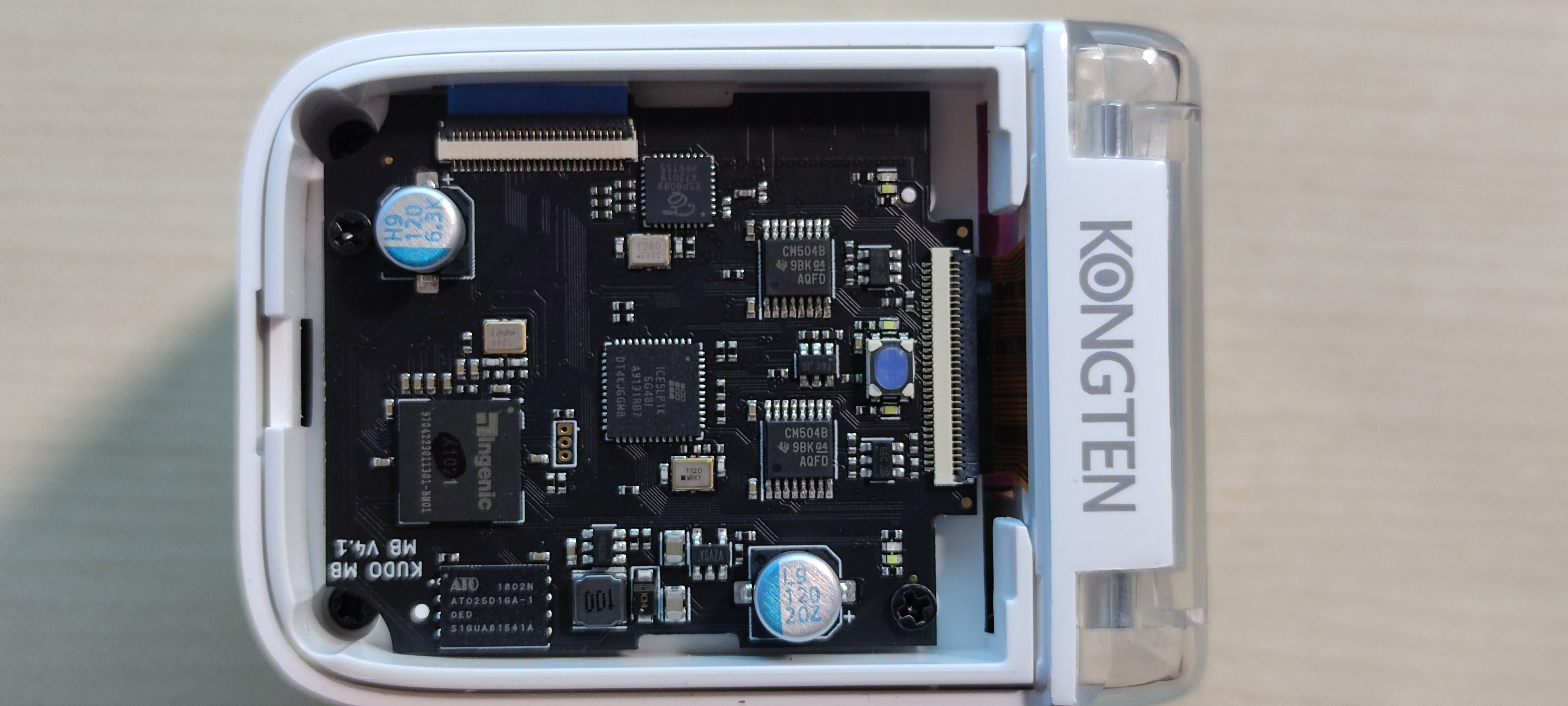

Yeah no problem, the ID what i found over USB was: 3b4a6c820080070114192a0a and attached is the photo of the pcb 1608801393085

Greenslider avatar Dec 24 '20 09:12 Greenslider

@Greenslider This board is indeed old and the capacitor needs to be replaced.

dukelec avatar Dec 24 '20 10:12 dukelec

@dukelec Okey, thank you for youre fast reply, can you help me wich size the capacitor are? And should ther be some capacitor in the circled area, where only one component is soldered?

Greenslider avatar Dec 24 '20 13:12 Greenslider

@Greenslider The capacitances in the circle are not the most critical, so you can leave them alone.

You only need to replace two 5.6pF capacitors. The capacitor footprint is 0402. It is recommended to choose a higher capacitor accuracy (e.g. ±0.1pF).

dukelec avatar Dec 24 '20 13:12 dukelec

I also have the old card and I have no way to change the condenser. can you send a new card?

tsapap avatar Dec 27 '20 12:12 tsapap

Hey, today i replaced the capacitors and everything works now perfect. Thank you so much for your help

Greenslider avatar Dec 30 '20 15:12 Greenslider
