App Icon for iOS is not created when app icon is not a multiplier by 8
Description
Submitting my IPA file to App Store Connect failed with "Missing App Icon" error. See https://github.com/dotnet/maui/discussions/9035 for more details. I figured it the reason was that my app icon size was not a multiplier by 8. Note: I am NOT speaking about the app icon on the iOS homescreen, I am speaking about the 1024x1024 px PNG app icon that Apple's App Store requires.
SVG size was:
<svg width="437" height="437" ...</svg>
changing it to:
<svg width="440" height="440" ...</svg>
Fixed the problem. I'm reporting this because there should be a build error when publishing for iOS letting the developer know. It took me a few days to find and fix the issue.
Steps to Reproduce
- Create MAUI project
- Add an app icon with the size of 437x437
- Publish to IPA
- Add IPA file to Transporter app and click on "Validate"
Version with bug
6.0.408 (current)
Last version that worked well
Unknown/Other
Affected platforms
iOS
Affected platform versions
iOS
Did you find any workaround?
Making sure that the app icon is a multiplier of 8.
Relevant log output
No response
Thanks. That worked for me as well. Made height and width match on the App icon svg file and divisible by 8.
We've moved this issue to the Backlog milestone. This means that it is not going to be worked on for the coming release. We will reassess the backlog following the current release and consider this item at that time. To learn more about our issue management process and to have better expectation regarding different types of issues you can read our Triage Process.
Very interesting. I did not know that.
Resizetizer (our image generation magic) does this and uses a 1024x1024 image: https://github.com/dotnet/maui/blob/main/src/SingleProject/Resizetizer/src/DpiPath.cs#L110
I wonder if this is still an image and was a result of the errors in the calculations of the physical image size and used the input image size.
Hi @Symbai. We have added the "s/try-latest-version" label to this issue, which indicates that we'd like you to try and reproduce this issue on the latest available public version. This can happen because we think that this issue was fixed in a version that has just been released, or the information provided by you indicates that you might be working with an older version.
You can install the latest version by installing the latest Visual Studio (Preview) with the .NET MAUI workload installed. If the issue still persists, please let us know with any additional details and ideally a reproduction project provided through a GitHub repository.
This issue will be closed automatically in 7 days if we do not hear back from you by then - please feel free to re-open it if you come back to this issue after that time.
@Symbai mostly because I didn't get a chance to re-review this issue on Friday :)
What version of .NET and MAUI did you test on? .NET 7.0.100?
@rsbepvb @Symbai can you also test with setting the BaseSize to a multiple of 8? So you won't need to touch the SVG contents, just the csproj.
Does anyone have any documentation on this magical number? @jamesmontemagno I know you might have some Apple apps, did you ever hit a not-a-multiple-of-8 error in the Apple tools?

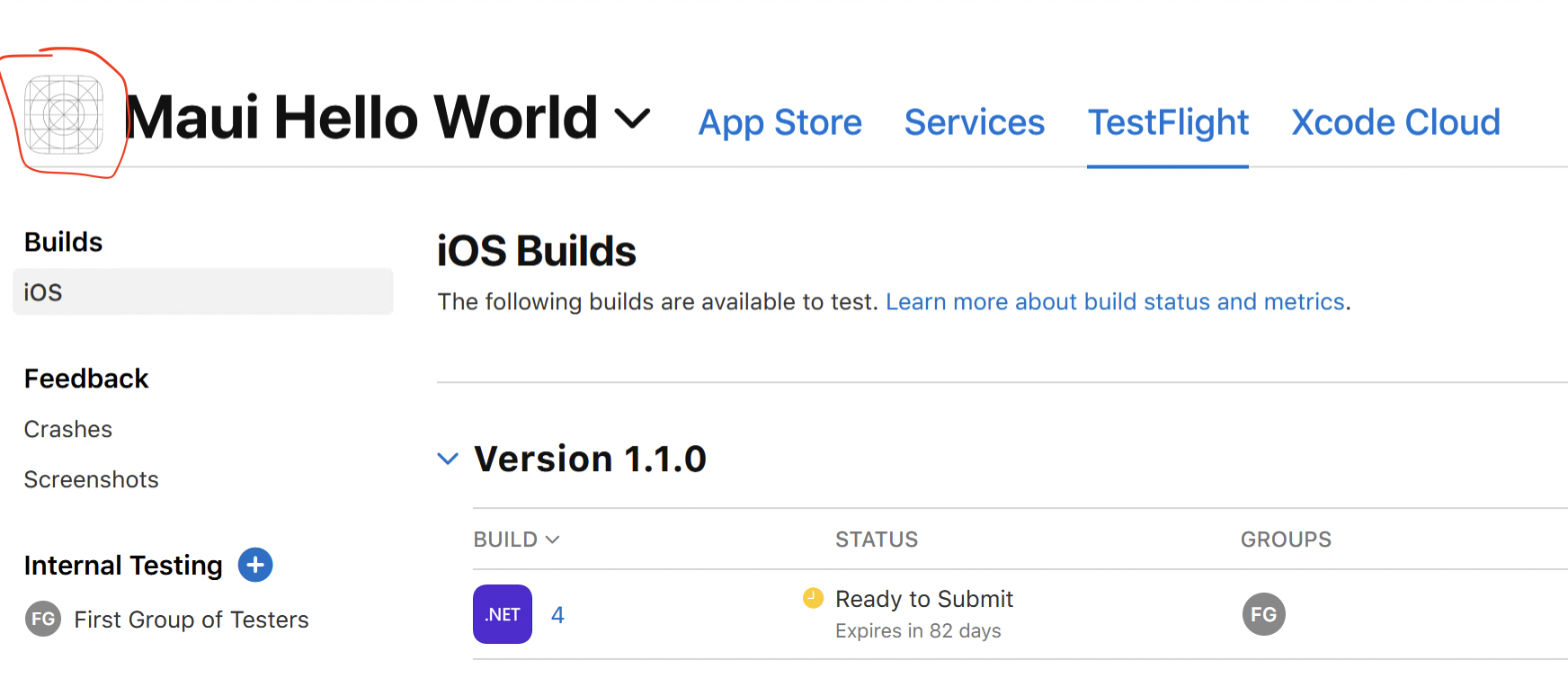

I've uploaded the maui template app into AppStore. It's missing the icon even though it's 456x456... Can someone advise if this is the same problem or I should do it another way?
App icon is missing is one of the symptoms, yes but it can also be caused by something else. You shouldn't be able to submit it to the app store at all if you have THIS issue. Im using Transporter app from Apple on MacOS which check your IPA file before you can submit it. With an invalid icon, the app icon in Transporter is blank just like on your screen but Transporter check also fails with "Missing App Icon".
I am not able to reproduce this at all with .NET 7.0 GA. Can you attach a binlog of this project?
And then can you zip up the "obj\Debug\net7.0-ios\iossimulator-x64\resizetizer" folder and reply here.
As far as I can tell, no matter the image size (I have an explicit 437x437 SVG image), it always generates a 1024x1024 itunes artwork.
I have the same behavior, in the simulator there is a file 'appiconItunesArtwork.png', size 1024x1024, but in the appstore there is only an white icon. Is there any workaround for this? We have to deploy to the appstore at the end of January 2023, and time is running ...
App icon is missing is one of the symptoms, yes but it can also be caused by something else. You shouldn't be able to submit it to the app store at all if you have THIS issue. Im using Transporter app from Apple on MacOS which check your IPA file before you can submit it. With an invalid icon, the app icon in Transporter is blank just like on your screen but Transporter check also fails with "
Missing App Icon".
@hattmann can you try this?
I am not able to reproduce this at all with .NET 7.0 GA. Can you attach a binlog of this project?
And then can you zip up the "obj\Debug\net7.0-ios\iossimulator-x64\resizetizer" folder and reply here.
As far as I can tell, no matter the image size (I have an explicit 437x437 SVG image), it always generates a 1024x1024 itunes artwork.
@hattmann can you try with my sample app and see if the system finds my icons? Or at least zip up the resizetizer folder so I can check things.
If the image is there but not on apple's side then I am not sure. The images are all set exactly.
May be related to https://github.com/dotnet/maui/issues/11124
Do you have a transparent icon maybe?
@mattleibow Has this been fixed? I am trying to release a new (blank slate) maui project and set the base size from <MauiImage Update="Resources\Images\dotnet_bot.svg" BaseSize="168,208" /> to 440,440 before I did this, I had my svg icon set to 440 as well, tried doing both on different submissions and they still do not work.
<MauiIcon Include="Resources\AppIcon\appicon.svg" ForegroundFile="Resources\AppIcon\appiconfg.svg" Color="#512BD4" />.
So this happens whenever I try to delete bin,obj folders and do a clean, rebuild, before doing a dotnet publish.
However, submission does work whenever I just delete bin,obj folders and do a clean before doing dotnet publish straightahead without doing a rebuild, but this causes a crash.
Asset validation failed (90023)
Missing required icon file. The bundle does not contain an app icon for iPad of exactly '167x167' pixels, in .png format for iOS versions supporting iPad Pro. To support older operating systems, the icon may be required in the bundle outside of an asset catalog. Make sure the Info.plist file includes appropriate entries referencing the file. See https://developer.apple.com/documentation/bundleresources/information_property_list/user_interface (ID: cc0e9e1c-15a2-446d-b713-ece343737773)
Asset validation failed (90022)
Missing required icon file. The bundle does not contain an app icon for iPhone / iPod Touch of exactly '120x120' pixels, in .png format for iOS versions >= 10.0. To support older versions of iOS, the icon may be required in the bundle outside of an asset catalog. Make sure the Info.plist file includes appropriate entries referencing the file. See https://developer.apple.com/documentation/bundleresources/information_property_list/user_interface (ID: 84d2fe54-f093-4d5f-b59f-db08307db13a)
Asset validation failed (90713)
Missing Info.plist value. A value for the Info.plist key 'CFBundleIconName' is missing in the bundle 'com.companyname.companyname'. Apps built with iOS 11 or later SDK must supply app icons in an asset catalog and must also provide a value for this Info.plist key. For more information see http://help.apple.com/xcode/mac/current/#/dev10510b1f7. (ID: 53003ab5-242a-4321-be04-c4d40beda519)
Asset validation failed (90023)
Missing required icon file. The bundle does not contain an app icon for iPad of exactly '152x152' pixels, in .png format for iOS versions >= 10.0. To support older operating systems, the icon may be required in the bundle outside of an asset catalog. Make sure the Info.plist file includes appropriate entries referencing the file. See https://developer.apple.com/documentation/bundleresources/information_property_list/user_interface (ID: f8ce4312-3093-44ab-909f-527f3c7b86e3)
Checked resizetizer and icons are all in there.. Not sure what's wrong..
All was done in VS Mac Preview 6 with 7.0.100 workload. Just an update created another release using the app https://github.com/dotnet/maui/issues/9067#issuecomment-1314265069 and it did not worked
First, Please try install lastest version of Svg.Skia
dotnet add package Svg.Skia --version 1.0.0.3
And, try build ipa from command line. https://learn.microsoft.com/en-us/dotnet/maui/ios/deployment/publish-cli#publish-an-ios-app-from-windows
Hi @Symbai. We have added the "s/try-latest-version" label to this issue, which indicates that we'd like you to try and reproduce this issue on the latest available public version. This can happen because we think that this issue was fixed in a version that has just been released, or the information provided by you indicates that you might be working with an older version.
You can install the latest version by installing the latest Visual Studio (Preview) with the .NET MAUI workload installed. If the issue still persists, please let us know with any additional details and ideally a reproduction project provided through a GitHub repository.
This issue will be closed automatically in 7 days if we do not hear back from you by then - please feel free to re-open it if you come back to this issue after that time.
Verified this issue with Visual Studio Enterprise 17.9.0 Preview 1.1. Not repro this issue.
Verified this issue with Visual Studio Enterprise 17.9.0 Preview 1.1. Not repro this issue.
Is this also the case with Version 17.8.3 of Enterprise? because i am having similar issue's where i am missing icons files of sizes 167, 150, 120 pixels
Hello, same here with building and deploying to the app store. When pushing a debug to an iPhone 15 Pro running iOS 17.2 we don't see any app icon. Whereas when checking the obj\Debug\net7.0-ios\ios-arm64\resizetizer\r folder we see the icon's just fine.
in this case we use a PNG instead of an SVG with a size of 640x640
<ItemGroup>
<!-- App Icon -->
<MauiIcon Include="Resources\AppIcon\appicondsv.png"
ForegroundFile="Resources\AppIcon\appicondsv.png"
BaseSize="640,640"
Color="#B41D43"/>
<!-- Splash Screen -->
<MauiSplashScreen Include="Resources\Splash\splash.png" />
<!-- Images -->
<MauiImage Include="Resources\Images\*" />
<MauiImage Update="Resources\Images\dotnet_bot.svg" BaseSize="168,208" />
<!-- Custom Fonts -->
<MauiFont Include="Resources\Fonts\*" />
<!-- Raw Assets (also remove the "Resources\Raw" prefix) -->
<MauiAsset Include="Resources\Raw\**" LogicalName="%(RecursiveDir)%(Filename)%(Extension)" />
</ItemGroup>
After cleaning the solution, project and building +deployig it still doesn't show.
Uploader messages:
Asset validation failed Missing Info.plist value. A value for the Info.plist key 'CFBundleIconName' is missing in the bundle 'eu.cande.dsvbasisadministratie'. Apps built with iOS 11 or later SDK must supply app icons in an asset catalog and must also provide a value for this Info.plist key. For more information see http://help.apple.com/xcode/mac/current/#/dev10510b1f7. (ID: 1f282593-8063-44d9-ac05-f7684053a104)
Asset validation failed Missing required icon file. The bundle does not contain an app icon f or iPhone / iPod Touch of exactly '120x120' pixels, in .png format for i OS versions >= 10.0. To support older versions of iOS, the icon may be required in the bundle outside of an asset catalog. Make sure the Info.plist file includes appropriate entries referencing the file. See https://developer.apple.com/documentation/bundleresources/information_property_list/user_interface (ID: 02eb7159-c738-4bb7-b75f-b88761e5530b)
VS version: Microsoft Visual Studio Community 2022 (64-bit) - Current Version 17.8.2 Microsoft Visual Studio Community 2022 Version 17.8.2 VisualStudio.17.Release/17.8.2+34322.80 Microsoft .NET Framework Version 4.8.09037
