It seems it is not on gerber files.

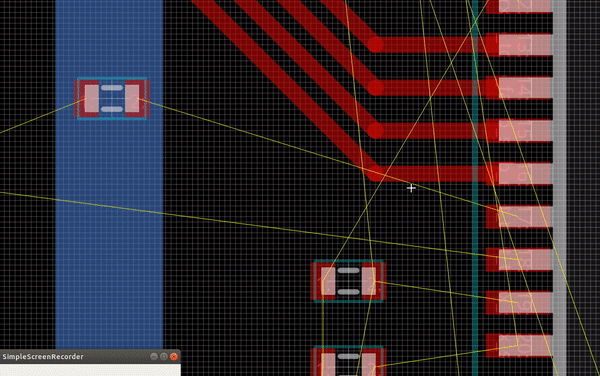

difficult with a screenshot as it is dynamic. When you draw a trace, show the two next segments, but only draw the first one when clicking. It will be helpful...
I have other connections to do ... And it not a real case. just an example to show.
With the actual method, you have 2 things to align at the same time, and sometimes they are far away so you can't zoom a lot. With my proposition, you...
@ubruhin I want to point this issue because it is needed to improve the user experience. All the more, it seems to be a little change in the code. If...
Yes, it would be useful to save space ...
I would say easier algorithm is this one : - calculate the plane as all pads were not of plane net - for each plane net pad : - calculate...
Other option : - calculate the plane as today - for each plane net pad : - calculate spokes_width = max( (pad_width+pad_height) / 16 , min_copper_width , plane_min_width) - calculate...

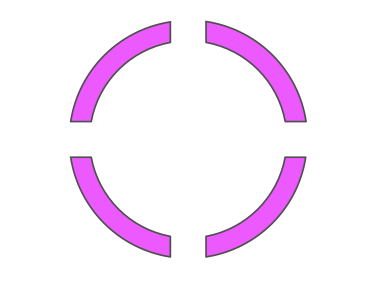

 Purple = red - green - blue - yellow  Then subtract purple from the calculated plane
