dmitry-s93
MSI GP76 11UG
Laptop Specs
Laptop: MSI GP76 Leopard 11UG EC Version: 17K3EMS1.108 EC Build: 06/10/2021
Test Details
Info Section: Everything working as intended including cooler boost. Mode: Anything except default(silent) gives considerably worse performance(tested in csgo). Super battery works. Battery: Working, but custom stops it from charging sometimes. Keyboard Backlit: 10s timer and slider does nothing. FN -> Super: Not Working. Webcam: Option is greyed out. USB Power share: Doesn't work
Running on Pop OS 22.04
Mode: Anything except default(silent) gives considerably worse performance(tested in csgo).
Can you boot into Windows and watch the change in EC on modes change?
I dont know how to get the EC reading on windows, could you tell me how so i can help out?
On Windows you can use EC-probing-tool.
Execute command ec-probe.exe monitor -i 2 -r <path_to_save_report>\report.txt (polling interval 2 seconds).
Alternately switch modes, lingering on each, for example, 20 seconds.
Tell me in what order the modes were switched and attach the report file.
Also attach the EC dump sudo hexdump -C /sys/kernel/debug/ec/ec0/io (on Linux).
Super battery - Silent - Balanced - High - Extreme was the order report.txt
Linux
00000000 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000020 00 00 00 00 00 00 00 00 0a 05 00 00 00 04 58 4b |..............XK| 00000030 03 01 00 0d 01 00 50 81 40 10 60 3b a0 01 c0 00 |......P.@.`;....| 00000040 20 08 3d 00 26 0b 00 00 bd 06 df 3b 01 0c f8 43 | .=.&......;...C| 00000050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000060 00 00 00 00 00 00 00 00 3f 00 32 38 3e 46 4b 50 |........?.28>FKP| 00000070 64 43 00 28 31 3a 43 4c 55 00 0a 07 07 09 09 09 |dC.(1:CLU.......| 00000080 3f 00 37 3c 41 46 4b 50 62 40 00 30 38 40 48 4f |?.7<[email protected]@HO| 00000090 56 00 0a 07 06 06 06 06 02 16 7d 02 16 62 51 00 |V.........}..bQ.| 000000a0 31 37 4b 33 45 4d 53 31 2e 31 30 38 30 36 31 30 |17K3EMS1.1080610| 000000b0 32 30 32 31 31 34 3a 35 31 3a 32 32 00 00 00 28 |202114:51:22...(| 000000c0 00 00 07 3d 00 00 00 00 00 b4 00 7e 00 00 00 00 |...=.......~....| 000000d0 00 00 c1 83 0d 00 05 bc 00 01 00 00 00 00 00 00 |................| 000000e0 e2 00 00 26 0b 00 00 c1 00 01 00 00 00 c1 00 64 |...&...........d| 000000f0 00 00 70 00 3f 3e 00 00 64 00 07 c0 00 04 03 00 |..p.?>..d.......|
@dmitry-s93 There used to be a script/app for msi laptops before, maybe you can get some use from it and implement some features
https://github.com/YoCodingMonster/OpenFreezeCenter
Fan speed control in the plans, but I can not say when I can do it.
No worries, thanks for the app.
Mode: Anything except default(silent) gives considerably worse performance(tested in csgo).
As a rule, the standard mode is balanced. According to the report, all modes switch correctly as on Windows (Except for the lack of Extreme mode). Balanced differs from silent only in the fan mode. Should not affect performance.
Keyboard Backlit: 10s timer and slider does nothing.
RGB lighting is not controlled via EC.
FN -> Super: Not Working.
If this works on Windows, then EC monitoring is needed with the feature turned on and off.
Webcam: Option is greyed out.
Turning the webcam on/off should work with version 0.3.0.
USB Power share: Doesn't work
Is this feature supported on Windows?
Maybe its a kernel bug (6.0.6) or something, on silent i would get around 400fps but on balanced it would dip to 100-150, high performance seems to be fine since 0.3.0 so i've left it on that. Even i noticed that it only changed fan speeds so i dont know why that happens.
FN --> Super : Works on windows USB PowerShare: I used to have it but on the new app version its not there anymore, so i dont really know if it was ever intended but its permanently ticked on MCC.
Webcam: Option is greyed out.
Does it work in version 0.3.0?
FN --> Super : Works on windows
Could you save a EC change report when switching "FN --> Super" on Windows? Just turn it on and off several times with a pause of 20 seconds.
How do you test USB Power Share? For example, on my laptop, it only works when the adapter is connected (by default, this can be changed in the BIOS).

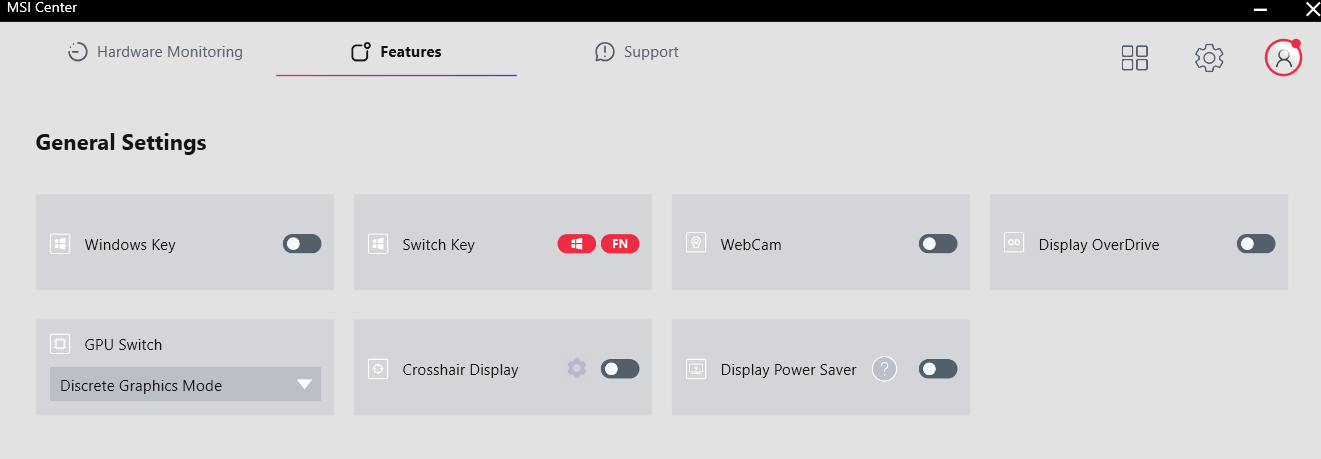

Webcam and FN --> Super work in 0.3.0, just checked to confirm. USB PowerShare adapter or battery both dont work. But MSI removing it makes me think it wasnt intended to work, even though it did before.
Power is supplied to USB and does not turn off? Your laptop supports USB port power. https://www.msi.com/faq/faq-4199
Please make EC dumps with silent mode enabled and balanced mode enabled (Make sure the performance is low). I'll double check just in case.
Power is supplied to USB and does not turn off? Your laptop supports USB port power. https://www.msi.com/faq/faq-4199
Please make EC dumps with silent mode enabled and balanced mode enabled (Make sure the performance is low). I'll double check just in case.
Yes, it doesn't turn off. Do you need dumps of windows only?
Do you need dumps of windows only?
Only on Linux when switching via MControlCenter.
I updated my UEFI to see if it fixed anything, but it didnt. Anyways heres silent.
00000000 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000020 00 00 00 00 00 00 00 00 0a 05 00 00 00 04 58 4b |..............XK| 00000030 03 03 00 0d 01 00 50 81 40 10 60 3b a0 01 80 00 |......P.@.`;....| 00000040 20 08 1f 00 e7 0a 18 06 4e 03 19 3d 2b 0c f8 43 | .......N..=+..C| 00000050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000060 00 00 00 00 00 00 00 00 40 00 32 38 3e 46 4b 50 |[email protected]>FKP| 00000070 64 43 00 28 31 3a 43 4c 55 00 0a 07 07 09 09 09 |dC.(1:CLU.......| 00000080 41 00 37 3c 41 46 4b 50 62 40 00 30 38 40 48 4f |A.7<[email protected]@HO| 00000090 56 00 0a 07 06 06 06 06 02 16 7d 02 16 62 53 00 |V.........}..bS.| 000000a0 31 37 4b 33 45 4d 53 31 2e 31 31 32 30 38 30 35 |17K3EMS1.1120805| 000000b0 32 30 32 31 31 36 3a 31 37 3a 33 39 00 00 00 28 |202116:17:39...(| 000000c0 00 00 07 3d 00 00 00 00 00 b7 00 af 00 00 00 00 |...=............| 000000d0 00 00 c1 83 1d 00 05 bc 00 01 00 00 00 00 00 00 |................| 000000e0 e2 00 00 e7 0a 00 00 c1 00 01 00 00 00 c1 00 00 |................| 000000f0 00 00 70 00 41 3e 00 00 64 00 07 c0 00 04 03 00 |..p.A>..d.......| 00000100
Balanced
00000000 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000020 00 00 00 00 00 00 00 00 0a 05 00 00 00 04 58 4b |..............XK| 00000030 03 03 00 0d 01 00 50 81 40 10 60 3b a0 01 80 00 |......P.@.`;....| 00000040 20 08 21 00 e7 0a 17 06 80 03 2e 3d 28 0c f8 43 | .!........=(..C| 00000050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| 00000060 00 00 00 00 00 00 00 00 40 00 32 38 3e 46 4b 50 |[email protected]>FKP| 00000070 64 43 00 28 31 3a 43 4c 55 00 0a 07 07 09 09 09 |dC.(1:CLU.......| 00000080 41 00 37 3c 41 46 4b 50 62 40 00 30 38 40 48 4f |A.7<[email protected]@HO| 00000090 56 00 0a 07 06 06 06 06 02 16 7d 02 16 62 53 00 |V.........}..bS.| 000000a0 31 37 4b 33 45 4d 53 31 2e 31 31 32 30 38 30 35 |17K3EMS1.1120805| 000000b0 32 30 32 31 31 36 3a 31 37 3a 33 39 00 00 00 28 |202116:17:39...(| 000000c0 00 00 07 3d 00 00 00 00 00 b7 00 a4 00 00 00 00 |...=............| 000000d0 00 00 c1 83 0d 00 05 bc 00 01 00 00 00 00 00 00 |................| 000000e0 e2 00 00 e7 0a 00 00 c1 00 01 00 00 00 c1 00 00 |................| 000000f0 00 00 70 00 41 3e 00 00 64 00 07 c0 00 04 03 00 |..p.A>..d.......| 00000100
