BugReport: Total Inflow Not Correctly Read from .out File
Hi
I noticed a discrepancy between the total-inflow values delivered by SWMM/PCSWMM and the ones read out via swmmr.
To reproduce the error I first ran the following simple script to manually read out the total inflow at node "370595" (re-naming did not solve the issue):
files <- run_swmm("model.inp")
flows <- read_out(file = files$out, iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow
Afterwards I ran the simulation in PCSWMM and compared the values to the ones given by swmmr. Here just a small excerpt of observed values:
Result SWMMR: 2019-06-08 03:00:00 6.977733e-04 2019-06-08 03:01:00 8.808837e-04 2019-06-08 03:02:00 3.345804e-05 2019-06-08 03:03:00 0.000000e+00 2019-06-08 03:04:00 0.000000e+00 2019-06-08 03:05:00 8.340256e-06 2019-06-08 03:06:00 6.539986e-04 2019-06-08 03:07:00 2.752108e-04 2019-06-08 03:08:00 0.000000e+00 2019-06-08 03:09:00 2.639531e-02 2019-06-08 03:10:00 2.516844e-03
Result PCSWMM: 6/8/2019 3:00:00 AM 61.44199 6/8/2019 3:01:00 AM 59.80343 6/8/2019 3:02:00 AM 61.03724 6/8/2019 3:03:00 AM 59.52657 6/8/2019 3:04:00 AM 57.62031 6/8/2019 3:05:00 AM 58.26693 6/8/2019 3:06:00 AM 57.04595 6/8/2019 3:07:00 AM 55.9104 6/8/2019 3:08:00 AM 55.7011 6/8/2019 3:09:00 AM 55.64355 6/8/2019 3:10:00 AM 53.72362
Attached you'll find the model where the issue occurs (to upload, I had to add the ".txt" extension...), when trying to read out the inflow at node "370595".
Some additional information about my environment:
OS: Windows 10 Education R Version: 4.02 R Studio: 1.3.959 swmmr Version: 0.9.1 swmm engine: SWMM5.1.013 PCSWMM Version: 7.2.2785 (64-bit)
Do you need additional information?
Could this be an issue in the library, or does it stem from incorrect use?
Best regards Robert model.inp.txt
I get the the same results like PCSWMM...
library(swmmr)
model <- "/Users/dominik/Downloads/model.inp"
files <- run_swmm(inp = model)
#> Argumente 'minimized' und 'invisible' sind nur für Windows
flows <- read_out(file = files$out, iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow
head(flows["2019-06-08 03:00:00/"])
#> Warning: timezone of object (GMT) is different than current timezone ().
#> [,1]
#> 2019-06-08 03:00:00 61.44199
#> 2019-06-08 03:01:00 59.80343
#> 2019-06-08 03:02:00 61.03724
#> 2019-06-08 03:03:00 59.52657
#> 2019-06-08 03:04:00 57.62031
#> 2019-06-08 03:05:00 58.26693
Created on 2020-07-08 by the reprex package (v0.3.0)
Is there any additional information I can provide to help reproduce the error?
Could you test SWMM 5.1.014? (which would be highly surprising, if the error would still occur...)
The error unfortunately still occurs with SWMM 5.1.014.
I use a 64bit R version:
platform x86_64-w64-mingw32
arch x86_64
os mingw32
system x86_64, mingw32
status
major 4
minor 0.2
year 2020
month 06
day 22
svn rev 78730
language R
version.string R version 4.0.2 (2020-06-22)
I attached my out-file as well (again, added the .txt ending), maybe that helps. This file was generated by swmmr, using SWMM 5.1.014 for the model attached in the first post.
Your .out file seems to be ok?! Could you eventually restart R and your system?
library(swmmr)
flows <- read_out(file = "/Users/dominik/Downloads/model.out.txt", iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow
head(flows["2019-06-08 03:00:00/"])
#> Warning: timezone of object (GMT) is different than current timezone ().
#> [,1]
#> 2019-06-08 03:00:00 61.44199
#> 2019-06-08 03:01:00 59.80343
#> 2019-06-08 03:02:00 61.03724
#> 2019-06-08 03:03:00 59.52657
#> 2019-06-08 03:04:00 57.62031
#> 2019-06-08 03:05:00 58.26693
Created on 2020-07-09 by the reprex package (v0.3.0)
Hi I also have the same problem. I downloaded the out file and have used your code: flows <- read_out(file = "model.out.txt", iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow and I get the as output: head(flows["2019-06-08 03:00:00/"]) [,1] 2019-06-08 03:00:00 6.977733e-04 2019-06-08 03:01:00 8.808837e-04 2019-06-08 03:02:00 3.345804e-05 2019-06-08 03:03:00 0.000000e+00 2019-06-08 03:04:00 0.000000e+00 2019-06-08 03:05:00 8.340256e-06
swmmr from CRAN
Interesting. Are all of your packages updated? I still cannot reproduce the error (now used Mac OS and Win OS (cf. below)).
library(swmmr)
#> Warning: package 'swmmr' was built under R version 3.6.3
flows <- read_out(file = "c:/Users/leutnant/Downloads/model.out.txt", iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow
head(flows["2019-06-08 03:00:00/"])
#> Warning: timezone of object (GMT) is different than current timezone ().
#> [,1]
#> 2019-06-08 03:00:00 61.44199
#> 2019-06-08 03:01:00 59.80343
#> 2019-06-08 03:02:00 61.03724
#> 2019-06-08 03:03:00 59.52657
#> 2019-06-08 03:04:00 57.62031
#> 2019-06-08 03:05:00 58.26693
Created on 2020-07-09 by the reprex package (v0.3.0)
Session info
devtools::session_info()
#> - Session info ---------------------------------------------------------------
#> setting value
#> version R version 3.6.1 (2019-07-05)
#> os Windows Server x64
#> system x86_64, mingw32
#> ui RTerm
#> language (EN)
#> collate German_Germany.1252
#> ctype German_Germany.1252
#> tz Europe/Berlin
#> date 2020-07-09
#>
#> - Packages -------------------------------------------------------------------
#> package * version date lib source
#> assertthat 0.2.1 2019-03-21 [1] CRAN (R 3.6.1)
#> backports 1.1.8 2020-06-17 [1] CRAN (R 3.6.1)
#> callr 3.4.3 2020-03-28 [1] CRAN (R 3.6.3)
#> cli 2.0.2 2020-02-28 [1] CRAN (R 3.6.3)
#> crayon 1.3.4 2017-09-16 [1] CRAN (R 3.6.1)
#> desc 1.2.0 2018-05-01 [1] CRAN (R 3.6.2)
#> devtools 2.3.0 2020-04-10 [1] CRAN (R 3.6.3)
#> digest 0.6.25 2020-02-23 [1] CRAN (R 3.6.3)
#> ellipsis 0.3.1 2020-05-15 [1] CRAN (R 3.6.3)
#> evaluate 0.14 2019-05-28 [1] CRAN (R 3.6.1)
#> fansi 0.4.1 2020-01-08 [1] CRAN (R 3.6.2)
#> fs 1.4.2 2020-06-30 [1] CRAN (R 3.6.3)
#> glue 1.4.1 2020-05-13 [1] CRAN (R 3.6.3)
#> highr 0.8 2019-03-20 [1] CRAN (R 3.6.1)
#> htmltools 0.5.0 2020-06-16 [1] CRAN (R 3.6.3)
#> knitr 1.29 2020-06-23 [1] CRAN (R 3.6.3)
#> lattice 0.20-38 2018-11-04 [2] CRAN (R 3.6.1)
#> magrittr 1.5 2014-11-22 [1] CRAN (R 3.6.1)
#> memoise 1.1.0 2017-04-21 [1] CRAN (R 3.6.2)
#> pkgbuild 1.0.8 2020-05-07 [1] CRAN (R 3.6.3)
#> pkgload 1.1.0 2020-05-29 [1] CRAN (R 3.6.3)
#> prettyunits 1.1.1 2020-01-24 [1] CRAN (R 3.6.2)
#> processx 3.4.3 2020-07-05 [1] CRAN (R 3.6.3)
#> ps 1.3.3 2020-05-08 [1] CRAN (R 3.6.3)
#> purrr 0.3.4 2020-04-17 [1] CRAN (R 3.6.3)
#> R6 2.4.1 2019-11-12 [1] CRAN (R 3.6.2)
#> Rcpp 1.0.5 2020-07-06 [1] CRAN (R 3.6.1)
#> remotes 2.1.1 2020-02-15 [1] CRAN (R 3.6.3)
#> rlang 0.4.6 2020-05-02 [1] CRAN (R 3.6.3)
#> rmarkdown 2.3 2020-06-18 [1] CRAN (R 3.6.3)
#> rprojroot 1.3-2 2018-01-03 [1] CRAN (R 3.6.2)
#> sessioninfo 1.1.1 2018-11-05 [1] CRAN (R 3.6.2)
#> stringi 1.4.6 2020-02-17 [1] CRAN (R 3.6.2)
#> stringr 1.4.0 2019-02-10 [1] CRAN (R 3.6.1)
#> swmmr * 0.9.1 2020-03-02 [1] CRAN (R 3.6.3)
#> testthat 2.3.2 2020-03-02 [1] CRAN (R 3.6.3)
#> usethis 1.6.1 2020-04-29 [1] CRAN (R 3.6.3)
#> withr 2.2.0 2020-04-20 [1] CRAN (R 3.6.3)
#> xfun 0.15 2020-06-21 [1] CRAN (R 3.6.3)
#> xts 0.12-0 2020-01-19 [1] CRAN (R 3.6.2)
#> yaml 2.2.1 2020-02-01 [1] CRAN (R 3.6.1)
#> zoo 1.8-8 2020-05-02 [1] CRAN (R 3.6.3)
#>
#> [1] C:/Users/leutnant/library
#> [2] C:/Program Files/R/R-3.6.1/library
That is my session info.
-
Session info -------------------------------------------------------------------------------------------------------- setting value
version R version 4.0.2 (2020-06-22) os Windows 10 x64
system x86_64, mingw32
ui RStudio
language (EN)
collate English_United States.1252
ctype English_United States.1252
tz Europe/Berlin
date 2020-07-09 -
Packages ------------------------------------------------------------------------------------------------------------ package * version date lib source
assertthat 0.2.1 2019-03-21 [1] CRAN (R 4.0.2) backports 1.1.8 2020-06-17 [1] CRAN (R 4.0.2) callr 3.4.3 2020-03-28 [1] CRAN (R 4.0.2) cli 2.0.2 2020-02-28 [1] CRAN (R 4.0.2) crayon 1.3.4 2017-09-16 [1] CRAN (R 4.0.2) desc 1.2.0 2018-05-01 [1] CRAN (R 4.0.2) devtools * 2.3.0 2020-04-10 [1] CRAN (R 4.0.2) digest 0.6.25 2020-02-23 [1] CRAN (R 4.0.2) ellipsis 0.3.1 2020-05-15 [1] CRAN (R 4.0.2) fansi 0.4.1 2020-01-08 [1] CRAN (R 4.0.2) fs 1.4.2 2020-06-30 [1] CRAN (R 4.0.2) glue 1.4.1 2020-05-13 [1] CRAN (R 4.0.2) lattice 0.20-41 2020-04-02 [2] CRAN (R 4.0.2) magrittr 1.5 2014-11-22 [1] CRAN (R 4.0.2) memoise 1.1.0 2017-04-21 [1] CRAN (R 4.0.2) pkgbuild 1.0.8 2020-05-07 [1] CRAN (R 4.0.2) pkgload 1.1.0 2020-05-29 [1] CRAN (R 4.0.2) prettyunits 1.1.1 2020-01-24 [1] CRAN (R 4.0.2) processx 3.4.3 2020-07-05 [1] CRAN (R 4.0.2) ps 1.3.3 2020-05-08 [1] CRAN (R 4.0.2) purrr 0.3.4 2020-04-17 [1] CRAN (R 4.0.2) R6 2.4.1 2019-11-12 [1] CRAN (R 4.0.2) Rcpp 1.0.5 2020-07-06 [1] CRAN (R 4.0.2) remotes 2.1.1 2020-02-15 [1] CRAN (R 4.0.2) rlang 0.4.6 2020-05-02 [1] CRAN (R 4.0.2) rprojroot 1.3-2 2018-01-03 [1] CRAN (R 4.0.2) rstudioapi 0.11 2020-02-07 [1] CRAN (R 4.0.2) sessioninfo 1.1.1 2018-11-05 [1] CRAN (R 4.0.2) swmmr * 0.9.1 2020-03-02 [1] CRAN (R 4.0.2) testthat 2.3.2 2020-03-02 [1] CRAN (R 4.0.2) usethis * 1.6.1 2020-04-29 [1] CRAN (R 4.0.2) withr 2.2.0 2020-04-20 [1] CRAN (R 4.0.2) xts 0.12-0 2020-01-19 [1] CRAN (R 4.0.2) zoo 1.8-8 2020-05-02 [1] CRAN (R 4.0.2)
Re-booting and re-installing the library via CRAN did not help.
I also re-installed the library from github via remotes::install_github("dleutnant/swmmr") (+reboot) without effect.
BUT
after seeing your session info, I reverted my R version:
version R version 3.6.1 (2019-07-05)
and now it works fine:
...
print(head(flows["2019-06-08 03:00:00/"]))
2019-06-08 03:00:00 61.44199
2019-06-08 03:01:00 59.80343
2019-06-08 03:02:00 61.03724
so the error seems to be connected to the new R version @FranzTG and I were using (4.02).
Confirmed. Using R 4.0.2 on a Win OS machine I get the same incorrect results. With Mac OS and R 4.0.2. the results are OK...
The issue is related to the new rtools40 toolchain. Following the steps given here https://cran.r-project.org/bin/windows/Rtools/ and finally executing install.packages("swmmr", type = "source") I was able to solve this issue.
library(swmmr)
flows <- read_out(file = "c:/Users/leutnant/Downloads/model.out.txt", iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow
head(flows["2019-06-08 03:00:00/"])
#> Warning: timezone of object (GMT) is different than current timezone ().
#> [,1]
#> 2019-06-08 03:00:00 61.44199
#> 2019-06-08 03:01:00 59.80343
#> 2019-06-08 03:02:00 61.03724
#> 2019-06-08 03:03:00 59.52657
#> 2019-06-08 03:04:00 57.62031
#> 2019-06-08 03:05:00 58.26693
Created on 2020-07-09 by the reprex package (v0.3.0)
Session info
devtools::session_info()
#> - Session info ---------------------------------------------------------------
#> setting value
#> version R version 4.0.2 (2020-06-22)
#> os Windows Server x64
#> system x86_64, mingw32
#> ui RTerm
#> language (EN)
#> collate German_Germany.1252
#> ctype German_Germany.1252
#> tz Europe/Berlin
#> date 2020-07-09
#>
#> - Packages -------------------------------------------------------------------
#> package * version date lib source
#> assertthat 0.2.1 2019-03-21 [1] CRAN (R 4.0.2)
#> backports 1.1.7 2020-05-13 [1] CRAN (R 4.0.0)
#> callr 3.4.3 2020-03-28 [1] CRAN (R 4.0.2)
#> cli 2.0.2 2020-02-28 [1] CRAN (R 4.0.2)
#> crayon 1.3.4 2017-09-16 [1] CRAN (R 4.0.2)
#> desc 1.2.0 2018-05-01 [1] CRAN (R 4.0.2)
#> devtools 2.3.0 2020-04-10 [1] CRAN (R 4.0.2)
#> digest 0.6.25 2020-02-23 [1] CRAN (R 4.0.2)
#> ellipsis 0.3.1 2020-05-15 [1] CRAN (R 4.0.2)
#> evaluate 0.14 2019-05-28 [1] CRAN (R 4.0.2)
#> fansi 0.4.1 2020-01-08 [1] CRAN (R 4.0.2)
#> fs 1.4.2 2020-06-30 [1] CRAN (R 4.0.2)
#> glue 1.4.1 2020-05-13 [1] CRAN (R 4.0.2)
#> highr 0.8 2019-03-20 [1] CRAN (R 4.0.2)
#> htmltools 0.5.0 2020-06-16 [1] CRAN (R 4.0.2)
#> knitr 1.29 2020-06-23 [1] CRAN (R 4.0.2)
#> lattice 0.20-41 2020-04-02 [2] CRAN (R 4.0.2)
#> magrittr 1.5 2014-11-22 [1] CRAN (R 4.0.2)
#> memoise 1.1.0 2017-04-21 [1] CRAN (R 4.0.2)
#> pkgbuild 1.0.8 2020-05-07 [1] CRAN (R 4.0.2)
#> pkgload 1.1.0 2020-05-29 [1] CRAN (R 4.0.2)
#> prettyunits 1.1.1 2020-01-24 [1] CRAN (R 4.0.2)
#> processx 3.4.3 2020-07-05 [1] CRAN (R 4.0.2)
#> ps 1.3.3 2020-05-08 [1] CRAN (R 4.0.2)
#> purrr 0.3.4 2020-04-17 [1] CRAN (R 4.0.2)
#> R6 2.4.1 2019-11-12 [1] CRAN (R 4.0.2)
#> Rcpp 1.0.5 2020-07-06 [1] CRAN (R 4.0.2)
#> remotes 2.1.1 2020-02-15 [1] CRAN (R 4.0.2)
#> rlang 0.4.6 2020-05-02 [1] CRAN (R 4.0.2)
#> rmarkdown 2.3 2020-06-18 [1] CRAN (R 4.0.2)
#> rprojroot 1.3-2 2018-01-03 [1] CRAN (R 4.0.2)
#> sessioninfo 1.1.1 2018-11-05 [1] CRAN (R 4.0.2)
#> stringi 1.4.6 2020-02-17 [1] CRAN (R 4.0.0)
#> stringr 1.4.0 2019-02-10 [1] CRAN (R 4.0.2)
#> swmmr * 0.9.1 2020-03-02 [1] CRAN (R 4.0.2)
#> testthat 2.3.2 2020-03-02 [1] CRAN (R 4.0.2)
#> usethis 1.6.1 2020-04-29 [1] CRAN (R 4.0.2)
#> withr 2.2.0 2020-04-20 [1] CRAN (R 4.0.2)
#> xfun 0.15 2020-06-21 [1] CRAN (R 4.0.2)
#> xts 0.12-0 2020-01-19 [1] CRAN (R 4.0.2)
#> yaml 2.2.1 2020-02-01 [1] CRAN (R 4.0.0)
#> zoo 1.8-8 2020-05-02 [1] CRAN (R 4.0.2)
#>
#> [1] C:/Users/leutnant/library
#> [2] C:/Program Files/R/R-4.0.2/library
Unfortunately these steps did not solve the issue for me, but for now I can live with the workaround of the earlier version.
Thanks in any case for the help in narrowing down the problem!
Same here. The issue persists with 4.02. Thanks still for the quick response and the workaround.
Did you put Rtools on the PATH variable as required (i.e. writeLines('PATH="${RTOOLS40_HOME}\\usr\\bin;${PATH}"', con = "~/.Renviron") and check via Sys.which("make")?
Restart was done. > install.packages("swmmr", type = "source") Installing package into ‘C:/Users/franzt/Documents/R/win-library/4.0’ (as ‘lib’ is unspecified) trying URL 'https://cran.rstudio.com/src/contrib/swmmr_0.9.1.tar.gz' Content type 'application/x-gzip' length 212828 bytes (207 KB) downloaded 207 KB
- installing source package 'swmmr' ... ** package 'swmmr' successfully unpacked and MD5 sums checked ** using staged installation ** libs
*** arch - i386 "C:/rtools40/mingw32/bin/"g++ -std=gnu++11 -I"C:/PROGRA~1/R/R-4.0.2/include" -DNDEBUG -I'C:/Users/franzt/Documents/R/win-library/4.0/Rcpp/include' -O2 -Wall -mfpmath=sse -msse2 -mstackrealign -c RcppExports.cpp -o RcppExports.o "C:/rtools40/mingw32/bin/"g++ -std=gnu++11 -I"C:/PROGRA~1/R/R-4.0.2/include" -DNDEBUG -I'C:/Users/franzt/Documents/R/win-library/4.0/Rcpp/include' -O2 -Wall -mfpmath=sse -msse2 -mstackrealign -c swmm5_iface.cpp -o swmm5_iface.o swmm5_iface.cpp: In function 'Rcpp::List OpenSwmmOutFile(const char*)': swmm5_iface.cpp:43:10: warning: variable 'size' set but not used [-Wunused-but-set-variable] size_t size; ^~~~ swmm5_iface.cpp: In function 'Rcpp::NumericVector GetSwmmResult(int, int, int)': swmm5_iface.cpp:176:10: warning: variable 'size' set but not used [-Wunused-but-set-variable] size_t size; ^~~~ C:/rtools40/mingw32/bin/g++ -std=gnu++11 -shared -s -static-libgcc -o swmmr.dll tmp.def RcppExports.o swmm5_iface.o -LC:/PROGRA~1/R/R-4.0.2/bin/i386 -lR installing to C:/Users/franzt/Documents/R/win-library/4.0/00LOCK-swmmr/00new/swmmr/libs/i386
*** arch - x64
"C:/rtools40/mingw64/bin/"g++ -std=gnu++11 -I"C:/PROGRA~1/R/R-4.0.2/include" -DNDEBUG -I'C:/Users/franzt/Documents/R/win-library/4.0/Rcpp/include' -O2 -Wall -mfpmath=sse -msse2 -mstackrealign -c RcppExports.cpp -o RcppExports.o
"C:/rtools40/mingw64/bin/"g++ -std=gnu++11 -I"C:/PROGRA~1/R/R-4.0.2/include" -DNDEBUG -I'C:/Users/franzt/Documents/R/win-library/4.0/Rcpp/include' -O2 -Wall -mfpmath=sse -msse2 -mstackrealign -c swmm5_iface.cpp -o swmm5_iface.o
swmm5_iface.cpp: In function 'Rcpp::List OpenSwmmOutFile(const char*)':
swmm5_iface.cpp:43:10: warning: variable 'size' set but not used [-Wunused-but-set-variable]
size_t size;
^~~~
swmm5_iface.cpp: In function 'Rcpp::NumericVector GetSwmmResult(int, int, int)':
swmm5_iface.cpp:176:10: warning: variable 'size' set but not used [-Wunused-but-set-variable]
size_t size;
^~~~
C:/rtools40/mingw64/bin/g++ -std=gnu++11 -shared -s -static-libgcc -o swmmr.dll tmp.def RcppExports.o swmm5_iface.o -LC:/PROGRA~1/R/R-4.0.2/bin/x64 -lR
installing to C:/Users/franzt/Documents/R/win-library/4.0/00LOCK-swmmr/00new/swmmr/libs/x64
** R
** inst
** byte-compile and prepare package for lazy loading
** help
*** installing help indices
converting help for package 'swmmr'
finding HTML links ... done
add_column_if_missing html
add_columns_if_missing html
assign_parameters html
assign_parameters.conduits html
assign_parameters.coordinates html
assign_parameters.coverages html
assign_parameters.curves html
assign_parameters.default html
assign_parameters.evaporation html
assign_parameters.infiltration html
assign_parameters.junction html
assign_parameters.options html
assign_parameters.outfalls html
assign_parameters.polygons html
assign_parameters.pumps html
assign_parameters.report html
assign_parameters.storage html
assign_parameters.subareas html
assign_parameters.subcatchments html
assign_parameters.weirs html
assign_parameters.xsections html
check_package_and_class html
check_pkg_avail html
compare_to_dictionary html
convert_to_sf html
create_sf_of_linestring html
create_sf_of_pt html
curves_to_txt html
dot-get_exec_on_linux_or_mac html
dot-get_exec_on_windows html
dot-get_iIndex html
dot-get_iType html
dot-get_os html
dot-get_vIndex html
get_column_defaults html
get_out_content html
get_out_version html
has_incomplete_features html
inp_to_files html
options_to_txt html
parse_section html
parse_section.analysis_options html
parse_section.aquifers html
parse_section.backdrop html
parse_section.buildup html
parse_section.conduit_surcharge_summary
html
parse_section.conduits html
parse_section.controls html
parse_section.coordinates html
parse_section.coverages html
parse_section.cross_section_summary html
parse_section.curves html
parse_section.default html
parse_section.dividers html
parse_section.dwf html
parse_section.element_count html
parse_section.evaporation html
parse_section.events html
parse_section.files html
parse_section.flow_classification_summary
html
parse_section.flow_routing_continuity html
parse_section.groundwater html
parse_section.groundwater_continuity html
parse_section.groundwater_summary html
parse_section.highest_continuity_errors
html
parse_section.highest_flow_instability_indexes
html
parse_section.hydrographs html
parse_section.iiflows html
parse_section.infiltration html
parse_section.inflows html
parse_section.junctions html
parse_section.labels html
parse_section.landuse_summary html
parse_section.landuses html
parse_section.lid_control_summary html
parse_section.lid_controls html
parse_section.lid_performance_summary html
parse_section.lid_usage html
parse_section.link_flow_summary html
parse_section.link_pollutant_load_summary
html
parse_section.link_summary html
parse_section.loadings html
parse_section.losses html
parse_section.map html
parse_section.node_depth_summary html
parse_section.node_flooding_summary html
parse_section.node_inflow_summary html
parse_section.node_summary html
parse_section.node_surcharge_summary html
parse_section.options html
parse_section.orifices html
parse_section.outfall_loading_summary html
parse_section.outfalls html
parse_section.outlets html
parse_section.patterns html
parse_section.pollutant_summary html
parse_section.pollutants html
parse_section.polygons html
parse_section.profiles html
parse_section.pumping_summary html
parse_section.pumps html
parse_section.quality_routing_continuity
html
parse_section.raingage_summary html
parse_section.raingages html
parse_section.report html
parse_section.routing_time_step_summary
html
parse_section.rpt_error html
parse_section.runoff_quality_continuity
html
parse_section.runoff_quantity_continuity
html
parse_section.snowpacks html
parse_section.storage html
parse_section.storage_volume_summary html
parse_section.subareas html
parse_section.subcatchment_runoff_summary
html
parse_section.subcatchment_summary html
parse_section.subcatchment_washoff_summary
html
parse_section.subcatchments html
parse_section.symbols html
parse_section.tags html
parse_section.temperature html
parse_section.time_step_critical_elements
html
parse_section.timeseries html
parse_section.title html
parse_section.treatment html
parse_section.vertices html
parse_section.washoff html
parse_section.weirs html
parse_section.xsections html
plot html
Rd warning: C:/Users/franzt/AppData/Local/Temp/RtmpOQWp1J/R.INSTALL188c708325c/swmmr/man/plot.Rd:16: file link 'inp_to_sf' in package 'swmmr' does not exist and so has been treated as a topic
read_inp html
read_lid_rpt html
Rd warning: C:/Users/franzt/AppData/Local/Temp/RtmpOQWp1J/R.INSTALL188c708325c/swmmr/man/read_lid_rpt.Rd:15: file link 'read_table2' in package 'readr' does not exist and so has been treated as a topic
read_out html
read_rpt html
run_swmm html
section_to_tbl html
sections_to_shp html
separate_into html
shp_to_inp html
skip_head html
summary html
swmmr html
timeseries_to_dat html
write_inp html
*** copying figures
** building package indices
** installing vignettes
** testing if installed package can be loaded from temporary location
*** arch - i386
*** arch - x64
** testing if installed package can be loaded from final location
*** arch - i386
*** arch - x64
** testing if installed package keeps a record of temporary installation path
- DONE (swmmr)
The downloaded source packages are in ‘C:\Users\franzt\AppData\Local\Temp\Rtmpa45xW9\downloaded_packages’
install.packages("swmmr") Installing package into ‘C:/Users/franzt/Documents/R/win-library/4.0’ (as ‘lib’ is unspecified) trying URL 'https://cran.rstudio.com/bin/windows/contrib/4.0/swmmr_0.9.1.zip' Content type 'application/zip' length 1177497 bytes (1.1 MB) downloaded 1.1 MB
package ‘swmmr’ successfully unpacked and MD5 sums checked
The downloaded binary packages are in C:\Users\franzt\AppData\Local\Temp\RtmpUJaK0m\downloaded_packages
flows <- read_out(file = "/Users/franzt/Desktop/Model_test/model.out.txt", iType = 1, object_name = "370595", vIndex = 4)[["370595"]]$total_inflow
head(flows["2019-06-08 03:00:00/"]) [,1] 2019-06-08 03:00:00 6.977733e-04 2019-06-08 03:01:00 8.808837e-04 2019-06-08 03:02:00 3.345804e-05 2019-06-08 03:03:00 0.000000e+00 2019-06-08 03:04:00 0.000000e+00 2019-06-08 03:05:00 8.340256e-06 Warning message: timezone of object (GMT) is different than current timezone ().
@FranzTG @robermei Any update about how you solve this problem? I have the same problem since I have switched to use R 4.0.0 or 4.0.2.
I followed the guideline @dleutnant explained : """ The issue is related to the new rtools40 toolchain. Following the steps given here https://cran.r-project.org/bin/windows/Rtools/ and finally executing install.packages("swmmr", type = "source") I was able to solve this issue. """
But it did not solve my problem. The read_out() function is not working properly.

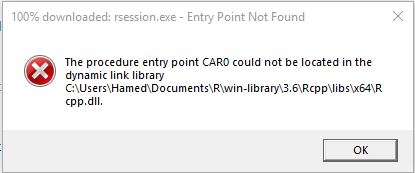

However, I tried to use the older version of R (as recommended in this issue) in my Rstudio (R 3.6.0), but whenever I wanna run my model, I get this error:
Do I need to completely remove R 4.0.0 to be able to use R 3.6.0?
In another attempt, I am using AWS (Amazon web services) to run my R code which is under Linux: """" platform x86_64-pc-linux-gnu arch x86_64 os linux-gnu system x86_64, linux-gnu version.string R version 3.6.0 (2019-04-26) """
As you can see, in AWS the R version is 3.6.0, but the problem of using the read_out() function is still there. @dleutnant Do you know any other ways to solve this problem in all R versions in both Windows and Linux?
If I want to make it short:
- in my local computer (windows): previously I could use read_out() function properly without any problem (R version 3.6.0), but when I updated my R (4.0.0), It does not work.
- in AWS (Linux based): the R version is 3.6.0 and this function does not work properly and it gives me wrong results.
So, is the problem from the R version? or operation system (Windows or Linux)? or is it from both? In these cases, how can I solve this? is there any sustainable way to solve it? My first priority is to solve it in AWS. So any suggestion on how to solve it in AWS since it is using R 3.6.0?
@HamedGhodsi90 No update from my side. The workaround with the older R version works for me. The procedure with the new one does not. Not sure why, as I also don't get any error.
Hi @HamedGhodsi90
Also no update from my side - I'm using the older version and experience no problems there. When trying the new version, I start getting the same problems.
I'm back from holidays and about to work on this issue. Any updates or insights from you @robermei @FranzTG before I dive in to it?
Hi @dleutnant no updates from my side - because using the old version is ok for me, I did not look further into the issue.
Hi @dleutnant. I am glad you are back. I have serious problem here. I turned to use the old version of R (3.6.1) in my local computer (windows), and everything is fine. The "read_out()" function works properly. But, when I use AWS (Linux system) to run my code, even though it uses R version 3.6.0, but there is a problem in "read_out()" function. The system I use in AWS is: """ platform x86_64-pc-linux-gnu arch x86_64 os linux-gnu system x86_64, linux-gnu version.string R version 3.6.0 (2019-04-26) """
Do you have any idea how to solve this problem in Linux? The R version (3.6) in windows and Linux is the same, but in windows, it works and in Linux it does not. Please help me to solve this problem. I really need to solve it. Thank you very much.
