Danilo Bargen

I'm quite busy at the moment, so not in the next weeks. Maybe in summer, but don't wait for me on this issue :)

Another one would be `nRESET` / `!RESET` / `~RESET`.

Yep. I think right now the issue is that "bar above words" is not supported out-of-the-box by Qt's text label component, so we'd probably need to create a custom widget...

Hm, good idea, there's "U+0305 Combining Overline". However, it seems to be a bit buggy depending on the renderer. Text: `R̅E̅S̅E̅T` Terminal (alacritty):  Firefox Textarea:  Firefox URL bar:...

I took a quick look at implementation options. When rendering a text element in Qt, an overline can easily be added with `setOverline(true)`, but the thing is that it only...

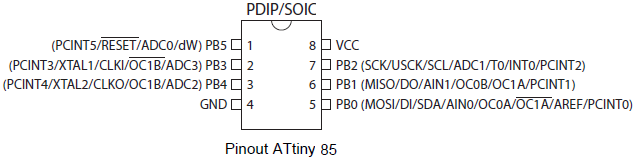

It is being used sometimes when pins have alternate functions. E.g. on the ATtiny85:

@Ben01880 we need a bit more detail than that. Which dialog boxes are you talking about?

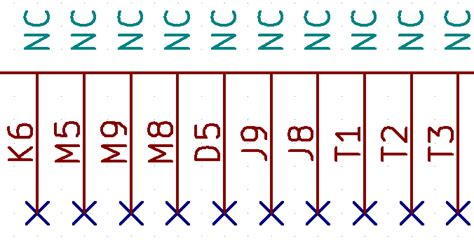

Kicad's variant:

> The only option is to close the dialog (and thus loose the metadata), create the symbol, and re-open the dialog again afterwards. Yep, happened to me very often. >...

Oh, this looks really cool and intuitive for some use cases (like the one you're showing)! It would be good if the construction lines would have a different look than...
