Nikon Z 9 support (lossless only)
Addresses https://github.com/darktable-org/darktable/issues/10889 and https://github.com/darktable-org/darktable/issues/11067
@LebedevRI This is a stub only, I have not verified the CFA pattern nor the crop.
There is also no support (nor detection & exception throwing!) added for the new "High Efficiency" codec.
Codecov Report
Merging #347 (47713f8) into develop (f4b9a08) will increase coverage by
0.02%. The diff coverage isn/a.
:exclamation: Current head 47713f8 differs from pull request most recent head 2b71bf0. Consider uploading reports for the commit 2b71bf0 to get more accurate results
@@ Coverage Diff @@
## develop #347 +/- ##
===========================================
+ Coverage 60.45% 60.47% +0.02%
===========================================
Files 207 207
Lines 12629 12628 -1
Branches 1762 1761 -1
===========================================
+ Hits 7635 7637 +2
+ Misses 4862 4859 -3
Partials 132 132
| Flag | Coverage Δ | |
|---|---|---|
| integration | 47.94% <ø> (+0.03%) |
:arrow_up: |
| rpu_u | 47.94% <ø> (+0.03%) |
:arrow_up: |
| unittests | 22.57% <ø> (-0.01%) |
:arrow_down: |
Flags with carried forward coverage won't be shown. Click here to find out more.
| Impacted Files | Coverage Δ | |
|---|---|---|
| src/librawspeed/metadata/ColorFilterArray.cpp | 97.24% <0.00%> (-0.03%) |
:arrow_down: |
| src/librawspeed/tiff/CiffIFD.cpp | 60.29% <0.00%> (ø) |
|
| src/librawspeed/decompressors/HuffmanTableTree.h | 0.00% <0.00%> (ø) |
|
| src/librawspeed/decompressors/VC5Decompressor.cpp | 75.91% <0.00%> (+0.21%) |
:arrow_up: |
| src/librawspeed/decoders/DngDecoder.cpp | 50.90% <0.00%> (+0.22%) |
:arrow_up: |
| src/librawspeed/decoders/NefDecoder.cpp | 20.22% <0.00%> (+0.22%) |
:arrow_up: |
Continue to review full report at Codecov.
Legend - Click here to learn more
Δ = absolute <relative> (impact),ø = not affected,? = missing dataPowered by Codecov. Last update f4b9a08...2b71bf0. Read the comment docs.
![codecov[bot] avatar](https://avatars.githubusercontent.com/in/254?v=4 "Published by a pub.dev verified publisher"){kind=small}
Just a little bit of info I have found re the new HE modes:
They do not have the usual 0x96 NEFLinearizationTable tag in the MakerNote
The fallback 0x8c is junk/unknown, so any further parsing crashes rawspeed

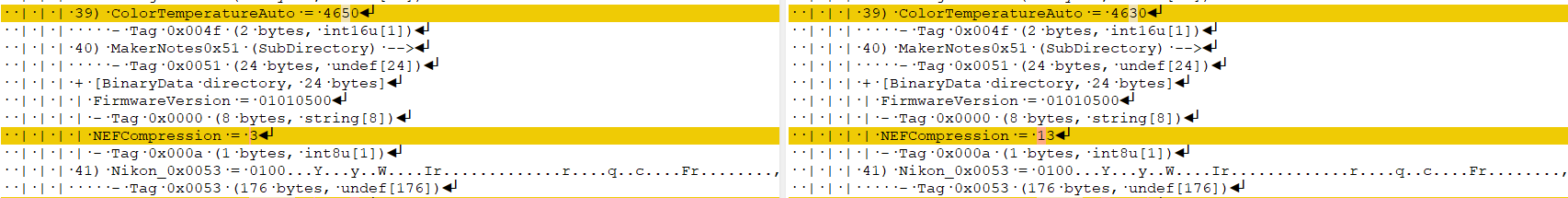

There seems to be a new 0x51 tag instead in Z 9 files, here's the comparison of lossless vs HE exiftool output:
Note that the NEFCompression field of that tag seems to correspond to tag 0x93 (which is absent for Z 9).
There is also a new (unknown) 0xc7d5 NEFInfo IFD in the Z bodies as well.
The RPU lossless sample loads fine in dt master and there are no artifacts at the edges, so this might be good to go w/o the crop (like the Z 7_2).
Loading the HE files luckily does not crash dt (the unsupported message is displayed), so additional checks might not be needed after all.
This seems to be stuck. Can I help at all (I'm a software engineer by profession)? Looking at the Details of the failing check, it seems to be a python module that is no longer available, but a replacement or two are indicated, so it ought to be easy to fix.
Cleared that hurdle, but a new one appears of course, and I have zero interest in addressing it: CodeChecker (external repository) requires older psutil 5.8.0 exactly and a) wheel is not available for Python 3.10 (psutil 5.9.0 is already installed) so it tries to build 5.8.0 from source, and as a consequence b) setuptools can't figure out it needs to use the LLVM linker, it assumes GCC instead.
In any case, this is not blocking this particular PR, as there is no code change.
So this will add ticoraw for upcoming 2.0 firmware, like in Canon and Red? https://www.nikoncafe.com/threads/nikon-z9-raw-file-support.331229/
https://www.newsshooter.com/2022/04/14/nikon-z9-firmware-2-0-upgrade-will-include-8-3k-60p-12-bit-internal-raw-4-1k-60p-in-prores-raw/ https://youtu.be/BC_oyujpuDM
Any updates? I've verified the settings in the XML with my own Z 9, they're fine.
So this will add ticoraw for upcoming 2.0 firmware, like in Canon and Red?
No, this only adds support for the sensor in the Z 9.
I don't know if my remark here is relevant, but I have been using the Z9 with darktable since the beginning of August, and I haven't ever seen any superfluous columns of pixels on the right (or anywhere else for that matter).
On Fri, 18 Nov 2022 at 18:50, Roman Lebedev @.***> wrote:
@.**** commented on this pull request.
In data/cameras.xml https://github.com/darktable-org/rawspeed/pull/347#discussion_r1026775105 :
@@ -4379,6 +4379,24 @@ </ColorMatrix> </ColorMatrices> </Camera>
<ID make="Nikon" model="Z 9">Nikon Z 9</ID><CFA width="2" height="2"><Color x="0" y="0">RED</Color><Color x="1" y="0">GREEN</Color><Color x="0" y="1">GREEN</Color><Color x="1" y="1">BLUE</Color></CFA><Crop x="0" y="0" width="0" height="0"/>I can not tell from existing samples, but it looks like this needs a bit of a crop on the right.
— Reply to this email directly, view it on GitHub https://github.com/darktable-org/rawspeed/pull/347#pullrequestreview-1186623328, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAA6H5ZEOYLO6SHQXH4J55DWI7FWZANCNFSM5PHPMWVA . You are receiving this because you commented.Message ID: @.***>
It's basically off by at most 6-12 pixels, not really noticeable unless you really look.
What does it mean that the nikon_z9 branch was deleted? There is still no official support for Nikon Z9? I've updated my cameras.xml file but my path is /usr/share/darktable/rawspeed/cameras.xml not /usr/share/darktable/rawspeed/data/cameras.xml which seems to be the guidance (data/cameras.xml) for the file.
The Z 9 is supported in the just released darktable 4.2 OOTB, except the HE modes.
