cthing
Linux port?
During my Windows time, I used this regularly as the best screen measurement tool!!!
Are there any plans to make it usable on Linux?
I tried to run it in Wine. It starts, the main window is shown, the magnifying glass works, but the crosshairs (and sometimes the area between them) are simple solid blocks...
Thanks for the feedback. I do not have any immediate plans for a Linux port due to being busy with my day job and other personal projects. I am actually impressed that the old code base runs as well as it does on Wine. Given the highly Window's specific code, it would be a rewrite to support a different OS (e.g. Linux and Mac). I just need to find a way to clone myself :-)
Regards, Baron
On Sat, Apr 4, 2020 at 4:19 PM sphh [email protected] wrote:
During my Windows time, I used this regularly as the best screen measurement tool!!!
Are there any plans to make it usable on Linux?
I tried to run it in Wine. It starts, the main window is shown, the magnifying glass works, but the crosshairs (and sometimes the area between them) are simple solid blocks... [image: Untitled] https://user-images.githubusercontent.com/4856462/78463300-b2980500-76ca-11ea-8a20-4819a1290419.png
— You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub https://github.com/baron1405/meazure/issues/12, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAHRTQ66GFJJKW5WZ6BR6N3RK66BLANCNFSM4L7NCFTA .

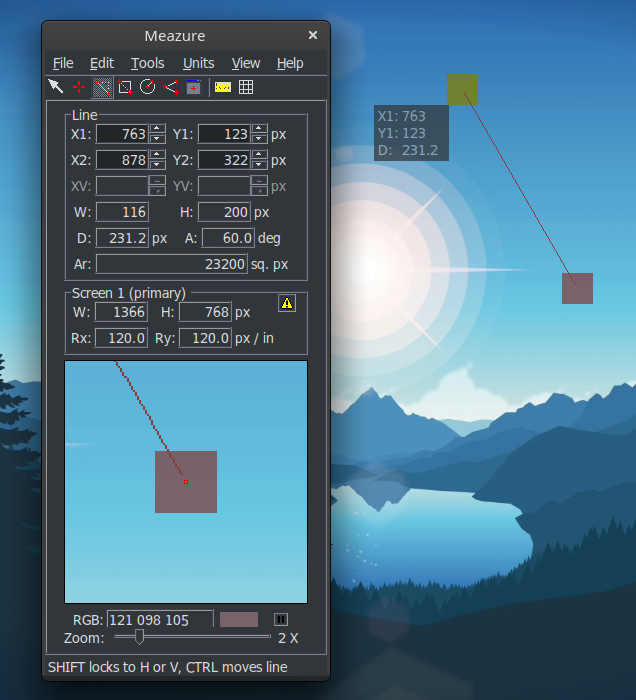

@sphh I also use this tool on Linux. It looks a lot better for me if you can ignore the solid blocks (see screenshot).
To fix your oversized fonts, I think that you might need to play around with your wine config. Open winecfg and play around with the dpi in the graphics tab.
I tried it again on a fresh install of Linux Mint 20, and now the font sizing is perfect without playing around with my wine config! The boxes are still there and sometimes the hairline becomes bold (I mean very bold: half the size of the boxes) and sometimes they don't follow the "blocks" around.
You described the issue perfectly. I can confirm that I also experience that. There's no workaround that I can think of though. If I get a bit of time, I'll ask on the Wine forums and will update this issue accordingly.
2 years later it's is finally usable out of the box using the application bottles selecting the default profile for applications (flatpak)
The only broken feature was the one to measure the widows applications (it only detected itselft and it's own panels which were the ones emulated by wine). But there are not those annoying color squares anymore and the other features looks fine. Although you have to struggle a bit to drag the pointers with the mouse although you get used to it (using the botons in the app to move works excellent though)
I'm using Fedora 36 spin (i3-wm).
I'm happy because I needed that app to start learning a CSS course in which the tutor is asking for picPick application which is another Only Windows application that does similar things (measure, color picker, and I don't know what more), and this application can do what I'm probably doing more and that's measuring and picking colors.
Maybe I should try running that other app in bottles too ;o, anyway, here are some pictures of my experience with bottles, wine and this app named meazure.
Yeap, after trying the other app, I prefer this one. It's simple, very minimal but very complete. Because of having a simpler and minimal GUI it runs better on wine than the other app. There is not glitches, at least I haven't found one. The only functionality not working at all is the "Measure a window" because it only detects I guess the windows programs which are running with wine(caffe7.5 from bottles), in the same bottle. But that's not something I really need (I'm more interested in all the other functions that are already running perfectly fine like native [calculating a position xy, or measuring a angle, or the distance between two points, measuring a rectangle or a circle).
I just dislike that there is not option to unselect all the functions (just to activate it whenever I need the function, I sees like it always has something check and working, the least annoying one is the point so that's what I would being using).
finally, the app would be wonderful if when you click on the color bar next to the RGB textbox, display an app like KColorChooser to get more information about the color like having other formats of that color, an the possibility to make it darker or lighter or maybe just change the color. [in sumary like having and integrated KColorChooser like how other apps do]
It's awesome that with this app the user can create their own measure unit instead of always using pixels!!!!
It's also nice that the user can choose the format for colors (rgb or html #).
This app is awesome.
But it can be awesomer if it have integrated mini apps like KColorChooser, to play with the selected color by playing with the rgb values or even better the Hue, Sat, Val values to make the color a bit lighter or darker.
It would also be nice to have a mini calculator like Qalculator to make conversions manually, and finally a more friendly ruler that works more like Kruler.
As a tiling window linux user I don't have the problem to open those apps individually. I can make a script to run the three at the same time and run the script with drunner by only writing 3 leters of the script and bum!, or just calling them fast individually by writing the first 3 leters of their name through drunner. But for Windows users that is .... a lot of mambo jambo to open each of them. And the same goes for Linux Users who still used so much the OS GUI to run their programs.
By this app be perfectly running though bottles (flatpak), it means that it is easy to install in any Linux OS now, including Steam Deck and even Chrome OS in which a lot of their users still do things the windows way with GUI. So having that kind of miniapp withing the app could be awesome for them.
I have been investigating doing a native port to Linux using Qt and X Window extensions (e.g. XRecord). So far the investigation has uncovered one very troubling find, Wayland is a show stopper for Meazure. Starting with Ubuntu 22.04, the Wayland window system is the default rather than X Window. Wayland is by no means a drop-in replacement for X. It is missing functionality that is core to Meazure. For example, Wayland does not allow reading the pointer location outside your own windows, and it does not provide a mechanism for reading arbitrary portions of the screen. There are no reasonable workarounds at this time. It is possible to run Ubuntu 22.04 using X instead of Wayland but that is a user decision. I expect that running the Windows version in emulation will also encounter problems on Wayland due to these critical limitations. Read "Wayland Breaks Everything!" to get a sense of the scope of breakage caused by Wayland.
