Elasticache resource continuously 'modifying' when securityGroup is specified

[robertgates55]

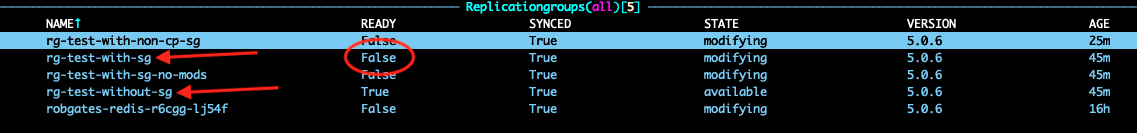

When specifying a security group on a ReplicationGroup (either via spec.forProvider.securityGroupIds or spec.forProvider.securityGroupIdRefs - referencing a crossplane-created sg or a manually created one) the created replicationgroup in AWS is constantly reverting to modifying.

Example:

apiVersion: cache.aws.crossplane.io/v1beta1
kind: ReplicationGroup
metadata:
  name: rg-test-without-sg
  namespace: dev
spec:
  deletionPolicy: Delete
  forProvider:
    applyModificationsImmediately: true
    atRestEncryptionEnabled: true
    authEnabled: false
    automaticFailoverEnabled: true
    cacheNodeType: cache.t3.micro
    cacheParameterGroupName: default.redis5.0
    cacheSubnetGroupName: dev-dev1-cache-subnet-group
    engine: redis
    engineVersion: 5.0.6
    numCacheClusters: 3
    port: 6379
    preferredMaintenanceWindow: tue:02:00-tue:03:00
    region: eu-west-1
    replicationGroupDescription: dev/robgates-redis-no-sg
    snapshotWindow: 03:00-04:00
    tags:
    - key: Owner
      value: crossplane
    transitEncryptionEnabled: false
---
apiVersion: cache.aws.crossplane.io/v1beta1
kind: ReplicationGroup
metadata:
  name: rg-test-with-sg
  namespace: dev
spec:
  deletionPolicy: Delete
  forProvider:
    applyModificationsImmediately: true
    atRestEncryptionEnabled: true
    authEnabled: false
    automaticFailoverEnabled: true
    cacheNodeType: cache.t3.micro
    cacheParameterGroupName: default.redis5.0
    cacheSubnetGroupName: dev-dev1-cache-subnet-group
    engine: redis
    engineVersion: 5.0.6
    numCacheClusters: 3
    port: 6379
    preferredMaintenanceWindow: tue:02:00-tue:03:00
    region: eu-west-1
    replicationGroupDescription: dev/robgates-redis-with-sg
    securityGroupIds:
    - sg-0d3a26d0467c76eed
    snapshotWindow: 03:00-04:00
    tags:
    - key: Owner
      value: crossplane
    transitEncryptionEnabled: false

Looking in CloudTrail, I can see constant (every 30s) calls to the ModifyNetworkInterfaceAttribute event, constantly updating each of the replicationgroup's enis with the reference to the securitygroup specified.

{
    "eventVersion": "1.08",
    "userIdentity": {
        "type": "AssumedRole",
...
        "sessionContext": {
            "sessionIssuer": {
                "type": "Role",
...
                "userName": "AWSServiceRoleForElastiCache"
            },
            "webIdFederationData": {},
            "attributes": {
                "creationDate": "2021-12-18T11:28:17Z",
                "mfaAuthenticated": "false"
            }
        },
        "invokedBy": "ec.amazonaws.com"
    },
    "eventTime": "2021-12-18T11:28:17Z",
    "eventSource": "ec2.amazonaws.com",
    "eventName": "ModifyNetworkInterfaceAttribute",
    "awsRegion": "eu-west-1",
    "sourceIPAddress": "ec.amazonaws.com",
    "userAgent": "ec.amazonaws.com",
    "requestParameters": {
        "networkInterfaceId": "eni-01f3ba00b4b809dae",
        "groupSet": {
            "items": [
                {
                    "groupId": "sg-0d3a26d0467c76eed"
                }
            ]
        }
    },
    "responseElements": {
        "requestId": "61bbee3c-abad-4d1b-b215-dd0a5bbf1f6f",
        "_return": true
    },
    "requestID": "61bbee3c-abad-4d1b-b215-dd0a5bbf1f6f",
    "eventID": "a0a1ff88-ae10-4131-a3e9-103d80ad15de",
    "readOnly": false,
    "eventType": "AwsApiCall",
    "managementEvent": true,
...
    "eventCategory": "Management"
}

Is this known, or have similar things been observed before? It obviously means that the connection secret is never created as the elasticache replicationgroup never settles.

Crossplane: v1.4.1
AWS Provider: v0.20.0

[nicolasbelanger]

Any updates on this one? We just deployed our first ReplicationGroup and got a similar symptom, constantly modifying after a few seconds... In the status I can see that it might have to do with resharding?

    pendingModifiedValues:
      resharding:
        slotMigration:
          progressPercentage: 0

[nicolasbelanger]

Any updates on this one? We just deployed our first ReplicationGroup and got a similar symptom, constantly modifying after a few seconds... In the status I can see that it might have to do with resharding?

    pendingModifiedValues:
      resharding:
        slotMigration:
          progressPercentage: 0

Looks resolved by setting engineVersion: 6.x (previously engineVersion: 6.2)...

[chlunde]

Do you still see this @robertgates55 ? I have not seen this issue.

[JMoserCricut]

We're still seeing this issue @chlunde using provider-aws v0.33.0 and crossplane v1.8.1

Same errors, same cloudtrail logs of ModifyNetworkInterfaceAttribute. We've tried applying the engineVersion as 6.x as @nicolasbelanger mentioned but it didn't resolve our issue

[chlunde]

We don't see this. Here's an example. Can you set that securitygroup successfully using the console?

  forProvider:
    applyModificationsImmediately: false
    atRestEncryptionEnabled: true
    authEnabled: true
    automaticFailoverEnabled: true
    cacheNodeType: cache.t3.micro
    cacheParameterGroupName: redis6-parameters
    cacheSubnetGroupName: cache-subnet-group
    cacheSubnetGroupNameRefs:
      name: cache-subnet-group
    engine: redis
    engineVersion: 6.x
    numNodeGroups: 1
    port: 6379
    preferredMaintenanceWindow: sat:01:00-sat:02:00
    region: eu-north-1
    replicasPerNodeGroup: 1
    replicationGroupDescription: Elasticache redis
    securityGroupIdRefs:
    - name: sg-name
    securityGroupIdSelector:
      matchControllerRef: true
    securityGroupIds:
    - sg-123 # a real one..
    snapshotRetentionLimit: 0
    snapshotWindow: 03:30-04:30
# tags skipped
    transitEncryptionEnabled: true

[haooliveira84]

The same problem happens in the upgrade between 6.x to 7.x

[haooliveira84]

I've updated the provider for the v0.38.0 and it has been solved! 🚀
