extstats

Export Metrics from Asus RT-AX88U Router into influxDB

ALPHA Version! Dont use in production yet!

Install

/usr/sbin/curl --retry 3 "https://raw.githubusercontent.com/corgan2222/extstats/master/extstats.sh" -o "/jffs/scripts/extstats" && chmod 0755 /jffs/scripts/extstats && /jffs/scripts/extstats install

Setup

check the Wiki https://github.com/corgan2222/extstats/wiki/Setup

Requirements

running influxDB

Features

Installer and Update Script
Shell "GUI" Database Setup
Debug and Test Functions
Dependency Test
Export these Metrics from AsusWRT-Merlin into InfluxDB

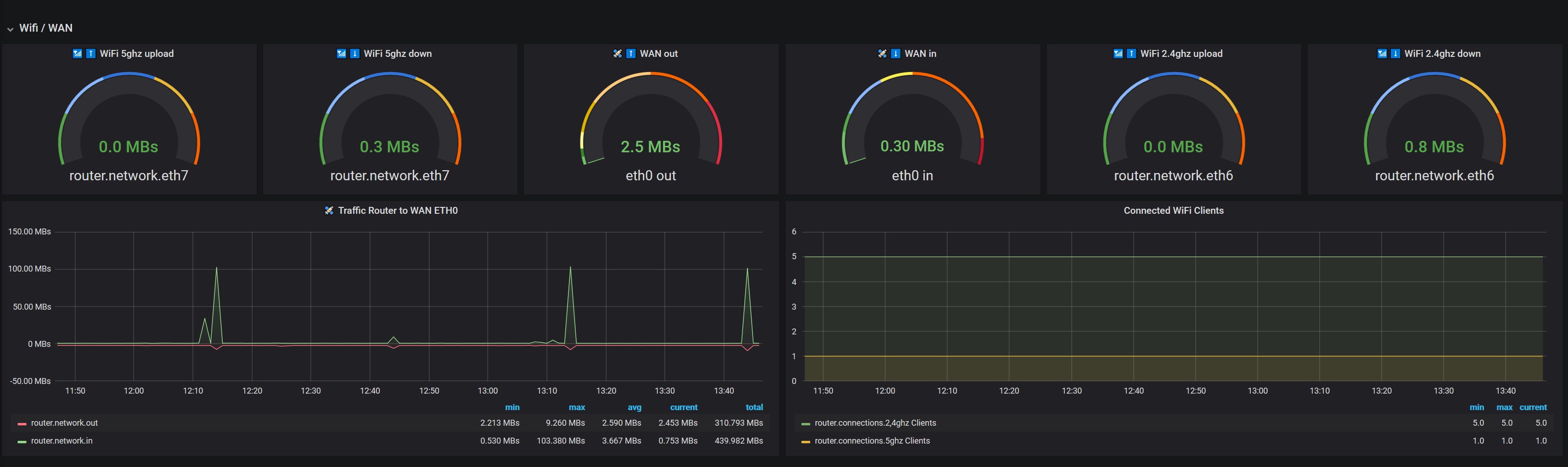

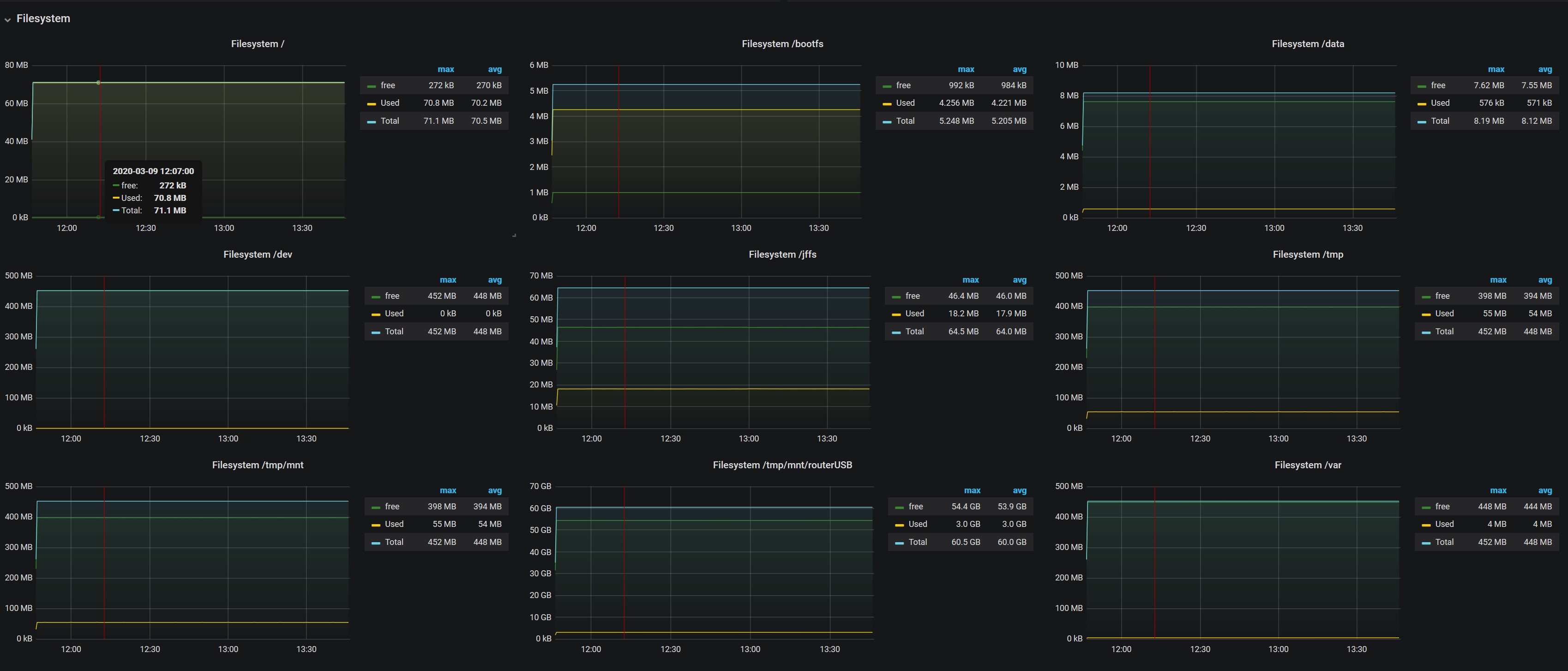

Basis Stats like CPU, Memory, Processes, Network, uptime, Filesystem, Swap https://github.com/corgan2222/extstats/wiki/mod_basic

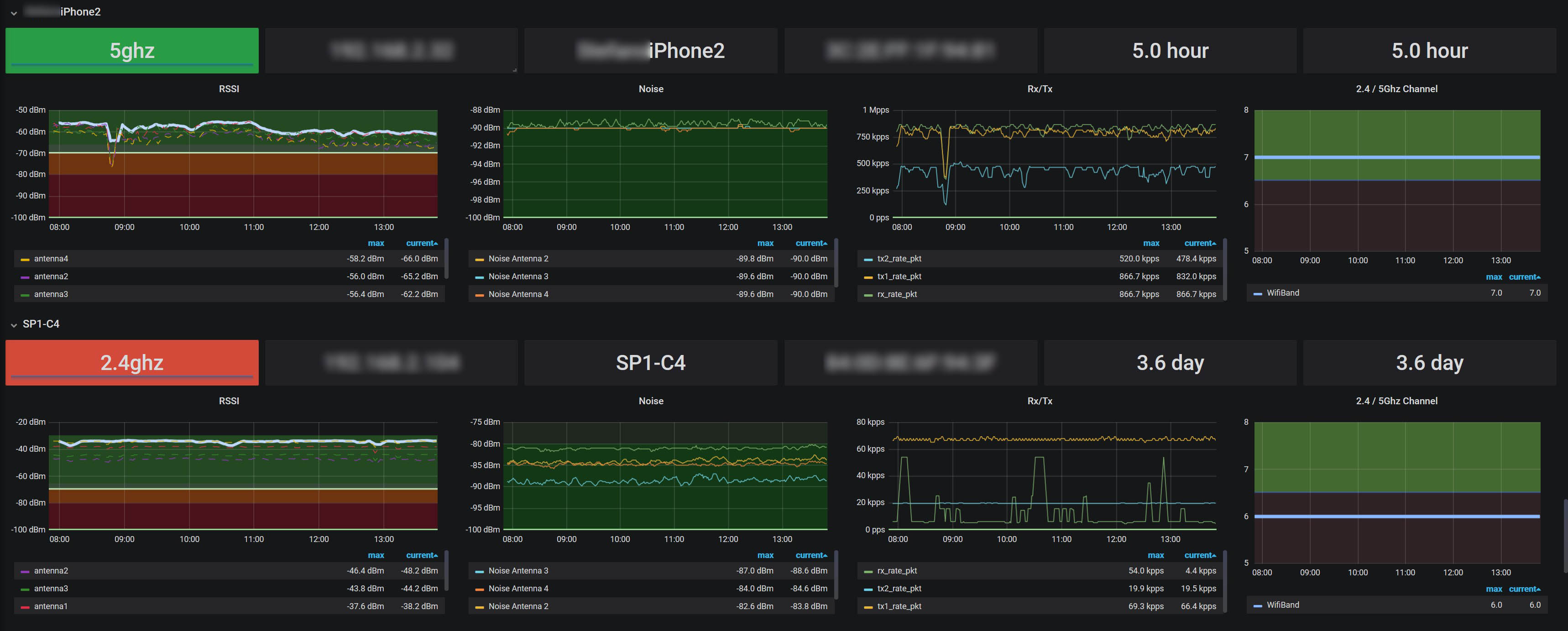

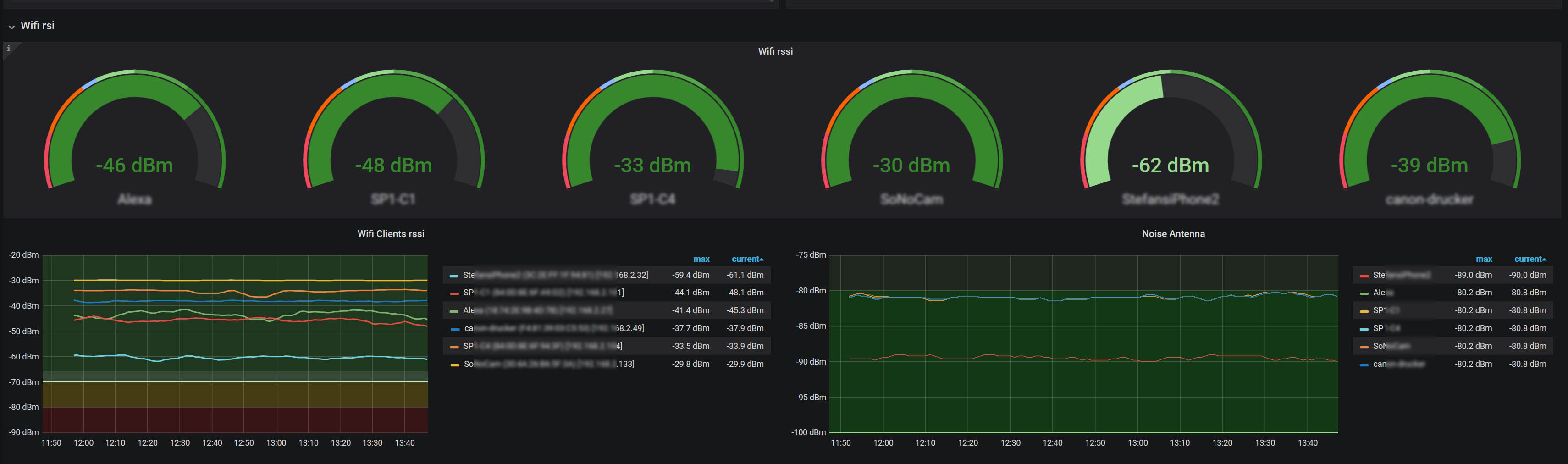

Extended WiFi Informations for each Client https://github.com/corgan2222/extstats/wiki/mod_wifi_clients

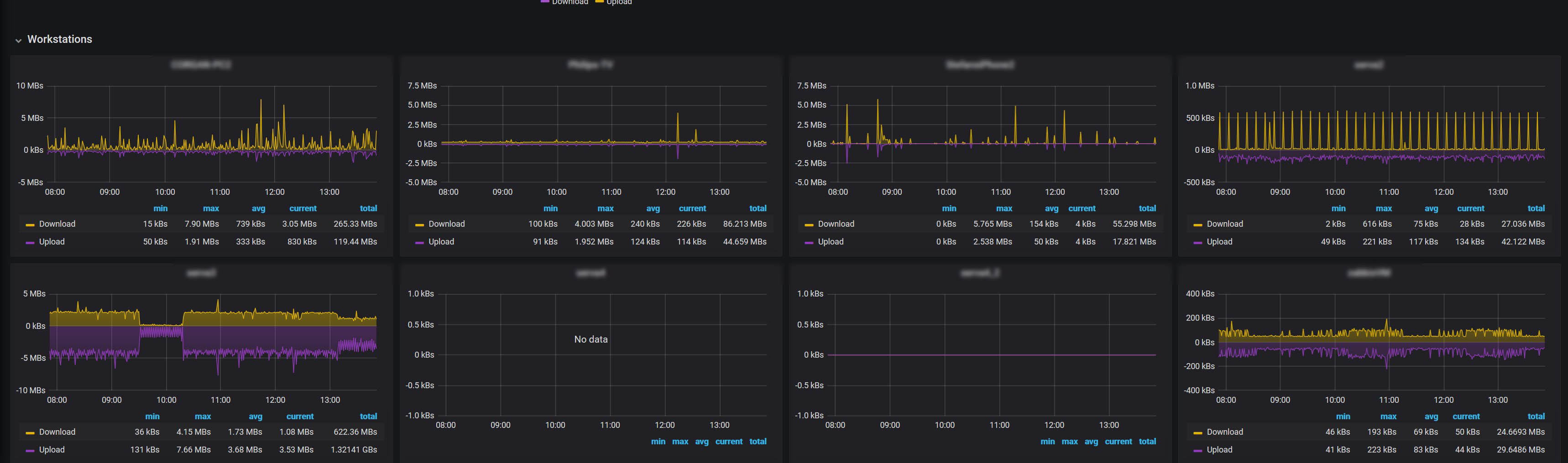

Traffic Analyser per Client https://github.com/corgan2222/extstats/wiki/mod_client_traffic

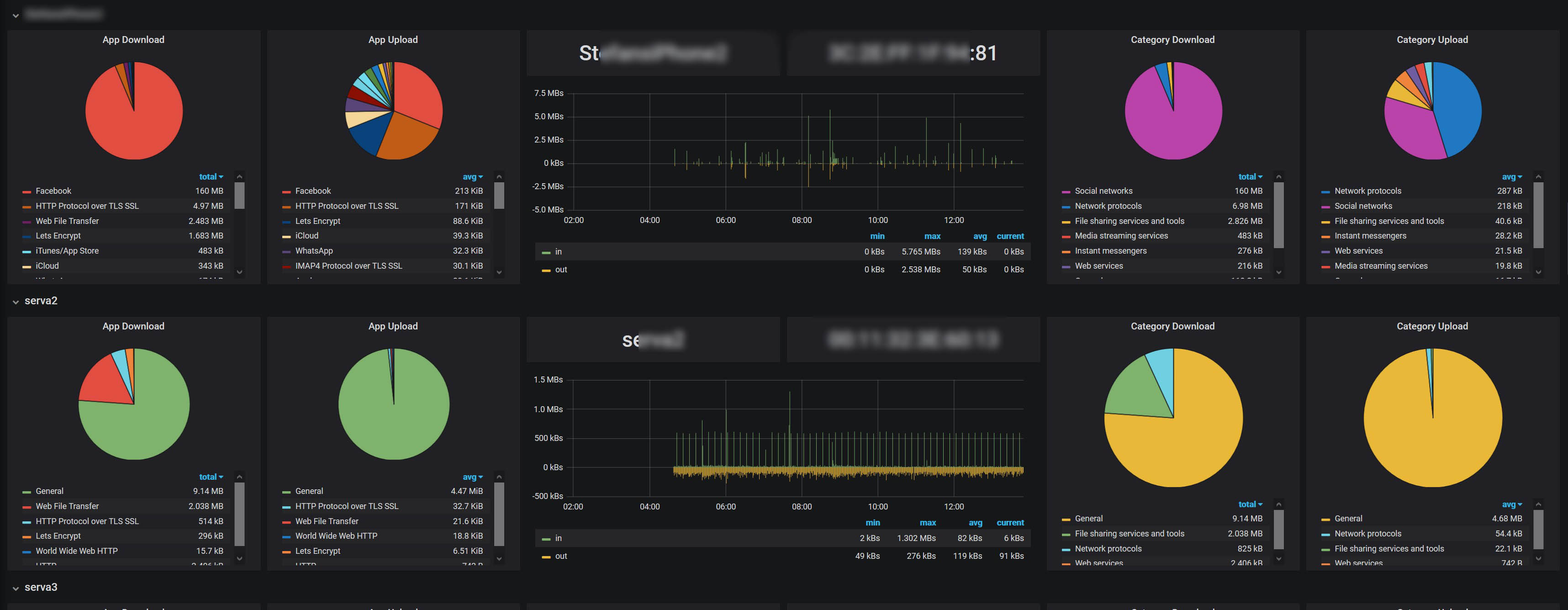

Export the Asus internal Traffic Analyser Data https://github.com/corgan2222/extstats/wiki/mod_trafficAnalyzer
VPN Statistics https://github.com/corgan2222/extstats/wiki/mod_vpn_client
Support for Conmon Stats (Uptime Monitoring) connmon | Jack Yaz https://github.com/corgan2222/extstats/wiki/mod_constats-(Uptime-Monitoring)
Support for spdMerlin Stats (Speedtest Data) spdMerlin | Jack Yaz https://github.com/corgan2222/extstats/wiki/mod_spdstats-(Speedtest-Monitoring)

Known Bugs

if you running aiMesh, the WiFi Clients are not shown

ToDos

autostart service
make it compatible with other asusWRT routers
integrate with Conmon and spdStats, that the plugins can share there data easy, without parsing the database
import Diversion Data
make a template for user, to easy integrate there informations
show database infos, like MEASUREMENTS counts
database management, move and delete data from database
show database infos in the asus webui
refactor code, remove redundant code

Help needed

if you are an advanced user or developer, please helpt o port this on other asus routers. I only have the RT-AX88U.
how to get the wifi client informations, like rssi and antenna data if using aimesh
how to get cpu temperature
is there any nvram, asusWRT developer documentation that are not public? couldnt found any asuswrt specific docs.

disclamer

Im not a linux guru and i have done this for my personal use and put a lot of work into this script to make it public availible. For shure are there better, performanter or easyier ways to do some task. So if you have tips how to improve this script, im more than happy if you let me know. stefan [@] knaak.org
