Add message queue view/action support

[m-tyler]

trafficstars

If I run a program that has an error, like running an interactive program in batch, the job the program runs in gets an error. I cannot reply to that error unless I open a 5250 session run DSPMSG QSYSOPR and answer my job message. I would like to have a feature to see these messages and reply to them.

This feature should be flexible enough to add any MSGQ to view.

THanks, Matt

[worksofliam]

An awesome idea.

FIrst step is to look into what commands, APIs or SQL services we could use to fetch items from a message queue. If you know any, feel free to share them here.

[m-tyler]

INQUIRY using SQL (taken from ACS RUN SQL Scripts Examples)

-- -- category: IBM i Services -- description: Message Handling - Review system operator inquiry messages

-- Examine all system operator inquiry messages that have a reply (runs along time)

SELECT a.message_text AS "INQUIRY", b.message_text AS "REPLY", B.FROM_USER, B.*, A.* FROM qsys2.message_queue_info a INNER JOIN qsys2.message_queue_info b ON a.message_key = b.associated_message_key WHERE A.MESSAGE_QUEUE_NAME = 'QSYSOPR' AND A.MESSAGE_QUEUE_LIBRARY = 'QSYS' AND B.MESSAGE_QUEUE_NAME = 'QSYSOPR' AND B.MESSAGE_QUEUE_LIBRARY = 'QSYS' ORDER BY b.message_timestamp DESC;

-- -- category: IBM i Services -- description: Message Handling - Review system operator unanswered inquiry messages

-- Examine all system operator inquiry messages that have no reply (runs in acceptable time)

WITH REPLIED_MSGS(KEY) AS ( SELECT a.message_key FROM qsys2.message_queue_info a INNER JOIN qsys2.message_queue_info b ON a.message_key = b.associated_message_key WHERE A.MESSAGE_QUEUE_NAME = 'QSYSOPR' AND A.MESSAGE_QUEUE_LIBRARY = 'QSYS' AND B.MESSAGE_QUEUE_NAME = 'QSYSOPR' AND B.MESSAGE_QUEUE_LIBRARY = 'QSYS' ORDER BY b.message_timestamp DESC ) SELECT a.message_text AS "INQUIRY", A.* FROM qsys2.message_queue_info a LEFT EXCEPTION JOIN REPLIED_MSGS b ON a.message_key = b.key WHERE MESSAGE_QUEUE_NAME = 'QSYSOPR' AND MESSAGE_QUEUE_LIBRARY = 'QSYS' AND message_type = 'INQUIRY' ORDER BY message_timestamp DESC;

[worksofliam]

@m-tyler Great - thanks.

If I were to add a new view, how would you want it to look? Add many message queues and open them like a treeview?

[m-tyler]

INQUIRY and/or REPLY using system APIS

These APIs are mostly likely system version independent than using the IBM views.

Receive Nonprogram Message (QMHRCVM) API Send Reply Message (QMHSNDRM) API

[m-tyler]

I suppose you could monitor for an object type of *MSGQ and then expand (somewhere). I would prefer a grid with additional filters, but if a tree list if simpler that is the better option. The first iteration should probably be just for INQUIRY of an *MSGQ.

My first preference is in a new IBM i section.

[worksofliam]

@m-tyler I could easily create a view and then it can be moved to wherever the user would like.

What are some of the right click options you would have on entries?

[m-tyler]

Delete and Reply for starters. If you have the list be limited to the amount of data from the inquiry, you could also present a details panel to show more data.

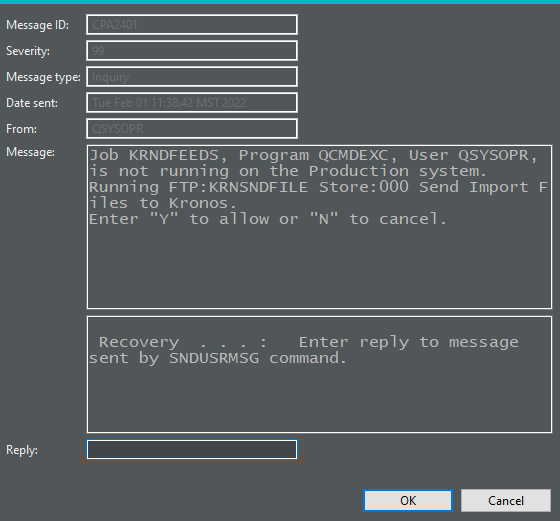

This is what we have in RDi from iSphere project.
