About KITTI format label

[deemoo-wang]

I want to know that how to make the transformation between velodyne coordinate and camera coordinate. I find that in the source code, the transformation is "centroid = (-centroid[1], centroid[2] + 2.3, centroid[0])" which means that camera coord velodyne coord x = -y y = z+2.3 z = x

I want to know why the transformation is defined like this. As I know that in KITTI dataset the coordinate are defined bellow: Camera: x = right, y = down, z = forward Velodyne: x = forward, y = left, z = up and they use callib data to transform the coordinate specifically.

[ch-sa]

Hello @deemoo-wang,

I think this question is best addressed to @sondisonda who provided this transformation as I asked the same question.

So afaik the 2.3m is the distance from floor to the camera but I would also like to have an official specification for this.

[Divelix]

@ch-sa 3d bboxes locations in KITTI labels are given in camera frame (not LIDAR frame, unfortunately for us), so we have to calculate camera-to-lidar transformation manually for each pointcloud+label pair (using corresponding calib file).

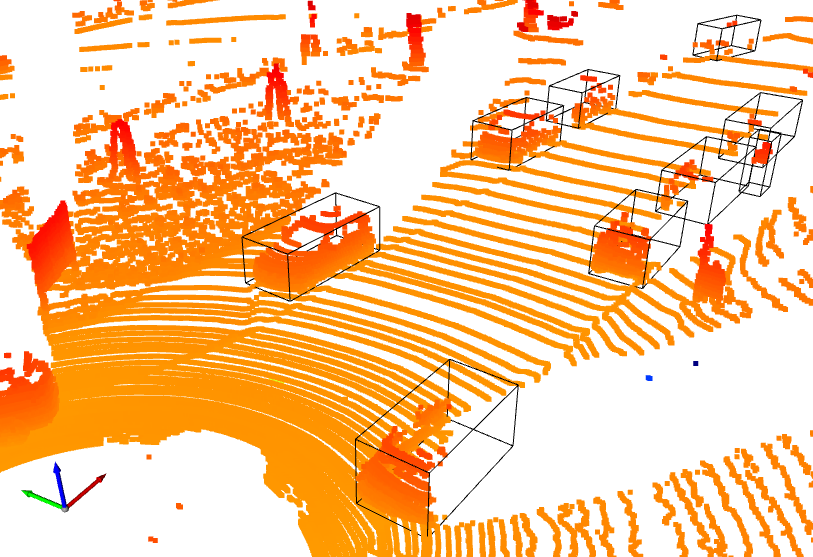

My result with open3d (I can send code, if needed):

There are specific steps for each label:

1. Get R0_rect and Tr_velo_to_cam fields from corresponding calib file and convert + expand them up to transformation matrices (i.e. with np.concatenate function) to make them (4x4) shape. Lets call them T_rect and T_v2c respectively.
2. Calculate lidar-to-camera transformation: T_l2c = T_rect @ T_v2c.
3. Calculate camera-to-lidar transformation: T_c2l = np.linalg.inv(T_l2c) (or more fancy inverse)
4. Extract 3d bbox location from label (lets call it loc) and append ones to make it homogeneous: [x, y, z] -> [x, y, z, 1]
5. Transform 3d bbox location to lidar frame via our T_c2l: loc = T_c2l @ loc.
6. Repeat 1-5 for each label+calib file pairs in dataset.

Note: the main idea is that camera-to-lidar transformation would be different for all clouds (cloud+label+calib), so having one hardcoded transformation for whole dataset (like it is now) is incorrect.

[ch-sa]

@Divelix thanks for the detailed clarification.

So basically we would need to support reading the calibration files for every point cloud, right?

Are you interested in creating a PR for this, I can support you in the integration once the base functions are there.

I probably won't find time to address this soon.

Best Christoph

[Divelix]

@ch-sa I just created PR with solution, but I assumed that calib folder is always next to labels. It is probably better to add folder selection to config.ini or even settings section of GUI.

[ch-sa]

Great, will have a look at it tomorrow!

And I can then add the config option.

Do you have an example point cloud with calib and label file you could provide, so I can test?

[Divelix]

@ch-sa Yes, there are first 11 samples from KITTI: kitti_10.zip. The last one (000010) is on my screenshot above.

[Divelix]

@ch-sa this issue can be closed now, isn't it?

[ch-sa]

Exactly, thanks!
