Kafka Connect for Zeebe.io
kafka-connect-zeebe
This Kafka Connect connector for Zeebe can do two things:
-
Send messages to a Kafka topic when a workflow instance reached a specific activity. Please note that a
message
is more precisely a kafkarecord
, which is also often namedevent
. This is a source in the Kafka Connect speak. -
Consume messages from a Kafka topic and correlate them to a workflow. This is a Kafka Connect sink.
It can work with Camunda Platform 8 SaaS or self-managed.
See this blog post for some background on the implementation.
Examples and walk-through
Examples

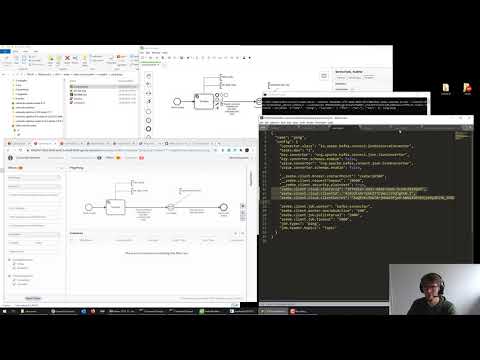

The following video walks you through an example connecting to Camunda Platform 8 - SaaS:
Installation and quickstart
You will find information on how to build the connector and how to run Kafka and Zeebe to get started quickly here:
Installation
Connectors
The plugin comes with two connectors, a source and a sink connector.
The source connector activates Zeebe jobs, publishes them as Kafka records, and completes them once they have been committed to Kafka.
Sink connector
In a workflow model you can wait for certain events by name (extracted from the payload by messageNameJsonPath):
The sink connector consumes Kafka records and publishes messages constructed from those records to Zeebe. This uses the Zeebe Message Correlation features. So for example if no matching workflow instance is found, the message is buffered for its time-to-live (TTL) and then discarded. You could simply ingest all messages from a Kafka topic and check if they correlate to something in Zeebe.
Configuration
In order to communicate with the Zeebe workflow engine, the connector has to create a Zeebe client.
Camunda SaaS Properties
If you want to connect to Camunda SaaS, you can use these properties:
-
zeebe.client.cloud.clusterId
: Cluster ID you want to connect to. The Cluster must run on the public Camunda Cloud -
zeebe.client.cloud.region
: If you don't connect to the default region (bru-2
) you can specify the region here -
zeebe.client.cloud.clientId
: Client ID for the connection. Ideally, create dedicated client credentials for this communication using the Camunda SaaS Console. -
zeebe.client.cloud.clientSecret
: The Client Secret required -
zeebe.client.requestTimeout
: timeout in milliseconds for requests to the Zeebe broker; defaults to10000
(or 10 seconds)
If you want to connect to another endpoint than the public SaaS endpoint, you can further specify:
-
zeebe.client.cloud.token.audience
: The address for which the authorization server token should be valid -
zeebe.client.cloud.authorization.server.url
: The URL of the authorization server from which the access token will be requested (by default, configured for Camunda SaaS)";
Zeebe Broker Properties
If you want to connect to a Zeebe broker hosted yourself (e.g. running on localhost), use these properties:
-
zeebe.client.broker.gateway-address
: the Zeebe gateway address, specified ashost:port
; defaults tolocalhost:26500
-
zeebe.client.requestTimeout
: timeout in milliseconds for requests to the Zeebe broker; defaults to10000
(or 10 seconds) -
zeebe.client.security.plaintext
: disable secure connections to the gateway for local development setups
Common Configuration
The Zeebe client and job workers can be configured by system properties understood by the Zeebe Java Client. Typical other properties are:
-
zeebe.client.worker.maxJobsActive
: the maximum number of jobs that the worker can activate in a single request; defaults to100
-
zeebe.client.job.worker
: the worker name; defaults tokafka-connector
-
zeebe.client.job.timeout
: how long before a job activated by the worker is made activatable again to others, in milliseconds; defaults to5000
(or 5 seconds) -
job.types
: a comma-separated list of job types that should be consumed by the connector; defaults tokafka
-
job.header.topics
: the custom service task header which specifies to which topics the message should be published to; defaults tokafka-topic
You can find sample properties for the source connector here.
Sink
The connector does support schemas, but only supports JSON. The connector will use JSON path to extract certain properties from this JSON data:
-
message.path.correlationKey
: JSONPath query to use to extract the correlation key from the record; defaults to$.correlationKey
-
message.path.messageName
: JSONPath query to use to extract the message name from the record; defaults to$.messageName
-
message.path.timeToLive
: JSONPath query to use to extract the time to live from the record; defaults to$.timeToLive
-
message.path.variables
: JSONPath query to use to extract the variables from the record; defaults to$.variables
You can find sample properties for the sink connector here.
Source
Similar to receiving a message, the process can also create records. In your BPMN process model you can add a ServiceTask with a configurable task type which will create a record on the configured Kafka topic:
Under the hood, the connector will create one job worker that publishes records to Kafka. The record value is a JSON representation of the job itself, the record key is the job key.
Filtering Variables
You can filter the variables being sent to Kafka by adding a configuration option "job.variables" to your source properties. It must contain a comma-separated list of variables to pass to Kafka.
If this property is not present, then all variables in the scope will be sent to Kafka by default.
{
"name": "ping",
"config": {
...
"job.variables": "a, b, andSomeVariableC",
...
Configuring Error Handling of Kafka Connect, e.g. Logging or Dead Letter Queues
Kafka Connect allows you to configure what happens if a message cannot be processed. A great explanation can be found in Kafka Connect Deep Dive – Error Handling and Dead Letter Queues. This of course also applies to this connector.
Remote Debugging During Development
To ease with development, you can add this environment variable to kafka-connect:
"JAVA_TOOL_OPTIONS": "-agentlib:jdwp=transport=dt_socket,address=*:5005,server=y,suspend=n"
And then use remote debugging
Confluent Hub
This project is set up to be released on Confluent Hub.
When
- Building this project via
mvn package
- You will find the plugin package as ZIP file under
target/components/packages
, e.g.target/components/packages/zeebe-io-kafka-connect-zeebe-1.0.0.zip
- Which can be installed onto the Confluent Hub
