Figure 6.1.3.35.F and Figure 6.1.3.41.J show deprecated elements

[CamChatHel]

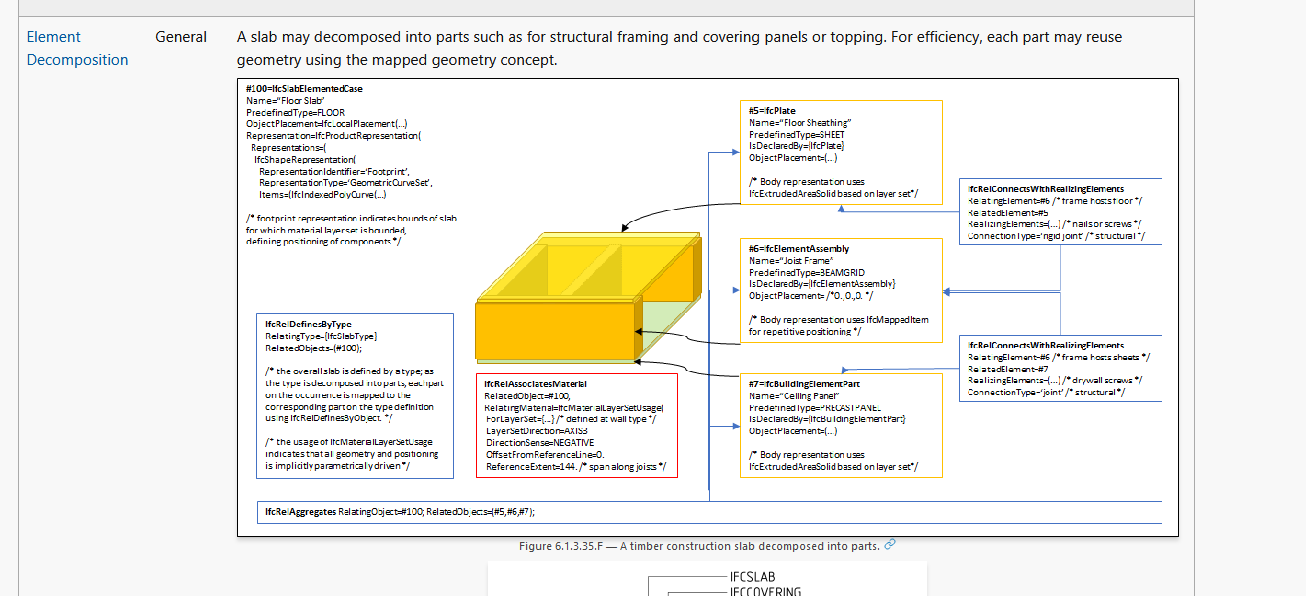

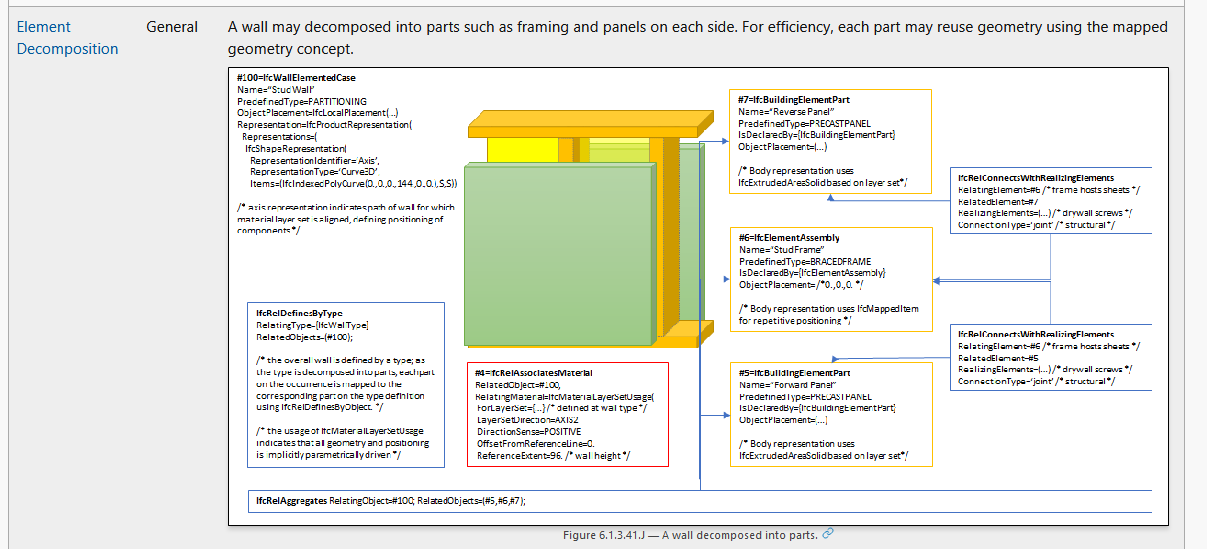

The Figure 6.1.3.35.F and Figure 6.1.3.41.J show IfcWallElementedCase and IfcSlabElementedCase. Both are deprecated and should not be used in the pictures to explain Element Decomposition of IfcWall and IfcSlab.

[aothms]

I remember discussing this with @Moult I think the line of reasoning was that these images are still applicable except for the usage of the deprecated entities. And are very illustrative at doing so. I see two options:

• Quickly paint over the images to remove the -ElementCase (we don't have the resources to recreate them I assume)
• Add a quick note in the image caption that, going forward, to explain that the element to be instantiate is IfcWall/Slab without the ElementedCase.

Thanks for reporting this. Any help is appreciated here :) These are all just markdown edits. https://github.com/buildingSMART/IFC4.3.x-development/blob/master/docs/schemas/shared/IfcSharedBldgElements/Entities/IfcWall.md#element-decomposition

For reference:

http://ifc43-docs.standards.buildingsmart.org/IFC/RELEASE/IFC4x3/HTML/lexical/IfcSlab.htm

http://ifc43-docs.standards.buildingsmart.org/IFC/RELEASE/IFC4x3/HTML/lexical/IfcWall.htm

[TLiebich]

+1 for "Quickly paint over the images to remove the -ElementCase (we don't have the resources to recreate them I assume)" - I also do not have the original files for these two figures

but we should modify them, since the elemented case classes are not only deprecated but actually removed
