spektrum receiver bound, no response in receiver tab

[omribrand7]

Describe the bug

all the bars are frozen and not responsive to my rc in receiver tab

To Reproduce

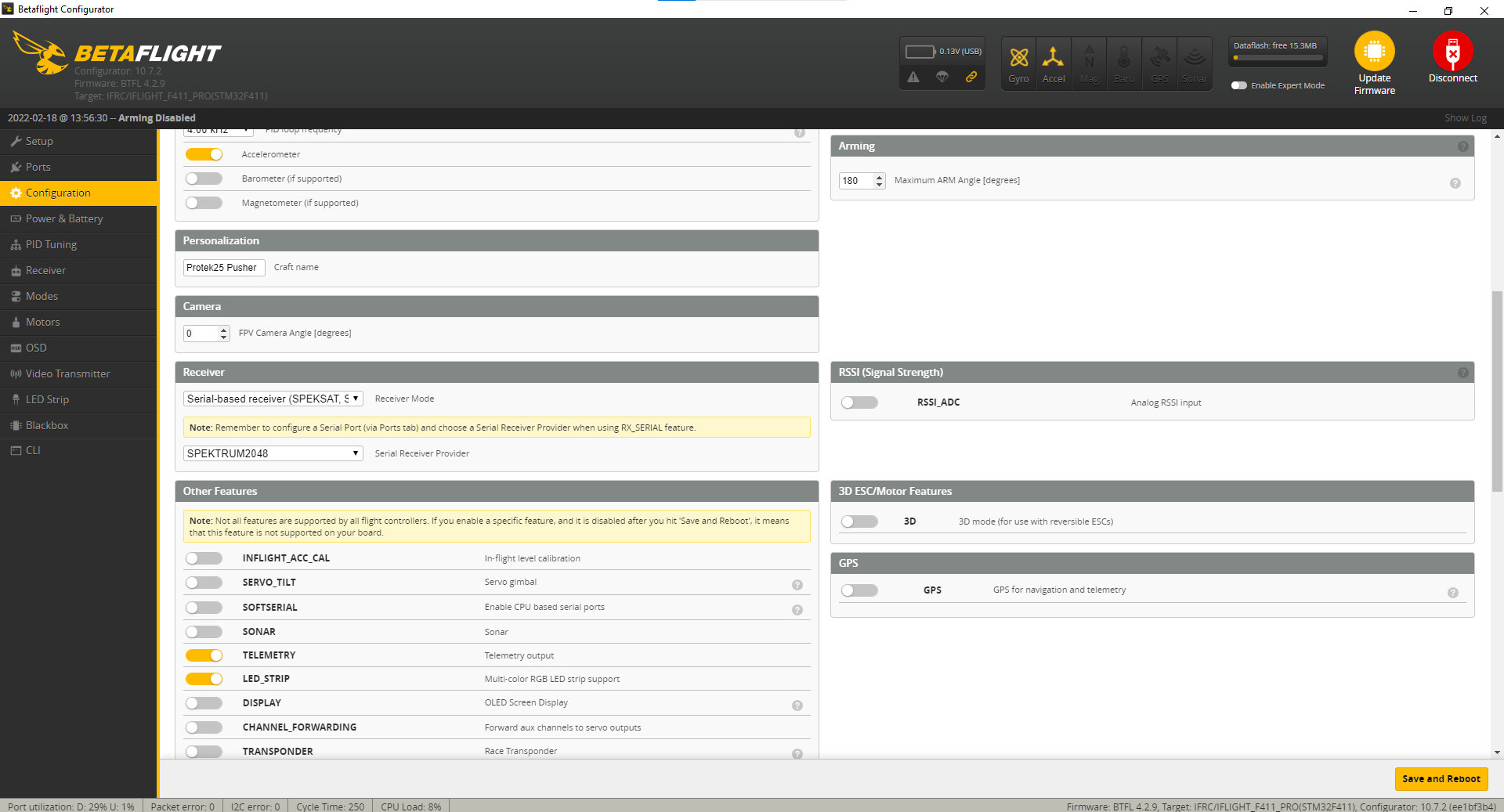

hello I bought a new iflight protek 25 pusher pnp version, the problem is when i try to see the receiver tab all the bars are frozen and not responsive to my rc i plugged in brand new spektrum spm4648 receiver and bind it from the cli tab in betaflight ( set spektum_sat_bind = 9 ) and the bind succeeded i enabled serial rx in uart2 (as written in the manual) i set receiver mode to serial-based receiver and set the serial receiver provider to SPEKTRUM2048 in configuration tab i also tired to type set serialrx_inverted = off in the cli i saw that the receiver need to get 3.3v and the port is 5v so i installed a 3.3V STEP-DOWN VOLTAGE REGULATOR after all this steps the problem didn't solved so i tried to connect frsky sbus receiver and it worked well, all the bars was responsive to the rc but when i connected again the spektrum receiver the problem didn't solved

my full setup is iflight protek 25 pusher spektrum dx8 rc spektrum spm4648 receiver ( with 3.3V STEP-DOWN VOLTAGE REGULATOR ) I'm sure that the rc and receiver working well because i tested them on my 5 intch quad

Expected behavior

please help me to understand what I'm doing wrong and solve my problem

Configurator version

10.7.2

Flight controller configuration

version

Betaflight / STM32F411 (S411) 4.2.9 Jun 14 2021 / 23:20:52 (e097f4ab7) MSP API: 1.43

###ERROR: diff: NO CONFIG FOUND###

start the command batch

batch start

board_name IFLIGHT_F411_PRO manufacturer_id IFRC

name: Protek25 Pusher

resources

resource BEEPER 1 B02 resource MOTOR 1 B06 resource MOTOR 2 B07 resource MOTOR 3 A00 resource MOTOR 4 B10 resource PPM 1 A03 resource LED_STRIP 1 A08 resource SERIAL_TX 1 A09 resource SERIAL_TX 2 A02 resource SERIAL_RX 1 A10 resource SERIAL_RX 2 A03 resource I2C_SCL 1 B08 resource I2C_SDA 1 B09 resource LED 1 C13 resource LED 2 C14 resource SPI_SCK 1 A05 resource SPI_SCK 2 B13 resource SPI_SCK 3 B03 resource SPI_MISO 1 A06 resource SPI_MISO 2 B14 resource SPI_MISO 3 B04 resource SPI_MOSI 1 A07 resource SPI_MOSI 2 B15 resource SPI_MOSI 3 B05 resource ADC_BATT 1 B00 resource ADC_CURR 1 B01 resource FLASH_CS 1 A15 resource OSD_CS 1 B12 resource GYRO_EXTI 1 A01 resource GYRO_CS 1 A04 resource USB_DETECT 1 C15

timer

timer A03 AF3

pin A03: TIM9 CH2 (AF3)

timer A00 AF1

pin A00: TIM2 CH1 (AF1)

timer B10 AF1

pin B10: TIM2 CH3 (AF1)

timer B06 AF2

pin B06: TIM4 CH1 (AF2)

timer B07 AF2

pin B07: TIM4 CH2 (AF2)

timer A08 AF1

pin A08: TIM1 CH1 (AF1)

dma

dma ADC 1 0

ADC 1: DMA2 Stream 0 Channel 0

dma pin A00 0

pin A00: DMA1 Stream 5 Channel 3

dma pin B10 0

pin B10: DMA1 Stream 1 Channel 3

dma pin B06 0

pin B06: DMA1 Stream 0 Channel 2

dma pin B07 0

pin B07: DMA1 Stream 3 Channel 2

dma pin A08 0

pin A08: DMA2 Stream 6 Channel 0

feature

feature -RX_PARALLEL_PWM feature RX_SERIAL feature TELEMETRY feature LED_STRIP feature OSD

beacon

beacon RX_LOST beacon RX_SET

map

map TAER1234

serial

serial 1 64 115200 57600 0 115200

led

led 0 0,0::L:0 led 1 1,0::L:0 led 2 2,0::L:0 led 3 3,0::L:0

aux

aux 0 0 0 1700 2100 0 0 aux 1 1 1 900 2100 0 0 aux 2 13 3 1700 2100 0 0 aux 3 35 1 1700 2100 0 0

vtxtable

vtxtable bands 5 vtxtable channels 8 vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 0 5885 5905 0 0 vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable powerlevels 4 vtxtable powervalues 25 200 400 600 vtxtable powerlabels 25 200 400 600

master

set acc_calibration = 6,-4,27,1 set mag_hardware = NONE set baro_bustype = I2C set baro_i2c_device = 1 set baro_hardware = NONE set serialrx_provider = SPEK2048 set blackbox_p_ratio = 16 set blackbox_device = SPIFLASH set dshot_idle_value = 700 set dshot_burst = AUTO set dshot_bitbang = OFF set motor_pwm_protocol = DSHOT300 set align_board_roll = 180 set current_meter = ADC set battery_meter = ADC set ibata_scale = 100 set beeper_inversion = ON set beeper_od = OFF set yaw_motors_reversed = ON set small_angle = 180 set osd_warn_batt_not_full = OFF set osd_warn_core_temp = OFF set osd_rssi_pos = 342 set osd_link_quality_pos = 310 set osd_rssi_dbm_pos = 299 set osd_tim_2_pos = 2453 set osd_flymode_pos = 2413 set osd_vtx_channel_pos = 2421 set osd_current_pos = 2400 set osd_mah_drawn_pos = 2432 set osd_craft_name_pos = 2471 set osd_warnings_pos = 14666 set osd_avg_cell_voltage_pos = 2369 set osd_disarmed_pos = 2336 set system_hse_mhz = 8 set debug_mode = GYRO_SCALED set vtx_band = 5 set vtx_channel = 3 set vtx_power = 1 set vtx_freq = 5732 set max7456_spi_bus = 2 set flash_spi_bus = 3 set gyro_1_bustype = SPI set gyro_1_spibus = 1 set gyro_1_sensor_align = CW180 set gyro_1_align_yaw = 1800 set name = Protek25 Pusher

profile 0

profile 0

set dyn_lpf_dterm_min_hz = 77 set dyn_lpf_dterm_max_hz = 187 set dterm_lowpass2_hz = 165 set feedforward_transition = 40 set iterm_relax_cutoff = 10 set yaw_lowpass_hz = 100 set p_pitch = 51 set d_pitch = 32 set f_pitch = 105 set p_roll = 46 set d_roll = 29 set f_roll = 99 set p_yaw = 50 set f_yaw = 99 set d_min_roll = 0 set d_min_pitch = 0

rateprofile 0

rateprofile 0

set rates_type = ACTUAL set roll_rc_rate = 19 set pitch_rc_rate = 19 set yaw_rc_rate = 19 set roll_expo = 60 set pitch_expo = 60 set yaw_expo = 60 set roll_srate = 90 set pitch_srate = 90 set yaw_srate = 90 set tpa_rate = 60 set tpa_breakpoint = 1280

end the command batch

batch end

Add any other context about the problem that you think might be relevant here

No response

[github-actions[bot]]

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs within a week.

[github-actions[bot]]

Issue closed automatically as inactive.

[haslinghuis]

Please flash the right target:

###ERROR: diff: NO CONFIG FOUND###
