Support for VST format

[jumpjack]

trafficstars

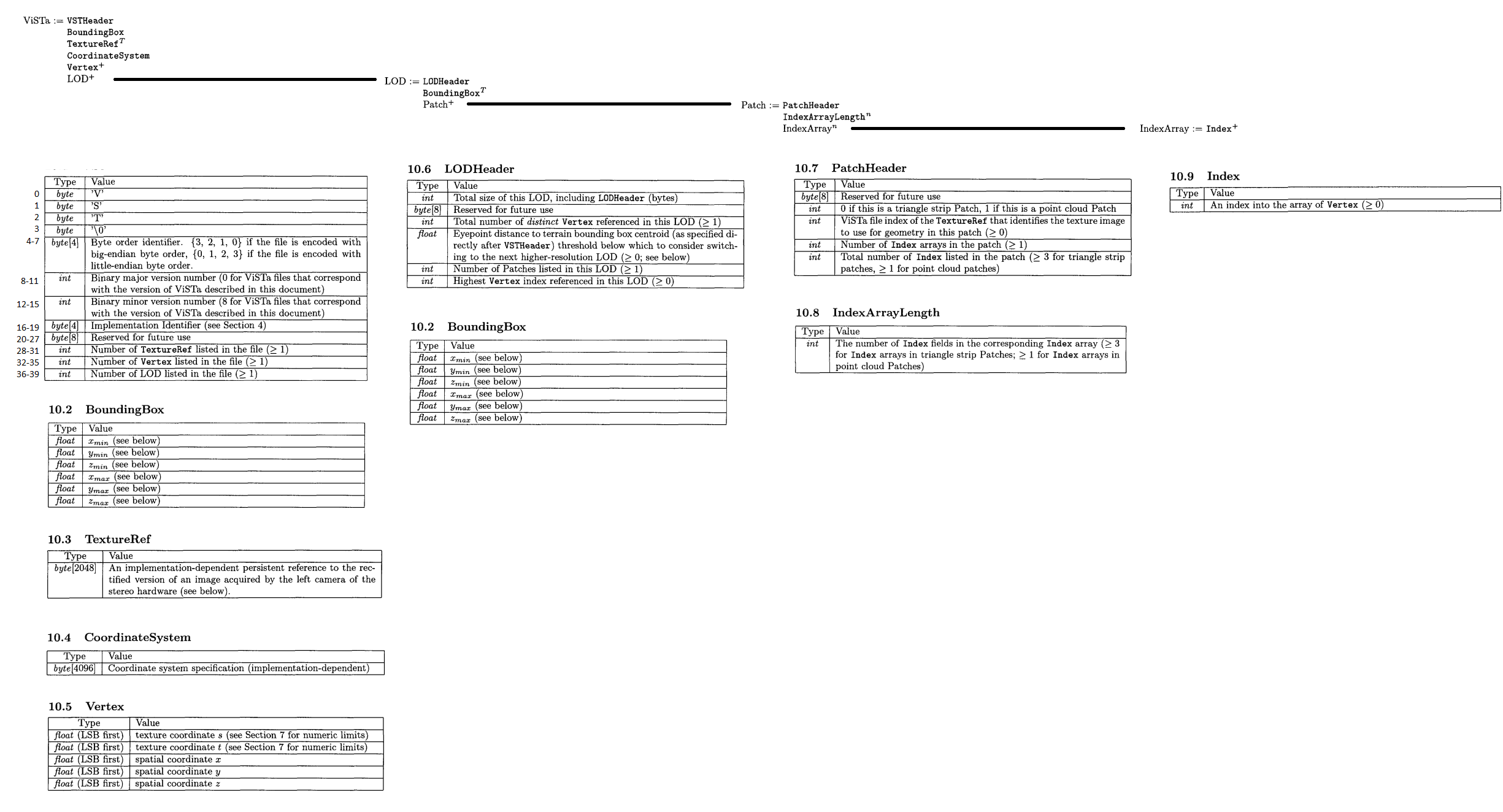

I found this ancient 3d format which apparently is not supported by any modern software: VST, used by NASA ViSTa softwtare a decade ago. Fortunately, the format is well documented, so it should not be difficult to implement it, but I am not a C++ programmer, I only know Javascript.

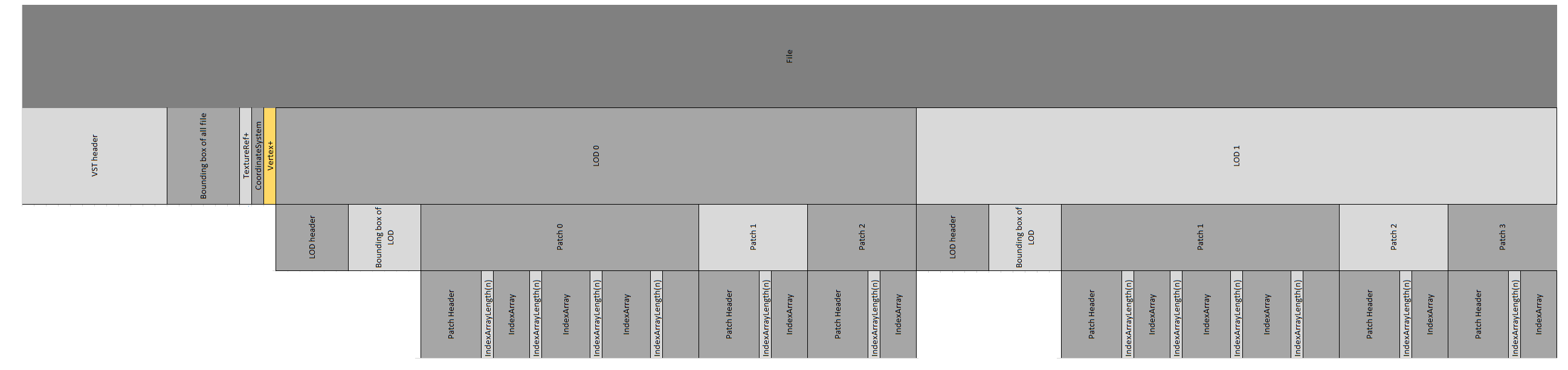

Summary diagram of the format:

It is a multi-resolution format, containing several LODs (Level Of Detail groups). Each LOD contain several "patches"; each patch is a set of faces OR of points, depending on second parameter of PatchHeader:

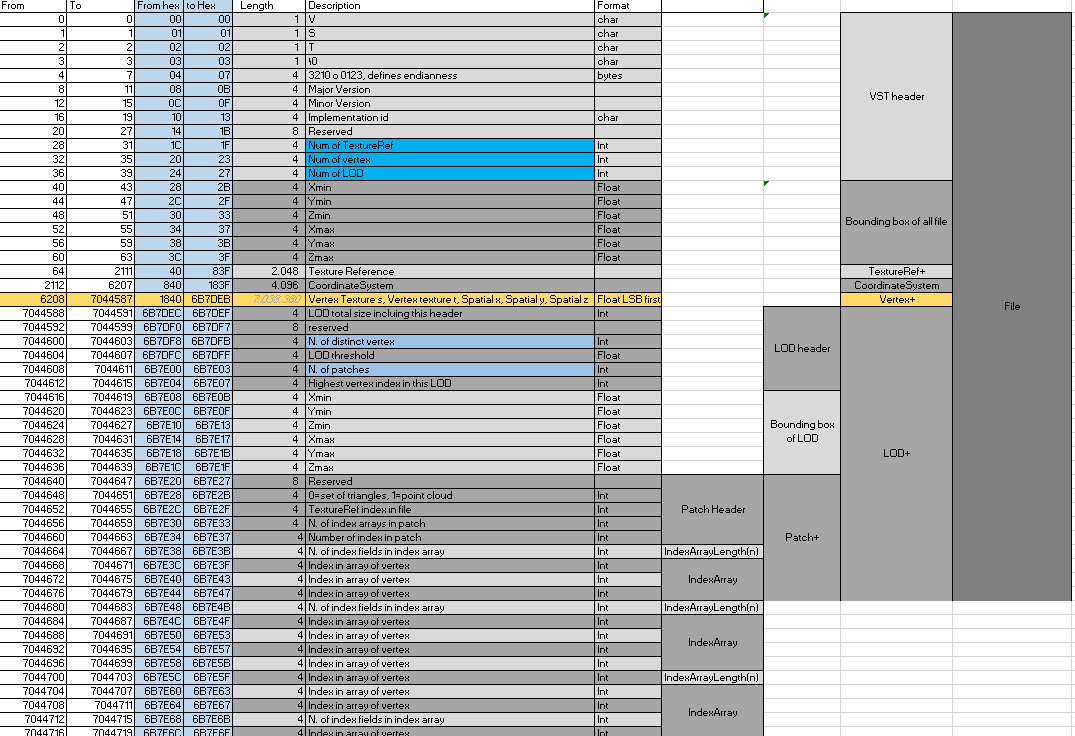

My interpretation:

Vertex are stored at the beginning of the file, after:

• "VST header" (fixed length: 40 bytes)
• Overall Bounding Box (Fixed length: 24)
• References to Textures (1 or more, depending on Int32 stored at 0x1C-0x1F, each reference being 2048 bytes long)
• "Coordinate System" (Fixed length 4096 bytes)

Hence:

Constants:

• VST_HEADER_LENGTH = 40
• TEXTURES_COUNT_OFFSET = 28
• VERTEX_COUNT_OFFSET = 32
• LODS_COUNT_OFFSET = 36
• BOUNDING_BOX_LEN = 24
• TEXTURE_REF_LEN = 2048
• COORD_SYS_LEN = 4096
• PATCH_HEADER_LEN = 24
• LOD_HEADER_LEN = 28
• SINGLE_VERTEX_LEN = 20
• PATCH_TYPE_OFFSET = 8
• PATCH_FACES_COUNT_OFFSET = 16 // Number of arrays of vertex pointers in patch
• PATCH_VERTEX_COUNT_OFFSET = 20 // Number of vertex pointers in patch

Variables:

• texturesCount: offset 0x1C-0x1F
• vertexCount: offset 0x20-0x23
• vertexOffset = VST_HEADER_LENGTH + BOUNDING_BOX_LEN + texturesCount * TEXTURE_REF_LEN + COORD_SYS_LEN (for one texture: dec6208, 0x1840 )
• totalVertexLength = vertexCount * SINGLE_VERTEX_LEN
• first_LOD_offset = vertexOffset + totalVertexLength
• firstPatchOffset = first_LOD_offset + LOD_HEADER_LEN + BOUNDING_BOX_LEN
• firstPatchTypeOffset = firstPatchOffset + PATCH_TYPE_OFFSET
• firstPatchLen = offset(firstPatchOffset + PATCH_FACES_COUNT_OFFSET) + offset(firstPatchOffset + PATCH_VERTEX_COUNT_OFFSET)
• facesCount: must parse whole LOD to count how many "faces" ("index arrays") are present in each patch of the LOD.

---

VST format was used to produce hundreds of file for NASA Missions "Spirit" and "Opportunity" ("MER rovers"): https://pds-imaging.jpl.nasa.gov/data/mer/spirit/mer2mw_0xxx/data/navcam/site0137/

The textures referenced as .IMG files in the .VST files are actually contained in .RGB files with same name (.IMG are NASA multiband images).

Example association: 2n292280938vilb100p0703l0m1.vst file points to 2N292280938RSLB100P0703L0M1.IMG , but there is no such file in folder; there is also no 2N292280938RSLB100P0703L0M1.RGB file, but there is a "similar" one, 2N292280938XYLB100P0703l0M1.RGB: the only difference is "XYL" rather than "RSL" in the name; but I think you can disregard this field: what matters are the field about rover location when picture used to create 3d model was taken:

Explanation of 2N292280938XYLB100P0703L0M1 name:

• 2 = MER2
• N = NAVCAM
• 292280938 = Timestamp
• XYL = Product type
• B1 = Site 137
• 00 = Position 0
• P0703 = Navcam Observation n.0703
• L = Left camera
• 0 = no filter
• M = Creator of the file
• 1 = version of the file

In a nutshell, all fields are mandatory to associate a VST to an RGB, but the "XYL/RSL" field.

---

Comparison to PLY format, given that texturesCount and vertexCount are known:

ply
format ascii 1.0           { ascii/binary, format version number }
comment made by anonymous  { comments keyword specified, like all lines }
element vertex VVVV          { vertexCount }
property float32 x         { ok }
property float32 y         { ok  }
property float32 z         { ok  }
element face FFFF          { number of faces in one LOD }
property list uint8 int32 vertex_index   { each face is a list of int32 pointers to vertex; how many pointers is
                                                                given by an uint8 value before the values}
end_header                 { delimits the end of the header }
0 0 0                      { start of vertex list }
0 0 1
0 1 1
0 1 0
1 0 0
1 0 1
1 1 1
1 1 0
3 0 1 2                   { start of face list; in VST all faces are triangles }
3 7 6 5
3 0 4 5
3 1 5 6
3 2 6 7
3 3 7 4

[jumpjack]

Working to my own converter: https://github.com/jumpjack/VST-converter

[jumpjack]

I successfully created my kaitai-struct definition (in KSY language) of VST format: https://github.com/jumpjack/VST-converter/blob/main/Vst.js

This allows automatic creation of C/C++ source code to create a VST object from a VST file, just by compiling the KSY file using kaitai struct: you need just to download the kaitai-struct compiler (java, working on any machine) and follow instructions to compile for your language, then use the resulting library as described here.
