apache
Cannot read more PhysicalPlans from 0, successfully read index is /var/lib/iotdb/data/wal/root.ceshi.p1.s_1/0-1662101750410-1-0-0.tsfile/wal1. The reason is java.nio.BufferUnderflowException: null
Describe the bug A clear and concise description of what the bug is.
version : 0.13.1 release
iotdb 安装完成之后；
[root@iotdb-103 logs]# /home/iotdb/sbin/start-cli.sh -h localhost -p 6667 -u root -pw root
---------------------
Starting IoTDB Cli
---------------------
_____ _________ ______ ______
|_ _| | _ _ ||_ _ `.|_ _ \
| | .--.|_/ | | \_| | | `. \ | |_) |
| | / .'`\ \ | | | | | | | __'.
_| |_| \__. | _| |_ _| |_.' /_| |__) |
|_____|'.__.' |_____| |______.'|_______/ version 0.13.1
IoTDB> login successfully
IoTDB> create storage group root.ceshi.p1.s_1;
>
> create schema template t4ceshi aligned (isa boolean encoding=RLE,isb boolean encoding=RLE,pv text encoding=DICTIONARY,
> sid int32 encoding=RLE,eq text encoding=DICTIONARY,pty int32 encoding=RLE,ityp int32 encoding=RLE,sti int64 encoding=RLE,
> pti int64 encoding=RLE,ori text encoding=PLAIN,sv text encoding=DICTIONARY,iv int32 encoding=RLE,dov double encoding=GORILLA,
> bv boolean encoding=RLE,dv int64 encoding=RLE,lv int64 encoding=RLE,stid int32 encoding=RLE,fv float encoding=RLE,
> cv text encoding=PLAIN,wv int32 encoding=RLE);
>
> set schema template t4ceshi to root.ceshi.p1.s_1;
>
>
>
> insert into root.ceshi.p1.s_1.sys3.eq1.pv2
> (timestamp,isa,isb,pv,sid,eq,pty,ityp,sti,pti,ori,sv,iv,dov,bv,dv,lv,stid,fv,cv,wv)
> aligned VALUES
> (NOW(),False,False,'ceshi',24,'ceshi',9,1,1660891161764,1660891161764,'0ce3','',null,null,
> null,null,null,19,1.1,'ceshi',null);
Msg: The statement is executed successfully.
Msg: The statement is executed successfully.
Msg: The statement is executed successfully.
Msg: The statement is executed successfully.
IoTDB>
IoTDB>
> insert into root.ceshi.p1.s_1.sys3.eq1.pv2
> (timestamp,isa,isb,pv,sid,eq,pty,ityp,sti,pti,ori,sv,iv,dov,bv,dv,lv,stid,fv,cv,wv)
> aligned VALUES
> (NOW(),False,False,'ceshi',24,'ceshi',9,1,1660891161764,1660891161764,'0ce3','',null,null,
> null,null,null,19,1.1,'ceshi',null);
Msg: The statement is executed successfully.
IoTDB>
IoTDB> insert into root.ceshi.p1.s_1.sys3.eq1.pv2
> (timestamp,isa,isb,pv,sid,eq,pty,ityp,sti,pti,ori,sv,iv,dov,bv,dv,lv,stid,fv,cv,wv)
> aligned VALUES
> (NOW(),False,False,'ceshi',24,'ceshi',9,1,1660891161764,1660891161764,'0ce3','',null,null,
> null,null,null,19,1.1,'ceshi',null);
Msg: The statement is executed successfully.
IoTDB> insert into root.ceshi.p1.s_1.sys3.eq1.pv2
> (timestamp,isa,isb,pv,sid,eq,pty,ityp,sti,pti,ori,sv,iv,dov,bv,dv,lv,stid,fv,cv,wv)
> aligned VALUES
> (NOW(),False,False,'ceshi',24,'ceshi',9,1,1660891161764,1660891161764,'0ce3','',null,null,
> null,null,null,19,1.1,'ceshi',null);
Msg: The statement is executed successfully.
IoTDB> select * from root.ceshi.p1.s_1.** align by device;
14:56:03.603 [main] DEBUG org.apache.iotdb.rpc.AutoResizingBuffer - org.apache.iotdb.rpc.AutoResizingBuffer@457c9034 expand from 1024 to 1536, request: 1107
+-----------------------------+------------------------------+--+-------------+-----+----+-------------+----+----+----+-----+----+---+---+----+----+-----+---+----+-----+-----+----+
| Time| Device|sv| pti| pv| ori| sti| dov| lv|stid| eq| iv|sid| fv| dv|ityp| cv|pty| bv| isa| isb| wv|
+-----------------------------+------------------------------+--+-------------+-----+----+-------------+----+----+----+-----+----+---+---+----+----+-----+---+----+-----+-----+----+
|2022-09-02T14:55:50.360+08:00|root.ceshi.p1.s_1.sys3.eq1.pv2| |1660891161764|ceshi|0ce3|1660891161764|null|null| 19|ceshi|null| 24|1.1|null| 1|ceshi| 9|null|false|false|null|
|2022-09-02T14:55:58.059+08:00|root.ceshi.p1.s_1.sys3.eq1.pv2| |1660891161764|ceshi|0ce3|1660891161764|null|null| 19|ceshi|null| 24|1.1|null| 1|ceshi| 9|null|false|false|null|
|2022-09-02T14:55:58.999+08:00|root.ceshi.p1.s_1.sys3.eq1.pv2| |1660891161764|ceshi|0ce3|1660891161764|null|null| 19|ceshi|null| 24|1.1|null| 1|ceshi| 9|null|false|false|null|
|2022-09-02T14:55:59.586+08:00|root.ceshi.p1.s_1.sys3.eq1.pv2| |1660891161764|ceshi|0ce3|1660891161764|null|null| 19|ceshi|null| 24|1.1|null| 1|ceshi| 9|null|false|false|null|
+-----------------------------+------------------------------+--+-------------+-----+----+-------------+----+----+----+-----+----+---+---+----+----+-----+---+----+-----+-----+----+
Total line number = 4
It costs 0.174s
IoTDB> exit

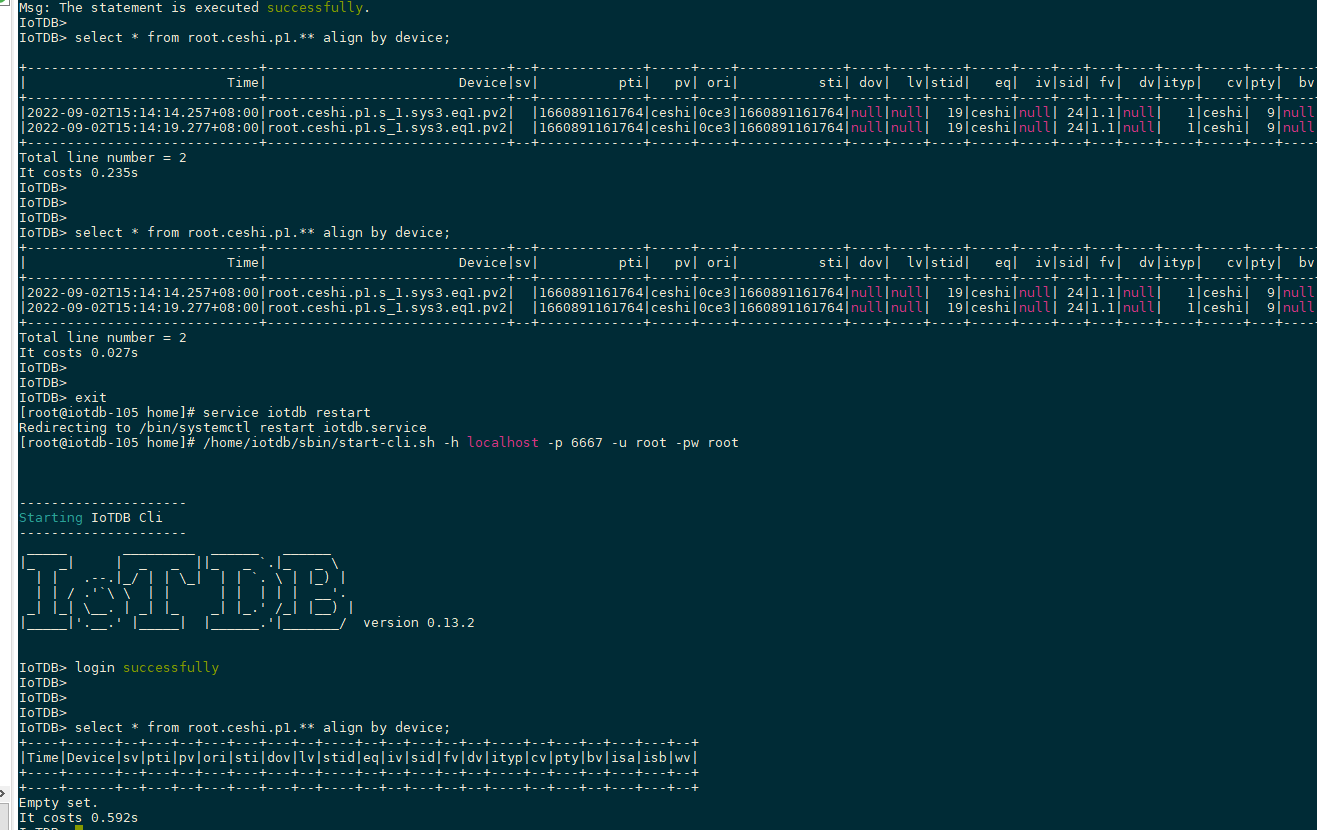

[root@iotdb-103 logs]# service iotdb restart
Redirecting to /bin/systemctl restart iotdb.service
[root@iotdb-103 logs]# /home/iotdb/sbin/start-cli.sh -h localhost -p 6667 -u root -pw root
---------------------
Starting IoTDB Cli
---------------------
_____ _________ ______ ______
|_ _| | _ _ ||_ _ `.|_ _ \
| | .--.|_/ | | \_| | | `. \ | |_) |
| | / .'`\ \ | | | | | | | __'.
_| |_| \__. | _| |_ _| |_.' /_| |__) |
|_____|'.__.' |_____| |______.'|_______/ version 0.13.1
IoTDB> login successfully
IoTDB> select * from root.ceshi.p1.s_1.** align by device;
+----+------+--+---+--+---+---+---+--+----+--+--+---+--+--+----+--+---+--+---+---+--+
|Time|Device|sv|pti|pv|ori|sti|dov|lv|stid|eq|iv|sid|fv|dv|ityp|cv|pty|bv|isa|isb|wv|
+----+------+--+---+--+---+---+---+--+----+--+--+---+--+--+----+--+---+--+---+---+--+
+----+------+--+---+--+---+---+---+--+----+--+--+---+--+--+----+--+---+--+---+---+--+
Empty set.
It costs 0.297s
IoTDB>
操作代码：
create storage group root.ceshi.p1.s_1;
create schema template t4ceshi aligned (isa boolean encoding=RLE,isb boolean encoding=RLE,pv text encoding=DICTIONARY,
sid int32 encoding=RLE,eq text encoding=DICTIONARY,pty int32 encoding=RLE,ityp int32 encoding=RLE,sti int64 encoding=RLE,
pti int64 encoding=RLE,ori text encoding=PLAIN,sv text encoding=DICTIONARY,iv int32 encoding=RLE,dov double encoding=GORILLA,
bv boolean encoding=RLE,dv int64 encoding=RLE,lv int64 encoding=RLE,stid int32 encoding=RLE,fv float encoding=RLE,
cv text encoding=PLAIN,wv int32 encoding=RLE);
set schema template t4ceshi to root.ceshi.p1.s_1;
insert into root.ceshi.p1.s_1.sys3.eq1.pv2
(timestamp,isa,isb,pv,sid,eq,pty,ityp,sti,pti,ori,sv,iv,dov,bv,dv,lv,stid,fv,cv,wv)
aligned VALUES
(NOW(),False,False,'ceshi',24,'ceshi',9,1,1660891161764,1660891161764,'0ce3','',null,null,
null,null,null,19,1.1,'ceshi',null);
重启iotdb的错误日志：

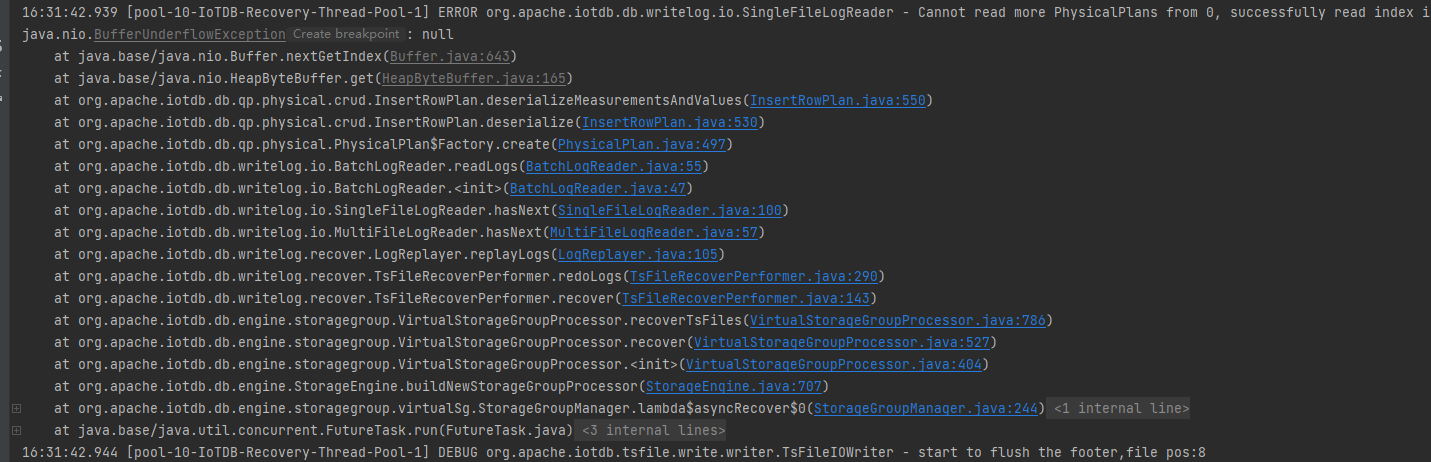

2022-09-02 14:56:14,415 [pool-10-IoTDB-Recovery-Thread-Pool-1] ERROR o.a.i.d.w.i.SingleFileLogReader:108 - Cannot read more PhysicalPlans from 0, successfully read index is /var/lib/iotdb/data/wal/root.ceshi.p1.s_1/0-1662101750410-1-0-0.tsfile/wal1. The reason is
java.nio.BufferUnderflowException: null
at java.base/java.nio.Buffer.nextGetIndex(Buffer.java:647)
at java.base/java.nio.HeapByteBuffer.getInt(HeapByteBuffer.java:388)
at org.apache.iotdb.tsfile.utils.ReadWriteIOUtils.readInt(ReadWriteIOUtils.java:519)
at org.apache.iotdb.db.qp.physical.crud.InsertRowPlan.fillValues(InsertRowPlan.java:459)
at org.apache.iotdb.db.qp.physical.crud.InsertRowPlan.deserializeMeasurementsAndValues(InsertRowPlan.java:533)
at org.apache.iotdb.db.qp.physical.crud.InsertRowPlan.deserialize(InsertRowPlan.java:518)
at org.apache.iotdb.db.qp.physical.PhysicalPlan$Factory.create(PhysicalPlan.java:497)
at org.apache.iotdb.db.writelog.io.BatchLogReader.readLogs(BatchLogReader.java:55)
at org.apache.iotdb.db.writelog.io.BatchLogReader.<init>(BatchLogReader.java:47)
at org.apache.iotdb.db.writelog.io.SingleFileLogReader.hasNext(SingleFileLogReader.java:100)
at org.apache.iotdb.db.writelog.io.MultiFileLogReader.hasNext(MultiFileLogReader.java:57)
at org.apache.iotdb.db.writelog.recover.LogReplayer.replayLogs(LogReplayer.java:105)
at org.apache.iotdb.db.writelog.recover.TsFileRecoverPerformer.redoLogs(TsFileRecoverPerformer.java:290)
at org.apache.iotdb.db.writelog.recover.TsFileRecoverPerformer.recover(TsFileRecoverPerformer.java:143)
at org.apache.iotdb.db.engine.storagegroup.VirtualStorageGroupProcessor.recoverTsFiles(VirtualStorageGroupProcessor.java:786)
at org.apache.iotdb.db.engine.storagegroup.VirtualStorageGroupProcessor.recover(VirtualStorageGroupProcessor.java:527)
at org.apache.iotdb.db.engine.storagegroup.VirtualStorageGroupProcessor.<init>(VirtualStorageGroupProcessor.java:404)
at org.apache.iotdb.db.engine.StorageEngine.buildNewStorageGroupProcessor(StorageEngine.java:707)
at org.apache.iotdb.db.engine.storagegroup.virtualSg.StorageGroupManager.lambda$asyncRecover$0(StorageGroupManager.java:244)
at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
at java.base/java.lang.Thread.run(Thread.java:834)
Screenshots If applicable, add screenshots to help explain your problem.
Desktop (please complete the following information):
- OS: [e.g. iOS] CentOS Linux release 7.9.2009 (Core)
- Browser [e.g. chrome, safari]
- Version [e.g. 22] v0.13.1 release
Additional context Add any other context about the problem here.

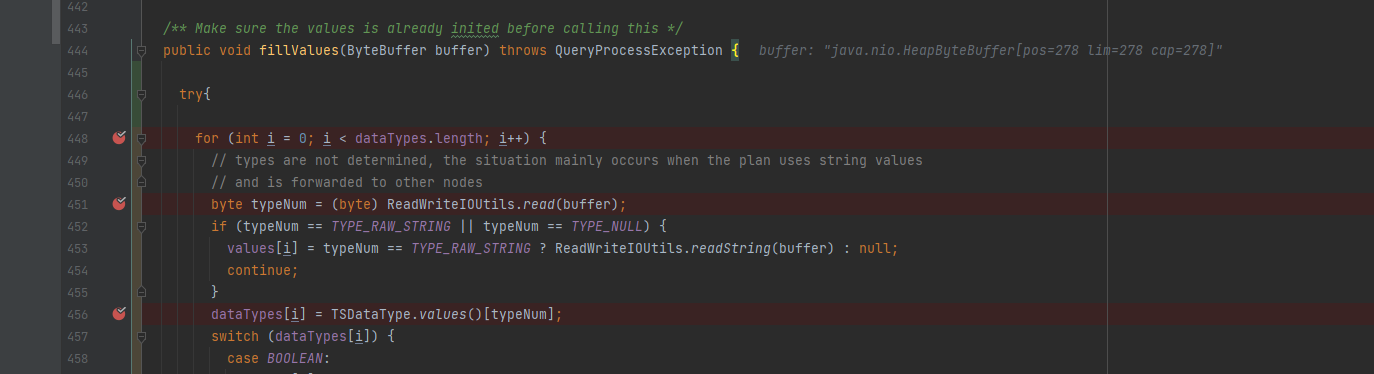

DEBUG 发现当 i=17 时，即已经从buffer 读取0~16的数据后，buffer 就已经读取到末尾。
Hi. Thanks for reporting this bug. We have found the cause and will fix it as soon as possible.
希望能尽快，非常着急，因为这个问题我们软件的发布推迟了一版。
感谢
祝好！
北京城建智控科技股份有限公司
BEIJING URBAN CONSTRUCTION INTELLIGENT CONTROL CO.,LTD.
骆胜杰 | 研发部
地址/Add：北京市朝阳区西坝河南里22号华桐大厦
@.***
手机/Mob：+86-15120004204
保密声明：
此文件中可能含有机密类信息，仅限于上方提到的人员使用。若非以上人员或负责将该信息传送给上述人员的职员或代理人，严禁对此文件作任何形式的汇报、散布、传播及复制。若非此文件的指定收件人，请立即以邮件形式联系发件人并销毁所有原始文件的拷贝。
CONFIDENTIALITY NOTICE:
The information contained in this transmission may contain privileged and confidential information and is intended only for the use of the person(s) named above. If you are not the intended recipient, or an employee or agent responsible for delivering this message to the intended recipient, any review, dissemination, distribution or duplication of this communication is strictly prohibited. If you are not the intended recipient, please contact the sender immediately by reply e-mail and destroy all copies of the original message.
---- Replied Message ---- | From | Chen @.> | | Date | 9/2/2022 18:46 | | To | @.> | | Cc | @.> , @.> | | Subject | Re: [apache/iotdb] Cannot read more PhysicalPlans from 0, successfully read index is /var/lib/iotdb/data/wal/root.ceshi.p1.s_1/0-1662101750410-1-0-0.tsfile/wal1. The reason is java.nio.BufferUnderflowException: null (Issue #7211) |
Hi. Thanks for reporting this bug, we will fix it as soon as possible.
— Reply to this email directly, view it on GitHub, or unsubscribe. You are receiving this because you authored the thread.Message ID: @.***>
The bug is fixed, you can compile the latest the code on rel/0.13 branch to verify it.
